RM3660EC _95 ADAS / AD _139716 ADVANCED DRIVER ASSISTANCE SYSTEM _0584841 CAMERA HEATER(for NR Series Engine) A

ADVANCED DRIVER ASSISTANCE SYSTEM CAMERA HEATER(for NR Series Engine) REMOVAL

PROCEDURE

Hide Display 8646C 1.REMOVE FORWARD RECOGNITION CAMERA

Click hereADAS / AD>ADVANCED DRIVER ASSISTANCE SYSTEM>FRONT CAMERA (for NR Series Engine)>REMOVAL202304,999999,_95,_139716,_0584840,RM1000000029I33,

Hide Display 86401 2.REMOVE FORWARD RECOGNITION WITH HEATER HOOD SUB-ASSEMBLY

NOTICE:

0,0 0,0 false

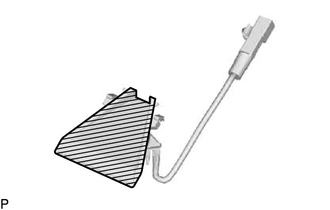

Inner Surface of Forward Recognition with Heater Hood Sub-assembly

Do not touch the inner surface of the forward recognition with heater hood sub-assembly.

Do not apply force to the heating element of the forward recognition with heater hood sub-assembly or an open circuit may result.

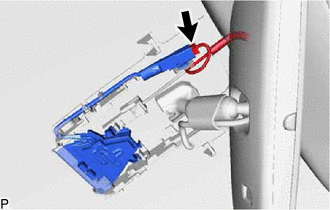

Disconnect the connector.

NOTICE:: Do not pull the harness forcibly when disconnecting the connector.

1.333,0.354 1.844,0.688 false 0.344,0.896 0.667,1.24 false 0.354,0.906 0.813,1.115 false 0.344,0.896 0.563,1.354 false 1.125,0.25 1.313,0.427 0.188,0.177 10 true *a 0.115,0.802 0.323,0.979 0.208,0.177 10 true *b 2.031,0.594 2.146,0.781 0.115,0.188 10 true 1 0.99,1.115 1.125,1.271 0.135,0.156 10 true 2 0.792,1.24 0.927,1.406 0.135,0.167 10 true 3 0.365,1.323 0.5,1.49 0.135,0.167 10 true 4

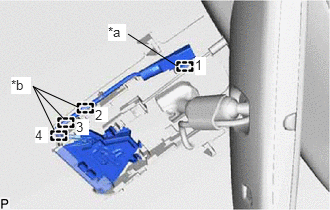

*a	Clamp
*b	Rib

Disengage the clamp and 3 ribs.

HINT:: Disengage the clamp and ribs in the order shown in the illustration.

0,0 0,0 false

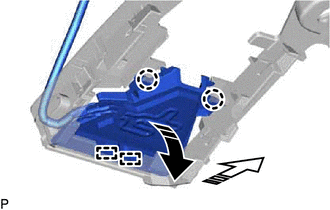

	Remove in this Direction (1)
	Remove in this Direction (2)

Pull the forward recognition with heater hood sub-assembly in the direction indicated by the arrow (1) shown in the illustration to disengage the 2 claws.

Pull the forward recognition with heater hood sub-assembly in the direction indicated by the arrow (2) shown in the illustration to disengage the 2 guides and remove the forward recognition with heater hood sub-assembly.
