MAINTENANCE BRAKE VACUUM HOSE(for Gasoline Model) REMOVAL

PROCEDURE

Hide Display 1.REMOVE WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY

Click hereVehicle Exterior>WIPER / WASHER>FRONT WIPER MOTOR>REMOVAL201906,202304,_59,_080767,_0392873,RM100000001HTNQ,202304,202307,_59,_080767,_0392873,RM100000002AYHJ,202307,999999,_59,_080767,_0392873,RM100000002CL7Q,

Hide Display 55737B 2.REMOVE NO. 1 HEATER AIR DUCT SPLASH SHIELD SEAL (w/ No. 1 Heater Air Duct Splash Shield Seal)

Click hereSuspension>FRONT SUSPENSION>FRONT SHOCK ABSORBER>REMOVAL202104,202304,_53,_080764,_0392681,RM100000001W5KX_01_0045,202304,202307,_53,_080764,_0392681,RM100000002BA6Q_01_0045,202307,999999,_53,_080764,_0392681,RM100000002CW5B_01_0045,

Hide Display 55701J 3.REMOVE OUTER COWL TOP PANEL SUB-ASSEMBLY

Click hereSuspension>FRONT SUSPENSION>FRONT SHOCK ABSORBER>REMOVAL202104,202304,_53,_080764,_0392681,RM100000001W5KX_01_0036,202304,202307,_53,_080764,_0392681,RM100000002BA6Q_01_0036,202307,999999,_53,_080764,_0392681,RM100000002CW5B_01_0036,

Hide Display 44772 4.REMOVE CHECK VALVE TO CONNECTOR TUBE HOSE (for NR Series Engine)

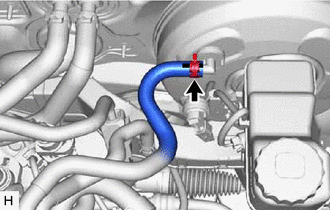

Slide the clip and disconnect the check valve to connector tube hose from the brake booster assembly.

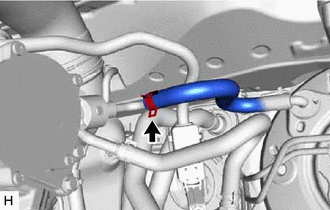

Slide the clip and remove the check valve to connector tube hose from the vacuum pump assembly.

Remove the 2 clips from the check valve to connector tube hose.

Hide Display 44772 5.REMOVE CHECK VALVE TO CONNECTOR TUBE HOSE (for M20A-FKS, M20C-FKS, M20E-FKS)

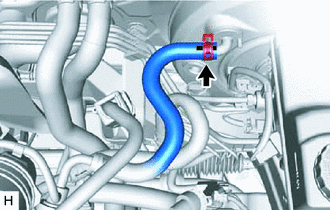

Slide the clip and disconnect the check valve to connector tube hose from the brake booster assembly.

Disengage the clamp to separate the check valve to connector tube hose.

Slide the clip and remove the check valve to connector tube hose from the No. 1 vacuum hose connector.

Remove the 2 clips from the check valve to connector tube hose.

Hide Display 44772 6.REMOVE CHECK VALVE TO CONNECTOR TUBE HOSE (for M15A-FKS, M15B-FKS, M15C-FKS)

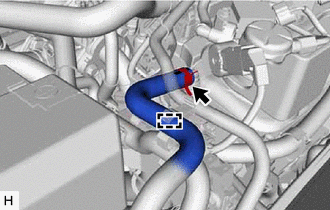

Slide the clip and disconnect the check valve to connector tube hose from the brake booster assembly.

Disengage the clamp to separate the check valve to connector tube hose.

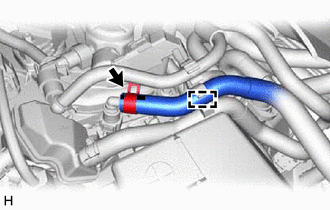

Slide the clip and remove the check valve to connector tube hose from the No. 1 vacuum hose connector.

Remove the 2 clips from the check valve to connector tube hose.

Hide Display 44777 7.REMOVE NO. 1 VACUUM HOSE CONNECTOR (for M20A-FKS, M20C-FKS, M20E-FKS)

2.542,3.729 2.188,4.146 2.188,4.146 2.104,4.146 true 2.542,3.531 2.188,3.083 2.188,3.083 2.104,3.083 true 1.948,4.063 2.26,4.219 0.313,0.156 10 false *a 1.948,2.99 2.26,3.146 0.313,0.156 10 false *a

*a	Retainer
	Pinch
	Pull off

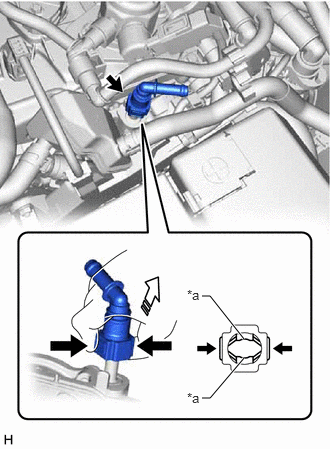

Pinch the retainer of the No. 1 vacuum hose connector, and then pull the No. 1 vacuum hose connector off of the vacuum pump assembly.

NOTICE:: Be sure to remove the No. 1 vacuum hose connector by hand.

Hide Display 44777 8.REMOVE NO. 1 VACUUM HOSE CONNECTOR (for M15A-FKS, M15B-FKS, M15C-FKS)

2.542,3.729 2.188,4.146 2.188,4.146 2.104,4.146 true 2.542,3.531 2.188,3.083 2.188,3.083 2.104,3.083 true 1.948,4.063 2.26,4.219 0.313,0.156 10 false *a 1.948,2.99 2.26,3.146 0.313,0.156 10 false *a

*a	Retainer
	Pinch
	Pull off

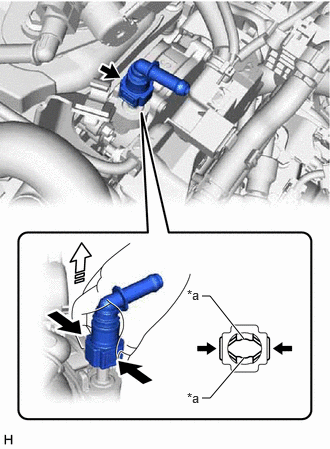

Pinch the retainer of the No. 1 vacuum hose connector, and then pull the No. 1 vacuum hose connector off of the vacuum pump assembly.

NOTICE:: Be sure to remove the No. 1 vacuum hose connector by hand.
