PARK ASSIST / MONITORING  TOYOTA PARKING ASSIST-SENSOR SYSTEM(w/ Parking Support Brake System)  C1AE787  Ultrasonic Sensor (Rear Left Center) Missing Message


DESCRIPTION

This DTC is stored when an open circuit or short occurs in the communication line between the rear center ultrasonic sensor LH and the rear center ultrasonic sensor RH, or when a malfunction occurs in the rear center ultrasonic sensor LH.

DTC No. Detection Item DTC Detection Condition Trouble Area
C1AE787 Ultrasonic Sensor (Rear Left Center) Missing Message Rear center ultrasonic sensor LH lost communication
·

Rear center ultrasonic sensor LH

·

Harness or connector

·

Clearance warning ECU assembly

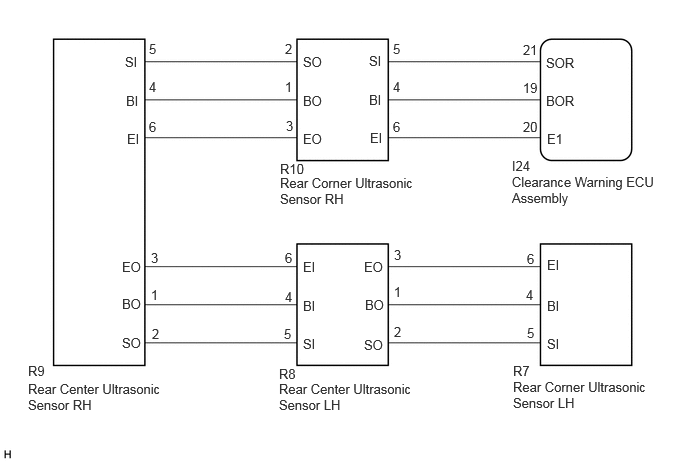

WIRING DIAGRAM

E410435E36
3.844,0.958 4.083,1.208 0.24,0.25 10 false BI 3.854,1.354 4.042,1.542 0.188,0.188 10 false EI 3.844,0.552 4.073,0.781 0.229,0.229 10 false SI 3.156,0.563 3.458,0.781 0.302,0.219 10 false SO 3.156,1.365 3.458,1.594 0.302,0.229 10 false EO 3.156,0.969 3.49,1.229 0.333,0.26 10 false BO 1.313,0.969 1.583,1.188 0.271,0.219 10 false BI 1.323,1.365 1.594,1.604 0.271,0.24 10 false EI 1.302,0.563 1.583,0.813 0.281,0.25 10 false SI 1.271,3.49 1.531,3.74 0.26,0.25 10 false SO 1.271,2.698 1.531,2.917 0.26,0.219 10 false EO 1.271,3.083 1.573,3.396 0.302,0.313 10 false BO 5.698,3.5 5.979,3.74 0.281,0.24 10 false SI 5.698,3.104 5.979,3.354 0.281,0.25 10 false BI 5.698,2.677 6.031,2.958 0.333,0.281 10 false EI 4.094,0.427 4.25,0.583 0.156,0.156 10 false 5 2.969,0.823 3.073,0.979 0.104,0.156 10 false 1 2.969,0.427 3.073,0.583 0.104,0.156 10 false 2 4.094,1.24 4.25,1.396 0.156,0.156 10 false 6 4.094,0.823 4.25,0.979 0.156,0.156 10 false 4 2.979,1.229 3.083,1.385 0.104,0.156 10 false 3 1.552,0.427 1.708,0.583 0.156,0.156 10 false 5 1.573,2.99 1.729,3.146 0.156,0.156 10 false 1 1.583,3.396 1.74,3.552 0.156,0.156 10 false 2 1.552,1.24 1.74,1.406 0.188,0.167 10 false 6 1.552,0.823 1.74,0.99 0.188,0.167 10 false 4 1.573,2.604 1.729,2.76 0.156,0.156 10 false 3 5.49,3.385 5.594,3.542 0.104,0.156 10 false 5 5.49,2.615 5.635,2.792 0.146,0.177 10 false 6 5.479,2.99 5.583,3.146 0.104,0.156 10 false 4 3.156,3.5 3.385,3.74 0.229,0.24 10 false SI 3.156,2.698 3.385,2.948 0.229,0.25 10 false EI 3.156,3.104 3.406,3.344 0.25,0.24 10 false BI 3.792,2.698 4.094,2.958 0.302,0.26 10 false EO 3.792,3.51 4.052,3.708 0.26,0.198 10 false SO 3.802,3.094 4.063,3.323 0.26,0.229 10 false BO 4.104,2.573 4.26,2.729 0.156,0.156 10 false 3 2.969,3.01 3.083,3.167 0.115,0.156 10 false 4 2.958,3.396 3.073,3.552 0.115,0.156 10 false 5 4.104,3.375 4.26,3.531 0.156,0.156 10 false 2 4.104,2.958 4.26,3.115 0.156,0.156 10 false 1 2.969,2.604 3.094,2.781 0.125,0.177 10 false 6 2.906,3.813 3.177,4 0.271,0.188 10 false R8 0.292,3.781 0.615,3.99 0.323,0.208 10 false R9 5.333,1.813 6.844,2.135 1.51,0.323 10 false Clearance Warning ECU Assembly 5.688,0.573 6.115,0.781 0.427,0.208 10 false SOR 5.698,1.365 6.156,1.615 0.458,0.25 10 false E1 5.688,0.969 6.135,1.198 0.448,0.229 10 false BOR 5.448,0.438 5.74,0.677 0.292,0.24 10 false 21 5.448,1.24 5.708,1.427 0.26,0.188 10 false 20 5.448,0.833 5.677,1.031 0.229,0.198 10 false 19 5.333,1.646 5.792,1.833 0.458,0.188 10 false I24 5.344,3.781 5.677,4.021 0.333,0.24 10 false R7 2.917,1.677 3.26,1.896 0.344,0.219 10 false R10 5.344,3.948 6.813,4.302 1.469,0.354 10 false Rear Corner Ultrasonic Sensor LH 2.917,1.823 4.313,2.51 1.396,0.688 10 false Rear Corner Ultrasonic Sensor RH 2.906,3.969 4.313,4.521 1.406,0.552 10 false Rear Center Ultrasonic Sensor LH 0.292,3.969 1.74,4.656 1.448,0.688 10 false Rear Center Ultrasonic Sensor RH

PROCEDURE

1.VEHICLE CONDITION AND WORK DETAILS CHECK
a.

Check the vehicle condition and work details.


Result:
Result Proceed to
The clearance warning ECU assembly or ultrasonic sensor has not been replaced A
The clearance warning ECU assembly or ultrasonic sensor has been replaced B



A

2.CHECK CONNECTOR CONNECTION CONDITION (ULTRASONIC SENSOR)

B

GO TO CALIBRATION

Click hereAudio / Visual / Telematics>PARK ASSIST / MONITORING>PARKING SUPPORT BRAKE SYSTEM>CALIBRATION


2.CHECK CONNECTOR CONNECTION CONDITION (ULTRASONIC SENSOR)
a.

Check that the connector is properly connected to the rear corner ultrasonic sensor and rear center ultrasonic sensor.


Result:
Proceed to
NEXT



NEXT

3.CHECK FOR DTC
3.CHECK FOR DTC
a.

According to the display on the GTS, check for DTCs.

Body Electrical > Clearance Warning > Trouble Codes
50001 438

b.

According to the display on the GTS, clear the DTCs.

Body Electrical > Clearance Warning > Clear DTCs
50002 438

c.

Recheck for DTCs.

Body Electrical > Clearance Warning > Trouble Codes
50001 438

Result:
Result Proceed to
C1AE787 is not output A
C1AE787 is output B



A

END (CONNECTOR CONNECTION MALFUNCTION)

B

4.CHECK CONNECTOR CONNECTION CONDITION (CLEARANCE WARNING ECU ASSEMBLY)
4.CHECK CONNECTOR CONNECTION CONDITION (CLEARANCE WARNING ECU ASSEMBLY)
a.

Check that the connector is properly connected to the clearance warning ECU assembly.


Result:
Proceed to
NEXT



NEXT

5.CHECK FOR DTC
5.CHECK FOR DTC
a.

According to the display on the GTS, check for DTCs.

Body Electrical > Clearance Warning > Trouble Codes
50001 438

b.

According to the display on the GTS, clear the DTCs.

Body Electrical > Clearance Warning > Clear DTCs
50002 438

c.

Recheck for DTCs.

Body Electrical > Clearance Warning > Trouble Codes
50001 438
DTC OUTPUT COMBINATION:
Symptoms DTC Detection
C1AE987 C1AE887 C1AE787 C1AE687
Symptom 1 Not output Not output Not output Not output
Symptom 2 Output Output Output Output
Symptom 3 Not output Output Output Output
Symptom 4 Not output Not output Output Output
Symptom 5 Not output Not output Not output Output
Symptom 6 Not output Not output Output Not output


Result:
Result Proceed to
Listed under symptom 1 in combination table A
Listed under symptom 2 in combination table B
Listed under symptom 3 in combination table C
Listed under symptom 4 in combination table D
Listed under symptom 5 in combination table E
Listed under symptom 6 in combination table F



A

USE SIMULATION METHOD TO CHECK

Click hereGeneral>INTRODUCTION>HOW TO TROUBLESHOOT ECU CONTROLLED SYSTEMS>HOW TO PROCEED WITH TROUBLESHOOTING


B

GO TO CORRESPONDING FLOWCHART (TOYOTA PARKING ASSIST-SENSOR SYSTEM (C1AE987))

Click hereAudio / Visual / Telematics>PARK ASSIST / MONITORING>TOYOTA PARKING ASSIST-SENSOR SYSTEM (w/ Parking Support Brake System)>C1AE987


C

GO TO CORRESPONDING FLOWCHART (TOYOTA PARKING ASSIST-SENSOR SYSTEM (C1AE887))

Click hereAudio / Visual / Telematics>PARK ASSIST / MONITORING>TOYOTA PARKING ASSIST-SENSOR SYSTEM (w/ Parking Support Brake System)>C1AE887


D

6.CHECK WIRE HARNESS AND CONNECTOR (REAR CENTER ULTRASONIC SENSOR RH - REAR CENTER ULTRASONIC SENSOR LH)

E

GO TO CORRESPONDING FLOWCHART (TOYOTA PARKING ASSIST-SENSOR SYSTEM [C1AE687])

Click hereAudio / Visual / Telematics>PARK ASSIST / MONITORING>TOYOTA PARKING ASSIST-SENSOR SYSTEM (w/ Parking Support Brake System)>C1AE687


F

7.REPLACE REAR CENTER ULTRASONIC SENSOR LH
6.CHECK WIRE HARNESS AND CONNECTOR (REAR CENTER ULTRASONIC SENSOR RH - REAR CENTER ULTRASONIC SENSOR LH)
a.

Disconnect the R9 rear center ultrasonic sensor RH connector.


b.

Disconnect the R8 rear center ultrasonic sensor LH connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
R9-1 (BO) - R8-4 (BI) Always Below 1 Ω
R9-2 (SO) - R8-5 (SI) Always Below 1 Ω
R9-3 (EO) - R8-6 (EI) Always Below 1 Ω
R9-1 (BO) or R8-4 (BI) - Body ground Always 10 kΩ or higher
R9-2 (SO) or R8-5 (SI) - Body ground Always 10 kΩ or higher
R9-3 (EO) or R8-6 (EI) - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

7.REPLACE REAR CENTER ULTRASONIC SENSOR LH

NG

REPAIR OR REPLACE WIRE HARNESS OR CONNECTOR

7.REPLACE REAR CENTER ULTRASONIC SENSOR LH
a.

Replace the rear center ultrasonic sensor LH with a known good one.

Click hereAudio / Visual / Telematics>PARK ASSIST / MONITORING>ULTRASONIC SENSOR (for Rear Side)>REMOVAL

HINT:

All of the sensors are interchangeable. To confirm whether a sensor is functioning normally, switch it with a known good sensor from the other end of the vehicle.



Result:
Proceed to
NEXT



NEXT

8.CHECK FOR DTC
8.CHECK FOR DTC
a.

According to the display on the GTS, check for DTCs.

Body Electrical > Clearance Warning > Trouble Codes
50001 438

b.

According to the display on the GTS, clear the DTCs.

Body Electrical > Clearance Warning > Clear DTCs
50002 438

c.

Recheck for DTCs.

Body Electrical > Clearance Warning > Trouble Codes
50001 438

Result:
Result Proceed to
No DTC is output A
"C1AE787" is output B



A

END (REAR CENTER ULTRASONIC SENSOR LH WAS DEFECTIVE)

B

REPLACE CLEARANCE WARNING ECU ASSEMBLY

Click hereAudio / Visual / Telematics>PARK ASSIST / MONITORING>CLEARANCE WARNING ECU>REMOVAL
