PARK ASSIST / MONITORING  ULTRASONIC SENSOR(for Front Side)  INSTALLATION

HINT:

Only perform this procedure when removing and installing the ultrasonic sensor cushion set.

a.

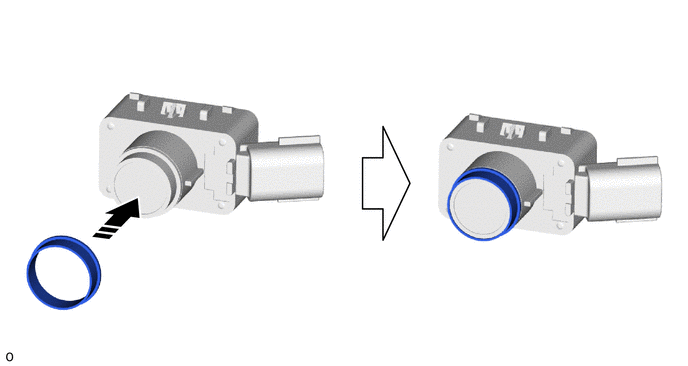

Install the ultrasonic sensor cushion set as shown in the illustration.

0,0 0,0 false

Install in this Direction

-

-

HINT:

The illustration is for the LH side. The orientation for the RH side is the opposite of the LH side.

a.

0,0 0,0 false

Install in this Direction

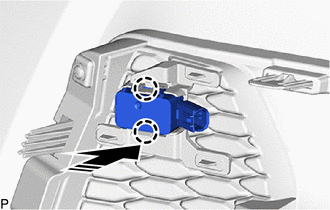

Engage the 2 claws to install the front corner ultrasonic sensor as shown in the illustration.

HINT:

The illustration is for the LH side. The orientation for the RH side is the opposite of the LH side.

a.

0,0 0,0 false

Install in this Direction

Engage the 2 claws to install the front center ultrasonic sensor as shown in the illustration.

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>FRONT BUMPER (for TFTM Made)>INSTALLATION202104,202304,_59,_080736,_0392548,RM100000001VNBE,202304,202307,_59,_080736,_0392548,RM100000002AMO6,202307,999999,_59,_080736,_0392548,RM100000002CH8W,

Click hereAudio / Visual / Telematics>PARK ASSIST / MONITORING>PARKING SUPPORT BRAKE SYSTEM>CALIBRATION202104,202304,_56,_080754,_0470654,RM100000001VNVD,202304,999999,_56,_080754,_0470654,RM100000002AHFT,

SST

09989-00020
