RM3660EC _56 Audio / Visual / Telematics _080751 AUDIO / VIDEO _0470414 ROOF ANTENNA A

AUDIO / VIDEO  ROOF ANTENNA  INSTALLATION


PROCEDURE

Hide 86760A 1.INSTALL TELEPHONE ANTENNA ASSEMBLY

a.

When reusing the telephone antenna assembly:

i.

Install a new seal.

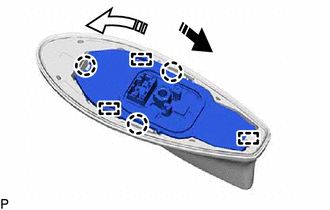

b.
E464084C01
0,0 0,0 false
V113147

Install in this Direction (1)
V113148

Install in this Direction (2)


Engage the 3 guides and 3 claws to install the telephone antenna assembly as shown in the illustration.


Hide 2.INSTALL TELEPHONE ANTENNA ASSEMBLY WITH COVER

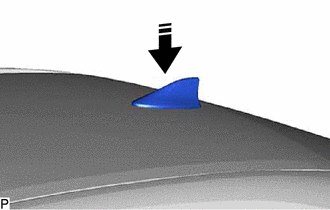

a.
E464082C01
0,0 0,0 false
V113147

Install in this Direction


Temporarily install the telephone antenna assembly with cover as shown in the illustration.

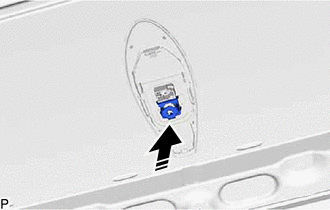

b.
E464080C01
0,0 0,0 false
V113147

Install in this Direction


Install a new washer and holder as shown in the illustration.


c.

Install the telephone antenna assembly with cover with the bolt.

Torque:
9.5 N*m (97 kgf*cm, 84 in.*lbf)
