NR Series ENGINE CONTROL  SFI SYSTEM  P148D7E  Purge One Way Valve Stuck Open


DTC SUMMARY

DTC No. Detection Item DTC Detection Condition Trouble Area MIL Memory Note
P148D7E Purge One Way Valve Stuck Open No. 1 check valve opened malfunction during key-off EVAP monitor
·

No. 1 check valve

·

Leakage from EVAP line (No. 1 check valve - purge VSV)


Comes on DTC stored SAE Code: P148D

DTC No. Monitoring Item Detection Timing Detection Logic SAE
P148D7E No. 1 check valve stuck open While ignition switch off 2 trip P148D

MONITOR DESCRIPTION

5 hours*1 after the ignition switch is turned off, the leak detection pump creates negative pressure (vacuum) in the EVAP (Evaporative Emission) system. The ECM monitors for leaks and actuator malfunctions based on the EVAP pressure.

HINT:

*: If the engine coolant temperature is not below 35°C (95°F) 5 hours after the ignition switch is turned off, the monitor check starts 2 hours later. If it is still not below 35°C (95°F) 7 hours after the ignition switch is turned off, the monitor check starts 2.5 hours later.


Sequence Operation Description Duration
- ECM activation Activated by soak timer 5, 7 or 9.5 hours after ignition switch turned off. -
A Atmospheric pressure measurement Vent valve is turned off (vent) and EVAP system pressure is measured by ECM in order to register atmospheric pressure.
If pressure in EVAP system is not between 70 kPa(abs) and 110 kPa(abs) [10.15 psi(abs) and 15.95 psi(abs)], ECM cancels EVAP system monitor.
60 seconds
B First reference pressure measurement In order to determine reference pressure, leak detection pump creates negative pressure (vacuum) through reference orifice and then ECM checks if leak detection pump and vent valve operate normally. 360 seconds
C EVAP system pressure measurement Vent valve is turned on (closed) to shut EVAP system.
Negative pressure (vacuum) is created in EVAP system, and EVAP system pressure is then measured.
Write down measured value as it will be used in leak check. If EVAP pressure does not stabilize within 15 minutes, ECM cancels EVAP system monitor.
15 minutes*
D No. 1 Check Valve monitor Purge VSV is opened and then EVAP system pressure is measured by ECM.
If the pressure does not change, ECM interprets this as normal.
20 seconds
E Vent Valve monitor Vent valve is turned off (vent) and then EVAP system pressure is measured by ECM.
Large increase indicates normal.
10 seconds
F Second reference pressure measurement After second reference pressure measurement, leak check is performed by comparing first and second reference pressure measurements.
If stabilized system pressure is higher than second reference pressure, ECM determines that EVAP system is leaking.
60 seconds
- Final check Atmospheric pressure is measured and then monitoring result is recorded by ECM. -

*: If only a small amount of fuel is in the fuel tank, it takes longer for the EVAP pressure to stabilize.

A335761C01
0.927,1.281 1.125,0.792 false 4.927,1.292 5.135,0.792 false 0.917,3.646 1.115,3.156 false 4.906,3.656 5.104,3.167 false 1.677,1.698 1.99,1.292 false 5.688,1.698 6,1.292 false 1.75,4.094 2.063,3.688 false 5.719,4.094 6.031,3.688 false 1.115,4.99 1.469,4.688 false 5.229,2.635 5.479,2.271 false 5.073,4.979 5.427,4.677 false 1.094,2.563 1.448,2.26 false 0.448,1.771 1.052,1.833 false 0.417,2.375 1.375,2.063 false 2.354,0.969 3.146,0.708 false 2.313,1.729 3.073,1.448 false 2.771,2.177 3.115,2.083 false 1.51,0.927 1.583,0.469 false 1.094,7.417 1.448,7.115 false 0.927,6.104 1.125,5.615 false 1.677,6.521 1.99,6.115 false 0.74,0.698 0.958,0.208 false 0.771,1.208 1.083,1.365 0.313,0.156 10 false *1 4.74,3.594 5.052,3.75 0.313,0.156 10 false *2 2.031,1.219 2.344,1.375 0.313,0.156 10 false *3 2.104,3.594 2.417,3.75 0.313,0.156 10 false *4 0.948,2.51 1.26,2.667 0.313,0.156 10 false *5 5.083,2.563 5.396,2.719 0.313,0.156 10 false *6 0.271,1.708 0.583,1.865 0.313,0.156 10 false *7 0.271,2.302 0.583,2.458 0.313,0.156 10 false *8 1.604,0.375 1.906,0.542 0.302,0.167 10 false *9 3.188,0.635 3.656,0.792 0.469,0.156 10 false *10 3.104,1.375 3.573,1.531 0.469,0.156 10 false *11 3.167,2.01 3.635,2.167 0.469,0.156 10 false *12 0.094,0.083 0.406,0.24 0.313,0.156 10 false *a 4.208,0.104 4.521,0.26 0.313,0.156 10 false *b 0.125,2.677 0.438,2.833 0.313,0.156 10 false *c 4.135,2.708 4.448,2.865 0.313,0.156 10 false *d 0.167,5.083 0.479,5.24 0.313,0.156 10 false *e 3.542,3.5 3.854,3.656 0.313,0.156 10 false *f 4.76,1.219 5.073,1.375 0.313,0.156 10 false *1 0.76,3.573 1.073,3.729 0.313,0.156 10 false *1 0.979,4.917 1.292,5.073 0.313,0.156 10 false *6 4.927,4.927 5.24,5.083 0.313,0.156 10 false *6 6.042,1.188 6.354,1.344 0.313,0.156 10 false *3 6.063,3.583 6.375,3.74 0.313,0.156 10 false *4 3.552,3.885 3.865,4.042 0.313,0.156 10 false *g 0.927,7.365 1.24,7.521 0.313,0.156 10 false *5 0.771,6.031 1.083,6.188 0.313,0.156 10 false *2 2.031,6.042 2.344,6.198 0.313,0.156 10 false *3 0.969,0.094 1.271,0.26 0.302,0.167 10 false *13
*1 Purge VSV: Off (Closed) *2 Purge VSV: On (Open)
*3 Vent Valve: Off (Vent) *4 Vent Valve: On (Closed)
*5 Leak Detection Pump: Off *6 Leak Detection Pump: On
*7 Reference Orifice (0.02 inch) *8 Canister Pressure Sensor
*9 Canister *10 Fuel Tank
*11 Canister Pump Module *12 Canister Filter
*13 No. 1 Check Valve - -
*a Operation A:
Atmospheric Pressure Measurement
*b Operation B, F:
Reference Pressure Measurement
*c Operation C:
EVAP System Pressure Measurement
*d Operation D:
No. 1 Check Valve Monitor
*e Operation E:
Vent Valve Monitor
*f Atmospheric Pressure
*g Negative Pressure - -

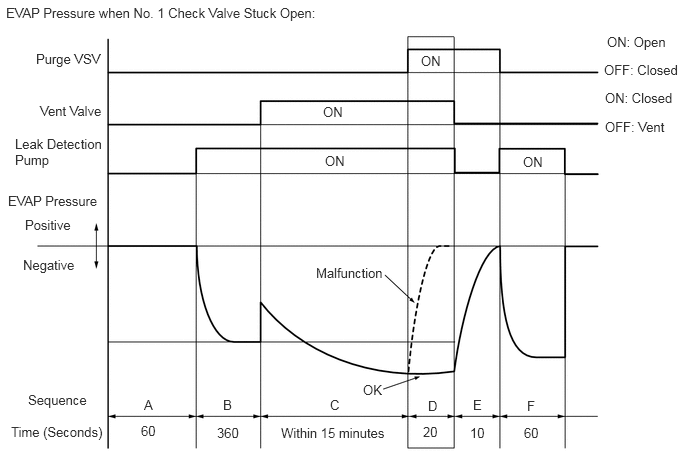

P148D7E: No. 1 check valve stuck open

In operation D, the purge VSV opened and the EVAP system pressure is then measured by the ECM using the canister pressure sensor to conduct an EVAP leak check. If the pressure increases when the purge VSV is open, the ECM interprets this as the No. 1 check valve being stuck open. The ECM illuminates the MIL and stores the DTC.

A335765E01
0.063,0.052 3.75,0.375 3.688,0.323 10 false EVAP Pressure when No. 1 Check Valve Stuck Open: 0.375,0.531 1.208,0.75 0.833,0.219 10 false Purge VSV 0.417,1.073 1.25,1.292 0.833,0.219 10 false Vent Valve 0.156,1.417 1.094,1.813 0.938,0.396 10 false Leak Detection Pump 0.083,2.01 1.135,2.24 1.052,0.229 10 false EVAP Pressure 0.26,2.26 1.313,2.49 1.052,0.229 10 false Positive 0.24,2.677 1.292,2.906 1.052,0.229 10 false Negative 0.292,4.083 1.344,4.313 1.052,0.229 10 false Sequence 0.115,4.417 1.167,4.646 1.052,0.229 10 false Time (Seconds) 1.5,4.135 1.74,4.354 0.24,0.219 10 false A 2.323,4.135 2.563,4.354 0.24,0.219 10 false B 3.438,4.135 3.677,4.354 0.24,0.219 10 false C 4.458,4.146 4.698,4.365 0.24,0.219 10 false D 4.927,4.135 5.167,4.354 0.24,0.219 10 false E 5.49,4.146 5.729,4.365 0.24,0.219 10 false F 3.781,3.979 4.021,4.198 0.24,0.219 10 false OK 3.292,2.76 4.25,2.99 0.958,0.229 10 false Malfunction 1.469,4.406 1.708,4.625 0.24,0.219 10 false 60 2.26,4.427 2.563,4.635 0.302,0.208 10 false 360 2.927,4.427 4.198,4.677 1.271,0.25 10 false Within 15 minutes 4.406,4.417 4.646,4.635 0.24,0.219 10 false 20 5.458,4.427 5.698,4.646 0.24,0.219 10 false 60 6.323,0.354 7.042,0.594 0.719,0.24 10 false ON: Open 6.292,0.646 7.115,0.875 0.823,0.229 10 false OFF: Closed 6.302,0.938 7.125,1.167 0.823,0.229 10 false ON: Closed 6.302,1.24 7.031,1.521 0.729,0.281 10 false OFF: Vent 4.896,4.427 5.135,4.646 0.24,0.219 10 false 10 4.385,0.552 4.625,0.771 0.24,0.219 10 false ON 3.365,1.083 3.604,1.302 0.24,0.219 10 false ON 3.385,1.594 3.625,1.813 0.24,0.219 10 false ON 5.448,1.604 5.688,1.823 0.24,0.219 10 false ON

MONITOR STRATEGY

Required Sensors/Components No. 1 check valve
Purge VSV
Canister pump module
Frequency of Operation Once per driving cycle

CONFIRMATION DRIVING PATTERN

NOTICE:
·

The Evaporative System Check (Automatic Mode) consists of 7 steps performed automatically by the GTS. It takes a maximum of approximately 24 minutes.

·

Do not perform the Evaporative System Check when the fuel tank is higher than 90% full because the cut-off valve may be closed, making the fuel tank leak check unavailable.

·

Do not run the engine during this operation.

·

When the temperature of the fuel is 35°C (95°F) or higher, a large amount of vapor forms and any check results become inaccurate. When performing the Evaporative System Check, keep the fuel temperature below 35°C (95°F).



HINT:
·

After repair has been completed, clear the DTC and then check that the vehicle has returned to normal by performing the following All Readiness check procedure.

Click hereEngine / Hybrid System>NR Series (ENGINE CONTROL)>SFI SYSTEM>DTC CHECK / CLEAR



1.

Connect the GTS to the DLC3.

2.

Turn the ignition switch to ON.

3.

Turn the GTS on.

4.

Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).

5.

Turn the ignition switch off and wait for at least 30 seconds.

6.

Turn the ignition switch to ON [A].

7.

Turn the GTS on.

8.

Enter the following menus: Powertrain / Engine / Utility / Evaporative System Check / Automatic Mode [B].

9.

After the Evaporative System Check is completed, check for All Readiness by entering the following menus: Powertrain / Engine / Utility / All Readiness.

10.

Input the DTC: P148D7E.

11.

Check the DTC judgment result.

GTS Display Description
NORMAL
·

DTC judgment completed

·

System normal


ABNORMAL
·

DTC judgment completed

·

System abnormal


INCOMPLETE
·

DTC judgment not completed

·

Perform driving pattern after confirming DTC enabling conditions



HINT:
·

If the judgment result is NORMAL, the system is normal.

·

If the judgment result is ABNORMAL, the system is malfunctioning.

·

[A] to [B]: Normal judgment procedure.

The normal judgment procedure is used to complete DTC judgment and also used when clearing permanent DTCs.

·

When clearing the permanent DTCs, do not disconnect the cable from the battery terminal or attempt to clear the DTCs during this procedure, as doing so will clear the universal trip and normal judgment histories.
