NR Series ENGINE CONTROL  SFI SYSTEM  P043E00  Evaporative Emission System Leak Detection Reference Orifice Low Flow  P043F00  Evaporative Emission System Leak Detection Reference Orifice High Flow  P24007E  Evaporative Emission System Leak Detection Pump Control Circuit Actuator Stuck On  P24007F  Evaporative Emission System Leak Detection Pump Control Circuit Actuator Stuck Off  P24187E  Evaporative Emission System Switching Valve Control Circuit Actuator Stuck On


DTC SUMMARY

DTC No. Detection Item DTC Detection Condition Trouble Area MIL Memory Note
P043E00 Evaporative Emission System Leak Detection Reference Orifice Low Flow Reference orifice clogged during key-off EVAP monitor
·

No. 2 charcoal canister sub-assembly

·

Wire harness or connector (Canister pump module - ECM)

·

ECM


Comes on DTC stored SAE Code: P043E
P043F00 Evaporative Emission System Leak Detection Reference Orifice High Flow Reference orifice high-flow during key-off EVAP monitor
·

No. 2 charcoal canister sub-assembly

·

Wire harness or connector (Canister pump module - ECM)

·

ECM


Comes on DTC stored SAE Code: P043F
P24007E Evaporative Emission System Leak Detection Pump Control Circuit Actuator Stuck On Leak detection pump on malfunction during key-off EVAP monitor
·

No. 2 charcoal canister sub-assembly

·

Wire harness or connector (Canister pump module - ECM)

·

ECM


Comes on DTC stored SAE Code: P2402
P24007F Evaporative Emission System Leak Detection Pump Control Circuit Actuator Stuck Off Leak detection pump off malfunction during key-off EVAP monitor
·

No. 2 charcoal canister sub-assembly

·

Wire harness or connector (Canister pump module - ECM)

·

ECM


Comes on DTC stored SAE Code: P2401
P24187E Evaporative Emission System Switching Valve Control Circuit Actuator Stuck On Vent valve on (closed) malfunction during key-off EVAP monitor
·

No. 2 charcoal canister sub-assembly

·

Wire harness or connector (Canister pump module - ECM)

·

ECM


Comes on DTC stored SAE Code: P2419

DTC No. Monitoring Item Detection Timing Detection Logic SAE
P043E00 Reference orifice clogged While ignition switch off 2 trip P043E
P043F00 Reference orifice high-flow While ignition switch off 2 trip P043F
P24007E Leak detection pump stuck ON While ignition switch off 2 trip P2402
P24007F Leak detection pump stuck OFF While ignition switch off 2 trip P2401
P24187E Vent valve stuck closed While ignition switch off 2 trip P2419

HINT:

The reference orifice is located inside the canister pump module.


MONITOR DESCRIPTION

5 hours* after the ignition switch is turned off, the leak detection pump creates negative pressure (vacuum) in the EVAP system. The ECM monitors for leaks and actuator malfunctions based on the EVAP pressure.

HINT:

*: If the engine coolant temperature is not below 35°C (95°F) 5 hours after the ignition switch is turned off, the monitor check starts 2 hours later. If it is still not below 35°C (95°F) 7 hours after the ignition switch is turned off, the monitor check starts 2.5 hours later.


Sequence Operation Description Duration
- ECM activation Activated by soak timer, 5, 7 or 9.5 hours after ignition switch turned off. -
A Atmospheric pressure measurement Vent valve is turned off (vent) and EVAP system pressure is measured by ECM in order to register atmospheric pressure.
If pressure in EVAP system is not between 70 kPa(abs) and 110 kPa(abs) [10.15 psi(abs) and 15.95 psi(abs)], ECM cancels EVAP system monitor. 		60 seconds
B First reference pressure measurement In order to determine reference pressure, leak detection pump creates negative pressure (vacuum) through reference orifice and then ECM checks if leak detection pump and vent valve operate normally. 360 seconds
C EVAP system pressure measurement Vent valve is turned on (closed) to shut EVAP system.
Negative pressure (vacuum) is created in EVAP system, and EVAP system pressure is then measured.
Write down measured value as it will be used in leak check
If EVAP pressure does not stabilize within 15 minutes, ECM cancels EVAP system monitor. 		15 minutes*
D No. 1 Check Valve monitor Purge VSV is opened and then EVAP system pressure is measured by ECM.
If the pressure does not change, ECM interprets this as normal. 		20 seconds
E Vent Valve monitor Vent valve is turned off (vent) and then EVAP system pressure is measured by ECM.
Large increase indicates normal. 		10 seconds
F Second reference pressure measurement After second reference pressure measurement, leak check is performed by comparing first and second reference pressure measurements.
If stabilized system pressure is higher than second reference pressure, ECM determines that EVAP system is leaking. 		60 seconds
- Final check Atmospheric pressure is measured and then monitoring result is recorded by ECM. -

*: If only a small amount of fuel is in the fuel tank, it takes longer for the EVAP pressure to stabilize.

A335761C01
0.927,1.281 1.125,0.792 false 4.927,1.292 5.135,0.792 false 0.917,3.646 1.115,3.156 false 4.906,3.656 5.104,3.167 false 1.677,1.698 1.99,1.292 false 5.688,1.698 6,1.292 false 1.75,4.094 2.063,3.688 false 5.719,4.094 6.031,3.688 false 1.115,4.99 1.469,4.688 false 5.229,2.635 5.479,2.271 false 5.073,4.979 5.427,4.677 false 1.094,2.563 1.448,2.26 false 0.448,1.771 1.052,1.833 false 0.417,2.375 1.375,2.063 false 2.354,0.969 3.146,0.708 false 2.313,1.729 3.073,1.448 false 2.771,2.177 3.115,2.083 false 1.51,0.927 1.583,0.469 false 1.094,7.417 1.448,7.115 false 0.927,6.104 1.125,5.615 false 1.677,6.521 1.99,6.115 false 0.74,0.698 0.958,0.208 false 0.771,1.208 1.083,1.365 0.313,0.156 10 false *1 4.74,3.594 5.052,3.75 0.313,0.156 10 false *2 2.031,1.219 2.344,1.375 0.313,0.156 10 false *3 2.104,3.594 2.417,3.75 0.313,0.156 10 false *4 0.948,2.51 1.26,2.667 0.313,0.156 10 false *5 5.083,2.563 5.396,2.719 0.313,0.156 10 false *6 0.271,1.708 0.583,1.865 0.313,0.156 10 false *7 0.271,2.302 0.583,2.458 0.313,0.156 10 false *8 1.604,0.375 1.906,0.542 0.302,0.167 10 false *9 3.188,0.635 3.656,0.792 0.469,0.156 10 false *10 3.104,1.375 3.573,1.531 0.469,0.156 10 false *11 3.167,2.01 3.635,2.167 0.469,0.156 10 false *12 0.094,0.083 0.406,0.24 0.313,0.156 10 false *a 4.208,0.104 4.521,0.26 0.313,0.156 10 false *b 0.125,2.677 0.438,2.833 0.313,0.156 10 false *c 4.135,2.708 4.448,2.865 0.313,0.156 10 false *d 0.167,5.083 0.479,5.24 0.313,0.156 10 false *e 3.542,3.5 3.854,3.656 0.313,0.156 10 false *f 4.76,1.219 5.073,1.375 0.313,0.156 10 false *1 0.76,3.573 1.073,3.729 0.313,0.156 10 false *1 0.979,4.917 1.292,5.073 0.313,0.156 10 false *6 4.927,4.927 5.24,5.083 0.313,0.156 10 false *6 6.042,1.188 6.354,1.344 0.313,0.156 10 false *3 6.063,3.583 6.375,3.74 0.313,0.156 10 false *4 3.552,3.885 3.865,4.042 0.313,0.156 10 false *g 0.927,7.365 1.24,7.521 0.313,0.156 10 false *5 0.771,6.031 1.083,6.188 0.313,0.156 10 false *2 2.031,6.042 2.344,6.198 0.313,0.156 10 false *3 0.969,0.094 1.271,0.26 0.302,0.167 10 false *13
*1 Purge VSV: Off (Closed) *2 Purge VSV: On (Open)
*3 Vent Valve: Off (Vent) *4 Vent Valve: On (Closed)
*5 Leak Detection Pump: Off *6 Leak Detection Pump: On
*7 Reference Orifice (0.02 inch) *8 Canister Pressure Sensor
*9 Canister *10 Fuel Tank
*11 Canister Pump Module *12 Canister Filter
*13 No. 1 Check Valve - -
*a Operation A:
Atmospheric Pressure Measurement 		*b Operation B, F:
Reference Pressure Measurement
*c Operation C:
EVAP System Pressure Measurement 		*d Operation D:
No. 1 Check Valve Monitor
*e Operation E:
Vent Valve Monitor 		*f Atmospheric Pressure
*g Negative Pressure - -


P043E00, P043F00, P24007E, P24007F or P24187E Case 1

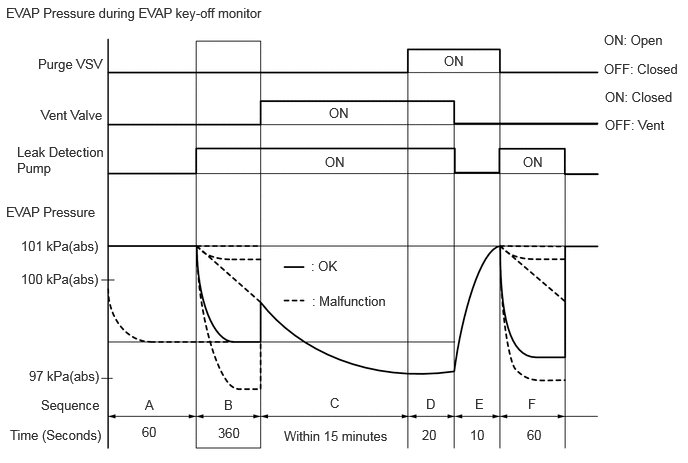

The leak detection pump creates negative pressure through the reference orifice (in operation B and F). When the system is normal, the EVAP pressure is between 97 to 100 kPa(abs) [14.07 to 14.5 psi(abs)]* and saturated within a minute. If not, the ECM interprets this as a malfunction. The ECM illuminates the MIL and stores a DTC if this malfunction is detected in consecutive drive cycles.

*: Typical value.

A335764E01
0.063,0.052 2.948,0.271 2.885,0.219 10 false EVAP Pressure during EVAP key-off monitor 0.396,0.583 1.208,0.802 0.813,0.219 10 false Purge VSV 0.427,1.115 1.24,1.333 0.813,0.219 10 false Vent Valve 0.177,1.5 1.167,1.885 0.99,0.385 10 false Leak Detection Pump 0.063,2.125 1.177,2.406 1.115,0.281 10 false EVAP Pressure 0.219,2.479 1.146,2.802 0.927,0.323 10 false 101 kPa(abs) 0.219,2.823 1.146,3.146 0.927,0.323 10 false 100 kPa(abs) 0.302,3.833 1.229,4.156 0.927,0.323 10 false 97 kPa(abs) 0.427,4.135 1.354,4.458 0.927,0.323 10 false Sequence 0.104,4.448 1.156,4.771 1.052,0.323 10 false Time (Seconds) 4.625,0.552 4.906,0.75 0.281,0.198 10 false ON 3.427,1.094 3.708,1.292 0.281,0.198 10 false ON 3.385,1.604 3.667,1.802 0.281,0.198 10 false ON 6.292,0.333 7.021,0.552 0.729,0.219 10 false ON: Open 6.292,0.635 7.104,0.854 0.813,0.219 10 false OFF: Closed 6.302,0.927 7.031,1.146 0.729,0.219 10 false ON: Closed 6.302,1.219 7.031,1.438 0.729,0.219 10 false OFF: Vent 3.24,2.688 3.969,2.906 0.729,0.219 10 false : OK 3.25,3.052 4.135,3.323 0.885,0.271 10 false : Malfunction 3.438,4.115 3.656,4.323 0.219,0.208 10 false C 2.333,4.135 2.552,4.344 0.219,0.208 10 false B 1.51,4.135 1.729,4.344 0.219,0.208 10 false A 4.438,4.125 4.656,4.333 0.219,0.208 10 false D 4.948,4.125 5.167,4.333 0.219,0.208 10 false E 5.5,4.125 5.719,4.333 0.219,0.208 10 false F 1.479,4.417 1.698,4.625 0.219,0.208 10 false 60 2.271,4.427 2.583,4.656 0.313,0.229 10 false 360 2.958,4.458 4.281,4.729 1.323,0.271 10 false Within 15 minutes 5.49,4.448 5.708,4.656 0.219,0.208 10 false 60 4.896,4.448 5.115,4.656 0.219,0.208 10 false 10 4.396,4.448 4.615,4.656 0.219,0.208 10 false 20 5.448,1.604 5.729,1.802 0.281,0.198 10 false ON


P24187E Case 2

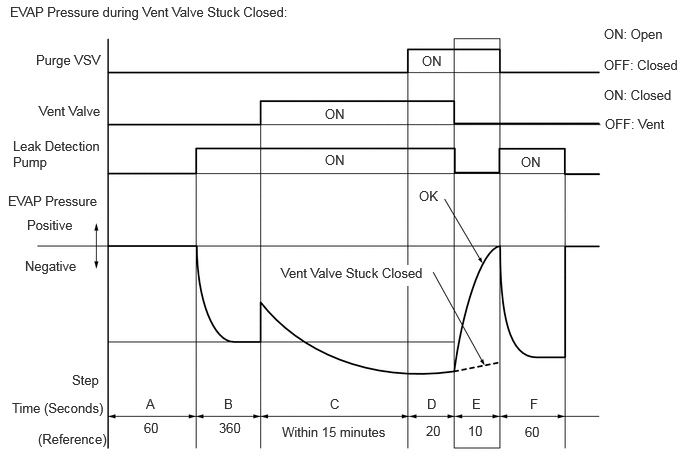

In operation E, the canister pressure sensor measures the EVAP (Evaporative Emission) system pressure. The pressure measurement for the vent valve monitor begins when the vent valve is turned off (vent) after the EVAP leak check. When the measured pressure indicates an increase of 0.3 kPa (0.44 psi) or higher, the vent valve is functioning normally. If the pressure does not increase, the ECM interprets this as the vent valve being stuck closed, illuminates the MIL and stores the DTC (2 trip detection logic).

A337495E02
0.375,0.542 1.135,0.74 0.76,0.198 10 false Purge VSV 0.406,1.073 1.167,1.271 0.76,0.198 10 false Vent Valve 0.135,1.438 1.094,1.823 0.958,0.385 10 false Leak Detection Pump 0.083,2.01 1.135,2.26 1.052,0.25 10 false EVAP Pressure 0.281,2.26 0.906,2.51 0.625,0.25 10 false Positive 0.26,2.688 0.885,2.938 0.625,0.25 10 false Negative 0.75,3.875 1.375,4.125 0.625,0.25 10 false Step 0.125,4.167 1.177,4.438 1.052,0.271 10 false Time (Seconds) 0.396,4.49 1.448,4.76 1.052,0.271 10 false (Reference) 4.875,4.406 5.5,4.656 0.625,0.25 10 false 10 4.917,4.125 5.146,4.333 0.229,0.208 10 false E 3.385,1.583 4.01,1.833 0.625,0.25 10 false ON 3.385,1.104 4.01,1.354 0.625,0.25 10 false ON 5.427,1.604 6.052,1.854 0.625,0.25 10 false ON 4.396,0.552 5.021,0.802 0.625,0.25 10 false ON 4.365,1.958 4.99,2.208 0.625,0.25 10 false OK 2.927,2.76 4.458,2.979 1.531,0.219 10 true Vent Valve Stuck Closed 6.292,0.271 7.073,0.51 0.781,0.24 10 false ON: Open 6.292,0.594 7.073,0.833 0.781,0.24 10 false OFF: Closed 6.292,0.906 7.073,1.146 0.781,0.24 10 false ON: Closed 6.302,1.208 7.083,1.448 0.781,0.24 10 false OFF: Vent 1.521,4.125 1.75,4.333 0.229,0.208 10 false A 2.333,4.125 2.563,4.333 0.229,0.208 10 false B 3.438,4.125 3.667,4.333 0.229,0.208 10 false C 4.448,4.125 4.677,4.333 0.229,0.208 10 false D 5.521,4.125 5.75,4.333 0.229,0.208 10 false F 1.5,4.375 2.125,4.625 0.625,0.25 10 false 60 2.281,4.375 2.906,4.625 0.625,0.25 10 false 360 2.938,4.417 4.229,4.688 1.292,0.271 10 false Within 15 minutes 4.438,4.406 5.063,4.656 0.625,0.25 10 false 20 5.469,4.417 6.094,4.667 0.625,0.25 10 false 60 0.104,0.042 4.104,0.354 4,0.313 10 false EVAP Pressure during Vent Valve Stuck Closed:


MONITOR STRATEGY

Required Sensors/Components Canister pump module
Frequency of Operation Once per driving cycle

CONFIRMATION DRIVING PATTERN

NOTICE:
·

The Evaporative System Check (Automatic Mode) consists of 7 steps performed automatically by the GTS. It takes a maximum of approximately 24 minutes.

·

Do not perform the Evaporative System Check when the fuel tank is higher than 90% full because the cut-off valve may be closed, making the fuel tank leak check unavailable.

·

Do not run the engine during this operation.

·

When the temperature of the fuel is 35°C (95°F) or higher, a large amount of vapor forms and any check results become inaccurate. When performing the Evaporative System Check, keep the fuel temperature below 35°C (95°F).



HINT:
·

After repair has been completed, clear the DTC and then check that the vehicle has returned to normal by performing the following All Readiness check procedure.

Click hereEngine / Hybrid System>NR Series (ENGINE CONTROL)>SFI SYSTEM>DTC CHECK / CLEAR

·

When clearing the permanent DTCs, refer to the "CLEAR PERMANENT DTC" procedure.

Click hereEngine / Hybrid System>NR Series (ENGINE CONTROL)>SFI SYSTEM>DTC CHECK / CLEAR



1.

Connect the GTS to the DLC3.

2.

Turn the ignition switch to ON.

3.

Turn the GTS on.

4.

Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).

5.

Turn the ignition switch off and wait for at least 30 seconds.

6.

Turn the ignition switch to ON [A].

7.

Turn the GTS on.

8.

Enter the following menus: Powertrain / Engine / Utility / Evaporative System Check / Automatic Mode [B].

9.

After the "Evaporative System Check" is completed, check for All Readiness by entering the following menus: Powertrain / Engine / Utility / All Readiness.

10.

Input the DTC: P043E00, P043F00, P24007E, P24007F or P24187E.

11.

Check the DTC judgment result.

GTS Display Description
NORMAL
·

DTC judgment completed

·

System normal


ABNORMAL
·

DTC judgment completed

·

System abnormal


INCOMPLETE
·

DTC judgment not completed

·

Perform driving pattern after confirming DTC enabling conditions



HINT:
·

If the judgment result shows NORMAL, the system is normal.

·

If the judgment result shows ABNORMAL, the system has a malfunction.

·

[A] to [B]: Normal judgment procedure.

The normal judgment procedure is used to complete DTC judgment and also used when clearing permanent DTCs.

·

When clearing the permanent DTCs, do not disconnect the cable from the battery terminal or attempt to clear the DTCs during this procedure, as doing so will clear the universal trip and normal judgment histories.
