RM3660EC _58 Vehicle Interior _080733 HEATING / AIR CONDITIONING _0393745 PTC HEATER ASSEMBLY A

HEATING / AIR CONDITIONING PTC HEATER ASSEMBLY INSTALLATION

PROCEDURE

Hide Display 87710G 1.INSTALL QUICK HEATER ASSEMBLY

a.

E412948C01

0,0 0,0 false

V113147

Install in this Direction

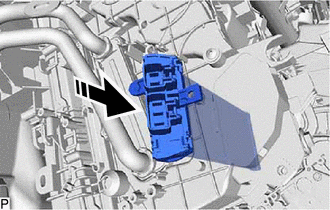

Install the quick heater assembly as shown in the illustration.

Hide Display 87114L 2.INSTALL NO. 2 HEATER COVER

a.

Engage the claw and 2 guides.

b.

Install the No. 2 heater cover with the screw.

c.

Engage the clamp.

d.

Connect the 2 connectors.

Hide Display 87211 3.INSTALL NO. 1 AIR DUCT

Click hereSteering>STEERING COLUMN>STEERING COLUMN ASSEMBLY>INSTALLATION201906,202104,_55,_080762,_0391589,RM100000001HLA8_01_0151,202104,202304,_55,_080762,_0391589,RM100000001VPLL_01_0151,202304,999999,_55,_080762,_0391589,RM100000002BCU7_01_0151,

Hide Display 73900 4.INSTALL LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>KNEE AIRBAG ASSEMBLY>INSTALLATION201906,202101,_58,_080741,_0392904,RM100000001HTTU,202101,202104,_58,_080741,_0392904,RM100000001TM24,202104,202304,_58,_080741,_0392904,RM100000001WKDX,202304,202307,_58,_080741,_0392904,RM100000002B7TG,202307,999999,_58,_080741,_0392904,RM100000002D3D9,
