LIGHTING (EXT)  LICENSE PLATE LIGHT ASSEMBLY  INSTALLATION


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.



PROCEDURE

Hide 81270B 1.INSTALL LICENSE PLATE LIGHT BULB

a.

Install the license plate light bulb to the housing.


b.

for TFTM Made:

i.
E419834C01
0,0 0,0 false
V113147

Install in this Direction

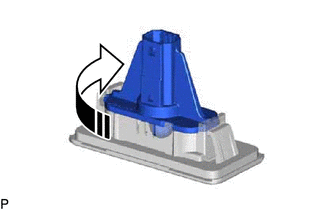

Turn the housing with the license plate light bulb as shown in the illustration to install them as a unit.



Hide 81271 2.INSTALL LICENSE PLATE LIGHT LENS (for GTMC Made)

a.
E411677

Engage the 2 claws to install the license plate light lens.


Hide 81274B 3.INSTALL LICENSE PLATE LIGHT PACKING (for GTMC Made)

a.

Install a new license plate light body gasket.


Hide 81270 4.INSTALL LICENSE PLATE LIGHT ASSEMBLY

a.

for TFTM Made:

i.

Engage the guide and claw to install the license plate light assembly.



b.

for GTMC Made:

i.

Engage the 2 claws to install the license plate light assembly.



c.

Connect the connector.
