WIPER / WASHER WASHER NOZZLE INSTALLATION

CAUTION / NOTICE / HINT

HINT:: ·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.

PROCEDURE

Hide Display 85035 1.INSTALL WASHER NOZZLE SUB-ASSEMBLY

a.

Connect a new washer nozzle sub-assembly to the washer hose.

b.

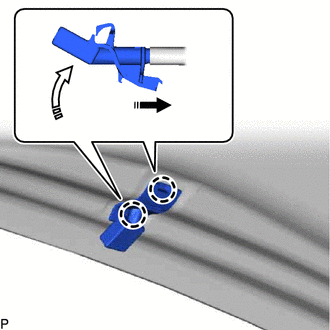

E398749C01

0,0 0,0 false

	Install in this Direction (1)
	Install in this Direction (2)

Engage the 2 claws as indicated by the arrows, in the order shown in the illustration to install the washer nozzle sub-assembly.

Hide Display 85035 2.INSPECT WASHER NOZZLE SUB-ASSEMBLY

Click hereVehicle Exterior>WIPER / WASHER>WASHER NOZZLE>ON-VEHICLE INSPECTION201906,202304,_59,_080767,_0392877,RM100000001HTO5_01_0001,202304,999999,_59,_080767,_0392877,RM100000002B0V2,

Hide Display 85035 3.ADJUST WASHER NOZZLE SUB-ASSEMBLY

Click hereVehicle Exterior>WIPER / WASHER>WASHER NOZZLE>ADJUSTMENT201906,202104,_59,_080767,_0392877,RM100000001HTO2_01_0001,202104,202304,_59,_080767,_0392877,RM100000001WH4J_01_0001,202304,999999,_59,_080767,_0392877,RM100000002B0V3_01_0001,
