RM3660EC _58 Vehicle Interior _080766 POWER OUTLETS (INT) _0392868 POWER OUTLET SOCKET(for Console Box Front Side) A

POWER OUTLETS (INT)  POWER OUTLET SOCKET(for Console Box Front Side)  INSTALLATION


PROCEDURE

Hide 85535B 1.INSTALL NO. 1 POWER OUTLET SOCKET COVER

a.

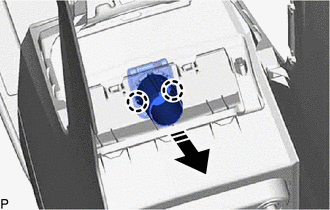

E418349C01
0,0 0,0 false
V113147

Install in this Direction


Engage the 2 claws to install the No. 1 power outlet socket cover as shown in the illustration.


Hide 85530 2.INSTALL NO. 1 POWER OUTLET SOCKET ASSEMBLY

a.

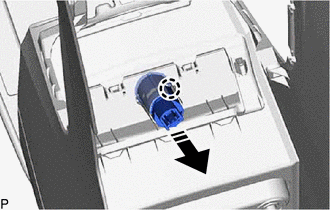

E418350C01
0,0 0,0 false
V113147

Install in this Direction


Engage the claw to install the No. 1 power outlet socket assembly as shown in the illustration.
