RM3660EC _58 Vehicle Interior _080766 POWER OUTLETS (INT) _0392868 POWER OUTLET SOCKET(for Console Box Front Side) A

POWER OUTLETS (INT) POWER OUTLET SOCKET(for Console Box Front Side) REMOVAL

PROCEDURE

Hide Display 1.REMOVE CONSOLE BOX ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>FRONT CONSOLE BOX>REMOVAL201906,202007,_58,_080744,_0393717,RM100000001HZH1,202007,202101,_58,_080744,_0393717,RM100000001NS0W,202101,202104,_58,_080744,_0393717,RM100000001T6FR,202104,202304,_58,_080744,_0393717,RM100000001VMKU,202304,999999,_58,_080744,_0393717,RM100000002AVGF,

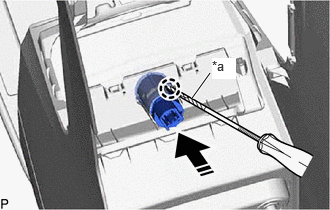

Hide Display 85530 2.REMOVE NO. 1 POWER OUTLET SOCKET ASSEMBLY

2.188,0.76 2,1.021 true 2.208,0.604 2.458,0.823 0.25,0.219 10 true *a

*a	Protective Tape
	Remove in this Direction

Using a screwdriver with its tip wrapped with protective tape, disengage the claw and remove the No. 1 power outlet socket assembly as shown in the illustration.

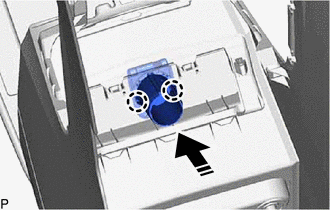

Hide Display 85535B 3.REMOVE NO. 1 POWER OUTLET SOCKET COVER

0,0 0,0 false

Remove in this Direction

Disengage the 2 claws and remove the No. 1 power outlet socket cover as shown in the illustration.
