RM3660EC _53 Suspension _080787 REAR SUSPENSION _0392567 REAR UPPER ARM A

REAR SUSPENSION  REAR UPPER ARM  INSTALLATION


PROCEDURE

Hide 48790 1.INSTALL REAR UPPER CONTROL ARM ASSEMBLY LH

a.

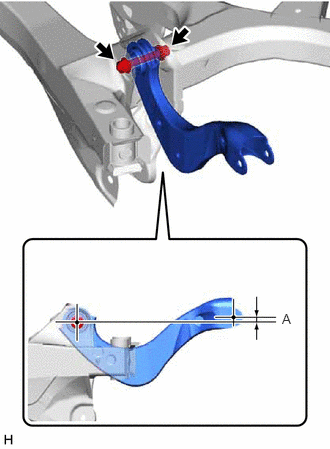

C397805N02
2.938,3.24 3.094,3.438 0.156,0.198 10 false A

Temporarily install the rear upper control arm assembly LH to the rear suspension member sub-assembly with the bolt and nut.

NOTICE:
·

Because the nut has its own stopper, do not turn the nut. Tighten the bolt with the nut secured.

·

Insert the bolt with the threaded end facing the front of the vehicle.




b.

Position the rear upper control arm assembly LH as shown in the illustration.

Reference Length (A):

1.2 mm (0.0472 in.)



c.

Fully tighten the bolt.

Torque:
73 N*m (744 kgf*cm, 54 ft.*lbf)

NOTICE:

Because the nut has its own stopper, do not turn the nut. Tighten the bolt with the nut secured.



Hide 48770A 2.INSTALL REAR UPPER CONTROL ARM ASSEMBLY RH

HINT:

Perform the same procedure as for the LH side.
