RM3660EC _59 Vehicle Exterior _080784 LIGHTING (EXT) _0393162 REAR LIGHT ASSEMBLY(for GTMC Made) A

LIGHTING (EXT) REAR LIGHT ASSEMBLY(for GTMC Made) REMOVAL

CAUTION / NOTICE / HINT

HINT:: ·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.

Hide Display 64719A 1.REMOVE LUGGAGE COMPARTMENT DOOR COVER

Hide Display 81590A 2.REMOVE REAR LIGHT ASSEMBLY

NOTICE:: If the rear light assembly has been removed, replace the rear light gasket with a new one.

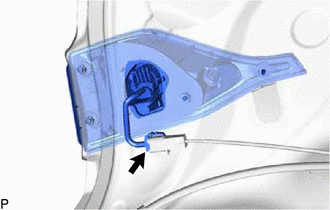

Disconnect the connector.

0,0 0,0 false

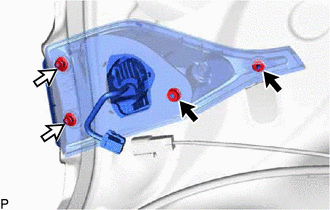

	Nut
	Cap Nut

Remove the 2 nuts, 2 cap nuts and rear light assembly.
