Engine / Hybrid System
_080791
NR Series INTAKE / EXHAUST
_0392522
RADIATOR
A
NR Series INTAKE / EXHAUST RADIATOR REMOVAL
PROCEDURE
16400
1.REMOVE RADIATOR ASSEMBLY
16550
2.REMOVE INTERCOOLER COOLING RADIATOR ASSEMBLY

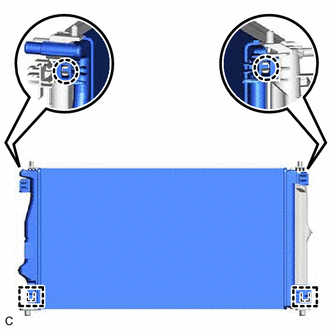

a.
Disengage the 2 claws.
b.
Disengage the 2 guides to remove the intercooler cooling radiator assembly from the radiator assembly.
- NOTICE:
-
Do not damage the radiator assembly when removing the intercooler cooling radiator assembly.
