NR Series EMISSION CONTROL VACUUM REGULATING VALVE REMOVAL

PROCEDURE

Hide Display 1.REMOVE WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY

Click hereVehicle Exterior>WIPER / WASHER>FRONT WIPER MOTOR>REMOVAL201906,202304,_59,_080767,_0392873,RM100000001HTNQ,202304,202307,_59,_080767,_0392873,RM100000002AYHJ,202307,999999,_59,_080767,_0392873,RM100000002CL7Q,

Hide Display 55737B 2.REMOVE NO. 1 HEATER AIR DUCT SPLASH SHIELD SEAL

Click hereSuspension>FRONT SUSPENSION>FRONT SHOCK ABSORBER>REMOVAL201906,202007,_53,_080764,_0392681,RM100000001HS6H_01_0045,202007,202104,_53,_080764,_0392681,RM100000001NG0S_01_0045,202104,202304,_53,_080764,_0392681,RM100000001W5KX_01_0045,202304,202307,_53,_080764,_0392681,RM100000002BA6Q_01_0045,202307,999999,_53,_080764,_0392681,RM100000002CW5B_01_0045,

Hide Display 55701J 3.REMOVE OUTER COWL TOP PANEL SUB-ASSEMBLY

Click hereSuspension>FRONT SUSPENSION>FRONT SHOCK ABSORBER>REMOVAL201906,202007,_53,_080764,_0392681,RM100000001HS6H_01_0036,202007,202104,_53,_080764,_0392681,RM100000001NG0S_01_0036,202104,202304,_53,_080764,_0392681,RM100000001W5KX_01_0036,202304,202307,_53,_080764,_0392681,RM100000002BA6Q_01_0036,202307,999999,_53,_080764,_0392681,RM100000002CW5B_01_0036,

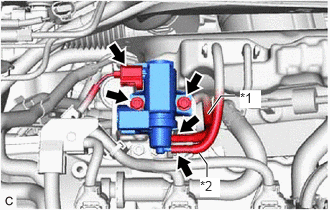

Hide Display 25819 4.REMOVE VACUUM REGULATING VALVE ASSEMBLY

2.073,1.594 2.156,1.708 2.156,1.708 2.156,1.844 true 2.167,1.188 2.302,1 2.302,1 2.448,1 true 2.5,0.938 2.719,1.125 0.219,0.188 10 true *1 2.083,1.854 2.292,2.052 0.208,0.198 10 true *2

*1	No. 3 Vacuum Transmitting Hose
*2	No. 4 Vacuum Transmitting Hose

Disconnect the vacuum regulating valve assembly connector.

Disconnect the No. 3 vacuum transmitting hose and No. 4 vacuum transmitting hose from the vacuum regulating valve assembly.

Remove the 2 bolts and vacuum regulating valve assembly from the No. 2 vacuum switching valve bracket.
