WINDOW / GLASS  BACK WINDOW GLASS  INSTALLATION

Install 2 new No. 1 back window glass stoppers to the vehicle body as shown in the illustration.

HINT:

Only 2-piece type back window glass stoppers are provided as supply parts. Use 2-piece type stoppers as replacements even if 1-piece type stoppers were originally installed.

0.677,0.813 1.104,0.573 false 1.656,0.979 2.25,0.583 false 1.885,0.969 2.25,0.583 false 2.083,0.958 2.24,0.594 false 1.375,1.01 2.25,0.583 false 1.156,1.031 2.25,0.594 false 0.073,0.073 0.458,0.396 0.385,0.323 12 false *A 2.271,0.49 2.583,0.646 0.313,0.156 10 false *a 1.125,0.479 1.438,0.635 0.313,0.156 10 false *b 2.74,0.75 3.052,0.906 0.313,0.156 10 false a

*A	Back Side
*a	Ceramic Notch
*b	Back Window Glass Edge Side

Install 2 new No. 2 back window glass stoppers to the back window glass as shown in the illustration.

Standard Dimension:

Area	Dimension
a	18.9 mm (0.744 in.)

HINT:

Only 2-piece type back window glass stoppers are provided as supply parts. Use 2-piece type stoppers as replacements even if 1-piece type stoppers were originally installed.

Install a new back window glass adhesive dam to the back window glass as shown in the illustration.

6.042,2.271 5.552,1.844 true 3.667,3.167 3.25,2.865 true 0.938,3.208 1.385,2.865 true 0.073,0.073 0.563,0.417 0.49,0.344 12 false *A 0.771,3.135 1.083,3.292 0.313,0.156 10 false *a 6.073,2.208 6.385,2.365 0.313,0.156 10 false *b 3.698,3.104 4.01,3.26 0.313,0.156 10 false *a 1.969,0.479 2.281,0.635 0.313,0.156 10 false A 1.958,0.771 2.073,1.021 0.115,0.25 10 true A 5.115,1.083 5.49,1.344 0.375,0.26 10 false A-A

*A	Back Side	-	-
*a	Ceramic Notch	*b	Back Window Glass Adhesive Dam Positioning Center

Install a new back window glass adhesive dam to the back window glass as shown in the illustration.

6.042,2.281 5.552,1.854 false 3.917,3.052 3.5,2.75 true 0.854,3.094 1.302,2.75 true 0.073,0.073 0.563,0.417 0.49,0.344 12 false *A 0.708,3.01 1.021,3.167 0.313,0.156 10 false *a 6.063,2.208 6.375,2.365 0.313,0.156 10 false *b 3.948,2.99 4.26,3.146 0.313,0.156 10 false *a 2.667,1.583 2.979,1.74 0.313,0.156 10 false A 2.677,1.927 2.99,2.083 0.313,0.156 10 false A 5.146,1.094 5.521,1.354 0.375,0.26 10 false A-A

*A	Back Side	-	-
*a	Ceramic Notch	*b	Back Window Glass Adhesive Dam Positioning Center

1.479,1.563 1.479,0.979 1.479,0.979 1.646,0.979 true 1.479,1.281 1.646,1.281 false 1.406,1.573 1.625,1.771 0.219,0.198 10 true *a

*a

Matchmark

Position the back window glass sub-assembly.

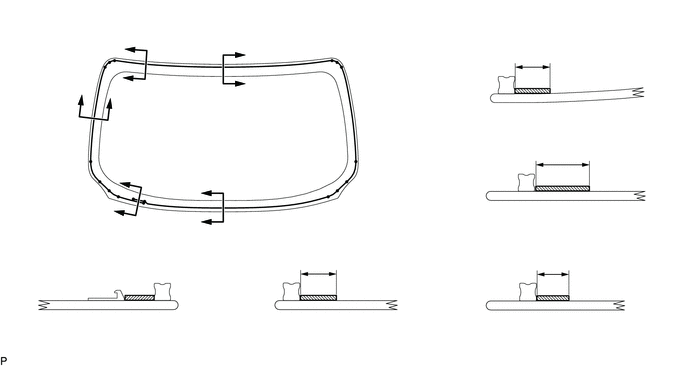

Using a brush or sponge, coat the adhesive application area with glass primer.

3.698,1.552 4.198,1.552 false 3.521,1.979 4.021,1.979 true 0.073,0.073 0.625,0.531 0.552,0.458 12 false *A 4.219,1.479 4.531,1.635 0.313,0.156 10 false *a 4.052,1.896 4.365,2.052 0.313,0.156 10 false *b 1.177,0.427 1.49,0.583 0.313,0.156 10 false A 1.146,0.708 1.271,0.927 0.125,0.219 10 true A 2.583,0.458 2.896,0.615 0.313,0.156 10 false B 2.583,0.823 2.896,0.979 0.313,0.156 10 false B 0.479,2.594 0.875,2.833 0.396,0.24 10 false A-A 2.896,2.5 3.292,2.74 0.396,0.24 10 false B-B 5.135,0.292 5.531,0.531 0.396,0.24 10 false C-C 5.052,1.479 5.448,1.719 0.396,0.24 10 false D-D 0.813,0.833 1.125,0.99 0.313,0.156 10 false C 1.115,0.896 1.427,1.052 0.313,0.156 10 true C 1.052,2.104 1.198,2.292 0.146,0.188 10 false D 3.26,2.656 3.573,2.813 0.313,0.156 10 false a 5.5,0.469 5.813,0.625 0.313,0.156 10 false b 5.813,1.51 6.125,1.667 0.313,0.156 10 false c 5.698,2.646 6.01,2.802 0.313,0.156 10 false d 5.073,2.521 5.469,2.76 0.396,0.24 10 false E-E 1.104,1.802 1.24,1.969 0.135,0.167 10 true D 1.958,1.927 2.094,2.094 0.135,0.167 10 true E 1.948,2.229 2.094,2.417 0.146,0.188 10 false E

*A	Back Side	-	-
*a	Adhesive Application Area	*b	Ceramic Notch
	Glass Primer	-	-

Standard Dimension:

Area	Dimension
a	12.5 mm (0.492 in.) or more
b	12.5 mm (0.492 in.) or more
c	17.0 mm (0.669 in.) or more
d	11.0 mm (0.433 in.) or more

NOTICE:

·

Do not apply too much glass primer.

·

Allow the glass primer to dry for 3 minutes or more.

·

Throw away any leftover glass primer.

HINT:

·

Apply glass primer onto the ceramic notches.

·

If an area other than specified is coated by accident, wipe off the glass primer with a clean piece of cloth before it dries.

Apply adhesive to the back window glass sub-assembly.

Adhesive:

Toyota Genuine Windshield Glass Adhesive (High modulus Type) or Equivalent

i.

1.198,0.438 1.385,0.5 false 0.5,0.625 0.656,0.823 0.156,0.198 10 false a 1.344,1.365 1.5,1.563 0.156,0.198 10 false a 1.115,0.885 1.271,1.083 0.156,0.198 10 false b 0.76,1 0.917,1.198 0.156,0.198 10 false b 1.406,0.438 1.646,0.615 0.24,0.177 10 false *a

*a

Nozzle

Cut off the tip of the cartridge nozzle as shown in the illustration.

Standard Dimension:

Area	Dimension
a	12.0 to 15.0 mm (0.472 to 0.591 in.)
b	8.0 to 11.0 mm (0.315 to 0.433 in.)

iii.

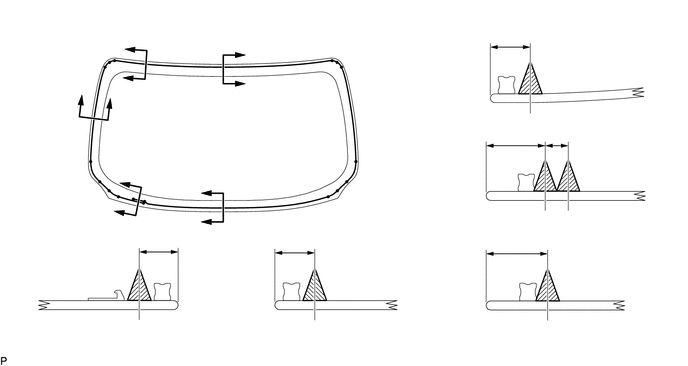

Apply adhesive to the back window glass sub-assembly as shown in the illustration.

3.698,1.458 4.115,1.458 true 3.531,1.979 3.948,1.979 true 0.073,0.073 0.521,0.354 0.448,0.281 12 false *A 4.146,1.375 4.458,1.531 0.313,0.156 10 false *a 3.979,1.906 4.292,2.063 0.313,0.156 10 false *b 1.188,0.427 1.5,0.583 0.313,0.156 10 false A 1.167,0.719 1.281,0.885 0.115,0.167 10 true A 2.583,0.469 2.896,0.625 0.313,0.156 10 false B 2.583,0.823 2.896,0.979 0.313,0.156 10 false B 0.813,0.844 1.125,1 0.313,0.156 10 false C 1.115,0.875 1.427,1.031 0.313,0.156 10 true C 1.094,1.802 1.219,1.969 0.125,0.167 10 true D 1.073,2.115 1.385,2.271 0.313,0.156 10 false D 0.458,2.469 0.875,2.708 0.417,0.24 10 false A-A 1.604,2.458 1.917,2.615 0.313,0.156 10 false a 3.01,2.458 3.323,2.615 0.313,0.156 10 false b 2.823,2.302 3.24,2.542 0.417,0.24 10 false B-B 5.063,0.104 5.479,0.344 0.417,0.24 10 false C-C 5.26,0.333 5.573,0.49 0.313,0.156 10 false c 5.323,1.344 5.635,1.5 0.313,0.156 10 false d 5.042,1.208 5.458,1.448 0.417,0.24 10 false D-D 1.969,1.927 2.094,2.094 0.125,0.167 10 true E 1.948,2.24 2.26,2.396 0.313,0.156 10 false E 5.771,1.323 6.083,1.479 0.313,0.156 10 false e 5.042,2.281 5.458,2.521 0.417,0.24 10 false E-E 5.344,2.469 5.656,2.625 0.313,0.156 10 false f

*A	Back Side	-	-
*a	Adhesive Positioning Center	*b	Ceramic Notch
	Adhesive	-	-

Standard Dimension:

Area	Dimension
a	13.6 mm (0.535 in.)
b	13.6 mm (0.535 in.)
c	13.6 mm (0.535 in.)
d	20.5 mm (0.807 in.)
e	8.0 mm (0.315 in.)
f	20.5 mm (0.807 in.)

HINT:

Apply adhesive to the ceramic notches.

Install the back window glass sub-assembly.

i.

1.479,1.563 1.479,0.979 1.479,0.979 1.646,0.979 true 1.479,1.281 1.646,1.281 false 1.406,1.573 1.625,1.771 0.219,0.198 10 true *a

*a

Matchmark

Using suction cups, position the back window glass sub-assembly so that the matchmarks are aligned, and press it in gently along the rim.

NOTICE:

·

Check that the back window glass stoppers are engaged to the vehicle body correctly.

·

Check the clearance between the vehicle body and back window glass sub-assembly.
