DESCRIPTION

This circuit is from the skid control ECU (brake actuator assembly) to the radio and display receiver assembly.

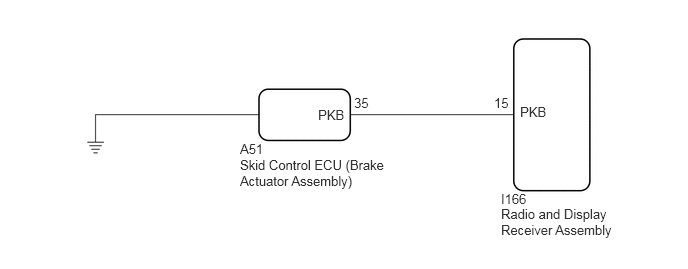

WIRING DIAGRAM

E372242E71
2.5,1.469 3.104,1.708 0.604,0.24 10 false A51 2.5,1.635 4.021,2.083 1.521,0.448 10 false Skid Control ECU (Brake Actuator Assembly) 3.688,0.99 4.292,1.229 0.604,0.24 10 false 35 5.219,1.99 5.823,2.229 0.604,0.24 10 false I166 5.219,2.146 6.406,2.594 1.188,0.448 10 false Radio and Display Receiver Assembly 5.417,1.083 6.021,1.323 0.604,0.24 10 false PKB 5.146,0.99 5.75,1.229 0.604,0.24 10 false 15 3.313,1.115 3.917,1.354 0.604,0.24 10 false PKB

PROCEDURE

1.CHECK PARKING BRAKE INDICATOR
a.

Check that the parking brake indicator comes on when the parking brake is applied and goes off when it is released.

OK:

The parking brake indicator operates as specified above.



Result:
Proceed to
OK
NG



OK

2.CHECK HARNESS AND CONNECTOR (SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY) - RADIO AND DISPLAY RECEIVER ASSEMBLY)

NG

2.CHECK HARNESS AND CONNECTOR (SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY) - RADIO AND DISPLAY RECEIVER ASSEMBLY)
a.

Disconnect the I166 radio and display receiver assembly connector.


b.

Disconnect the A51 skid control ECU (brake actuator assembly) connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
I166-15 (PKB) - A51-35 (PKB) Always Below 1 Ω
I166-15 (PKB) or A51-35 (PKB) - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
