NR Series BATTERY / CHARGING GENERATOR ON-VEHICLE INSPECTION

CAUTION / NOTICE / HINT

NOTICE:: ·

Do not remove the generator pulley cap.

·

If the generator pulley cap is removed, replace the generator pulley cap and generator pulley with clutch with new ones as the correct grease amount cannot be confirmed.

HINT:: If it is confirmed that the generator assembly is not generating power, it is not necessary to perform the counterclockwise check as another malfunction is suspected.

Hide Display 1.REMOVE V-RIBBED BELT

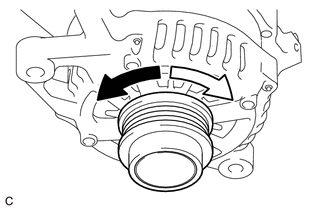

Hide Display 27415 2.INSPECT GENERATOR PULLEY WITH CLUTCH

0,0 0,0 false

	Counterclockwise
	Clockwise

Check that the generator pulley with clutch operates in accordance with the following table.

Standard:

Counterclockwise	Clockwise
Spins Freely	Lock

HINT:: If the generator pulley with clutch does not turn smoothly, does not operate as specified, or an abnormal sound is output, replace it with a new one.

Hide Display 3.INSTALL V-RIBBED BELT
