MAINTENANCE  NR Series DRIVE BELT  REMOVAL


PROCEDURE

Hide 51443C 1.REMOVE REAR ENGINE UNDER COVER RH

a.
A448861

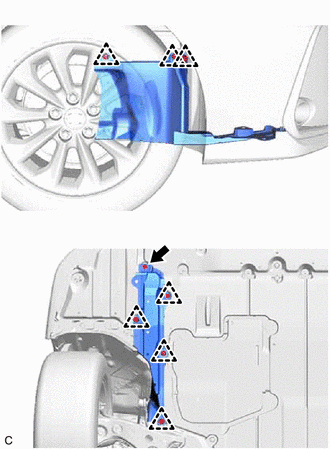

Remove the screw, 7 clips and rear engine under cover RH from the vehicle.


Hide 16361A 2.REMOVE V-RIBBED BELT

a.
A445332C01
2.906,1.854 2.635,1.458 true 2.917,1.885 3.229,2.083 0.313,0.198 10 false *a
*a 5 mm Hexagon Wrench


Release the V-ribbed belt tension by turning the V-ribbed belt tensioner assembly counterclockwise.


b.

Turn the V-ribbed belt tensioner assembly counterclockwise to align its holes, and then insert a 5 mm hexagon wrench to secure the V-ribbed belt tensioner assembly.


c.

Remove the V-ribbed belt.
