RM3660EC _56 Audio / Visual / Telematics _080751 AUDIO / VIDEO _0392325 NOISE FILTER A

AUDIO / VIDEO NOISE FILTER INSTALLATION

PROCEDURE

Hide Display 86011A 1.INSTALL RADIO SETTING CONDENSER

a.

E226085

Engage the claw to install a new terminal cover to the wire harness.

NOTICE:: ·

Make sure to hold the crimped side of the terminal when installing the wire harness to the terminal cover.

·

Make sure not to bend the exposed wire when installing the wire harness to the terminal cover.

·

Do not use excessive force when inserting the wire harness into the terminal cover.

·

If the terminal cover has been deformed during installation, replace the terminal and terminal cover with new ones.

HINT:: Use the same procedure for the other terminal cover.

b.

E368798C01

0,0 0,0 false

V113147

Install in this Direction

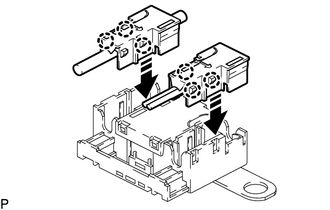

Engage the 6 claws to install 2 new terminal covers with wire harness to a new condenser as shown in the illustration.

NOTICE:: ·

Do not use excessive force when inserting the terminal covers into the condenser.

·

If a terminal cover has been deformed during installation, replace the terminal, terminal covers and condenser with new ones.

c.

E365961C03

0,0 0,0 false

V113147

Install in this Direction

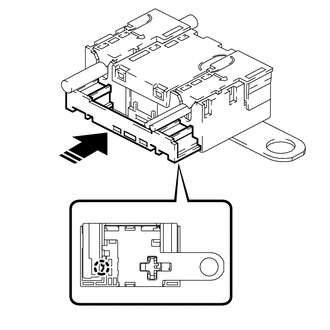

Insert the cover as shown in the illustration and engage the claw.

d.

Engage the clamp to temporarily install the new radio setting condenser with wire harness.

e.

Install the new radio setting condenser with the bolt.

Torque:: 10 N*m (102 kgf*cm, 7 ft.*lbf)

Hide Display 62472A 2.INSTALL ROOF SIDE INNER GARNISH LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>INSTALLATION201906,202101,_58,_080744,_0394267,RM100000001I3Z6_02_0296,202101,202104,_58,_080744,_0394267,RM100000001TPQD_02_0296,202104,202205,_58,_080744,_0394267,RM100000001VML6_02_0296,202205,202304,_58,_080744,_0394267,RM1000000022HGJ_02_0296,202304,999999,_58,_080744,_0394267,RM100000002BU6Q_02_0296,

Hide Display 62552F 3.INSTALL REAR SEAT SIDE GARNISH LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>INSTALLATION201906,202101,_58,_080744,_0394267,RM100000001I3Z6_02_0197,202101,202104,_58,_080744,_0394267,RM100000001TPQD_02_0197,202104,202205,_58,_080744,_0394267,RM100000001VML6_02_0197,202205,202304,_58,_080744,_0394267,RM1000000022HGJ_02_0197,202304,999999,_58,_080744,_0394267,RM100000002BU6Q_02_0197,

Hide Display 62332A 4.INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP LH

Click hereVehicle Exterior>DOOR / HATCH>REAR DOOR OPENING TRIM WEATHERSTRIP>INSTALLATION201906,202104,_59,_080735,_0392092,RM100000001HNZY_01_0017,202104,202107,_59,_080735,_0392092,RM100000001VMN2_01_0017,202107,999999,_59,_080735,_0392092,RM100000001X72T_01_0017,

Hide Display 67918A 5.INSTALL REAR DOOR SCUFF PLATE LH (for Gasoline Model)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>INSTALLATION201906,202101,_58,_080744,_0394267,RM100000001I3Z6_02_0300,202101,202104,_58,_080744,_0394267,RM100000001TPQD_02_0300,202104,202205,_58,_080744,_0394267,RM100000001VML6_02_0300,202205,202304,_58,_080744,_0394267,RM1000000022HGJ_02_0300,202304,999999,_58,_080744,_0394267,RM100000002BU6Q_02_0300,

Hide Display 76974F 6.INSTALL REAR UNDER SIDE COVER LH (for HV Model)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>INSTALLATION201906,202101,_58,_080744,_0394267,RM100000001I3Z6_02_0297,202101,202104,_58,_080744,_0394267,RM100000001TPQD_02_0297,202104,202205,_58,_080744,_0394267,RM100000001VML6_02_0297,202205,202304,_58,_080744,_0394267,RM1000000022HGJ_02_0297,202304,999999,_58,_080744,_0394267,RM100000002BU6Q_02_0297,

Hide Display 67918A 7.INSTALL REAR DOOR SCUFF PLATE LH (for HV Model)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>INSTALLATION201906,202101,_58,_080744,_0394267,RM100000001I3Z6_02_0301,202101,202104,_58,_080744,_0394267,RM100000001TPQD_02_0301,202104,202205,_58,_080744,_0394267,RM100000001VML6_02_0301,202205,202304,_58,_080744,_0394267,RM1000000022HGJ_02_0301,202304,999999,_58,_080744,_0394267,RM100000002BU6Q_02_0301,

Hide Display 8.INSTALL REAR SEAT ASSEMBLY (for Fixed Seat Type)

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Fixed Seat Type)>INSTALLATION201906,999999,_58,_080732,_0394195,RM100000001I3KB,

Hide Display 72693 9.INSTALL REAR SEAT CUSHION LOCK HOOK (for Fold Down Seat Type)

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Fold Down Seat Type)>INSTALLATION201906,999999,_58,_080732,_0394196,RM100000001I3KK_01_0010,

Hide Display 10.INSTALL REAR SEAT CUSHION ASSEMBLY (for Fold Down Seat Type)

for Gasoline Model: Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Fold Down Seat Type)>INSTALLATION201906,999999,_58,_080732,_0394196,RM100000001I3KK_01_0021,

Hide Display 11.INSTALL REAR SEAT CUSHION ASSEMBLY (for Fold Down Seat Type)

for HV Model: Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Fold Down Seat Type)>INSTALLATION201906,999999,_58,_080732,_0394196,RM100000001I3KK_01_0043,

Hide Display 12.INSTALL REAR SEATBACK ASSEMBLY LH (for Fold Down Seat Type)

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Fold Down Seat Type)>INSTALLATION201906,999999,_58,_080732,_0394196,RM100000001I3KK_01_0002,

Hide Display 73350C 13.CONNECT REAR CENTER SEAT OUTER BELT ASSEMBLY (for Fold Down Seat Type)

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Fold Down Seat Type)>INSTALLATION201906,999999,_58,_080732,_0394196,RM100000001I3KK_01_0022,

Hide Display 71940A 14.INSTALL REAR SEAT HEADREST ASSEMBLY (for Fold Down Seat Type)

w/ Removable Headrest: Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Fold Down Seat Type)>INSTALLATION201906,999999,_58,_080732,_0394196,RM100000001I3KK_01_0034,
