K313 CVT  SHIFT LEVER  REMOVAL

Fully apply the parking brake and chock a wheel.

CAUTION:

·

Make sure to apply the parking brake and chock a wheel before performing this procedure.

·

If the vehicle is not secure and the shift lever is moved to N, the vehicle may suddenly move, possibly resulting in an accident or serious injury.

0.396,1.656 0.635,1.656 0.635,1.656 1.479,1.281 true 0.177,1.531 0.385,1.76 0.208,0.229 10 true *a

*a	Protective Tape

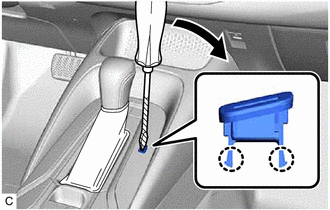

Using a screwdriver with its tip wrapped with protective tape, disengage the 2 claws to remove the shift lock release button cover from the position indicator housing assembly.

NOTICE:

Be careful not to damage the shift lock release button cover and position indicator housing assembly.

0,0 0,0 false

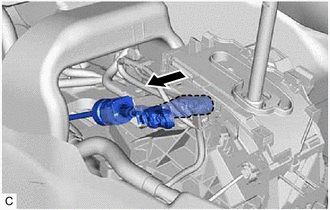

Disconnect in this Direction

Disconnect the transmission control cable assembly from the transmission floor shift assembly.

0.667,1.354 0.854,1.354 0.854,1.354 1.083,0.865 true 0.448,1.25 0.646,1.5 0.198,0.25 10 true *a

*a

Stopper

Using a screwdriver, pull out the stopper of the transmission control cable assembly.

NOTICE:

Do not remove the stopper. If it is removed, reinstall it to its original position.

1.344,0.917 1.688,1.167 1.688,1.167 2.01,0.927 true 2.292,0.292 2.375,0.177 2.375,0.177 2.5,0.177 true 0.854,0.188 1,0.188 1,0.188 1.104,0.281 true 0.688,0.104 1,0.302 0.313,0.198 10 false *a 2.552,0.104 2.865,0.302 0.313,0.198 10 false *a 1.635,1.208 1.948,1.406 0.313,0.198 10 false *b 2.625,0.958 2.938,1.156 0.313,0.198 10 false *c

*a	Stopper
*b	Nut
*c	Turn approximately 180°

Turn the nut of the transmission control cable assembly approximately 180° counterclockwise and, while holding the nut in that position, disconnect the transmission control cable assembly from the transmission floor shift assembly.

NOTICE:

·

Do not turn the nut excessively as the internal spring may come off and the transmission control cable assembly will not be reusable.

·

Do not forcibly pull the transmission control cable assembly into the cabin.

Disconnect the transmission control cable assembly from the transmission floor shift assembly.

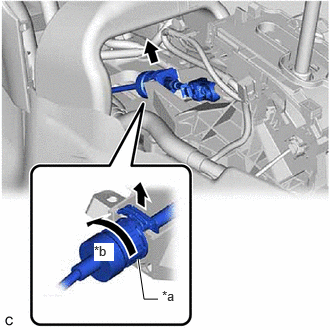

1.438,2.698 1.5,3.115 1.5,3.115 1.646,3.115 true 0.979,2.531 1.188,2.719 0.208,0.188 10 true *b 1.688,3 1.906,3.219 0.219,0.219 10 false *a

*a	Lock Nut
*b	Counterclockwise

Rotate the lock nut counterclockwise approximately 180° and, while holding the lock nut in that position, disconnect the transmission control cable assembly from the transmission floor shift assembly.

NOTICE:

Do not forcibly pull the transmission control cable assembly into the cabin.

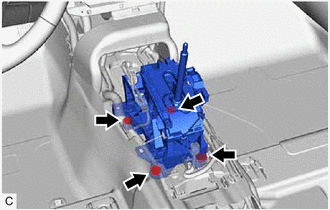

Remove the 4 bolts and disconnect the transmission floor shift assembly.

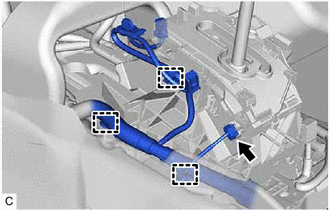

Disconnect the transmission control switch connector.

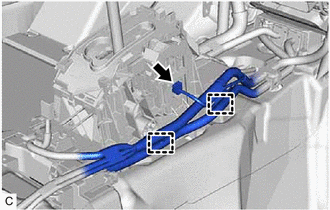

Disconnect the shift lock control ECU connector.
