K313 CVT OIL COOLER REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during transmission oil cooler removal/installation are shown below.

Necessary Procedure After Parts Removed/Installed/Replaced
Replacement Part or Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
Replacement of CVT fluid	Air bleed the oil pump with motor assembly	Stop and Start System	(201906,999999,_51,_080774,_0393362,RM100000001HXHH,)
Replacement of CVT fluid	ATF thermal degradation estimate reset	The value of the Data List item "ATF Thermal Degradation Estimate" is not estimated correctly	(201906,999999,_52,_080728,_0392261,RM100000001HP98,)

PROCEDURE

Hide Display 51410 1.REMOVE NO. 1 ENGINE UNDER COVER ASSEMBLY

Click hereEngine / Hybrid System>NR Series (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL201906,202007,_51,_080739,_0391935,RM100000001HN2A_01_0388,202007,202104,_51,_080739,_0391935,RM100000001RPXX_01_0388,202104,202205,_51,_080739,_0391935,RM100000001WEPZ_01_0388,202205,202304,_51,_080739,_0391935,RM1000000022ZNY_01_0388,202304,999999,_51,_080739,_0391935,RM100000002BCMQ_01_0388,

Hide Display 51444A 2.REMOVE REAR ENGINE UNDER COVER LH

Click hereEngine / Hybrid System>NR Series (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL201906,202007,_51,_080739,_0391935,RM100000001HN2A_01_0354,202007,202104,_51,_080739,_0391935,RM100000001RPXX_01_0354,202104,202205,_51,_080739,_0391935,RM100000001WEPZ_01_0354,202205,202304,_51,_080739,_0391935,RM1000000022ZNY_01_0354,202304,999999,_51,_080739,_0391935,RM100000002BCMQ_01_0354,

Hide Display 3.DRAIN ENGINE COOLANT

Click hereGeneral>MAINTENANCE>NR Series COOLANT (for Engine Coolant)>REPLACEMENT201906,999999,_V1,_080956,_0392634,RM100000001HRVM_01_0004,

Hide Display 4.DRAIN CONTINUOUSLY VARIABLE TRANSAXLE FLUID

Click hereDrivetrain>K313 (CVT)>OIL PAN>REMOVAL201906,999999,_52,_080728,_0392268,RM100000001HPAR_02_0002,

Hide Display 33493C 5.REMOVE TRANSMISSION OIL COOLER

0.854,1.188 1.042,0.938 true 2.396,0.656 2.708,0.573 true 0.698,1.219 0.906,1.406 0.208,0.188 10 true *1 2.75,0.479 2.938,0.667 0.188,0.188 10 true *2

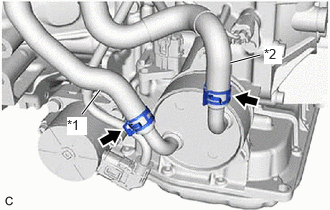

*1	No. 4 Water By-pass Hose
*2	No. 3 Water By-pass Hose

Slide the 2 clips and disconnect the No. 3 water by-pass hose and No. 4 water by-pass hose from the transmission oil cooler.

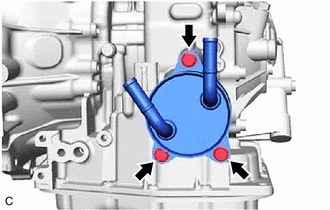

Remove the 3 bolts and transmission oil cooler from the continuously variable transaxle assembly.

Remove the 2 O-rings from the transmission oil cooler.
