LUGGAGE COMPARTMENT DOOR OPENER OUTER SWITCH
A
DOOR / HATCH LUGGAGE COMPARTMENT DOOR OPENER OUTER SWITCH INSTALLATION
PROCEDURE
84945

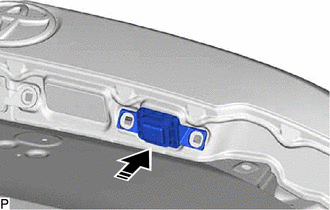

1.INSTALL LUGGAGE ELECTRICAL KEY SWITCH (for TFTM Made)
a.
0,0 0,0
false
|
Install in this Direction |
Install the luggage electrical key switch as shown in the illustration.
b.
Connect the connector.
84945
2.INSTALL LUGGAGE ELECTRICAL KEY SWITCH (for GTMC Made)
a.
0,0 0,0
false
|
|
Install in this Direction |
Install the luggage electrical key switch as shown in the illustration.
b.
Connect the connector.
76801
3.INSTALL LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH SUB-ASSEMBLY (for TFTM Made)
4.INSTALL LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH SUB-ASSEMBLY (for GTMC Made)
