RM3660EC _58 Vehicle Interior _080732 SEAT _0391522 SEAT HEATER SWITCH A

SEAT SEAT HEATER SWITCH INSTALLATION

PROCEDURE

Hide Display 1.INSTALL SEAT HEATER SWITCH

a.

B512558C01

0,0 0,0 false

V113147

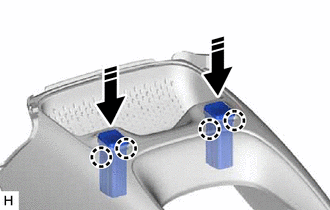

Install in this Direction

Engage each claw to install the 2 seat heater switches to the front console upper panel garnish as shown in the illustration.

Hide Display 2.INSTALL FRONT CONSOLE UPPER PANEL GARNISH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>FRONT CONSOLE BOX>INSTALLATION201906,202007,_58,_080744,_0393717,RM100000001HZH2,202007,202101,_58,_080744,_0393717,RM100000001NS10,202101,202104,_58,_080744,_0393717,RM100000001T6FU,202104,202304,_58,_080744,_0393717,RM100000001VMKV,202304,999999,_58,_080744,_0393717,RM100000002AVGG,
