RM3660EC _58 Vehicle Interior _080732 SEAT _0391522 SEAT HEATER SWITCH A

SEAT SEAT HEATER SWITCH REMOVAL

PROCEDURE

Hide Display 1.REMOVE FRONT CONSOLE UPPER PANEL GARNISH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>FRONT CONSOLE BOX>REMOVAL201906,202007,_58,_080744,_0393717,RM100000001HZH1,202007,202101,_58,_080744,_0393717,RM100000001NS0W,202101,202104,_58,_080744,_0393717,RM100000001T6FR,202104,202304,_58,_080744,_0393717,RM100000001VMKU,202304,999999,_58,_080744,_0393717,RM100000002AVGF,

Hide Display 2.REMOVE SEAT HEATER SWITCH

a.

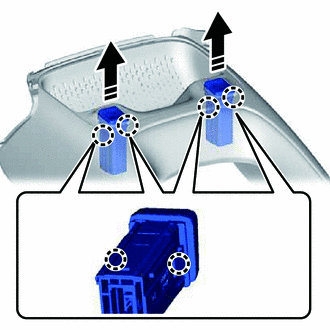

B512557C01

0,0 0,0 false

V113147

Remove in this Direction

Disengage each claw to remove the 2 seat heater switches from the front console upper panel garnish as shown in the illustration.
