RM3660EC _58 Vehicle Interior _080732 SEAT _0391521 LUMBAR SUPPORT ADJUSTER ASSEMBLY A

SEAT LUMBAR SUPPORT ADJUSTER ASSEMBLY INSTALLATION

CAUTION / NOTICE / HINT

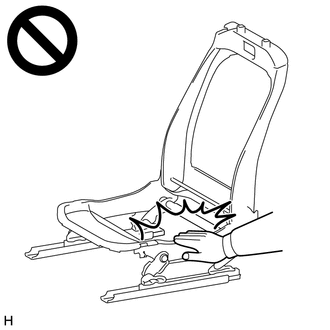

CAUTION:: Wear protective gloves. Sharp areas on the parts may injure your hands.

PROCEDURE

Hide Display 71588 1.INSTALL FRONT NO. 2 SEATBACK EDGE PROTECTOR

a.

Install the 2 front No. 2 seatback edge protectors to the lumbar support adjuster assembly LH.

Hide Display 2.INSTALL FRONT SEATBACK FELT LH

a.

Install the front seatback felt LH to the lumbar support adjuster assembly LH.

Hide Display 72760D 3.INSTALL LUMBAR SUPPORT ADJUSTER ASSEMBLY LH

a.

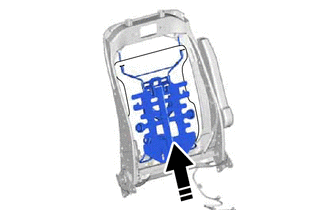

B536627C01

0,0 0,0 false

V113147

Install in this Direction

Install the lumbar support adjuster assembly LH as shown in the illustration.

b.

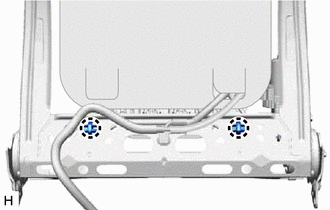

B534299

Engage the 2 claws to install the 2 front No. 2 seatback edge protectors.

c.

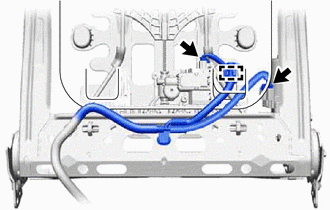

B535053

Pass the front seat No. 2 wire LH through the cutout of the front seatback felt LH and engage the clamp as shown in the illustration.

d.

Connect the 2 connectors.

Hide Display 4.INSTALL SEPARATE TYPE FRONT SEATBACK COVER WITH PAD

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Power Seat)>REASSEMBLY201906,202104,_58,_080732,_0391518,RM100000001HKM9_02_0187,202104,202304,_58,_080732,_0391518,RM100000001VYN5_02_0187,202304,999999,_58,_080732,_0391518,RM100000002AVKY_02_0187,

Hide Display 71931 5.INSTALL FRONT SEAT HEADREST SUPPORT

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Power Seat)>REASSEMBLY201906,202104,_58,_080732,_0391518,RM100000001HKM9_02_0188,202104,202304,_58,_080732,_0391518,RM100000001VYN5_02_0188,202304,999999,_58,_080732,_0391518,RM100000002AVKY_02_0188,

Hide Display 6.INSTALL SEPARATE TYPE FRONT SEATBACK ASSEMBLY

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Power Seat)>REASSEMBLY201906,202104,_58,_080732,_0391518,RM100000001HKM9_02_0189,202104,202304,_58,_080732,_0391518,RM100000001VYN5_02_0189,202304,999999,_58,_080732,_0391518,RM100000002AVKY_02_0189,

Hide Display 7.INSTALL FRONT SEAT INNER CUSHION SHIELD LH

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Power Seat)>REASSEMBLY201906,202104,_58,_080732,_0391518,RM100000001HKM9_02_0194,202104,202304,_58,_080732,_0391518,RM100000001VYN5_02_0194,202304,999999,_58,_080732,_0391518,RM100000002AVKY_02_0194,

Hide Display 71812D 8.INSTALL FRONT SEAT CUSHION SHIELD LH

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Power Seat)>REASSEMBLY201906,202104,_58,_080732,_0391518,RM100000001HKM9_02_0195,202104,202304,_58,_080732,_0391518,RM100000001VYN5_02_0195,202304,999999,_58,_080732,_0391518,RM100000002AVKY_02_0195,

Hide Display 71868N 9.INSTALL FRONT SEAT FRONT CUSHION SHIELD LH

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Power Seat)>REASSEMBLY201906,202104,_58,_080732,_0391518,RM100000001HKM9_02_0196,202104,202304,_58,_080732,_0391518,RM100000001VYN5_02_0196,202304,999999,_58,_080732,_0391518,RM100000002AVKY_02_0196,

Hide Display 71074S 10.CONNECT SEPARATE TYPE FRONT SEATBACK COVER

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Power Seat)>REASSEMBLY201906,202104,_58,_080732,_0391518,RM100000001HKM9_02_0198,202104,202304,_58,_080732,_0391518,RM100000001VYN5_02_0198,202304,999999,_58,_080732,_0391518,RM100000002AVKY_02_0198,

Hide Display 11.INSTALL FRONT SEAT ASSEMBLY LH

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Power Seat)>INSTALLATION201906,202101,_58,_080732,_0391518,RM100000001HKMB,202101,202104,_58,_080732,_0391518,RM100000001TP3O,202104,202107,_58,_080732,_0391518,RM100000001VYN6,202107,202304,_58,_080732,_0391518,RM100000001XM14,202304,202307,_58,_080732,_0391518,RM100000002AWTW,202307,999999,_58,_080732,_0391518,RM100000002CW4E,
