RM3660EC _V1 General _080956 MAINTENANCE _0392766 REAR DISC BRAKE PAD(w/ Electric Parking Brake) A

MAINTENANCE REAR DISC BRAKE PAD(w/ Electric Parking Brake) REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during rear disc brake pad removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced (for HV Model)
Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
Tires	Rear television camera assembly optical axis (Back camera position setting)	Parking Assist Monitor System	(202304,999999,_56,_080754,_0596561,RM100000002AX0C,)
Tires	Parking assist ECU initialization	Panoramic View Monitor System	(202307,999999,_56,_080754,_0612151,RM100000002CL9H,)

HINT:

When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

Learning completes when vehicle is driven (for HV Model)
Effect/Inoperative Function when Necessary Procedure not Performed	Necessary Procedure	Link
Front Camera System	Drive the vehicle straight ahead at 15 km/h (9 mph) or more for 1 second or more.	(202304,999999,_95,_139716,_0584193,RM1000000029F4C,)

Necessary Procedures After Parts Removed/Installed/Replaced (for Gasoline Model)
Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
Tires	Rear television camera assembly optical axis (Back camera position setting)	Parking Assist Monitor System	(202304,999999,_56,_080754,_0596561,RM100000002AX0C,)

CAUTION / NOTICE / HINT

NOTICE:: ·

Immediately after installing the brake pads, the braking performance may be reduced. Always perform a road test in a safe place while paying attention to the surroundings.

·

After replacing the rear disc brake pads, the brake pedal may feel soft due to clearance between the rear disc brake pads and rear disc. Depress the brake pedal several times until the brake pedal feels firm.

·

After replacing the rear disc brake pads, always perform a road test to check the braking performance and check for vibrations.

HINT:: ·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.

PROCEDURE

Hide Display 1. PRECAUTION (for HV Model)

NOTICE:: After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.; Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY202304,202502,_V1,_143216,_0598315,RM100000002B3MI,202502,999999,_V1,_143216,_0598315,RM100000002RP07,

Hide Display 2.REMOVE REAR WHEEL

Click hereGeneral>MAINTENANCE>TIRE AND WHEEL>REMOVAL202307,999999,_V1,_080956,_0392691,RM100000002CWK9_01_0001,

Hide Display 3.PERFORM REAR BRAKE PAD REPLACEMENT MODE

for HV Model: Click hereBrake>PARKING BRAKE>ELECTRIC PARKING BRAKE SYSTEM (for HV Model)>TEST MODE PROCEDURE202304,999999,_54,_080740,_0394663,RM100000002B637,

for Gasoline Model: Click hereBrake>PARKING BRAKE>ELECTRIC PARKING BRAKE SYSTEM (for Gasoline Model)>TEST MODE PROCEDURE201906,999999,_54,_080740,_0394664,RM100000001I7FZ,

Hide Display 4.DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL (for HV Model)

for 8ZR-FXE: Click hereGeneral>MAINTENANCE>8ZR-FXE AUXILIARY BATTERY>REMOVAL202304,999999,_V1,_080956,_0392376,RM100000002ACL7,

for M20F-FXS, M20G-FXS: Click hereGeneral>MAINTENANCE>M20F-FXS, M20G-FXS AUXILIARY BATTERY>REMOVAL202307,999999,_V1,_080956,_0611807,RM100000002CK9K,

Hide Display 890C0A 5.DISCONNECT NO. 2 PARKING BRAKE WIRE ASSEMBLY

Click hereBrake>PARKING BRAKE>ELECTRIC PARKING BRAKE ACTUATOR>REMOVAL202307,999999,_54,_080740,_0392899,RM100000002CWEK_04_0004,

Hide Display 04466 6.REMOVE REAR DISC BRAKE PAD

CAUTION:: ·

Be careful not to get pinched by the rear disc brake cylinder assembly or other parts when removing the rear disc brake pads.

·

After lifting up the rear disc brake cylinder assembly, secure it in place before performing any work on it.

·

The rear disc brake cylinder assembly could fall, pinching hands or fingers and causing injury.

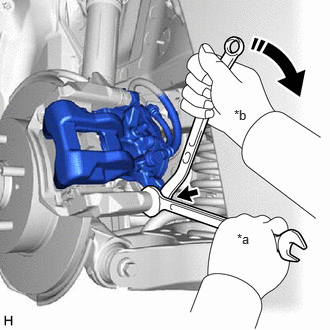

2.438,1.115 2.75,1.313 0.313,0.198 10 false *b 2.469,2.406 2.781,2.604 0.313,0.198 10 false *a

*a	Hold
*b	Turn

Hold the rear No. 1 disc brake cylinder slide pin and remove the bolt.

Pull the rear disc brake cylinder assembly upward.

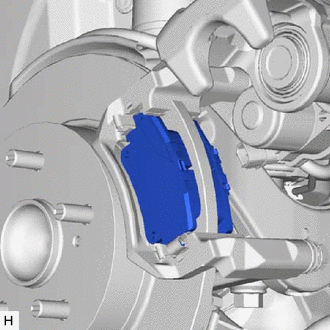

Remove the 2 rear disc brake pads from the rear disc brake cylinder mounting.

Hide Display 04946 7.REMOVE REAR DISC BRAKE ANTI-SQUEAL SHIM KIT

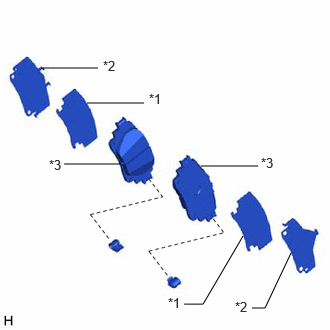

0.427,0.708 1.021,0.708 false 0.906,1.073 1.5,1.073 false 0.667,1.708 1.26,1.708 false 1.917,3.167 2.115,3.167 2.115,3.167 2.531,2.458 false 2.094,1.729 2.688,1.729 false 2.625,3.208 2.76,3.208 2.76,3.208 3.031,2.635 false 1.75,3.073 2.063,3.271 0.313,0.198 10 false *1 1.552,0.948 1.865,1.146 0.313,0.198 10 false *1 1.073,0.604 1.385,0.802 0.313,0.198 10 false *2 2.448,3.115 2.76,3.313 0.313,0.198 10 false *2 0.51,1.635 0.823,1.833 0.313,0.198 10 false *3 2.719,1.615 3.031,1.813 0.313,0.198 10 false *3

*1	Rear No. 1 Disc Brake Anti-squeal Shim
*2	Rear No. 2 Disc Brake Anti-squeal Shim
*3	Rear Disc Brake Pad

Remove the rear No. 1 disc brake anti-squeal shim and rear No. 2 disc brake anti-squeal shim from each rear disc brake pad.

Using a screwdriver, remove the rear disc brake pad wear indicator plate from each rear disc brake pad.
