MAINTENANCE  8ZR-FXE AUXILIARY BATTERY  REMOVAL


CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during auxiliary battery removal/installation are shown below.

NOTICE:

When replacing the auxiliary battery, use a new auxiliary battery of the same dimensions and same capacity or more from the same class at a 20-hour rate.


HINT:

When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

Learning completes when vehicle is driven
Effect/Inoperative Function when Necessary Procedure not Performed Necessary Procedure Link
Front Camera System Drive the vehicle straight ahead at 15 km/h (9 mph) or more for 1 second or more. (Click here)


PROCEDURE

Hide 1. PRECAUTION

NOTICE:

After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY


Hide 2.DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

a.
A539546

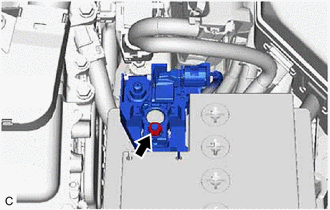

Loosen the nut, and disconnect the cable from the negative (-) auxiliary battery terminal.


Hide 3.REMOVE AUXILIARY BATTERY

a.

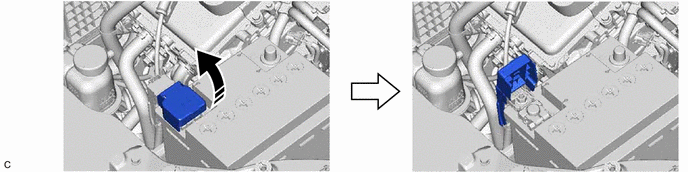

Open the fusible link cover.

A532006


b.
A532008

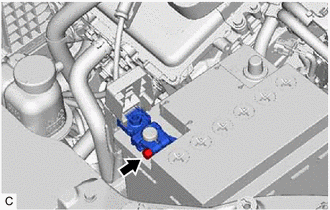

Loosen the nut and disconnect the cable from the positive (+) auxiliary battery terminal.


c.
A429985C01
0,0 0,0 false
V113147

Remove in this Direction

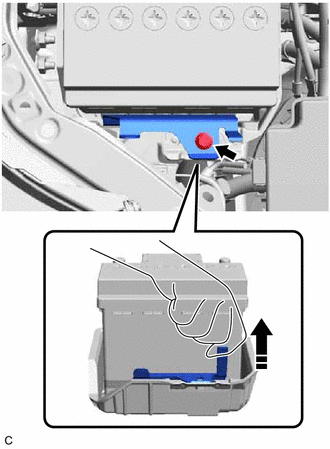

Remove the bolt.


d.

Remove the No. 2 battery clamp as shown in the illustration.


e.

Remove the auxiliary battery.
