NETWORKING  CAN COMMUNICATION SYSTEM(for HV Model)  Check Bus 4 Line


DESCRIPTION

Symptom Trouble Area
There are ECUs or sensors that display a communication stop on the bus diagnostic screen. Or, there are ECUs or sensors that display communication stop history on the "Detail" screen.
·

CAN main bus line, CAN branch line or connector

·

Central gateway ECU (network gateway ECU)

·

Steering sensor

·

Electric brake booster (brake booster with master cylinder assembly)

·

Skid control ECU (brake actuator assembly)

·

Airbag sensor with ECU assembly

·

Power steering ECU with motor assembly

·

No. 10 CAN junction connector

(for 8ZR-FXE (GTMC Made) or M20F-FXS)

·

No. 13 CAN junction connector

(for 8ZR-FXE (TFTM Made) or M20G-FXS)

·

No. 16 CAN junction connector

(for 8ZR-FXE (GTMC Made))

·

No. 39 junction connector

(for M20F-FXS)

·

No. 41 junction connector

(for 8ZR-FXE (TFTM Made) or M20G-FXS)

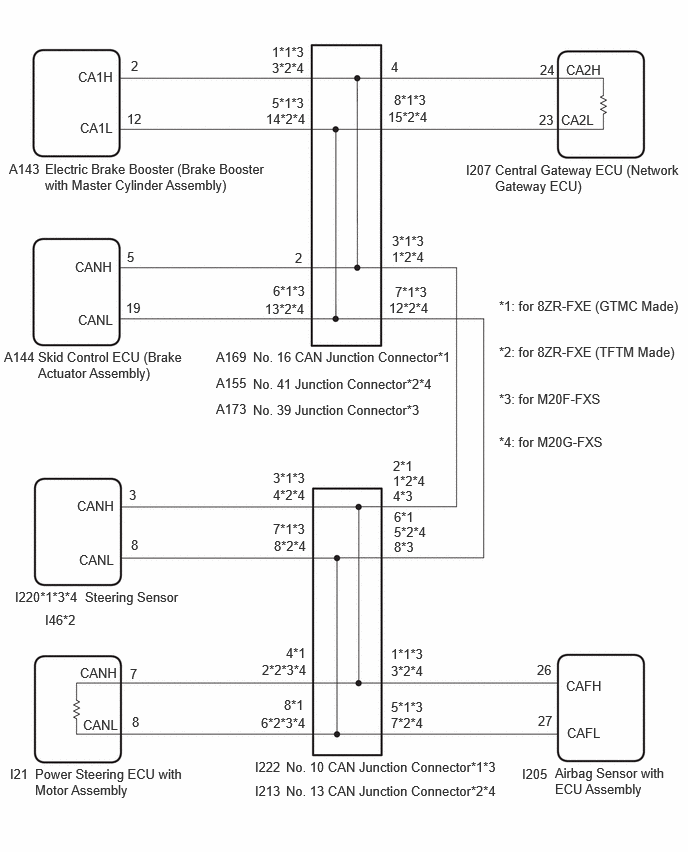

WIRING DIAGRAM

C487970E13
2.635,3.635 4.802,4.135 2.167,0.5 10 false No. 16 CAN Junction Connector*1 2.656,7.906 3.094,8.104 0.438,0.198 10 false I222 2.25,3.635 2.688,3.833 0.438,0.198 10 false A169 4.854,1.688 5.292,1.885 0.438,0.198 10 false I207 5.156,1.688 7.094,2.229 1.938,0.542 10 false Central Gateway ECU (Network Gateway ECU) 5.896,0.646 6.333,0.844 0.438,0.198 10 false CA2H 5.844,1.167 6.281,1.365 0.438,0.198 10 false CA2L 5.625,0.646 6.063,0.844 0.438,0.198 10 false 24 5.615,1.167 6.052,1.365 0.438,0.198 10 false 23 4.073,0.615 4.51,0.813 0.438,0.198 10 false 4 4.042,1.135 4.479,1.333 0.438,0.198 10 false 15*2*4 4.052,3.125 4.49,3.323 0.438,0.198 10 false 12*2*4 2.76,3.135 3.198,3.333 0.438,0.198 10 false 13*2*4 2.771,1.156 3.208,1.354 0.438,0.198 10 false 14*2*4 2.833,0.625 3.271,0.823 0.438,0.198 10 false 3*2*4 3.073,2.604 3.51,2.802 0.438,0.198 10 false 2 4.083,2.594 4.521,2.792 0.438,0.198 10 false 1*2*4 0.885,6.135 2.188,6.406 1.302,0.271 10 false Steering Sensor 0.156,6.135 0.844,6.406 0.688,0.271 10 false I220*1*3*4 1.344,5.073 1.781,5.271 0.438,0.198 10 false 3 1.365,5.594 1.802,5.792 0.438,0.198 10 false 8 0.802,5.188 1.344,5.365 0.542,0.177 10 false CANH 0.823,5.75 1.365,5.927 0.542,0.177 10 false CANL 0.469,1.677 2.823,2.344 2.354,0.667 10 false Electric Brake Booster (Brake Booster with Master Cylinder Assembly) 0.094,1.677 0.531,1.875 0.438,0.198 10 false A143 0.813,0.719 1.25,0.917 0.438,0.198 10 false CA1H 0.833,1.25 1.271,1.448 0.438,0.198 10 false CA1L 1.365,0.604 1.802,0.802 0.438,0.198 10 false 2 1.323,1.156 1.76,1.354 0.438,0.198 10 false 12 4.094,5.083 4.531,5.281 0.438,0.198 10 false 4*3 4.104,5.458 4.542,5.656 0.438,0.198 10 false 5*2*4 2.729,6.896 3.281,7.135 0.552,0.24 10 false 2*2*3*4 2.719,7.448 3.344,7.667 0.625,0.219 10 false 6*2*3*4 0.365,7.979 1.927,8.438 1.563,0.458 10 false Power Steering ECU with Motor Assembly 0.104,7.979 0.542,8.177 0.438,0.198 10 false I21 1.375,7.438 1.813,7.635 0.438,0.198 10 false 8 1.354,6.938 1.792,7.135 0.438,0.198 10 false 7 0.833,6.927 1.375,7.104 0.542,0.177 10 false CANH 0.865,7.469 1.406,7.646 0.542,0.177 10 false CANL 2.844,5.073 3.281,5.271 0.438,0.198 10 false 4*2*4 2.854,5.604 3.292,5.802 0.438,0.198 10 false 8*2*4 5.594,6.896 6.031,7.094 0.438,0.198 10 false 26 5.604,7.427 6.042,7.625 0.438,0.198 10 false 27 5.896,7.063 6.438,7.24 0.542,0.177 10 false CAFH 5.906,7.552 6.448,7.729 0.542,0.177 10 false CAFL 5.438,7.979 5.875,8.177 0.438,0.198 10 false I205 5.781,7.969 6.969,8.458 1.188,0.49 10 false Airbag Sensor with ECU Assembly 4.073,6.906 4.51,7.104 0.438,0.198 10 false 3*2*4 4.073,7.448 4.51,7.646 0.438,0.198 10 false 7*2*4 1.323,2.594 1.875,2.833 0.552,0.24 10 false 5 1.313,3.125 1.865,3.365 0.552,0.24 10 false 19 0.781,2.698 1.323,2.875 0.542,0.177 10 false CANH 0.813,3.25 1.354,3.427 0.542,0.177 10 false CANL 0.396,3.635 1.927,4.292 1.531,0.656 10 false Skid Control ECU (Brake Actuator Assembly) 0.042,3.635 0.479,3.833 0.438,0.198 10 false A144 2.979,7.906 5.521,8.406 2.542,0.5 10 false No. 10 CAN Junction Connector*1*3 5.198,3.104 7.104,3.406 1.906,0.302 10 false *1: for 8ZR-FXE (GTMC Made) 4.104,0.958 4.542,1.156 0.438,0.198 10 false 8*1*3 2.844,2.948 3.281,3.146 0.438,0.198 10 false 6*1*3 2.833,0.458 3.271,0.656 0.438,0.198 10 false 1*1*3 2.833,0.99 3.271,1.188 0.438,0.198 10 false 5*1*3 4.083,2.427 4.521,2.625 0.438,0.198 10 false 3*1*3 4.115,2.958 4.552,3.156 0.438,0.198 10 false 7*1*3 5.198,3.583 7.104,4 1.906,0.417 10 false *2: for 8ZR-FXE (TFTM Made) 2.656,8.156 3.094,8.354 0.438,0.198 10 false I213 2.979,8.156 5.438,8.625 2.458,0.469 10 false No. 13 CAN Junction Connector*2*4 2.25,3.906 2.688,4.104 0.438,0.198 10 false A155 2.635,3.917 4.802,4.417 2.167,0.5 10 false No. 41 Junction Connector*2*4 0.469,6.375 0.896,6.573 0.427,0.198 10 false I46*2 4.094,4.771 4.531,4.969 0.438,0.198 10 false 2*1 4.104,5.302 4.542,5.5 0.438,0.198 10 false 6*1 2.844,5.427 3.281,5.625 0.438,0.198 10 false 7*1*3 2.844,4.896 3.281,5.094 0.438,0.198 10 false 3*1*3 2.979,6.719 3.417,6.917 0.438,0.198 10 false 4*1 2.958,7.26 3.396,7.458 0.438,0.198 10 false 8*1 4.073,6.729 4.51,6.927 0.438,0.198 10 false 1*1*3 4.073,7.281 4.51,7.479 0.438,0.198 10 false 5*1*3 5.198,4.073 7.104,4.49 1.906,0.417 10 false *3: for M20F-FXS 5.198,4.521 7.104,4.938 1.906,0.417 10 false *4: for M20G-FXS 2.25,4.177 2.688,4.375 0.438,0.198 10 false A173 2.635,4.188 4.802,4.688 2.167,0.5 10 false No. 39 Junction Connector*3 4.094,4.927 4.531,5.125 0.438,0.198 10 false 1*2*4 4.104,5.615 4.542,5.813 0.438,0.198 10 false 8*3

CAUTION / NOTICE / HINT

CAUTION:

When performing the confirmation driving pattern, obey all speed limits and traffic laws.


NOTICE:
·

Because the order of diagnosis is important to allow correct diagnosis, make sure to begin troubleshooting using How to Proceed with Troubleshooting when CAN communication system related DTCs are output.

Click herePower Source / Network>NETWORKING>CAN COMMUNICATION SYSTEM (for HV Model)>HOW TO PROCEED WITH TROUBLESHOOTING

·

Before measuring the resistance of the CAN bus, turn the ignition switch off and leave the vehicle for 1 minute or more without operating the key or any switches, or opening or closing the doors. After that, disconnect the cable from the negative (-) auxiliary battery terminal and leave the vehicle for 10 minutes or more before measuring the resistance.

·

After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY

·

When disconnecting and reconnecting the auxiliary battery.

HINT:

When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART


·

Some parts must be initialized and set when replacing or removing and installing parts.

Click hereGeneral>SETUP>WHEN REPLACING OR REMOVING/INSTALLING PARTS>WORK PROCEDURE

·

After performing repairs, perform the DTC check procedure and confirm that the DTCs are not output again.

DTC check procedure: Turn the ignition switch to ON and wait for 1 minute or more. Then operate the suspected malfunctioning system and drive the vehicle at 60 km/h (37 mph) or more for 5 minutes or more.

·

After the repair, perform the CAN bus check and check that all the ECUs and sensors connected to the CAN communication system are displayed as normal.

Click herePower Source / Network>NETWORKING>CAN COMMUNICATION SYSTEM (for HV Model)>DIAGNOSIS SYSTEM



HINT:
·

Before disconnecting related connectors for inspection, push in on each connector body to check that the connector is not loose or disconnected.

·

When a connector is disconnected, check that the terminals and connector body are not cracked, deformed or corroded.



PROCEDURE

1.CHECK FOR OPEN IN CAN MAIN BUS LINES
a.

Disconnect the cable from the negative (-) auxiliary battery terminal.


b.

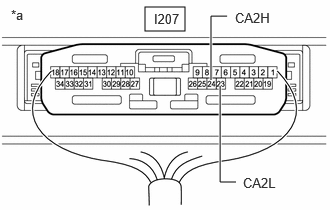

C487978C40
1.51,0.073 1.927,0.323 0.417,0.25 2.458,1.896 2.292,1.896 2.292,1.896 2.292,0.896 true 2.365,0.167 2.198,0.167 2.198,0.167 2.198,0.833 true 0.115,0.073 0.427,0.271 0.313,0.198 10 false *a 1.604,0.115 2.063,0.313 0.458,0.198 10 false I207 2.531,1.823 3,2.042 0.469,0.219 10 false CA2L 2.448,0.104 2.927,0.271 0.479,0.167 10 false CA2H

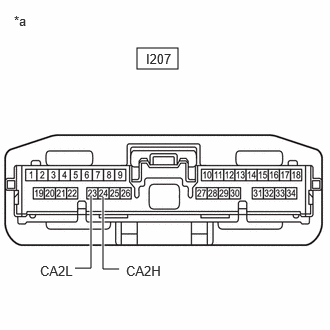

*a Component with harness connected
(Central Gateway ECU (Network Gateway ECU))


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
I207-24 (CA2H) - I207-23 (CA2L) Cable disconnected from negative (-) auxiliary battery terminal Below 70 Ω



Result:
Result
OK
NG



OK

2.CHECK FOR SHORT IN CAN BUS LINES

NG

134.CHECK FOR OPEN IN CAN MAIN BUS LINES (CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
2.CHECK FOR SHORT IN CAN BUS LINES
a.
C487978C40
1.51,0.073 1.927,0.323 0.417,0.25 2.458,1.896 2.292,1.896 2.292,1.896 2.292,0.896 true 2.365,0.167 2.198,0.167 2.198,0.167 2.198,0.833 true 0.115,0.073 0.427,0.271 0.313,0.198 10 false *a 1.604,0.115 2.063,0.313 0.458,0.198 10 false I207 2.531,1.823 3,2.042 0.469,0.219 10 false CA2L 2.448,0.104 2.927,0.271 0.479,0.167 10 false CA2H
*a Component with harness connected
(Central Gateway ECU (Network Gateway ECU))


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
I207-24 (CA2H) - I207-23 (CA2L) Cable disconnected from negative (-) auxiliary battery terminal 54 Ω or higher



Result:
Result
OK
NG



OK

3.CHECK FOR SHORT TO +B IN CAN BUS LINE

NG

91.CHECK VEHICLE TYPE
3.CHECK FOR SHORT TO +B IN CAN BUS LINE
a.

Measure the resistance according to the value(s) in the table below.

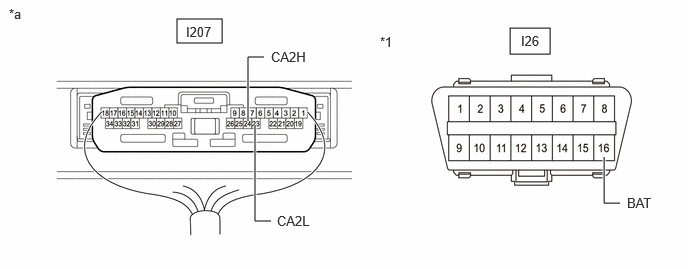

C487979C53
1.844,0.198 2.313,0.448 0.469,0.25 5.313,0.292 5.729,0.563 0.417,0.271 2.583,1.26 2.583,0.594 2.583,0.594 2.75,0.594 true 6.458,2.115 6.292,2.115 6.292,2.115 6.292,1.635 true 2.656,1.302 2.656,2.302 2.656,2.302 2.823,2.302 true 3.958,0.354 4.271,0.552 0.313,0.198 10 false *1 1.938,0.25 2.333,0.448 0.396,0.198 10 false I207 2.885,2.219 3.438,2.417 0.552,0.198 10 false CA2L 6.531,2.031 7.083,2.229 0.552,0.198 10 false BAT 2.823,0.51 3.375,0.708 0.552,0.198 10 false CA2H 5.427,0.344 5.74,0.542 0.313,0.198 10 false I26 0.094,0.063 0.406,0.26 0.313,0.198 10 false *a
*1 DLC3 - -
*a Component with harness connected
(Central Gateway ECU (Network Gateway ECU)) 		- -


Standard Resistance:
Tester Connection Condition Specified Condition
I207-24 (CA2H) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
I207-23 (CA2L) - I26-16 (BAT)



Result:
Result
OK
NG



OK

4.CHECK FOR SHORT TO GND IN CAN BUS LINE

NG

48.CHECK VEHICLE TYPE
4.CHECK FOR SHORT TO GND IN CAN BUS LINE
a.

Measure the resistance according to the value(s) in the table below.

C487979C54
1.844,0.198 2.313,0.448 0.469,0.25 5.313,0.135 5.729,0.406 0.417,0.271 2.583,1.26 2.583,0.594 2.583,0.594 2.75,0.594 true 5.271,0.542 5.438,0.542 5.438,0.542 5.438,1.042 true 2.656,1.302 2.656,2.302 2.656,2.302 2.823,2.302 true 3.958,0.354 4.271,0.552 0.313,0.198 10 false *1 1.958,0.25 2.354,0.448 0.396,0.198 10 false I207 2.885,2.219 3.438,2.417 0.552,0.198 10 false CA2L 5.021,0.458 5.573,0.656 0.552,0.198 10 false CG 2.823,0.51 3.375,0.708 0.552,0.198 10 false CA2H 5.427,0.188 5.74,0.385 0.313,0.198 10 false I26 0.094,0.063 0.406,0.26 0.313,0.198 10 false *a
*1 DLC3 - -

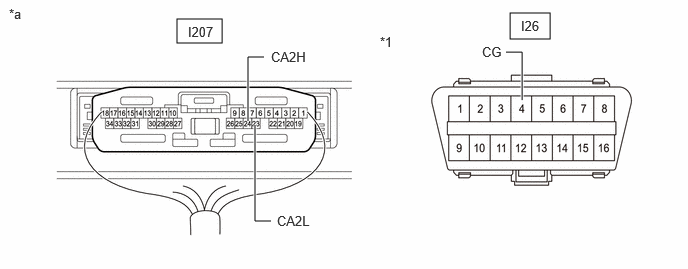

*a Component with harness connected
(Central Gateway ECU (Network Gateway ECU)) 		- -


Standard Resistance:
Tester Connection Condition Specified Condition
I207-24 (CA2H) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
I207-23 (CA2L) - I26-4 (CG)



Result:
Result
OK
NG



OK

REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)

Click herePower Source / Network>NETWORKING>NETWORK GATEWAY ECU>REMOVAL


NG

5.CHECK VEHICLE TYPE
5.CHECK VEHICLE TYPE
a.

Check vehicle type.


Result:
Result Proceed to
for 8ZR-FXE (TFTM Made) or M20G-FXS A
for 8ZR-FXE (GTMC Made) B
for M20F-FXS C



A

6.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 41 JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

B

20.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 16 CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

C

34.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 39 JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
6.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 41 JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
a.

Disconnect the A155 No. 41 junction connector.


b.

Measure the resistance according to the value(s) in the table below.

C503911C24
0.271,0.833 0.667,1.073 0.396,0.24 3.729,0.781 4.135,1.031 0.406,0.25 1.802,0.302 1.969,0.302 1.969,0.302 1.969,0.885 true 1.813,1.531 1.979,1.531 1.979,1.531 1.979,1.115 true 5.458,0.177 5.625,0.177 5.625,0.177 5.625,0.594 true 4.031,0.156 4.344,0.354 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.333,0.875 0.813,1.094 0.479,0.219 10 false A155 3.854,0.823 4.167,1.021 0.313,0.198 10 false I26 5.198,0.104 5.615,0.313 0.417,0.208 10 false CG 1.24,0.219 1.771,0.438 0.531,0.219 10 false CANH*b 1.26,1.458 1.792,1.677 0.531,0.219 10 false CANL*b
*1 DLC3 - -

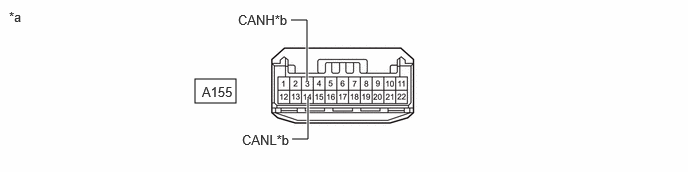

*a Front view of wire harness connector
(to No. 41 Junction Connector) 		*b to Central Gateway ECU (Network Gateway ECU)


Standard Resistance:
Tester Connection Condition Specified Condition
A155-4 (CANH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
A155-15 (CANL) - I26-4 (CG)



Result:
Result
OK
NG



OK

7.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 41 JUNCTION CONNECTOR - NO. 13 CAN JUNCTION CONNECTOR)

NG

10.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 41 JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
7.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 41 JUNCTION CONNECTOR - NO. 13 CAN JUNCTION CONNECTOR)
a.

Measure the resistance according to the value(s) in the table below.

C503911C25
0.271,0.833 0.667,1.073 0.396,0.24 3.729,0.781 4.135,1.031 0.406,0.25 1.438,0.313 1.604,0.313 1.604,0.313 1.604,0.896 true 1.448,1.531 1.615,1.531 1.615,1.531 1.615,1.115 true 5.458,0.177 5.625,0.177 5.625,0.177 5.625,0.594 true 4.031,0.156 4.344,0.354 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.333,0.875 0.813,1.094 0.479,0.219 10 false A155 3.854,0.823 4.167,1.021 0.313,0.198 10 false I26 5.198,0.104 5.615,0.313 0.417,0.208 10 false CG 0.885,0.229 1.417,0.448 0.531,0.219 10 false CANH*b 0.906,1.458 1.438,1.677 0.531,0.219 10 false CANL*b
*1 DLC3 - -

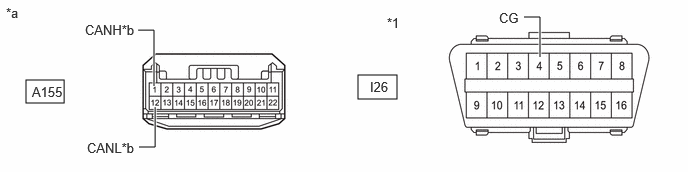

*a Front view of wire harness connector
(to No. 41 Junction Connector) 		*b to No. 13 CAN Junction Connector


Standard Resistance:
Tester Connection Condition Specified Condition
A155-1 (CANH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
A155-12 (CANL) - I26-4 (CG)



Result:
Result
OK
NG



OK

8.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 41 JUNCTION CONNECTOR - SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY))

NG

13.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 13 CAN JUNCTION CONNECTOR - NO. 41 JUNCTION CONNECTOR)
8.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 41 JUNCTION CONNECTOR - SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY))
a.

Measure the resistance according to the value(s) in the table below.

C503911C26
0.271,0.833 0.667,1.073 0.396,0.24 3.729,0.781 4.135,1.031 0.406,0.25 1.573,0.302 1.74,0.302 1.74,0.302 1.74,0.885 true 1.573,1.531 1.74,1.531 1.74,1.531 1.74,1.115 true 5.458,0.177 5.625,0.177 5.625,0.177 5.625,0.594 true 4.031,0.156 4.344,0.354 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.333,0.875 0.813,1.094 0.479,0.219 10 false A155 3.854,0.823 4.167,1.021 0.313,0.198 10 false I26 5.198,0.104 5.615,0.313 0.417,0.208 10 false CG 1.01,0.219 1.542,0.438 0.531,0.219 10 false CANH*b 1.042,1.458 1.573,1.677 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 41 Junction Connector) 		*b to Skid Control ECU (Brake Actuator Assembly)


Standard Resistance:
Tester Connection Condition Specified Condition
A155-2 (CANH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
A155-13 (CANL) - I26-4 (CG)



Result:
Result
OK
NG



OK

9.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 41 JUNCTION CONNECTOR - ELECTRIC BRAKE BOOSTER (BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY))

NG

11.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 41 JUNCTION CONNECTOR - SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY))
9.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 41 JUNCTION CONNECTOR - ELECTRIC BRAKE BOOSTER (BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY))
a.

Measure the resistance according to the value(s) in the table below.

C503911C27
0.271,0.833 0.667,1.073 0.396,0.24 3.729,0.781 4.135,1.031 0.406,0.25 1.688,0.302 1.854,0.302 1.854,0.302 1.854,0.885 true 1.688,1.531 1.854,1.531 1.854,1.531 1.854,1.115 true 5.458,0.177 5.625,0.177 5.625,0.177 5.625,0.594 true 4.031,0.156 4.344,0.354 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.333,0.875 0.813,1.094 0.479,0.219 10 false A155 3.854,0.823 4.167,1.021 0.313,0.198 10 false I26 5.198,0.104 5.615,0.313 0.417,0.208 10 false CG 1.135,0.219 1.667,0.438 0.531,0.219 10 false CANH*b 1.135,1.458 1.667,1.677 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 41 Junction Connector) 		*b to Electric Brake Booster (Brake Booster with Master Cylinder Assembly)


Standard Resistance:
Tester Connection Condition Specified Condition
A155-3 (CANH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
A155-14 (CANL) - I26-4 (CG)



Result:
Result
OK
NG



OK

REPLACE NO. 41 JUNCTION CONNECTOR

NG

12.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 41 JUNCTION CONNECTOR - ELECTRIC BRAKE BOOSTER (BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY))
10.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 41 JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
a.

Disconnect the I207 central gateway ECU (network gateway ECU) connector.


b.

Measure the resistance according to the value(s) in the table below.

C503911C24
0.271,0.833 0.667,1.073 0.396,0.24 3.729,0.781 4.135,1.031 0.406,0.25 1.802,0.302 1.969,0.302 1.969,0.302 1.969,0.885 true 1.813,1.531 1.979,1.531 1.979,1.531 1.979,1.115 true 5.458,0.177 5.625,0.177 5.625,0.177 5.625,0.594 true 4.031,0.156 4.344,0.354 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.333,0.875 0.813,1.094 0.479,0.219 10 false A155 3.854,0.823 4.167,1.021 0.313,0.198 10 false I26 5.198,0.104 5.615,0.313 0.417,0.208 10 false CG 1.24,0.219 1.771,0.438 0.531,0.219 10 false CANH*b 1.26,1.458 1.792,1.677 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 41 Junction Connector) 		*b to Central Gateway ECU (Network Gateway ECU)


Standard Resistance:
Tester Connection Condition Specified Condition
A155-4 (CANH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
A155-15 (CANL) - I26-4 (CG)



Result:
Result
OK
NG



OK

REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)

Click herePower Source / Network>NETWORKING>NETWORK GATEWAY ECU>REMOVAL


NG

REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 41 JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

11.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 41 JUNCTION CONNECTOR - SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY))
a.

Disconnect the A144 skid control ECU (brake actuator assembly) connector.


b.

Measure the resistance according to the value(s) in the table below.

C503911C26
0.271,0.833 0.667,1.073 0.396,0.24 3.729,0.781 4.135,1.031 0.406,0.25 1.573,0.302 1.74,0.302 1.74,0.302 1.74,0.885 true 1.573,1.531 1.74,1.531 1.74,1.531 1.74,1.115 true 5.458,0.177 5.625,0.177 5.625,0.177 5.625,0.594 true 4.031,0.156 4.344,0.354 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.333,0.875 0.813,1.094 0.479,0.219 10 false A155 3.854,0.823 4.167,1.021 0.313,0.198 10 false I26 5.198,0.104 5.615,0.313 0.417,0.208 10 false CG 1.01,0.219 1.542,0.438 0.531,0.219 10 false CANH*b 1.042,1.458 1.573,1.677 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 41 Junction Connector) 		*b to Skid Control ECU (Brake Actuator Assembly)


Standard Resistance:
Tester Connection Condition Specified Condition
A155-2 (CANH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
A155-13 (CANL) - I26-4 (CG)



Result:
Result
OK
NG



OK

REPLACE SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY)

Click hereBrake>BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS>BRAKE ACTUATOR (for HV Model)>REMOVAL


NG

REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 41 JUNCTION CONNECTOR - SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY))

12.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 41 JUNCTION CONNECTOR - ELECTRIC BRAKE BOOSTER (BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY))
a.

Disconnect the A143 electric brake booster (brake booster with master cylinder assembly) connector.


b.

Measure the resistance according to the value(s) in the table below.

C503911C27
0.271,0.833 0.667,1.073 0.396,0.24 3.729,0.781 4.135,1.031 0.406,0.25 1.688,0.302 1.854,0.302 1.854,0.302 1.854,0.885 true 1.688,1.531 1.854,1.531 1.854,1.531 1.854,1.115 true 5.458,0.177 5.625,0.177 5.625,0.177 5.625,0.594 true 4.031,0.156 4.344,0.354 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.333,0.875 0.813,1.094 0.479,0.219 10 false A155 3.854,0.823 4.167,1.021 0.313,0.198 10 false I26 5.198,0.104 5.615,0.313 0.417,0.208 10 false CG 1.135,0.219 1.667,0.438 0.531,0.219 10 false CANH*b 1.135,1.458 1.667,1.677 0.531,0.219 10 false CANL*b
*1 DLC3 - -

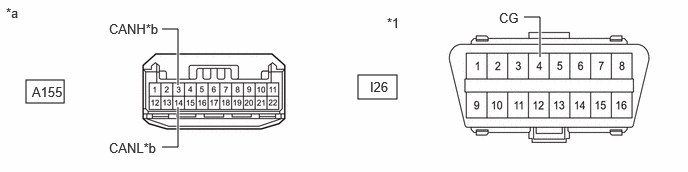

*a Front view of wire harness connector
(to No. 41 Junction Connector) 		*b to Electric Brake Booster (Brake Booster with Master Cylinder Assembly)


Standard Resistance:
Tester Connection Condition Specified Condition
A155-3 (CANH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
A155-14 (CANL) - I26-4 (CG)



Result:
Result
OK
NG



OK

REPLACE ELECTRIC BRAKE BOOSTER (BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY)

Click hereBrake>BRAKE SYSTEM (OTHER)>BRAKE BOOSTER (for HV Model)>REMOVAL


NG

REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 41 JUNCTION CONNECTOR - ELECTRIC BRAKE BOOSTER (BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY))

13.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 13 CAN JUNCTION CONNECTOR - NO. 41 JUNCTION CONNECTOR)
a.

Disconnect the I213 No. 13 CAN junction connector.


b.

Measure the resistance according to the value(s) in the table below.

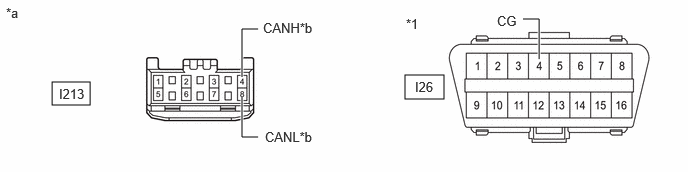

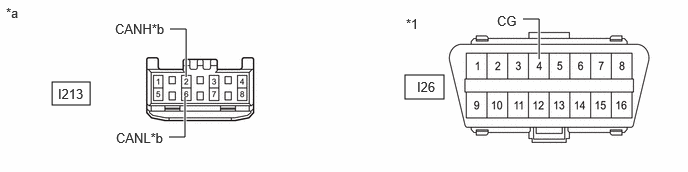

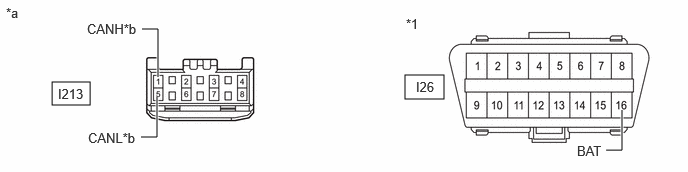

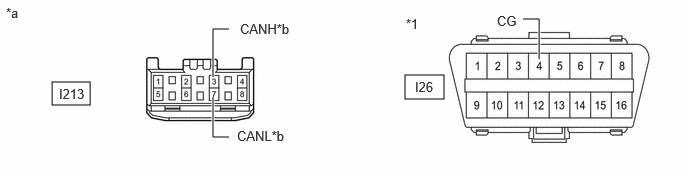

C503904C32
0.542,0.854 0.938,1.094 0.396,0.24 4.219,0.781 4.625,1.031 0.406,0.25 1.479,0.302 1.646,0.302 1.646,0.302 1.646,0.802 true 1.469,1.427 1.635,1.427 1.635,1.427 1.635,1.01 true 5.448,0.198 5.615,0.198 5.615,0.198 5.615,0.615 true 4.229,0.167 4.542,0.365 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.604,0.896 1.083,1.115 0.479,0.219 10 false I213 4.344,0.823 4.656,1.021 0.313,0.198 10 false I26 5.177,0.135 5.594,0.344 0.417,0.208 10 false CG 0.906,0.219 1.438,0.438 0.531,0.219 10 false CANH*b 0.917,1.354 1.448,1.573 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 13 CAN Junction Connector) 		*b to No. 41 Junction Connector


Standard Resistance:
Tester Connection Condition Specified Condition
I213-1 (CANH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
I213-5 (CANL) - I26-4 (CG)



Result:
Result
OK
NG



OK

14.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 13 CAN JUNCTION CONNECTOR - AIRBAG SENSOR WITH ECU ASSEMBLY)

NG

REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 13 CAN JUNCTION CONNECTOR - NO. 41 JUNCTION CONNECTOR)

14.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 13 CAN JUNCTION CONNECTOR - AIRBAG SENSOR WITH ECU ASSEMBLY)
a.

Measure the resistance according to the value(s) in the table below.

C503904C22
0.542,0.854 0.938,1.094 0.396,0.24 4.219,0.781 4.625,1.031 0.406,0.25 2.385,0.302 2.219,0.302 2.219,0.302 2.219,0.802 true 2.385,1.427 2.219,1.427 2.219,1.427 2.219,1.01 true 5.448,0.198 5.615,0.198 5.615,0.198 5.615,0.615 true 4.229,0.167 4.542,0.365 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.615,0.896 1.094,1.115 0.479,0.219 10 false I213 4.323,0.823 4.635,1.021 0.313,0.198 10 false I26 5.177,0.135 5.594,0.344 0.417,0.208 10 false CG 2.5,0.219 3.031,0.438 0.531,0.219 10 false CANH*b 2.469,1.333 3,1.552 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 13 CAN Junction Connector) 		*b to Airbag Sensor with ECU Assembly


Standard Resistance:
Tester Connection Condition Specified Condition
I213-3 (CANH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
I213-7 (CANL) - I26-4 (CG)



Result:
Result
OK
NG



OK

15.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 13 CAN JUNCTION CONNECTOR - STEERING SENSOR)

NG

17.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 13 CAN JUNCTION CONNECTOR - AIRBAG SENSOR WITH ECU ASSEMBLY)
15.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 13 CAN JUNCTION CONNECTOR - STEERING SENSOR)
a.

Measure the resistance according to the value(s) in the table below.

C503904C33
0.542,0.854 0.938,1.094 0.396,0.24 4.219,0.781 4.625,1.031 0.406,0.25 2.688,0.302 2.521,0.302 2.521,0.302 2.521,0.802 true 2.688,1.427 2.521,1.427 2.521,1.427 2.521,1.01 true 5.448,0.198 5.615,0.198 5.615,0.198 5.615,0.615 true 4.229,0.167 4.542,0.365 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.615,0.896 1.094,1.115 0.479,0.219 10 false I213 4.323,0.823 4.635,1.021 0.313,0.198 10 false I26 5.177,0.135 5.594,0.344 0.417,0.208 10 false CG 2.74,0.208 3.271,0.427 0.531,0.219 10 false CANH*b 2.76,1.344 3.292,1.563 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 13 CAN Junction Connector) 		*b to Steering Sensor


Standard Resistance:
Tester Connection Condition Specified Condition
I213-4 (CANH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
I213-8 (CANL) - I26-4 (CG)



Result:
Result
OK
NG



OK

16.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 13 CAN JUNCTION CONNECTOR - POWER STEERING ECU WITH MOTOR ASSEMBLY)

NG

18.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 13 CAN JUNCTION CONNECTOR - STEERING SENSOR)
16.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 13 CAN JUNCTION CONNECTOR - POWER STEERING ECU WITH MOTOR ASSEMBLY)
a.

Measure the resistance according to the value(s) in the table below.

C503904C34
0.542,0.854 0.938,1.094 0.396,0.24 4.219,0.781 4.625,1.031 0.406,0.25 1.771,0.302 1.938,0.302 1.938,0.302 1.938,0.802 true 1.76,1.427 1.927,1.427 1.927,1.427 1.927,1.01 true 5.448,0.198 5.615,0.198 5.615,0.198 5.615,0.615 true 4.229,0.167 4.542,0.365 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.604,0.896 1.083,1.115 0.479,0.219 10 false I213 4.344,0.823 4.656,1.021 0.313,0.198 10 false I26 5.177,0.135 5.594,0.344 0.417,0.208 10 false CG 1.198,0.219 1.729,0.438 0.531,0.219 10 false CANH*b 1.208,1.354 1.74,1.573 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 13 CAN Junction Connector) 		*b to Power Steering ECU with Motor Assembly


Standard Resistance:
Tester Connection Condition Specified Condition
I213-2 (CANH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
I213-6 (CANL) - I26-4 (CG)



Result:
Result
OK
NG



OK

REPLACE NO. 13 CAN JUNCTION CONNECTOR

NG

19.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 13 CAN JUNCTION CONNECTOR - POWER STEERING ECU WITH MOTOR ASSEMBLY)
17.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 13 CAN JUNCTION CONNECTOR - AIRBAG SENSOR WITH ECU ASSEMBLY)
a.

Disconnect the I205 airbag sensor with ECU assembly connector.


b.

Measure the resistance according to the value(s) in the table below.

C503904C22
0.542,0.854 0.938,1.094 0.396,0.24 4.219,0.781 4.625,1.031 0.406,0.25 2.385,0.302 2.219,0.302 2.219,0.302 2.219,0.802 true 2.385,1.427 2.219,1.427 2.219,1.427 2.219,1.01 true 5.448,0.198 5.615,0.198 5.615,0.198 5.615,0.615 true 4.229,0.167 4.542,0.365 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.615,0.896 1.094,1.115 0.479,0.219 10 false I213 4.323,0.823 4.635,1.021 0.313,0.198 10 false I26 5.177,0.135 5.594,0.344 0.417,0.208 10 false CG 2.5,0.219 3.031,0.438 0.531,0.219 10 false CANH*b 2.469,1.333 3,1.552 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 13 CAN Junction Connector) 		*b to Airbag Sensor with ECU Assembly


Standard Resistance:
Tester Connection Condition Specified Condition
I213-3 (CANH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
I213-7 (CANL) - I26-4 (CG)



Result:
Result
OK
NG



OK

REPLACE AIRBAG SENSOR WITH ECU ASSEMBLY

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>CENTER AIRBAG SENSOR ASSEMBLY>REMOVAL


NG

REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 13 CAN JUNCTION CONNECTOR - AIRBAG SENSOR WITH ECU ASSEMBLY)

18.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 13 CAN JUNCTION CONNECTOR - STEERING SENSOR)
a.

Disconnect the I46 or I220 steering sensor connector.


b.

Measure the resistance according to the value(s) in the table below.

C503904C33
0.542,0.854 0.938,1.094 0.396,0.24 4.219,0.781 4.625,1.031 0.406,0.25 2.688,0.302 2.521,0.302 2.521,0.302 2.521,0.802 true 2.688,1.427 2.521,1.427 2.521,1.427 2.521,1.01 true 5.448,0.198 5.615,0.198 5.615,0.198 5.615,0.615 true 4.229,0.167 4.542,0.365 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.615,0.896 1.094,1.115 0.479,0.219 10 false I213 4.323,0.823 4.635,1.021 0.313,0.198 10 false I26 5.177,0.135 5.594,0.344 0.417,0.208 10 false CG 2.74,0.208 3.271,0.427 0.531,0.219 10 false CANH*b 2.76,1.344 3.292,1.563 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 13 CAN Junction Connector) 		*b to Steering Sensor


Standard Resistance:
Tester Connection Condition Specified Condition
I213-4 (CANH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
I213-8 (CANL) - I26-4 (CG)



Result:
Result
OK
NG



OK

REPLACE STEERING SENSOR

Click hereBrake>BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS>STEERING ANGLE SENSOR>REMOVAL


NG

REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 13 CAN JUNCTION CONNECTOR - STEERING SENSOR)

19.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 13 CAN JUNCTION CONNECTOR - POWER STEERING ECU WITH MOTOR ASSEMBLY)
a.

Disconnect the I21 power steering ECU with motor assembly connector.


b.

Measure the resistance according to the value(s) in the table below.

C503904C34
0.542,0.854 0.938,1.094 0.396,0.24 4.219,0.781 4.625,1.031 0.406,0.25 1.771,0.302 1.938,0.302 1.938,0.302 1.938,0.802 true 1.76,1.427 1.927,1.427 1.927,1.427 1.927,1.01 true 5.448,0.198 5.615,0.198 5.615,0.198 5.615,0.615 true 4.229,0.167 4.542,0.365 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.604,0.896 1.083,1.115 0.479,0.219 10 false I213 4.344,0.823 4.656,1.021 0.313,0.198 10 false I26 5.177,0.135 5.594,0.344 0.417,0.208 10 false CG 1.198,0.219 1.729,0.438 0.531,0.219 10 false CANH*b 1.208,1.354 1.74,1.573 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 13 CAN Junction Connector) 		*b to Power Steering ECU with Motor Assembly


Standard Resistance:
Tester Connection Condition Specified Condition
I213-2 (CANH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
I213-6 (CANL) - I26-4 (CG)



Result:
Result
OK
NG



OK

REPLACE POWER STEERING ECU WITH MOTOR ASSEMBLY

Click hereSteering>POWER ASSIST SYSTEMS>POWER STEERING ECU>REMOVAL


NG

REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 13 CAN JUNCTION CONNECTOR - POWER STEERING ECU WITH MOTOR ASSEMBLY)

20.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 16 CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
a.

Disconnect the A169 No. 16 CAN junction connector.


b.

Measure the resistance according to the value(s) in the table below.

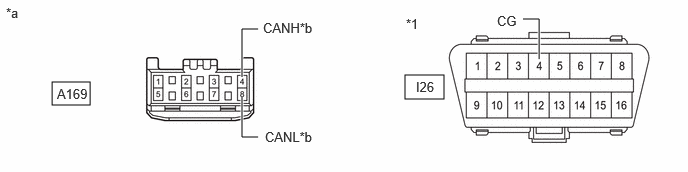

C503904C15
0.542,0.854 0.938,1.094 0.396,0.24 4.219,0.781 4.625,1.031 0.406,0.25 2.688,0.302 2.521,0.302 2.521,0.302 2.521,0.802 true 2.688,1.427 2.521,1.427 2.521,1.427 2.521,1.01 true 5.448,0.198 5.615,0.198 5.615,0.198 5.615,0.615 true 4.229,0.167 4.542,0.365 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.594,0.896 1.073,1.115 0.479,0.219 10 false A169 4.333,0.823 4.646,1.021 0.313,0.198 10 false I26 5.177,0.135 5.594,0.344 0.417,0.208 10 false CG 2.74,0.208 3.271,0.427 0.531,0.219 10 false CANH*b 2.76,1.344 3.292,1.563 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 16 CAN Junction Connector) 		*b to Central Gateway ECU (Network Gateway ECU)


Standard Resistance:
Tester Connection Condition Specified Condition
A169-4 (CANH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
A169-8 (CANL) - I26-4 (CG)



Result:
Result
OK
NG



OK

21.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 16 CAN JUNCTION CONNECTOR - NO. 10 CAN JUNCTION CONNECTOR)

NG

24.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 16 CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
21.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 16 CAN JUNCTION CONNECTOR - NO. 10 CAN JUNCTION CONNECTOR)
a.

Measure the resistance according to the value(s) in the table below.

C503904C17
0.542,0.854 0.938,1.094 0.396,0.24 4.219,0.781 4.625,1.031 0.406,0.25 2.385,0.302 2.219,0.302 2.219,0.302 2.219,0.802 true 2.385,1.427 2.219,1.427 2.219,1.427 2.219,1.01 true 5.448,0.198 5.615,0.198 5.615,0.198 5.615,0.615 true 4.229,0.167 4.542,0.365 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.583,0.896 1.063,1.115 0.479,0.219 10 false A169 4.323,0.823 4.635,1.021 0.313,0.198 10 false I26 5.177,0.135 5.594,0.344 0.417,0.208 10 false CG 2.5,0.219 3.031,0.438 0.531,0.219 10 false CANH*b 2.469,1.333 3,1.552 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 16 CAN Junction Connector) 		*b to No. 10 CAN Junction Connector


Standard Resistance:
Tester Connection Condition Specified Condition
A169-3 (CANH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
A169-7 (CANL) - I26-4 (CG)



Result:
Result
OK
NG



OK

22.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 16 CAN JUNCTION CONNECTOR - SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY))

NG

27.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 10 CAN JUNCTION CONNECTOR - NO. 16 CAN JUNCTION CONNECTOR)
22.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 16 CAN JUNCTION CONNECTOR - SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY))
a.

Measure the resistance according to the value(s) in the table below.

C503904C18
0.542,0.854 0.938,1.094 0.396,0.24 4.219,0.781 4.625,1.031 0.406,0.25 1.771,0.302 1.938,0.302 1.938,0.302 1.938,0.802 true 1.76,1.427 1.927,1.427 1.927,1.427 1.927,1.01 true 5.448,0.198 5.615,0.198 5.615,0.198 5.615,0.615 true 4.229,0.167 4.542,0.365 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.583,0.896 1.063,1.115 0.479,0.219 10 false A169 4.323,0.823 4.635,1.021 0.313,0.198 10 false I26 5.177,0.135 5.594,0.344 0.417,0.208 10 false CG 1.198,0.219 1.729,0.438 0.531,0.219 10 false CANH*b 1.208,1.354 1.74,1.573 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector

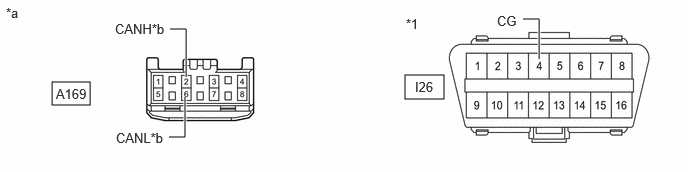

(to No. 16 CAN Junction Connector) 		*b to Skid Control ECU (Brake Actuator Assembly)


Standard Resistance:
Tester Connection Condition Specified Condition
A169-2 (CANH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
A169-6 (CANL) - I26-4 (CG)



Result:
Result
OK
NG



OK

23.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 16 CAN JUNCTION CONNECTOR - ELECTRIC BRAKE BOOSTER (BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY))

NG

25.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 16 CAN JUNCTION CONNECTOR - SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY))
23.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 16 CAN JUNCTION CONNECTOR - ELECTRIC BRAKE BOOSTER (BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY))
a.

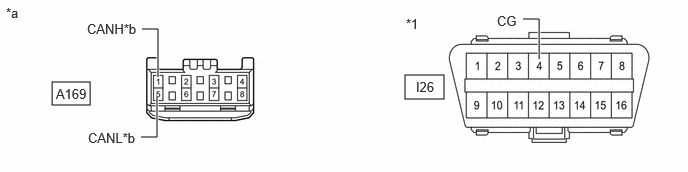

Measure the resistance according to the value(s) in the table below.

C503904C19
0.542,0.854 0.938,1.094 0.396,0.24 4.219,0.781 4.625,1.031 0.406,0.25 1.479,0.302 1.646,0.302 1.646,0.302 1.646,0.802 true 1.469,1.427 1.635,1.427 1.635,1.427 1.635,1.01 true 5.448,0.198 5.615,0.198 5.615,0.198 5.615,0.615 true 4.229,0.167 4.542,0.365 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.583,0.896 1.063,1.115 0.479,0.219 10 false A169 4.333,0.823 4.646,1.021 0.313,0.198 10 false I26 5.177,0.135 5.594,0.344 0.417,0.208 10 false CG 0.906,0.219 1.438,0.438 0.531,0.219 10 false CANH*b 0.917,1.354 1.448,1.573 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 16 CAN Junction Connector) 		*b to Electric Brake Booster (Brake Booster with Master Cylinder Assembly)


Standard Resistance:
Tester Connection Condition Specified Condition
A169-1 (CANH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
A169-5 (CANL) - I26-4 (CG)



Result:
Result
OK
NG



OK

REPLACE NO. 16 CAN JUNCTION CONNECTOR

NG

26.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 16 CAN JUNCTION CONNECTOR - ELECTRIC BRAKE BOOSTER (BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY))
24.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 16 CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
a.

Disconnect the I207 central gateway ECU (network gateway ECU) connector.


b.

Measure the resistance according to the value(s) in the table below.

C503904C15
0.542,0.854 0.938,1.094 0.396,0.24 4.219,0.781 4.625,1.031 0.406,0.25 2.688,0.302 2.521,0.302 2.521,0.302 2.521,0.802 true 2.688,1.427 2.521,1.427 2.521,1.427 2.521,1.01 true 5.448,0.198 5.615,0.198 5.615,0.198 5.615,0.615 true 4.229,0.167 4.542,0.365 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.594,0.896 1.073,1.115 0.479,0.219 10 false A169 4.333,0.823 4.646,1.021 0.313,0.198 10 false I26 5.177,0.135 5.594,0.344 0.417,0.208 10 false CG 2.74,0.208 3.271,0.427 0.531,0.219 10 false CANH*b 2.76,1.344 3.292,1.563 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 16 CAN Junction Connector) 		*b to Central Gateway ECU (Network Gateway ECU)


Standard Resistance:
Tester Connection Condition Specified Condition
A169-4 (CANH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
A169-8 (CANL) - I26-4 (CG)



Result:
Result
OK
NG



OK

REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)

Click herePower Source / Network>NETWORKING>NETWORK GATEWAY ECU>REMOVAL


NG

REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 16 CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

25.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 16 CAN JUNCTION CONNECTOR - SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY))
a.

Disconnect the A144 skid control ECU (brake actuator assembly) connector.


b.

Measure the resistance according to the value(s) in the table below.

C503904C18
0.542,0.854 0.938,1.094 0.396,0.24 4.219,0.781 4.625,1.031 0.406,0.25 1.771,0.302 1.938,0.302 1.938,0.302 1.938,0.802 true 1.76,1.427 1.927,1.427 1.927,1.427 1.927,1.01 true 5.448,0.198 5.615,0.198 5.615,0.198 5.615,0.615 true 4.229,0.167 4.542,0.365 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.583,0.896 1.063,1.115 0.479,0.219 10 false A169 4.323,0.823 4.635,1.021 0.313,0.198 10 false I26 5.177,0.135 5.594,0.344 0.417,0.208 10 false CG 1.198,0.219 1.729,0.438 0.531,0.219 10 false CANH*b 1.208,1.354 1.74,1.573 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 16 CAN Junction Connector) 		*b to Skid Control ECU (Brake Actuator Assembly)


Standard Resistance:
Tester Connection Condition Specified Condition
A169-2 (CANH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
A169-6 (CANL) - I26-4 (CG)



Result:
Result
OK
NG



OK

REPLACE SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY)

Click hereBrake>BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS>BRAKE ACTUATOR (for HV Model)>REMOVAL


NG

REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 16 CAN JUNCTION CONNECTOR - SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY))

26.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 16 CAN JUNCTION CONNECTOR - ELECTRIC BRAKE BOOSTER (BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY))
a.

Disconnect the A143 electric brake booster (brake booster with master cylinder assembly) connector.


b.

Measure the resistance according to the value(s) in the table below.

C503904C19
0.542,0.854 0.938,1.094 0.396,0.24 4.219,0.781 4.625,1.031 0.406,0.25 1.479,0.302 1.646,0.302 1.646,0.302 1.646,0.802 true 1.469,1.427 1.635,1.427 1.635,1.427 1.635,1.01 true 5.448,0.198 5.615,0.198 5.615,0.198 5.615,0.615 true 4.229,0.167 4.542,0.365 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.583,0.896 1.063,1.115 0.479,0.219 10 false A169 4.333,0.823 4.646,1.021 0.313,0.198 10 false I26 5.177,0.135 5.594,0.344 0.417,0.208 10 false CG 0.906,0.219 1.438,0.438 0.531,0.219 10 false CANH*b 0.917,1.354 1.448,1.573 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 16 CAN Junction Connector) 		*b to Electric Brake Booster (Brake Booster with Master Cylinder Assembly)


Standard Resistance:
Tester Connection Condition Specified Condition
A169-1 (CANH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
A169-5 (CANL) - I26-4 (CG)



Result:
Result
OK
NG



OK

REPLACE ELECTRIC BRAKE BOOSTER (BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY)

Click hereBrake>BRAKE SYSTEM (OTHER)>BRAKE BOOSTER (for HV Model)>REMOVAL


NG

REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 16 CAN JUNCTION CONNECTOR - ELECTRIC BRAKE BOOSTER (BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY))

27.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 10 CAN JUNCTION CONNECTOR - NO. 16 CAN JUNCTION CONNECTOR)
a.

Disconnect the I222 No. 10 CAN junction connector.


b.

Measure the resistance according to the value(s) in the table below.

C503904C20
0.542,0.854 0.938,1.094 0.396,0.24 4.219,0.781 4.625,1.031 0.406,0.25 1.771,0.302 1.938,0.302 1.938,0.302 1.938,0.802 true 1.76,1.427 1.927,1.427 1.927,1.427 1.927,1.01 true 5.448,0.198 5.615,0.198 5.615,0.198 5.615,0.615 true 4.229,0.167 4.542,0.365 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.604,0.896 1.083,1.115 0.479,0.219 10 false I222 4.344,0.823 4.656,1.021 0.313,0.198 10 false I26 5.177,0.135 5.594,0.344 0.417,0.208 10 false CG 1.198,0.219 1.729,0.438 0.531,0.219 10 false CANH*b 1.208,1.354 1.74,1.573 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 10 CAN Junction Connector) 		*b to No. 16 CAN Junction Connector


Standard Resistance:
Tester Connection Condition Specified Condition
I222-2 (CANH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
I222-6 (CANL) - I26-4 (CG)



Result:
Result
OK
NG



OK

28.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 10 CAN JUNCTION CONNECTOR - AIRBAG SENSOR WITH ECU ASSEMBLY)

NG

REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 10 CAN JUNCTION CONNECTOR - NO. 16 CAN JUNCTION CONNECTOR)

28.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 10 CAN JUNCTION CONNECTOR - AIRBAG SENSOR WITH ECU ASSEMBLY)
a.

Measure the resistance according to the value(s) in the table below.

C503904C21
0.542,0.854 0.938,1.094 0.396,0.24 4.219,0.781 4.625,1.031 0.406,0.25 1.479,0.302 1.646,0.302 1.646,0.302 1.646,0.802 true 1.469,1.427 1.635,1.427 1.635,1.427 1.635,1.01 true 5.448,0.198 5.615,0.198 5.615,0.198 5.615,0.615 true 4.229,0.167 4.542,0.365 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.604,0.896 1.083,1.115 0.479,0.219 10 false I222 4.344,0.823 4.656,1.021 0.313,0.198 10 false I26 5.177,0.135 5.594,0.344 0.417,0.208 10 false CG 0.906,0.219 1.438,0.438 0.531,0.219 10 false CANH*b 0.917,1.354 1.448,1.573 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 10 CAN Junction Connector) 		*b to Airbag Sensor with ECU Assembly


Standard Resistance:
Tester Connection Condition Specified Condition
I222-1 (CANH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
I222-5 (CANL) - I26-4 (CG)



Result:
Result
OK
NG



OK

29.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 10 CAN JUNCTION CONNECTOR - STEERING SENSOR)

NG

31.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 10 CAN JUNCTION CONNECTOR - AIRBAG SENSOR WITH ECU ASSEMBLY)
29.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 10 CAN JUNCTION CONNECTOR - STEERING SENSOR)
a.

Measure the resistance according to the value(s) in the table below.

C503904C81
0.542,0.854 0.938,1.094 0.396,0.24 4.219,0.781 4.625,1.031 0.406,0.25 2.385,0.302 2.219,0.302 2.219,0.302 2.219,0.802 true 2.385,1.427 2.219,1.427 2.219,1.427 2.219,1.01 true 5.448,0.198 5.615,0.198 5.615,0.198 5.615,0.615 true 4.229,0.167 4.542,0.365 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.615,0.896 1.094,1.115 0.479,0.219 10 false I222 4.323,0.823 4.635,1.021 0.313,0.198 10 false I26 5.177,0.135 5.594,0.344 0.417,0.208 10 false CG 2.5,0.219 3.031,0.438 0.531,0.219 10 false CANH*b 2.469,1.333 3,1.552 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 10 CAN Junction Connector) 		*b to Steering Sensor


Standard Resistance:
Tester Connection Condition Specified Condition
I222-3 (CANH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
I222-7 (CANL) - I26-4 (CG)



Result:
Result
OK
NG



OK

30.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 10 CAN JUNCTION CONNECTOR - POWER STEERING ECU WITH MOTOR ASSEMBLY)

NG

32.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 10 CAN JUNCTION CONNECTOR - STEERING SENSOR)
30.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 10 CAN JUNCTION CONNECTOR - POWER STEERING ECU WITH MOTOR ASSEMBLY)
a.

Measure the resistance according to the value(s) in the table below.

C503904C23
0.542,0.854 0.938,1.094 0.396,0.24 4.219,0.781 4.625,1.031 0.406,0.25 2.688,0.302 2.521,0.302 2.521,0.302 2.521,0.802 true 2.688,1.427 2.521,1.427 2.521,1.427 2.521,1.01 true 5.448,0.198 5.615,0.198 5.615,0.198 5.615,0.615 true 4.229,0.167 4.542,0.365 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.615,0.896 1.094,1.115 0.479,0.219 10 false I222 4.323,0.823 4.635,1.021 0.313,0.198 10 false I26 5.177,0.135 5.594,0.344 0.417,0.208 10 false CG 2.74,0.208 3.271,0.427 0.531,0.219 10 false CANH*b 2.76,1.344 3.292,1.563 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 10 CAN Junction Connector) 		*b to Power Steering ECU with Motor Assembly


Standard Resistance:
Tester Connection Condition Specified Condition
I222-4 (CANH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
I222-8 (CANL) - I26-4 (CG)



Result:
Result
OK
NG



OK

REPLACE NO. 10 CAN JUNCTION CONNECTOR

NG

33.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 10 CAN JUNCTION CONNECTOR - POWER STEERING ECU WITH MOTOR ASSEMBLY)
31.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 10 CAN JUNCTION CONNECTOR - AIRBAG SENSOR WITH ECU ASSEMBLY)
a.

Disconnect the I205 airbag sensor with ECU assembly connector.


b.

Measure the resistance according to the value(s) in the table below.

C503904C21
0.542,0.854 0.938,1.094 0.396,0.24 4.219,0.781 4.625,1.031 0.406,0.25 1.479,0.302 1.646,0.302 1.646,0.302 1.646,0.802 true 1.469,1.427 1.635,1.427 1.635,1.427 1.635,1.01 true 5.448,0.198 5.615,0.198 5.615,0.198 5.615,0.615 true 4.229,0.167 4.542,0.365 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.604,0.896 1.083,1.115 0.479,0.219 10 false I222 4.344,0.823 4.656,1.021 0.313,0.198 10 false I26 5.177,0.135 5.594,0.344 0.417,0.208 10 false CG 0.906,0.219 1.438,0.438 0.531,0.219 10 false CANH*b 0.917,1.354 1.448,1.573 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 10 CAN Junction Connector) 		*b to Airbag Sensor with ECU Assembly


Standard Resistance:
Tester Connection Condition Specified Condition
I222-1 (CANH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
I222-5 (CANL) - I26-4 (CG)



Result:
Result
OK
NG



OK

REPLACE AIRBAG SENSOR WITH ECU ASSEMBLY

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>CENTER AIRBAG SENSOR ASSEMBLY>REMOVAL


NG

REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 10 CAN JUNCTION CONNECTOR - AIRBAG SENSOR WITH ECU ASSEMBLY)

32.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 10 CAN JUNCTION CONNECTOR - STEERING SENSOR)
a.

Disconnect the I220 steering sensor connector.


b.

Measure the resistance according to the value(s) in the table below.

C503904C81
0.542,0.854 0.938,1.094 0.396,0.24 4.219,0.781 4.625,1.031 0.406,0.25 2.385,0.302 2.219,0.302 2.219,0.302 2.219,0.802 true 2.385,1.427 2.219,1.427 2.219,1.427 2.219,1.01 true 5.448,0.198 5.615,0.198 5.615,0.198 5.615,0.615 true 4.229,0.167 4.542,0.365 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.615,0.896 1.094,1.115 0.479,0.219 10 false I222 4.323,0.823 4.635,1.021 0.313,0.198 10 false I26 5.177,0.135 5.594,0.344 0.417,0.208 10 false CG 2.5,0.219 3.031,0.438 0.531,0.219 10 false CANH*b 2.469,1.333 3,1.552 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 10 CAN Junction Connector) 		*b to Steering Sensor


Standard Resistance:
Tester Connection Condition Specified Condition
I222-3 (CANH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
I222-7 (CANL) - I26-4 (CG)



Result:
Result
OK
NG



OK

REPLACE STEERING SENSOR

Click hereBrake>BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS>STEERING ANGLE SENSOR>REMOVAL


NG

REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 10 CAN JUNCTION CONNECTOR - STEERING SENSOR)

33.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 10 CAN JUNCTION CONNECTOR - POWER STEERING ECU WITH MOTOR ASSEMBLY)
a.

Disconnect the I21 power steering ECU with motor assembly connector.


b.

Measure the resistance according to the value(s) in the table below.

C503904C23
0.542,0.854 0.938,1.094 0.396,0.24 4.219,0.781 4.625,1.031 0.406,0.25 2.688,0.302 2.521,0.302 2.521,0.302 2.521,0.802 true 2.688,1.427 2.521,1.427 2.521,1.427 2.521,1.01 true 5.448,0.198 5.615,0.198 5.615,0.198 5.615,0.615 true 4.229,0.167 4.542,0.365 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.615,0.896 1.094,1.115 0.479,0.219 10 false I222 4.323,0.823 4.635,1.021 0.313,0.198 10 false I26 5.177,0.135 5.594,0.344 0.417,0.208 10 false CG 2.74,0.208 3.271,0.427 0.531,0.219 10 false CANH*b 2.76,1.344 3.292,1.563 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 10 CAN Junction Connector) 		*b to Power Steering ECU with Motor Assembly


Standard Resistance:
Tester Connection Condition Specified Condition
I222-4 (CANH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
I222-8 (CANL) - I26-4 (CG)



Result:
Result
OK
NG



OK

REPLACE POWER STEERING ECU WITH MOTOR ASSEMBLY

Click hereSteering>POWER ASSIST SYSTEMS>POWER STEERING ECU>REMOVAL


NG

REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 10 CAN JUNCTION CONNECTOR - POWER STEERING ECU WITH MOTOR ASSEMBLY)

34.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 39 JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
a.

Disconnect the A173 No. 39 junction connector.


b.

Measure the resistance according to the value(s) in the table below.

C503904C86
0.542,0.854 0.938,1.094 0.396,0.24 4.219,0.781 4.625,1.031 0.406,0.25 2.688,0.302 2.521,0.302 2.521,0.302 2.521,0.802 true 2.688,1.427 2.521,1.427 2.521,1.427 2.521,1.01 true 5.448,0.198 5.615,0.198 5.615,0.198 5.615,0.615 true 4.229,0.167 4.542,0.365 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.594,0.896 1.073,1.115 0.479,0.219 10 false A173 4.333,0.823 4.646,1.021 0.313,0.198 10 false I26 5.177,0.135 5.594,0.344 0.417,0.208 10 false CG 2.74,0.208 3.271,0.427 0.531,0.219 10 false CANH*b 2.76,1.344 3.292,1.563 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 39 Junction Connector) 		*b to Central Gateway ECU (Network Gateway ECU)


Standard Resistance:
Tester Connection Condition Specified Condition
A173-4 (CANH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
A173-8 (CANL) - I26-4 (CG)



Result:
Result
OK
NG



OK

35.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 39 JUNCTION CONNECTOR - NO. 10 CAN JUNCTION CONNECTOR)

NG

38.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 39 JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
35.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 39 JUNCTION CONNECTOR - NO. 10 CAN JUNCTION CONNECTOR)
a.

Measure the resistance according to the value(s) in the table below.

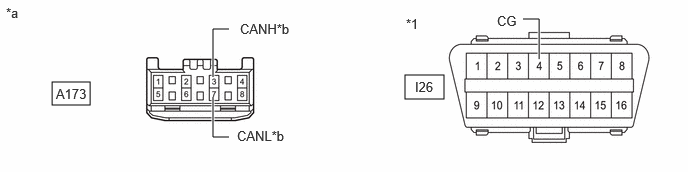

C503904C87
0.542,0.854 0.938,1.094 0.396,0.24 4.219,0.781 4.625,1.031 0.406,0.25 2.385,0.302 2.219,0.302 2.219,0.302 2.219,0.802 true 2.385,1.427 2.219,1.427 2.219,1.427 2.219,1.01 true 5.448,0.198 5.615,0.198 5.615,0.198 5.615,0.615 true 4.229,0.167 4.542,0.365 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.583,0.896 1.063,1.115 0.479,0.219 10 false A173 4.323,0.823 4.635,1.021 0.313,0.198 10 false I26 5.177,0.135 5.594,0.344 0.417,0.208 10 false CG 2.5,0.219 3.031,0.438 0.531,0.219 10 false CANH*b 2.469,1.333 3,1.552 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 39 Junction Connector) 		*b to No. 10 CAN Junction Connector


Standard Resistance:
Tester Connection Condition Specified Condition
A173-3 (CANH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
A173-7 (CANL) - I26-4 (CG)



Result:
Result
OK
NG



OK

36.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 39 JUNCTION CONNECTOR - SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY))

NG

41.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 10 CAN JUNCTION CONNECTOR - NO. 39 JUNCTION CONNECTOR)
36.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 39 JUNCTION CONNECTOR - SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY))
a.

Measure the resistance according to the value(s) in the table below.

C503904C88
0.542,0.854 0.938,1.094 0.396,0.24 4.219,0.781 4.625,1.031 0.406,0.25 1.771,0.302 1.938,0.302 1.938,0.302 1.938,0.802 true 1.76,1.427 1.927,1.427 1.927,1.427 1.927,1.01 true 5.448,0.198 5.615,0.198 5.615,0.198 5.615,0.615 true 4.229,0.167 4.542,0.365 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.583,0.896 1.063,1.115 0.479,0.219 10 false A173 4.323,0.823 4.635,1.021 0.313,0.198 10 false I26 5.177,0.135 5.594,0.344 0.417,0.208 10 false CG 1.198,0.219 1.729,0.438 0.531,0.219 10 false CANH*b 1.208,1.354 1.74,1.573 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 39 Junction Connector) 		*b to Skid Control ECU (Brake Actuator Assembly)


Standard Resistance:
Tester Connection Condition Specified Condition
A173-2 (CANH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
A173-6 (CANL) - I26-4 (CG)



Result:
Result
OK
NG



OK

37.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 39 JUNCTION CONNECTOR - ELECTRIC BRAKE BOOSTER (BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY))

NG

39.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 39 JUNCTION CONNECTOR - SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY))
37.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 39 JUNCTION CONNECTOR - ELECTRIC BRAKE BOOSTER (BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY))
a.

Measure the resistance according to the value(s) in the table below.

C503904C89
0.542,0.854 0.938,1.094 0.396,0.24 4.219,0.781 4.625,1.031 0.406,0.25 1.479,0.302 1.646,0.302 1.646,0.302 1.646,0.802 true 1.469,1.427 1.635,1.427 1.635,1.427 1.635,1.01 true 5.448,0.198 5.615,0.198 5.615,0.198 5.615,0.615 true 4.229,0.167 4.542,0.365 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.583,0.896 1.063,1.115 0.479,0.219 10 false A173 4.333,0.823 4.646,1.021 0.313,0.198 10 false I26 5.177,0.135 5.594,0.344 0.417,0.208 10 false CG 0.906,0.219 1.438,0.438 0.531,0.219 10 false CANH*b 0.917,1.354 1.448,1.573 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 39 Junction Connector) 		*b to Electric Brake Booster (Brake Booster with Master Cylinder Assembly)


Standard Resistance:
Tester Connection Condition Specified Condition
A173-1 (CANH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
A173-5 (CANL) - I26-4 (CG)



Result:
Result
OK
NG



OK

REPLACE NO. 39 JUNCTION CONNECTOR

NG

40.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 39 JUNCTION CONNECTOR - ELECTRIC BRAKE BOOSTER (BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY))
38.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 39 JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
a.

Disconnect the I207 central gateway ECU (network gateway ECU) connector.


b.

Measure the resistance according to the value(s) in the table below.

C503904C86
0.542,0.854 0.938,1.094 0.396,0.24 4.219,0.781 4.625,1.031 0.406,0.25 2.688,0.302 2.521,0.302 2.521,0.302 2.521,0.802 true 2.688,1.427 2.521,1.427 2.521,1.427 2.521,1.01 true 5.448,0.198 5.615,0.198 5.615,0.198 5.615,0.615 true 4.229,0.167 4.542,0.365 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.594,0.896 1.073,1.115 0.479,0.219 10 false A173 4.333,0.823 4.646,1.021 0.313,0.198 10 false I26 5.177,0.135 5.594,0.344 0.417,0.208 10 false CG 2.74,0.208 3.271,0.427 0.531,0.219 10 false CANH*b 2.76,1.344 3.292,1.563 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 39 Junction Connector) 		*b to Central Gateway ECU (Network Gateway ECU)


Standard Resistance:
Tester Connection Condition Specified Condition
A173-4 (CANH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
A173-8 (CANL) - I26-4 (CG)



Result:
Result
OK
NG



OK

REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)

Click herePower Source / Network>NETWORKING>NETWORK GATEWAY ECU>REMOVAL


NG

REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 39 JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

39.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 39 JUNCTION CONNECTOR - SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY))
a.

Disconnect the A144 skid control ECU (brake actuator assembly) connector.


b.

Measure the resistance according to the value(s) in the table below.

C503904C88
0.542,0.854 0.938,1.094 0.396,0.24 4.219,0.781 4.625,1.031 0.406,0.25 1.771,0.302 1.938,0.302 1.938,0.302 1.938,0.802 true 1.76,1.427 1.927,1.427 1.927,1.427 1.927,1.01 true 5.448,0.198 5.615,0.198 5.615,0.198 5.615,0.615 true 4.229,0.167 4.542,0.365 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.583,0.896 1.063,1.115 0.479,0.219 10 false A173 4.323,0.823 4.635,1.021 0.313,0.198 10 false I26 5.177,0.135 5.594,0.344 0.417,0.208 10 false CG 1.198,0.219 1.729,0.438 0.531,0.219 10 false CANH*b 1.208,1.354 1.74,1.573 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 39 Junction Connector) 		*b to Skid Control ECU (Brake Actuator Assembly)


Standard Resistance:
Tester Connection Condition Specified Condition
A173-2 (CANH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
A173-6 (CANL) - I26-4 (CG)



Result:
Result
OK
NG



OK

REPLACE SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY)

Click hereBrake>BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS>BRAKE ACTUATOR (for HV Model)>REMOVAL


NG

REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 39 JUNCTION CONNECTOR - SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY))

40.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 39 JUNCTION CONNECTOR - ELECTRIC BRAKE BOOSTER (BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY))
a.

Disconnect the A143 electric brake booster (brake booster with master cylinder assembly) connector.


b.

Measure the resistance according to the value(s) in the table below.

C503904C89
0.542,0.854 0.938,1.094 0.396,0.24 4.219,0.781 4.625,1.031 0.406,0.25 1.479,0.302 1.646,0.302 1.646,0.302 1.646,0.802 true 1.469,1.427 1.635,1.427 1.635,1.427 1.635,1.01 true 5.448,0.198 5.615,0.198 5.615,0.198 5.615,0.615 true 4.229,0.167 4.542,0.365 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.583,0.896 1.063,1.115 0.479,0.219 10 false A173 4.333,0.823 4.646,1.021 0.313,0.198 10 false I26 5.177,0.135 5.594,0.344 0.417,0.208 10 false CG 0.906,0.219 1.438,0.438 0.531,0.219 10 false CANH*b 0.917,1.354 1.448,1.573 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 39 Junction Connector) 		*b to Electric Brake Booster (Brake Booster with Master Cylinder Assembly)


Standard Resistance:
Tester Connection Condition Specified Condition
A173-1 (CANH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
A173-5 (CANL) - I26-4 (CG)



Result:
Result
OK
NG



OK

REPLACE ELECTRIC BRAKE BOOSTER (BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY)

Click hereBrake>BRAKE SYSTEM (OTHER)>BRAKE BOOSTER (for HV Model)>REMOVAL


NG

REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 39 JUNCTION CONNECTOR - ELECTRIC BRAKE BOOSTER (BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY))

41.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 10 CAN JUNCTION CONNECTOR - NO. 39 JUNCTION CONNECTOR)
a.

Disconnect the I222 No. 10 CAN junction connector.


b.

Measure the resistance according to the value(s) in the table below.

C503904C23
0.542,0.854 0.938,1.094 0.396,0.24 4.219,0.781 4.625,1.031 0.406,0.25 2.688,0.302 2.521,0.302 2.521,0.302 2.521,0.802 true 2.688,1.427 2.521,1.427 2.521,1.427 2.521,1.01 true 5.448,0.198 5.615,0.198 5.615,0.198 5.615,0.615 true 4.229,0.167 4.542,0.365 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.615,0.896 1.094,1.115 0.479,0.219 10 false I222 4.323,0.823 4.635,1.021 0.313,0.198 10 false I26 5.177,0.135 5.594,0.344 0.417,0.208 10 false CG 2.74,0.208 3.271,0.427 0.531,0.219 10 false CANH*b 2.76,1.344 3.292,1.563 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 10 CAN Junction Connector) 		*b to No. 39 Junction Connector


Standard Resistance:
Tester Connection Condition Specified Condition
I222-4 (CANH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
I222-8 (CANL) - I26-4 (CG)



Result:
Result
OK
NG



OK

42.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 10 CAN JUNCTION CONNECTOR - AIRBAG SENSOR WITH ECU ASSEMBLY)

NG

REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 10 CAN JUNCTION CONNECTOR - NO. 39 JUNCTION CONNECTOR)

42.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 10 CAN JUNCTION CONNECTOR - AIRBAG SENSOR WITH ECU ASSEMBLY)
a.

Measure the resistance according to the value(s) in the table below.

C503904C21
0.542,0.854 0.938,1.094 0.396,0.24 4.219,0.781 4.625,1.031 0.406,0.25 1.479,0.302 1.646,0.302 1.646,0.302 1.646,0.802 true 1.469,1.427 1.635,1.427 1.635,1.427 1.635,1.01 true 5.448,0.198 5.615,0.198 5.615,0.198 5.615,0.615 true 4.229,0.167 4.542,0.365 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.604,0.896 1.083,1.115 0.479,0.219 10 false I222 4.344,0.823 4.656,1.021 0.313,0.198 10 false I26 5.177,0.135 5.594,0.344 0.417,0.208 10 false CG 0.906,0.219 1.438,0.438 0.531,0.219 10 false CANH*b 0.917,1.354 1.448,1.573 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 10 CAN Junction Connector) 		*b to Airbag Sensor with ECU Assembly


Standard Resistance:
Tester Connection Condition Specified Condition
I222-1 (CANH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
I222-5 (CANL) - I26-4 (CG)



Result:
Result
OK
NG



OK

43.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 10 CAN JUNCTION CONNECTOR - STEERING SENSOR)

NG

45.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 10 CAN JUNCTION CONNECTOR - AIRBAG SENSOR WITH ECU ASSEMBLY)
43.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 10 CAN JUNCTION CONNECTOR - STEERING SENSOR)
a.

Measure the resistance according to the value(s) in the table below.

C503904C81
0.542,0.854 0.938,1.094 0.396,0.24 4.219,0.781 4.625,1.031 0.406,0.25 2.385,0.302 2.219,0.302 2.219,0.302 2.219,0.802 true 2.385,1.427 2.219,1.427 2.219,1.427 2.219,1.01 true 5.448,0.198 5.615,0.198 5.615,0.198 5.615,0.615 true 4.229,0.167 4.542,0.365 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.615,0.896 1.094,1.115 0.479,0.219 10 false I222 4.323,0.823 4.635,1.021 0.313,0.198 10 false I26 5.177,0.135 5.594,0.344 0.417,0.208 10 false CG 2.5,0.219 3.031,0.438 0.531,0.219 10 false CANH*b 2.469,1.333 3,1.552 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 10 CAN Junction Connector) 		*b to Steering Sensor


Standard Resistance:
Tester Connection Condition Specified Condition
I222-3 (CANH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
I222-7 (CANL) - I26-4 (CG)



Result:
Result
OK
NG



OK

44.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 10 CAN JUNCTION CONNECTOR - POWER STEERING ECU WITH MOTOR ASSEMBLY)

NG

46.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 10 CAN JUNCTION CONNECTOR - STEERING SENSOR)
44.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 10 CAN JUNCTION CONNECTOR - POWER STEERING ECU WITH MOTOR ASSEMBLY)
a.

Measure the resistance according to the value(s) in the table below.

C503904C20
0.542,0.854 0.938,1.094 0.396,0.24 4.219,0.781 4.625,1.031 0.406,0.25 1.771,0.302 1.938,0.302 1.938,0.302 1.938,0.802 true 1.76,1.427 1.927,1.427 1.927,1.427 1.927,1.01 true 5.448,0.198 5.615,0.198 5.615,0.198 5.615,0.615 true 4.229,0.167 4.542,0.365 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.604,0.896 1.083,1.115 0.479,0.219 10 false I222 4.344,0.823 4.656,1.021 0.313,0.198 10 false I26 5.177,0.135 5.594,0.344 0.417,0.208 10 false CG 1.198,0.219 1.729,0.438 0.531,0.219 10 false CANH*b 1.208,1.354 1.74,1.573 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 10 CAN Junction Connector) 		*b to Power Steering ECU with Motor Assembly


Standard Resistance:
Tester Connection Condition Specified Condition
I222-2 (CANH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
I222-6 (CANL) - I26-4 (CG)



Result:
Result
OK
NG



OK

REPLACE NO. 10 CAN JUNCTION CONNECTOR

NG

47.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 10 CAN JUNCTION CONNECTOR - POWER STEERING ECU WITH MOTOR ASSEMBLY)
45.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 10 CAN JUNCTION CONNECTOR - AIRBAG SENSOR WITH ECU ASSEMBLY)
a.

Disconnect the I205 airbag sensor with ECU assembly connector.


b.

Measure the resistance according to the value(s) in the table below.

C503904C21
0.542,0.854 0.938,1.094 0.396,0.24 4.219,0.781 4.625,1.031 0.406,0.25 1.479,0.302 1.646,0.302 1.646,0.302 1.646,0.802 true 1.469,1.427 1.635,1.427 1.635,1.427 1.635,1.01 true 5.448,0.198 5.615,0.198 5.615,0.198 5.615,0.615 true 4.229,0.167 4.542,0.365 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.604,0.896 1.083,1.115 0.479,0.219 10 false I222 4.344,0.823 4.656,1.021 0.313,0.198 10 false I26 5.177,0.135 5.594,0.344 0.417,0.208 10 false CG 0.906,0.219 1.438,0.438 0.531,0.219 10 false CANH*b 0.917,1.354 1.448,1.573 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 10 CAN Junction Connector) 		*b to Airbag Sensor with ECU Assembly


Standard Resistance:
Tester Connection Condition Specified Condition
I222-1 (CANH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
I222-5 (CANL) - I26-4 (CG)



Result:
Result
OK
NG



OK

REPLACE AIRBAG SENSOR WITH ECU ASSEMBLY

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>CENTER AIRBAG SENSOR ASSEMBLY>REMOVAL


NG

REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 10 CAN JUNCTION CONNECTOR - AIRBAG SENSOR WITH ECU ASSEMBLY)

46.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 10 CAN JUNCTION CONNECTOR - STEERING SENSOR)
a.

Disconnect the I220 steering sensor connector.


b.

Measure the resistance according to the value(s) in the table below.

C503904C81
0.542,0.854 0.938,1.094 0.396,0.24 4.219,0.781 4.625,1.031 0.406,0.25 2.385,0.302 2.219,0.302 2.219,0.302 2.219,0.802 true 2.385,1.427 2.219,1.427 2.219,1.427 2.219,1.01 true 5.448,0.198 5.615,0.198 5.615,0.198 5.615,0.615 true 4.229,0.167 4.542,0.365 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.615,0.896 1.094,1.115 0.479,0.219 10 false I222 4.323,0.823 4.635,1.021 0.313,0.198 10 false I26 5.177,0.135 5.594,0.344 0.417,0.208 10 false CG 2.5,0.219 3.031,0.438 0.531,0.219 10 false CANH*b 2.469,1.333 3,1.552 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 10 CAN Junction Connector) 		*b to Steering Sensor


Standard Resistance:
Tester Connection Condition Specified Condition
I222-3 (CANH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
I222-7 (CANL) - I26-4 (CG)



Result:
Result
OK
NG



OK

REPLACE STEERING SENSOR

Click hereBrake>BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS>STEERING ANGLE SENSOR>REMOVAL


NG

REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 10 CAN JUNCTION CONNECTOR - STEERING SENSOR)

47.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 10 CAN JUNCTION CONNECTOR - POWER STEERING ECU WITH MOTOR ASSEMBLY)
a.

Disconnect the I21 power steering ECU with motor assembly connector.


b.

Measure the resistance according to the value(s) in the table below.

C503904C20
0.542,0.854 0.938,1.094 0.396,0.24 4.219,0.781 4.625,1.031 0.406,0.25 1.771,0.302 1.938,0.302 1.938,0.302 1.938,0.802 true 1.76,1.427 1.927,1.427 1.927,1.427 1.927,1.01 true 5.448,0.198 5.615,0.198 5.615,0.198 5.615,0.615 true 4.229,0.167 4.542,0.365 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.604,0.896 1.083,1.115 0.479,0.219 10 false I222 4.344,0.823 4.656,1.021 0.313,0.198 10 false I26 5.177,0.135 5.594,0.344 0.417,0.208 10 false CG 1.198,0.219 1.729,0.438 0.531,0.219 10 false CANH*b 1.208,1.354 1.74,1.573 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 10 CAN Junction Connector) 		*b to Power Steering ECU with Motor Assembly


Standard Resistance:
Tester Connection Condition Specified Condition
I222-2 (CANH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
I222-6 (CANL) - I26-4 (CG)



Result:
Result
OK
NG



OK

REPLACE POWER STEERING ECU WITH MOTOR ASSEMBLY

Click hereSteering>POWER ASSIST SYSTEMS>POWER STEERING ECU>REMOVAL


NG

REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 10 CAN JUNCTION CONNECTOR - POWER STEERING ECU WITH MOTOR ASSEMBLY)

48.CHECK VEHICLE TYPE
a.

Check vehicle type.


Result:
Result Proceed to
for 8ZR-FXE (TFTM Made) or M20G-FXS A
for 8ZR-FXE (GTMC Made) B
for M20F-FXS C



A

49.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 41 JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

B

63.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 16 CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

C

77.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 39 JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
49.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 41 JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
a.

Disconnect the A155 No. 41 junction connector.


b.

Measure the resistance according to the value(s) in the table below.

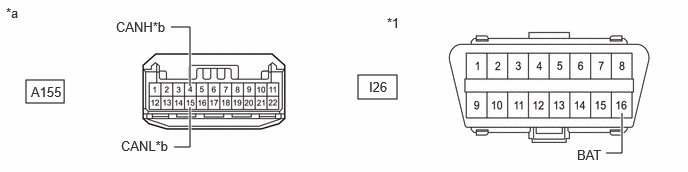

C503911C28
0.271,0.833 0.667,1.073 0.396,0.24 3.729,0.781 4.135,1.031 0.406,0.25 1.781,0.281 1.979,0.281 1.979,0.281 1.979,0.896 true 1.813,1.531 1.979,1.531 1.979,1.531 1.979,1.115 true 6.479,1.177 6.479,1.594 6.479,1.594 6.313,1.594 true 4.031,0.156 4.344,0.354 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.323,0.875 0.802,1.094 0.479,0.219 10 false A155 3.844,0.823 4.156,1.021 0.313,0.198 10 false I26 6.01,1.531 6.427,1.74 0.417,0.208 10 false BAT 1.208,0.198 1.74,0.417 0.531,0.219 10 false CANH*b 1.26,1.438 1.792,1.656 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 41 Junction Connector) 		*b to Central Gateway ECU (Network Gateway ECU)


Standard Resistance:
Tester Connection Condition Specified Condition
A155-4 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
A155-15 (CANL) - I26-16 (BAT)



Result:
Result
OK
NG



OK

50.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 41 JUNCTION CONNECTOR - NO. 13 CAN JUNCTION CONNECTOR)

NG

53.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 41 JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
50.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 41 JUNCTION CONNECTOR - NO. 13 CAN JUNCTION CONNECTOR)
a.

Measure the resistance according to the value(s) in the table below.

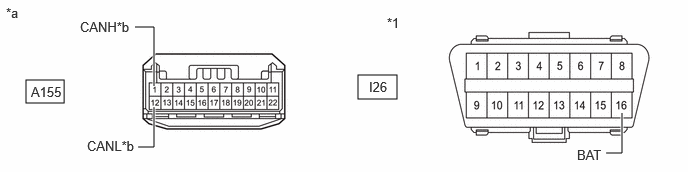

C503911C29
0.271,0.833 0.667,1.073 0.396,0.24 3.729,0.781 4.135,1.031 0.406,0.25 1.406,0.281 1.604,0.281 1.604,0.281 1.604,0.896 true 1.438,1.531 1.604,1.531 1.604,1.531 1.604,1.115 true 6.479,1.177 6.479,1.594 6.479,1.594 6.313,1.594 true 4.031,0.156 4.344,0.354 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.323,0.875 0.802,1.094 0.479,0.219 10 false A155 3.844,0.823 4.156,1.021 0.313,0.198 10 false I26 6.01,1.531 6.427,1.74 0.417,0.208 10 false BAT 0.833,0.198 1.365,0.417 0.531,0.219 10 false CANH*b 0.906,1.438 1.438,1.656 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 41 Junction Connector) 		*b to No. 13 CAN Junction Connector


Standard Resistance:
Tester Connection Condition Specified Condition
A155-1 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
A155-12 (CANL) - I26-16 (BAT)



Result:
Result
OK
NG



OK

51.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 41 JUNCTION CONNECTOR - SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY))

NG

56.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 13 CAN JUNCTION CONNECTOR - NO. 41 JUNCTION CONNECTOR)
51.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 41 JUNCTION CONNECTOR - SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY))
a.

Measure the resistance according to the value(s) in the table below.

C503911C30
0.271,0.833 0.667,1.073 0.396,0.24 3.729,0.781 4.135,1.031 0.406,0.25 1.531,0.281 1.729,0.281 1.729,0.281 1.729,0.896 true 1.563,1.531 1.729,1.531 1.729,1.531 1.729,1.115 true 6.479,1.177 6.479,1.594 6.479,1.594 6.313,1.594 true 4.031,0.156 4.344,0.354 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.323,0.875 0.802,1.094 0.479,0.219 10 false A155 3.844,0.823 4.156,1.021 0.313,0.198 10 false I26 6.01,1.531 6.427,1.74 0.417,0.208 10 false BAT 0.969,0.198 1.5,0.417 0.531,0.219 10 false CANH*b 1,1.438 1.531,1.656 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 41 Junction Connector) 		*b to Skid Control ECU (Brake Actuator Assembly)


Standard Resistance:
Tester Connection Condition Specified Condition
A155-2 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
A155-13 (CANL) - I26-16 (BAT)



Result:
Result
OK
NG



OK

52.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 41 JUNCTION CONNECTOR - ELECTRIC BRAKE BOOSTER (BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY))

NG

54.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 41 JUNCTION CONNECTOR - SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY))
52.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 41 JUNCTION CONNECTOR - ELECTRIC BRAKE BOOSTER (BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY))
a.

Measure the resistance according to the value(s) in the table below.

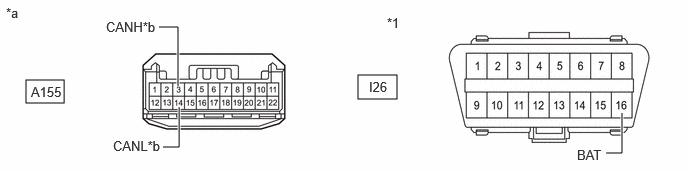

C503911C31
0.271,0.833 0.667,1.073 0.396,0.24 3.729,0.781 4.135,1.031 0.406,0.25 1.656,0.281 1.854,0.281 1.854,0.281 1.854,0.896 true 1.698,1.531 1.865,1.531 1.865,1.531 1.865,1.115 true 6.479,1.177 6.479,1.594 6.479,1.594 6.313,1.594 true 4.031,0.156 4.344,0.354 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.323,0.875 0.802,1.094 0.479,0.219 10 false A155 3.844,0.823 4.156,1.021 0.313,0.198 10 false I26 6.01,1.531 6.427,1.74 0.417,0.208 10 false BAT 1.104,0.198 1.635,0.417 0.531,0.219 10 false CANH*b 1.177,1.438 1.708,1.656 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 41 Junction Connector) 		*b to Electric Brake Booster (Brake Booster with Master Cylinder Assembly)


Standard Resistance:
Tester Connection Condition Specified Condition
A155-3 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
A155-14 (CANL) - I26-16 (BAT)



Result:
Result
OK
NG



OK

REPLACE NO. 41 JUNCTION CONNECTOR

NG

55.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 41 JUNCTION CONNECTOR - ELECTRIC BRAKE BOOSTER (BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY))
53.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 41 JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
a.

Disconnect the I207 central gateway ECU (network gateway ECU) connector.


b.

Measure the resistance according to the value(s) in the table below.

C503911C28
0.271,0.833 0.667,1.073 0.396,0.24 3.729,0.781 4.135,1.031 0.406,0.25 1.781,0.281 1.979,0.281 1.979,0.281 1.979,0.896 true 1.813,1.531 1.979,1.531 1.979,1.531 1.979,1.115 true 6.479,1.177 6.479,1.594 6.479,1.594 6.313,1.594 true 4.031,0.156 4.344,0.354 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.323,0.875 0.802,1.094 0.479,0.219 10 false A155 3.844,0.823 4.156,1.021 0.313,0.198 10 false I26 6.01,1.531 6.427,1.74 0.417,0.208 10 false BAT 1.208,0.198 1.74,0.417 0.531,0.219 10 false CANH*b 1.26,1.438 1.792,1.656 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 41 Junction Connector) 		*b to Central Gateway ECU (Network Gateway ECU)


Standard Resistance:
Tester Connection Condition Specified Condition
A155-4 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
A155-15 (CANL) - I26-16 (BAT)



Result:
Result
OK
NG



OK

REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)

Click herePower Source / Network>NETWORKING>NETWORK GATEWAY ECU>REMOVAL


NG

REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 41 JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

54.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 41 JUNCTION CONNECTOR - SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY))
a.

Disconnect the A144 skid control ECU (brake actuator assembly) connector.


b.

Measure the resistance according to the value(s) in the table below.

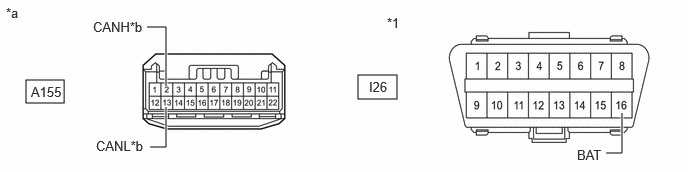

C503911C30
0.271,0.833 0.667,1.073 0.396,0.24 3.729,0.781 4.135,1.031 0.406,0.25 1.531,0.281 1.729,0.281 1.729,0.281 1.729,0.896 true 1.563,1.531 1.729,1.531 1.729,1.531 1.729,1.115 true 6.479,1.177 6.479,1.594 6.479,1.594 6.313,1.594 true 4.031,0.156 4.344,0.354 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.323,0.875 0.802,1.094 0.479,0.219 10 false A155 3.844,0.823 4.156,1.021 0.313,0.198 10 false I26 6.01,1.531 6.427,1.74 0.417,0.208 10 false BAT 0.969,0.198 1.5,0.417 0.531,0.219 10 false CANH*b 1,1.438 1.531,1.656 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 41 Junction Connector) 		*b to Skid Control ECU (Brake Actuator Assembly)


Standard Resistance:
Tester Connection Condition Specified Condition
A155-2 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
A155-13 (CANL) - I26-16 (BAT)



Result:
Result
OK
NG



OK

REPLACE SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY)

Click hereBrake>BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS>BRAKE ACTUATOR (for HV Model)>REMOVAL


NG

REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 41 JUNCTION CONNECTOR - SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY))

55.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 41 JUNCTION CONNECTOR - ELECTRIC BRAKE BOOSTER (BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY))
a.

Disconnect the A143 electric brake booster (brake booster with master cylinder assembly) connector.


b.

Measure the resistance according to the value(s) in the table below.

C503911C31
0.271,0.833 0.667,1.073 0.396,0.24 3.729,0.781 4.135,1.031 0.406,0.25 1.656,0.281 1.854,0.281 1.854,0.281 1.854,0.896 true 1.698,1.531 1.865,1.531 1.865,1.531 1.865,1.115 true 6.479,1.177 6.479,1.594 6.479,1.594 6.313,1.594 true 4.031,0.156 4.344,0.354 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.323,0.875 0.802,1.094 0.479,0.219 10 false A155 3.844,0.823 4.156,1.021 0.313,0.198 10 false I26 6.01,1.531 6.427,1.74 0.417,0.208 10 false BAT 1.104,0.198 1.635,0.417 0.531,0.219 10 false CANH*b 1.177,1.438 1.708,1.656 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 41 Junction Connector) 		*b to Electric Brake Booster (Brake Booster with Master Cylinder Assembly)


Standard Resistance:
Tester Connection Condition Specified Condition
A155-3 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
A155-14 (CANL) - I26-16 (BAT)



Result:
Result
OK
NG



OK

REPLACE ELECTRIC BRAKE BOOSTER (BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY)

Click hereBrake>BRAKE SYSTEM (OTHER)>BRAKE BOOSTER (for HV Model)>REMOVAL


NG

REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 41 JUNCTION CONNECTOR - ELECTRIC BRAKE BOOSTER (BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY))

56.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 13 CAN JUNCTION CONNECTOR - NO. 41 JUNCTION CONNECTOR)
a.

Disconnect the I213 No. 13 CAN junction connector.


b.

Measure the resistance according to the value(s) in the table below.

C503904C35
0.542,0.854 0.938,1.094 0.396,0.24 4.219,0.781 4.625,1.031 0.406,0.25 1.479,0.302 1.646,0.302 1.646,0.302 1.646,0.802 true 1.469,1.427 1.635,1.427 1.635,1.427 1.635,1.01 true 6.313,1.563 6.479,1.563 6.479,1.563 6.479,1.146 true 4.229,0.167 4.542,0.365 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.604,0.896 1.083,1.115 0.479,0.219 10 false I213 4.333,0.823 4.646,1.021 0.313,0.198 10 false I26 6.01,1.49 6.427,1.698 0.417,0.208 10 false BAT 0.906,0.219 1.438,0.438 0.531,0.219 10 false CANH*b 0.917,1.354 1.448,1.573 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 13 CAN Junction Connector) 		*b to No. 41 Junction Connector


Standard Resistance:
Tester Connection Condition Specified Condition
I213-1 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
I213-5 (CANL) - I26-16 (BAT)



Result:
Result
OK
NG



OK

57.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 13 CAN JUNCTION CONNECTOR - AIRBAG SENSOR WITH ECU ASSEMBLY)

NG

REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 13 CAN JUNCTION CONNECTOR - NO. 41 JUNCTION CONNECTOR)

57.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 13 CAN JUNCTION CONNECTOR - AIRBAG SENSOR WITH ECU ASSEMBLY)
a.

Measure the resistance according to the value(s) in the table below.

C503904C36
0.542,0.854 0.938,1.094 0.396,0.24 4.219,0.781 4.625,1.031 0.406,0.25 2.385,0.302 2.219,0.302 2.219,0.302 2.219,0.802 true 2.385,1.427 2.219,1.427 2.219,1.427 2.219,1.01 true 6.302,1.573 6.469,1.573 6.469,1.573 6.469,1.156 true 4.229,0.167 4.542,0.365 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.604,0.896 1.083,1.115 0.479,0.219 10 false I213 4.333,0.823 4.646,1.021 0.313,0.198 10 false I26 5.99,1.49 6.406,1.698 0.417,0.208 10 false BAT 2.5,0.219 3.031,0.438 0.531,0.219 10 false CANH*b 2.469,1.333 3,1.552 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 13 CAN Junction Connector) 		*b to Airbag Sensor with ECU Assembly


Standard Resistance:
Tester Connection Condition Specified Condition
I213-3 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
I213-7 (CANL) - I26-16 (BAT)



Result:
Result
OK
NG



OK

58.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 13 CAN JUNCTION CONNECTOR - STEERING SENSOR)

NG

60.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 13 CAN JUNCTION CONNECTOR - AIRBAG SENSOR WITH ECU ASSEMBLY)
58.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 13 CAN JUNCTION CONNECTOR - STEERING SENSOR)
a.

Measure the resistance according to the value(s) in the table below.

C503904C37
0.542,0.854 0.938,1.094 0.396,0.24 4.219,0.781 4.625,1.031 0.406,0.25 2.688,0.302 2.521,0.302 2.521,0.302 2.521,0.802 true 2.688,1.427 2.521,1.427 2.521,1.427 2.521,1.01 true 6.313,1.563 6.479,1.563 6.479,1.563 6.479,1.146 true 4.229,0.167 4.542,0.365 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.604,0.896 1.083,1.115 0.479,0.219 10 false I213 4.313,0.823 4.625,1.021 0.313,0.198 10 false I26 6,1.479 6.417,1.688 0.417,0.208 10 false BAT 2.74,0.208 3.271,0.427 0.531,0.219 10 false CANH*b 2.76,1.344 3.292,1.563 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 13 CAN Junction Connector) 		*b to Steering Sensor


Standard Resistance:
Tester Connection Condition Specified Condition
I213-4 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
I213-8 (CANL) - I26-16 (BAT)



Result:
Result
OK
NG



OK

59.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 13 CAN JUNCTION CONNECTOR - POWER STEERING ECU WITH MOTOR ASSEMBLY)

NG

61.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 13 CAN JUNCTION CONNECTOR - STEERING SENSOR)
59.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 13 CAN JUNCTION CONNECTOR - POWER STEERING ECU WITH MOTOR ASSEMBLY)
a.

Measure the resistance according to the value(s) in the table below.

C503904C38
0.542,0.854 0.938,1.094 0.396,0.24 4.219,0.781 4.625,1.031 0.406,0.25 1.771,0.302 1.938,0.302 1.938,0.302 1.938,0.802 true 1.76,1.427 1.927,1.427 1.927,1.427 1.927,1.01 true 6.302,1.563 6.469,1.563 6.469,1.563 6.469,1.146 true 4.229,0.167 4.542,0.365 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.604,0.896 1.083,1.115 0.479,0.219 10 false I213 4.313,0.823 4.625,1.021 0.313,0.198 10 false I26 6,1.49 6.417,1.698 0.417,0.208 10 false BAT 1.198,0.219 1.729,0.438 0.531,0.219 10 false CANH*b 1.208,1.354 1.74,1.573 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 13 CAN Junction Connector) 		*b to Power Steering ECU with Motor Assembly


Standard Resistance:
Tester Connection Condition Specified Condition
I213-2 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
I213-6 (CANL) - I26-16 (BAT)



Result:
Result
OK
NG



OK

REPLACE NO. 13 CAN JUNCTION CONNECTOR

NG

62.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 13 CAN JUNCTION CONNECTOR - POWER STEERING ECU WITH MOTOR ASSEMBLY)
60.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 13 CAN JUNCTION CONNECTOR - AIRBAG SENSOR WITH ECU ASSEMBLY)
a.

Disconnect the I205 airbag sensor with ECU assembly connector.


b.

Measure the resistance according to the value(s) in the table below.

C503904C36
0.542,0.854 0.938,1.094 0.396,0.24 4.219,0.781 4.625,1.031 0.406,0.25 2.385,0.302 2.219,0.302 2.219,0.302 2.219,0.802 true 2.385,1.427 2.219,1.427 2.219,1.427 2.219,1.01 true 6.302,1.573 6.469,1.573 6.469,1.573 6.469,1.156 true 4.229,0.167 4.542,0.365 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.604,0.896 1.083,1.115 0.479,0.219 10 false I213 4.333,0.823 4.646,1.021 0.313,0.198 10 false I26 5.99,1.49 6.406,1.698 0.417,0.208 10 false BAT 2.5,0.219 3.031,0.438 0.531,0.219 10 false CANH*b 2.469,1.333 3,1.552 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 13 CAN Junction Connector) 		*b to Airbag Sensor with ECU Assembly


Standard Resistance:
Tester Connection Condition Specified Condition
I213-3 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
I213-7 (CANL) - I26-16 (BAT)



Result:
Result
OK
NG



OK

REPLACE AIRBAG SENSOR WITH ECU ASSEMBLY

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>CENTER AIRBAG SENSOR ASSEMBLY>REMOVAL


NG

REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 13 CAN JUNCTION CONNECTOR - AIRBAG SENSOR WITH ECU ASSEMBLY)

61.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 13 CAN JUNCTION CONNECTOR - STEERING SENSOR)
a.

Disconnect the I46 or I220 steering sensor connector.


b.

Measure the resistance according to the value(s) in the table below.

C503904C37
0.542,0.854 0.938,1.094 0.396,0.24 4.219,0.781 4.625,1.031 0.406,0.25 2.688,0.302 2.521,0.302 2.521,0.302 2.521,0.802 true 2.688,1.427 2.521,1.427 2.521,1.427 2.521,1.01 true 6.313,1.563 6.479,1.563 6.479,1.563 6.479,1.146 true 4.229,0.167 4.542,0.365 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.604,0.896 1.083,1.115 0.479,0.219 10 false I213 4.313,0.823 4.625,1.021 0.313,0.198 10 false I26 6,1.479 6.417,1.688 0.417,0.208 10 false BAT 2.74,0.208 3.271,0.427 0.531,0.219 10 false CANH*b 2.76,1.344 3.292,1.563 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 13 CAN Junction Connector) 		*b to Steering Sensor


Standard Resistance:
Tester Connection Condition Specified Condition
I213-4 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
I213-8 (CANL) - I26-16 (BAT)



Result:
Result
OK
NG



OK

REPLACE STEERING SENSOR

Click hereBrake>BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS>STEERING ANGLE SENSOR>REMOVAL


NG

REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 13 CAN JUNCTION CONNECTOR - STEERING SENSOR)

62.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 13 CAN JUNCTION CONNECTOR - POWER STEERING ECU WITH MOTOR ASSEMBLY)
a.

Disconnect the I21 power steering ECU with motor assembly connector.


b.

Measure the resistance according to the value(s) in the table below.

C503904C38
0.542,0.854 0.938,1.094 0.396,0.24 4.219,0.781 4.625,1.031 0.406,0.25 1.771,0.302 1.938,0.302 1.938,0.302 1.938,0.802 true 1.76,1.427 1.927,1.427 1.927,1.427 1.927,1.01 true 6.302,1.563 6.469,1.563 6.469,1.563 6.469,1.146 true 4.229,0.167 4.542,0.365 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.604,0.896 1.083,1.115 0.479,0.219 10 false I213 4.313,0.823 4.625,1.021 0.313,0.198 10 false I26 6,1.49 6.417,1.698 0.417,0.208 10 false BAT 1.198,0.219 1.729,0.438 0.531,0.219 10 false CANH*b 1.208,1.354 1.74,1.573 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 13 CAN Junction Connector) 		*b to Power Steering ECU with Motor Assembly


Standard Resistance:
Tester Connection Condition Specified Condition
I213-2 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
I213-6 (CANL) - I26-16 (BAT)



Result:
Result
OK
NG



OK

REPLACE POWER STEERING ECU WITH MOTOR ASSEMBLY

Click hereSteering>POWER ASSIST SYSTEMS>POWER STEERING ECU>REMOVAL


NG

REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 13 CAN JUNCTION CONNECTOR - POWER STEERING ECU WITH MOTOR ASSEMBLY)

63.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 16 CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
a.

Disconnect the A169 No. 16 CAN junction connector.


b.

Measure the resistance according to the value(s) in the table below.

C503904C24
0.542,0.854 0.938,1.094 0.396,0.24 4.219,0.781 4.625,1.031 0.406,0.25 2.688,0.302 2.521,0.302 2.521,0.302 2.521,0.802 true 2.688,1.427 2.521,1.427 2.521,1.427 2.521,1.01 true 6.302,1.552 6.469,1.552 6.469,1.552 6.469,1.135 true 4.229,0.167 4.542,0.365 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.583,0.896 1.063,1.115 0.479,0.219 10 false A169 4.313,0.823 4.625,1.021 0.313,0.198 10 false I26 5.99,1.479 6.406,1.688 0.417,0.208 10 false BAT 2.74,0.208 3.271,0.427 0.531,0.219 10 false CANH*b 2.76,1.344 3.292,1.563 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 16 CAN Junction Connector) 		*b to Central Gateway ECU (Network Gateway ECU)


Standard Resistance:
Tester Connection Condition Specified Condition
A169-4 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
A169-8 (CANL) - I26-16 (BAT)



Result:
Result
OK
NG



OK

64.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 16 CAN JUNCTION CONNECTOR - NO. 10 CAN JUNCTION CONNECTOR)

NG

67.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 16 CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
64.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 16 CAN JUNCTION CONNECTOR - NO. 10 CAN JUNCTION CONNECTOR)
a.

Measure the resistance according to the value(s) in the table below.

C503904C25
0.542,0.854 0.938,1.094 0.396,0.24 4.219,0.781 4.625,1.031 0.406,0.25 2.385,0.302 2.219,0.302 2.219,0.302 2.219,0.802 true 2.385,1.427 2.219,1.427 2.219,1.427 2.219,1.01 true 6.313,1.552 6.479,1.552 6.479,1.552 6.479,1.135 true 4.229,0.167 4.542,0.365 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.583,0.896 1.063,1.115 0.479,0.219 10 false A169 4.333,0.823 4.646,1.021 0.313,0.198 10 false I26 6.021,1.479 6.438,1.688 0.417,0.208 10 false BAT 2.5,0.219 3.031,0.438 0.531,0.219 10 false CANH*b 2.469,1.333 3,1.552 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 16 CAN Junction Connector) 		*b to No. 10 CAN Junction Connector


Standard Resistance:
Tester Connection Condition Specified Condition
A169-3 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
A169-7 (CANL) - I26-16 (BAT)



Result:
Result
OK
NG



OK

65.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 16 CAN JUNCTION CONNECTOR - SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY))

NG

70.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 10 CAN JUNCTION CONNECTOR - NO. 16 CAN JUNCTION CONNECTOR)
65.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 16 CAN JUNCTION CONNECTOR - SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY))
a.

Measure the resistance according to the value(s) in the table below.

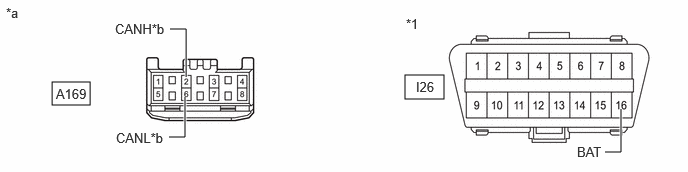

C503904C26
0.542,0.854 0.938,1.094 0.396,0.24 4.219,0.781 4.625,1.031 0.406,0.25 1.771,0.302 1.938,0.302 1.938,0.302 1.938,0.802 true 1.76,1.427 1.927,1.427 1.927,1.427 1.927,1.01 true 6.302,1.583 6.469,1.583 6.469,1.583 6.469,1.135 true 4.229,0.167 4.542,0.365 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.583,0.896 1.063,1.115 0.479,0.219 10 false A169 4.333,0.823 4.646,1.021 0.313,0.198 10 false I26 6.01,1.5 6.427,1.708 0.417,0.208 10 false BAT 1.198,0.219 1.729,0.438 0.531,0.219 10 false CANH*b 1.208,1.354 1.74,1.573 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 16 CAN Junction Connector) 		*b to Skid Control ECU (Brake Actuator Assembly)


Standard Resistance:
Tester Connection Condition Specified Condition
A169-2 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
A169-6 (CANL) - I26-16 (BAT)



Result:
Result
OK
NG



OK

66.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 16 CAN JUNCTION CONNECTOR - ELECTRIC BRAKE BOOSTER (BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY))

NG

68.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 16 CAN JUNCTION CONNECTOR - SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY))
66.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 16 CAN JUNCTION CONNECTOR - ELECTRIC BRAKE BOOSTER (BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY))
a.

Measure the resistance according to the value(s) in the table below.

C503904C27
0.542,0.854 0.938,1.094 0.396,0.24 4.219,0.781 4.625,1.031 0.406,0.25 1.479,0.302 1.646,0.302 1.646,0.302 1.646,0.802 true 1.469,1.427 1.635,1.427 1.635,1.427 1.635,1.01 true 6.302,1.552 6.469,1.552 6.469,1.552 6.469,1.135 true 4.229,0.167 4.542,0.365 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.583,0.896 1.063,1.115 0.479,0.219 10 false A169 4.333,0.823 4.646,1.021 0.313,0.198 10 false I26 6,1.479 6.417,1.688 0.417,0.208 10 false BAT 0.906,0.219 1.438,0.438 0.531,0.219 10 false CANH*b 0.917,1.354 1.448,1.573 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 16 CAN Junction Connector) 		*b to Electric Brake Booster (Brake Booster with Master Cylinder Assembly)


Standard Resistance:
Tester Connection Condition Specified Condition
A169-1 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
A169-5 (CANL) - I26-16 (BAT)



Result:
Result
OK
NG



OK

REPLACE NO. 16 CAN JUNCTION CONNECTOR

NG

69.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 16 CAN JUNCTION CONNECTOR - ELECTRIC BRAKE BOOSTER (BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY))
67.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 16 CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
a.

Disconnect the I207 central gateway ECU (network gateway ECU) connector.


b.

Measure the resistance according to the value(s) in the table below.

C503904C24
0.542,0.854 0.938,1.094 0.396,0.24 4.219,0.781 4.625,1.031 0.406,0.25 2.688,0.302 2.521,0.302 2.521,0.302 2.521,0.802 true 2.688,1.427 2.521,1.427 2.521,1.427 2.521,1.01 true 6.302,1.552 6.469,1.552 6.469,1.552 6.469,1.135 true 4.229,0.167 4.542,0.365 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.583,0.896 1.063,1.115 0.479,0.219 10 false A169 4.313,0.823 4.625,1.021 0.313,0.198 10 false I26 5.99,1.479 6.406,1.688 0.417,0.208 10 false BAT 2.74,0.208 3.271,0.427 0.531,0.219 10 false CANH*b 2.76,1.344 3.292,1.563 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 16 CAN Junction Connector) 		*b to Central Gateway ECU (Network Gateway ECU)


Standard Resistance:
Tester Connection Condition Specified Condition
A169-4 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
A169-8 (CANL) - I26-16 (BAT)



Result:
Result
OK
NG



OK

REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)

Click herePower Source / Network>NETWORKING>NETWORK GATEWAY ECU>REMOVAL


NG

REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 16 CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

68.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 16 CAN JUNCTION CONNECTOR - SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY))
a.

Disconnect the A144 skid control ECU (brake actuator assembly) connector.


b.

Measure the resistance according to the value(s) in the table below.

C503904C26
0.542,0.854 0.938,1.094 0.396,0.24 4.219,0.781 4.625,1.031 0.406,0.25 1.771,0.302 1.938,0.302 1.938,0.302 1.938,0.802 true 1.76,1.427 1.927,1.427 1.927,1.427 1.927,1.01 true 6.302,1.583 6.469,1.583 6.469,1.583 6.469,1.135 true 4.229,0.167 4.542,0.365 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.583,0.896 1.063,1.115 0.479,0.219 10 false A169 4.333,0.823 4.646,1.021 0.313,0.198 10 false I26 6.01,1.5 6.427,1.708 0.417,0.208 10 false BAT 1.198,0.219 1.729,0.438 0.531,0.219 10 false CANH*b 1.208,1.354 1.74,1.573 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 16 CAN Junction Connector) 		*b to Skid Control ECU (Brake Actuator Assembly)


Standard Resistance:
Tester Connection Condition Specified Condition
A169-2 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
A169-6 (CANL) - I26-16 (BAT)



Result:
Result
OK
NG



OK

REPLACE SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY)

Click hereBrake>BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS>BRAKE ACTUATOR (for HV Model)>REMOVAL


NG

REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 16 CAN JUNCTION CONNECTOR - SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY))

69.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 16 CAN JUNCTION CONNECTOR - ELECTRIC BRAKE BOOSTER (BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY))
a.

Disconnect the A143 electric brake booster (brake booster with master cylinder assembly) connector.


b.

Measure the resistance according to the value(s) in the table below.

C503904C27
0.542,0.854 0.938,1.094 0.396,0.24 4.219,0.781 4.625,1.031 0.406,0.25 1.479,0.302 1.646,0.302 1.646,0.302 1.646,0.802 true 1.469,1.427 1.635,1.427 1.635,1.427 1.635,1.01 true 6.302,1.552 6.469,1.552 6.469,1.552 6.469,1.135 true 4.229,0.167 4.542,0.365 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.583,0.896 1.063,1.115 0.479,0.219 10 false A169 4.333,0.823 4.646,1.021 0.313,0.198 10 false I26 6,1.479 6.417,1.688 0.417,0.208 10 false BAT 0.906,0.219 1.438,0.438 0.531,0.219 10 false CANH*b 0.917,1.354 1.448,1.573 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 16 CAN Junction Connector) 		*b to Electric Brake Booster (Brake Booster with Master Cylinder Assembly)


Standard Resistance:
Tester Connection Condition Specified Condition
A169-1 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
A169-5 (CANL) - I26-16 (BAT)



Result:
Result
OK
NG



OK

REPLACE ELECTRIC BRAKE BOOSTER (BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY)

Click hereBrake>BRAKE SYSTEM (OTHER)>BRAKE BOOSTER (for HV Model)>REMOVAL


NG

REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 16 CAN JUNCTION CONNECTOR - ELECTRIC BRAKE BOOSTER (BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY))

70.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 10 CAN JUNCTION CONNECTOR - NO. 16 CAN JUNCTION CONNECTOR)
a.

Disconnect the I222 No. 10 CAN junction connector.


b.

Measure the resistance according to the value(s) in the table below.

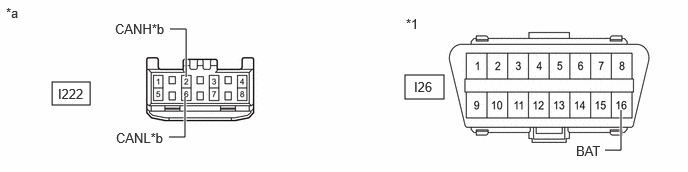

C503904C28
0.542,0.854 0.938,1.094 0.396,0.24 4.219,0.781 4.625,1.031 0.406,0.25 1.771,0.302 1.938,0.302 1.938,0.302 1.938,0.802 true 1.76,1.427 1.927,1.427 1.927,1.427 1.927,1.01 true 6.302,1.563 6.469,1.563 6.469,1.563 6.469,1.146 true 4.229,0.167 4.542,0.365 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.604,0.896 1.083,1.115 0.479,0.219 10 false I222 4.313,0.823 4.625,1.021 0.313,0.198 10 false I26 6,1.49 6.417,1.698 0.417,0.208 10 false BAT 1.198,0.219 1.729,0.438 0.531,0.219 10 false CANH*b 1.208,1.354 1.74,1.573 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 10 CAN Junction Connector) 		*b to No. 16 CAN Junction Connector


Standard Resistance:
Tester Connection Condition Specified Condition
I222-2 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
I222-6 (CANL) - I26-16 (BAT)



Result:
Result
OK
NG



OK

71.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 10 CAN JUNCTION CONNECTOR - AIRBAG SENSOR WITH ECU ASSEMBLY)

NG

REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 10 CAN JUNCTION CONNECTOR - NO. 16 CAN JUNCTION CONNECTOR)

71.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 10 CAN JUNCTION CONNECTOR - AIRBAG SENSOR WITH ECU ASSEMBLY)
a.

Measure the resistance according to the value(s) in the table below.

C503904C29
0.542,0.854 0.938,1.094 0.396,0.24 4.219,0.781 4.625,1.031 0.406,0.25 1.479,0.302 1.646,0.302 1.646,0.302 1.646,0.802 true 1.469,1.427 1.635,1.427 1.635,1.427 1.635,1.01 true 6.313,1.563 6.479,1.563 6.479,1.563 6.479,1.146 true 4.229,0.167 4.542,0.365 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.604,0.896 1.083,1.115 0.479,0.219 10 false I222 4.333,0.823 4.646,1.021 0.313,0.198 10 false I26 6.01,1.49 6.427,1.698 0.417,0.208 10 false BAT 0.906,0.219 1.438,0.438 0.531,0.219 10 false CANH*b 0.917,1.354 1.448,1.573 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 10 CAN Junction Connector) 		*b to Airbag Sensor with ECU Assembly


Standard Resistance:
Tester Connection Condition Specified Condition
I222-1 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
I222-5 (CANL) - I26-16 (BAT)



Result:
Result
OK
NG



OK

72.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 10 CAN JUNCTION CONNECTOR - STEERING SENSOR)

NG

74.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 10 CAN JUNCTION CONNECTOR - AIRBAG SENSOR WITH ECU ASSEMBLY)
72.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 10 CAN JUNCTION CONNECTOR - STEERING SENSOR)
a.

Measure the resistance according to the value(s) in the table below.

C503904C30
0.542,0.854 0.938,1.094 0.396,0.24 4.219,0.781 4.625,1.031 0.406,0.25 2.385,0.302 2.219,0.302 2.219,0.302 2.219,0.802 true 2.385,1.427 2.219,1.427 2.219,1.427 2.219,1.01 true 6.302,1.573 6.469,1.573 6.469,1.573 6.469,1.156 true 4.229,0.167 4.542,0.365 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.604,0.896 1.083,1.115 0.479,0.219 10 false I222 4.333,0.823 4.646,1.021 0.313,0.198 10 false I26 5.99,1.49 6.406,1.698 0.417,0.208 10 false BAT 2.5,0.219 3.031,0.438 0.531,0.219 10 false CANH*b 2.469,1.333 3,1.552 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 10 CAN Junction Connector) 		*b to Steering Sensor


Standard Resistance:
Tester Connection Condition Specified Condition
I222-3 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
I222-7 (CANL) - I26-16 (BAT)



Result:
Result
OK
NG



OK

73.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 10 CAN JUNCTION CONNECTOR - POWER STEERING ECU WITH MOTOR ASSEMBLY)

NG

75.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 10 CAN JUNCTION CONNECTOR - STEERING SENSOR)
73.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 10 CAN JUNCTION CONNECTOR - POWER STEERING ECU WITH MOTOR ASSEMBLY)
a.

Measure the resistance according to the value(s) in the table below.

C503904C31
0.542,0.854 0.938,1.094 0.396,0.24 4.219,0.781 4.625,1.031 0.406,0.25 2.688,0.302 2.521,0.302 2.521,0.302 2.521,0.802 true 2.688,1.427 2.521,1.427 2.521,1.427 2.521,1.01 true 6.313,1.563 6.479,1.563 6.479,1.563 6.479,1.146 true 4.229,0.167 4.542,0.365 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.604,0.896 1.083,1.115 0.479,0.219 10 false I222 4.313,0.823 4.625,1.021 0.313,0.198 10 false I26 6,1.479 6.417,1.688 0.417,0.208 10 false BAT 2.74,0.208 3.271,0.427 0.531,0.219 10 false CANH*b 2.76,1.344 3.292,1.563 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 10 CAN Junction Connector) 		*b to Power Steering ECU with Motor Assembly


Standard Resistance:
Tester Connection Condition Specified Condition
I222-4 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
I222-8 (CANL) - I26-16 (BAT)



Result:
Result
OK
NG



OK

REPLACE NO. 10 CAN JUNCTION CONNECTOR

NG

76.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 10 CAN JUNCTION CONNECTOR - POWER STEERING ECU WITH MOTOR ASSEMBLY)
74.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 10 CAN JUNCTION CONNECTOR - AIRBAG SENSOR WITH ECU ASSEMBLY)
a.

Disconnect the I205 airbag sensor with ECU assembly connector.


b.

Measure the resistance according to the value(s) in the table below.

C503904C29
0.542,0.854 0.938,1.094 0.396,0.24 4.219,0.781 4.625,1.031 0.406,0.25 1.479,0.302 1.646,0.302 1.646,0.302 1.646,0.802 true 1.469,1.427 1.635,1.427 1.635,1.427 1.635,1.01 true 6.313,1.563 6.479,1.563 6.479,1.563 6.479,1.146 true 4.229,0.167 4.542,0.365 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.604,0.896 1.083,1.115 0.479,0.219 10 false I222 4.333,0.823 4.646,1.021 0.313,0.198 10 false I26 6.01,1.49 6.427,1.698 0.417,0.208 10 false BAT 0.906,0.219 1.438,0.438 0.531,0.219 10 false CANH*b 0.917,1.354 1.448,1.573 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 10 CAN Junction Connector) 		*b to Airbag Sensor with ECU Assembly


Standard Resistance:
Tester Connection Condition Specified Condition
I222-1 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
I222-5 (CANL) - I26-16 (BAT)



Result:
Result
OK
NG



OK

REPLACE AIRBAG SENSOR WITH ECU ASSEMBLY

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>CENTER AIRBAG SENSOR ASSEMBLY>REMOVAL


NG

REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 10 CAN JUNCTION CONNECTOR - AIRBAG SENSOR WITH ECU ASSEMBLY)

75.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 10 CAN JUNCTION CONNECTOR - STEERING SENSOR)
a.

Disconnect the I220 steering sensor connector.


b.

Measure the resistance according to the value(s) in the table below.

C503904C30
0.542,0.854 0.938,1.094 0.396,0.24 4.219,0.781 4.625,1.031 0.406,0.25 2.385,0.302 2.219,0.302 2.219,0.302 2.219,0.802 true 2.385,1.427 2.219,1.427 2.219,1.427 2.219,1.01 true 6.302,1.573 6.469,1.573 6.469,1.573 6.469,1.156 true 4.229,0.167 4.542,0.365 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.604,0.896 1.083,1.115 0.479,0.219 10 false I222 4.333,0.823 4.646,1.021 0.313,0.198 10 false I26 5.99,1.49 6.406,1.698 0.417,0.208 10 false BAT 2.5,0.219 3.031,0.438 0.531,0.219 10 false CANH*b 2.469,1.333 3,1.552 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 10 CAN Junction Connector) 		*b to Steering Sensor


Standard Resistance:
Tester Connection Condition Specified Condition
I222-3 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
I222-7 (CANL) - I26-16 (BAT)



Result:
Result
OK
NG



OK

REPLACE STEERING SENSOR

Click hereBrake>BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS>STEERING ANGLE SENSOR>REMOVAL


NG

REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 10 CAN JUNCTION CONNECTOR - STEERING SENSOR)

76.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 10 CAN JUNCTION CONNECTOR - POWER STEERING ECU WITH MOTOR ASSEMBLY)
a.

Disconnect the I21 power steering ECU with motor assembly connector.


b.

Measure the resistance according to the value(s) in the table below.

C503904C31
0.542,0.854 0.938,1.094 0.396,0.24 4.219,0.781 4.625,1.031 0.406,0.25 2.688,0.302 2.521,0.302 2.521,0.302 2.521,0.802 true 2.688,1.427 2.521,1.427 2.521,1.427 2.521,1.01 true 6.313,1.563 6.479,1.563 6.479,1.563 6.479,1.146 true 4.229,0.167 4.542,0.365 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.604,0.896 1.083,1.115 0.479,0.219 10 false I222 4.313,0.823 4.625,1.021 0.313,0.198 10 false I26 6,1.479 6.417,1.688 0.417,0.208 10 false BAT 2.74,0.208 3.271,0.427 0.531,0.219 10 false CANH*b 2.76,1.344 3.292,1.563 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 10 CAN Junction Connector) 		*b to Power Steering ECU with Motor Assembly


Standard Resistance:
Tester Connection Condition Specified Condition
I222-4 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
I222-8 (CANL) - I26-16 (BAT)



Result:
Result
OK
NG



OK

REPLACE POWER STEERING ECU WITH MOTOR ASSEMBLY

Click hereSteering>POWER ASSIST SYSTEMS>POWER STEERING ECU>REMOVAL


NG

REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 10 CAN JUNCTION CONNECTOR - POWER STEERING ECU WITH MOTOR ASSEMBLY)

77.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 39 JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
a.

Disconnect the A173 No. 39 junction connector.


b.

Measure the resistance according to the value(s) in the table below.

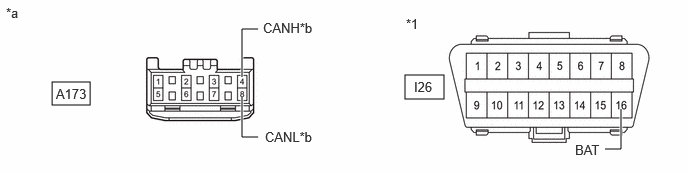

C503904C90
0.542,0.854 0.938,1.094 0.396,0.24 4.219,0.781 4.625,1.031 0.406,0.25 2.688,0.302 2.521,0.302 2.521,0.302 2.521,0.802 true 2.688,1.427 2.521,1.427 2.521,1.427 2.521,1.01 true 6.302,1.552 6.469,1.552 6.469,1.552 6.469,1.135 true 4.229,0.167 4.542,0.365 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.583,0.896 1.063,1.115 0.479,0.219 10 false A173 4.313,0.823 4.625,1.021 0.313,0.198 10 false I26 5.99,1.479 6.406,1.688 0.417,0.208 10 false BAT 2.74,0.208 3.271,0.427 0.531,0.219 10 false CANH*b 2.76,1.344 3.292,1.563 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 39 Junction Connector) 		*b to Central Gateway ECU (Network Gateway ECU)


Standard Resistance:
Tester Connection Condition Specified Condition
A173-4 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
A173-8 (CANL) - I26-16 (BAT)



Result:
Result
OK
NG



OK

78.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 39 JUNCTION CONNECTOR - NO. 10 CAN JUNCTION CONNECTOR)

NG

81.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 39 JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
78.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 39 JUNCTION CONNECTOR - NO. 10 CAN JUNCTION CONNECTOR)
a.

Measure the resistance according to the value(s) in the table below.

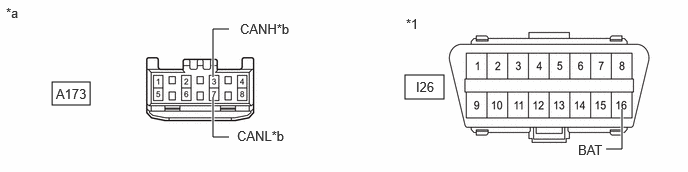

C503904C91
0.542,0.854 0.938,1.094 0.396,0.24 4.219,0.781 4.625,1.031 0.406,0.25 2.385,0.302 2.219,0.302 2.219,0.302 2.219,0.802 true 2.385,1.427 2.219,1.427 2.219,1.427 2.219,1.01 true 6.313,1.552 6.479,1.552 6.479,1.552 6.479,1.135 true 4.229,0.167 4.542,0.365 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.583,0.896 1.063,1.115 0.479,0.219 10 false A173 4.333,0.823 4.646,1.021 0.313,0.198 10 false I26 6.021,1.479 6.438,1.688 0.417,0.208 10 false BAT 2.5,0.219 3.031,0.438 0.531,0.219 10 false CANH*b 2.469,1.333 3,1.552 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 39 Junction Connector) 		*b to No. 10 CAN Junction Connector


Standard Resistance:
Tester Connection Condition Specified Condition
A173-3 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
A173-7 (CANL) - I26-16 (BAT)



Result:
Result
OK
NG



OK

79.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 39 JUNCTION CONNECTOR - SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY))

NG

84.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 10 CAN JUNCTION CONNECTOR - NO. 39 JUNCTION CONNECTOR)
79.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 39 JUNCTION CONNECTOR - SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY))
a.

Measure the resistance according to the value(s) in the table below.

C503904C92
0.542,0.854 0.938,1.094 0.396,0.24 4.219,0.781 4.625,1.031 0.406,0.25 1.771,0.302 1.938,0.302 1.938,0.302 1.938,0.802 true 1.76,1.427 1.927,1.427 1.927,1.427 1.927,1.01 true 6.302,1.583 6.469,1.583 6.469,1.583 6.469,1.135 true 4.229,0.167 4.542,0.365 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.583,0.896 1.063,1.115 0.479,0.219 10 false A173 4.333,0.823 4.646,1.021 0.313,0.198 10 false I26 6.01,1.5 6.427,1.708 0.417,0.208 10 false BAT 1.198,0.219 1.729,0.438 0.531,0.219 10 false CANH*b 1.208,1.354 1.74,1.573 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 39 Junction Connector) 		*b to Skid Control ECU (Brake Actuator Assembly)


Standard Resistance:
Tester Connection Condition Specified Condition
A173-2 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
A173-6 (CANL) - I26-16 (BAT)



Result:
Result
OK
NG



OK

80.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 39 JUNCTION CONNECTOR - ELECTRIC BRAKE BOOSTER (BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY))

NG

82.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 39 JUNCTION CONNECTOR - SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY))
80.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 39 JUNCTION CONNECTOR - ELECTRIC BRAKE BOOSTER (BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY))
a.

Measure the resistance according to the value(s) in the table below.

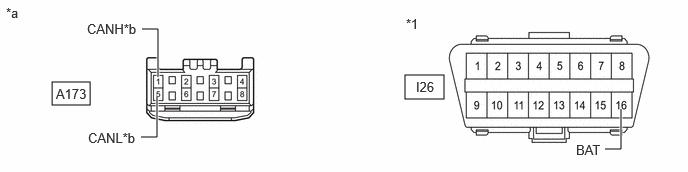

C503904C93
0.542,0.854 0.938,1.094 0.396,0.24 4.219,0.781 4.625,1.031 0.406,0.25 1.479,0.302 1.646,0.302 1.646,0.302 1.646,0.802 true 1.469,1.427 1.635,1.427 1.635,1.427 1.635,1.01 true 6.302,1.552 6.469,1.552 6.469,1.552 6.469,1.135 true 4.229,0.167 4.542,0.365 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.583,0.896 1.063,1.115 0.479,0.219 10 false A173 4.333,0.823 4.646,1.021 0.313,0.198 10 false I26 6,1.479 6.417,1.688 0.417,0.208 10 false BAT 0.906,0.219 1.438,0.438 0.531,0.219 10 false CANH*b 0.917,1.354 1.448,1.573 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 39 Junction Connector) 		*b to Electric Brake Booster (Brake Booster with Master Cylinder Assembly)


Standard Resistance:
Tester Connection Condition Specified Condition
A173-1 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
A173-5 (CANL) - I26-16 (BAT)



Result:
Result
OK
NG



OK

REPLACE NO. 39 JUNCTION CONNECTOR

NG

83.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 39 JUNCTION CONNECTOR - ELECTRIC BRAKE BOOSTER (BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY))
81.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 39 JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
a.

Disconnect the I207 central gateway ECU (network gateway ECU) connector.


b.

Measure the resistance according to the value(s) in the table below.

C503904C90
0.542,0.854 0.938,1.094 0.396,0.24 4.219,0.781 4.625,1.031 0.406,0.25 2.688,0.302 2.521,0.302 2.521,0.302 2.521,0.802 true 2.688,1.427 2.521,1.427 2.521,1.427 2.521,1.01 true 6.302,1.552 6.469,1.552 6.469,1.552 6.469,1.135 true 4.229,0.167 4.542,0.365 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.583,0.896 1.063,1.115 0.479,0.219 10 false A173 4.313,0.823 4.625,1.021 0.313,0.198 10 false I26 5.99,1.479 6.406,1.688 0.417,0.208 10 false BAT 2.74,0.208 3.271,0.427 0.531,0.219 10 false CANH*b 2.76,1.344 3.292,1.563 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 39 Junction Connector) 		*b to Central Gateway ECU (Network Gateway ECU)


Standard Resistance:
Tester Connection Condition Specified Condition
A173-4 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
A173-8 (CANL) - I26-16 (BAT)



Result:
Result
OK
NG



OK

REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)

Click herePower Source / Network>NETWORKING>NETWORK GATEWAY ECU>REMOVAL


NG

REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 39 JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

82.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 39 JUNCTION CONNECTOR - SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY))
a.

Disconnect the A144 skid control ECU (brake actuator assembly) connector.


b.

Measure the resistance according to the value(s) in the table below.

C503904C92
0.542,0.854 0.938,1.094 0.396,0.24 4.219,0.781 4.625,1.031 0.406,0.25 1.771,0.302 1.938,0.302 1.938,0.302 1.938,0.802 true 1.76,1.427 1.927,1.427 1.927,1.427 1.927,1.01 true 6.302,1.583 6.469,1.583 6.469,1.583 6.469,1.135 true 4.229,0.167 4.542,0.365 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.583,0.896 1.063,1.115 0.479,0.219 10 false A173 4.333,0.823 4.646,1.021 0.313,0.198 10 false I26 6.01,1.5 6.427,1.708 0.417,0.208 10 false BAT 1.198,0.219 1.729,0.438 0.531,0.219 10 false CANH*b 1.208,1.354 1.74,1.573 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 39 Junction Connector) 		*b to Skid Control ECU (Brake Actuator Assembly)


Standard Resistance:
Tester Connection Condition Specified Condition
A173-2 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
A173-6 (CANL) - I26-16 (BAT)



Result:
Result
OK
NG



OK

REPLACE SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY)

Click hereBrake>BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS>BRAKE ACTUATOR (for HV Model)>REMOVAL


NG

REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 39 JUNCTION CONNECTOR - SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY))

83.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 39 JUNCTION CONNECTOR - ELECTRIC BRAKE BOOSTER (BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY))
a.

Disconnect the A143 electric brake booster (brake booster with master cylinder assembly) connector.


b.

Measure the resistance according to the value(s) in the table below.

C503904C93
0.542,0.854 0.938,1.094 0.396,0.24 4.219,0.781 4.625,1.031 0.406,0.25 1.479,0.302 1.646,0.302 1.646,0.302 1.646,0.802 true 1.469,1.427 1.635,1.427 1.635,1.427 1.635,1.01 true 6.302,1.552 6.469,1.552 6.469,1.552 6.469,1.135 true 4.229,0.167 4.542,0.365 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.583,0.896 1.063,1.115 0.479,0.219 10 false A173 4.333,0.823 4.646,1.021 0.313,0.198 10 false I26 6,1.479 6.417,1.688 0.417,0.208 10 false BAT 0.906,0.219 1.438,0.438 0.531,0.219 10 false CANH*b 0.917,1.354 1.448,1.573 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 39 Junction Connector) 		*b to Electric Brake Booster (Brake Booster with Master Cylinder Assembly)


Standard Resistance:
Tester Connection Condition Specified Condition
A173-1 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
A173-5 (CANL) - I26-16 (BAT)



Result:
Result
OK
NG



OK

REPLACE ELECTRIC BRAKE BOOSTER (BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY)

Click hereBrake>BRAKE SYSTEM (OTHER)>BRAKE BOOSTER (for HV Model)>REMOVAL


NG

REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 39 JUNCTION CONNECTOR - ELECTRIC BRAKE BOOSTER (BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY))

84.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 10 CAN JUNCTION CONNECTOR - NO. 39 JUNCTION CONNECTOR)
a.

Disconnect the I222 No. 10 CAN junction connector.


b.

Measure the resistance according to the value(s) in the table below.

C503904C31
0.542,0.854 0.938,1.094 0.396,0.24 4.219,0.781 4.625,1.031 0.406,0.25 2.688,0.302 2.521,0.302 2.521,0.302 2.521,0.802 true 2.688,1.427 2.521,1.427 2.521,1.427 2.521,1.01 true 6.313,1.563 6.479,1.563 6.479,1.563 6.479,1.146 true 4.229,0.167 4.542,0.365 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.604,0.896 1.083,1.115 0.479,0.219 10 false I222 4.313,0.823 4.625,1.021 0.313,0.198 10 false I26 6,1.479 6.417,1.688 0.417,0.208 10 false BAT 2.74,0.208 3.271,0.427 0.531,0.219 10 false CANH*b 2.76,1.344 3.292,1.563 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 10 CAN Junction Connector) 		*b to No. 39 Junction Connector


Standard Resistance:
Tester Connection Condition Specified Condition
I222-4 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
I222-8 (CANL) - I26-16 (BAT)



Result:
Result
OK
NG



OK

85.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 10 CAN JUNCTION CONNECTOR - AIRBAG SENSOR WITH ECU ASSEMBLY)

NG

REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 10 CAN JUNCTION CONNECTOR - NO. 39 JUNCTION CONNECTOR)

85.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 10 CAN JUNCTION CONNECTOR - AIRBAG SENSOR WITH ECU ASSEMBLY)
a.

Measure the resistance according to the value(s) in the table below.

C503904C29
0.542,0.854 0.938,1.094 0.396,0.24 4.219,0.781 4.625,1.031 0.406,0.25 1.479,0.302 1.646,0.302 1.646,0.302 1.646,0.802 true 1.469,1.427 1.635,1.427 1.635,1.427 1.635,1.01 true 6.313,1.563 6.479,1.563 6.479,1.563 6.479,1.146 true 4.229,0.167 4.542,0.365 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.604,0.896 1.083,1.115 0.479,0.219 10 false I222 4.333,0.823 4.646,1.021 0.313,0.198 10 false I26 6.01,1.49 6.427,1.698 0.417,0.208 10 false BAT 0.906,0.219 1.438,0.438 0.531,0.219 10 false CANH*b 0.917,1.354 1.448,1.573 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 10 CAN Junction Connector) 		*b to Airbag Sensor with ECU Assembly


Standard Resistance:
Tester Connection Condition Specified Condition
I222-1 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
I222-5 (CANL) - I26-16 (BAT)



Result:
Result
OK
NG



OK

86.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 10 CAN JUNCTION CONNECTOR - STEERING SENSOR)

NG

88.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 10 CAN JUNCTION CONNECTOR - AIRBAG SENSOR WITH ECU ASSEMBLY)
86.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 10 CAN JUNCTION CONNECTOR - STEERING SENSOR)
a.

Measure the resistance according to the value(s) in the table below.

C503904C30
0.542,0.854 0.938,1.094 0.396,0.24 4.219,0.781 4.625,1.031 0.406,0.25 2.385,0.302 2.219,0.302 2.219,0.302 2.219,0.802 true 2.385,1.427 2.219,1.427 2.219,1.427 2.219,1.01 true 6.302,1.573 6.469,1.573 6.469,1.573 6.469,1.156 true 4.229,0.167 4.542,0.365 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.604,0.896 1.083,1.115 0.479,0.219 10 false I222 4.333,0.823 4.646,1.021 0.313,0.198 10 false I26 5.99,1.49 6.406,1.698 0.417,0.208 10 false BAT 2.5,0.219 3.031,0.438 0.531,0.219 10 false CANH*b 2.469,1.333 3,1.552 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 10 CAN Junction Connector) 		*b to Steering Sensor


Standard Resistance:
Tester Connection Condition Specified Condition
I222-3 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
I222-7 (CANL) - I26-16 (BAT)



Result:
Result
OK
NG



OK

87.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 10 CAN JUNCTION CONNECTOR - POWER STEERING ECU WITH MOTOR ASSEMBLY)

NG

89.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 10 CAN JUNCTION CONNECTOR - STEERING SENSOR)
87.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 10 CAN JUNCTION CONNECTOR - POWER STEERING ECU WITH MOTOR ASSEMBLY)
a.

Measure the resistance according to the value(s) in the table below.

C503904C28
0.542,0.854 0.938,1.094 0.396,0.24 4.219,0.781 4.625,1.031 0.406,0.25 1.771,0.302 1.938,0.302 1.938,0.302 1.938,0.802 true 1.76,1.427 1.927,1.427 1.927,1.427 1.927,1.01 true 6.302,1.563 6.469,1.563 6.469,1.563 6.469,1.146 true 4.229,0.167 4.542,0.365 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.604,0.896 1.083,1.115 0.479,0.219 10 false I222 4.313,0.823 4.625,1.021 0.313,0.198 10 false I26 6,1.49 6.417,1.698 0.417,0.208 10 false BAT 1.198,0.219 1.729,0.438 0.531,0.219 10 false CANH*b 1.208,1.354 1.74,1.573 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 10 CAN Junction Connector) 		*b to Power Steering ECU with Motor Assembly


Standard Resistance:
Tester Connection Condition Specified Condition
I222-2 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
I222-6 (CANL) - I26-16 (BAT)



Result:
Result
OK
NG



OK

REPLACE NO. 10 CAN JUNCTION CONNECTOR

NG

90.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 10 CAN JUNCTION CONNECTOR - POWER STEERING ECU WITH MOTOR ASSEMBLY)
88.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 10 CAN JUNCTION CONNECTOR - AIRBAG SENSOR WITH ECU ASSEMBLY)
a.

Disconnect the I205 airbag sensor with ECU assembly connector.


b.

Measure the resistance according to the value(s) in the table below.

C503904C29
0.542,0.854 0.938,1.094 0.396,0.24 4.219,0.781 4.625,1.031 0.406,0.25 1.479,0.302 1.646,0.302 1.646,0.302 1.646,0.802 true 1.469,1.427 1.635,1.427 1.635,1.427 1.635,1.01 true 6.313,1.563 6.479,1.563 6.479,1.563 6.479,1.146 true 4.229,0.167 4.542,0.365 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.604,0.896 1.083,1.115 0.479,0.219 10 false I222 4.333,0.823 4.646,1.021 0.313,0.198 10 false I26 6.01,1.49 6.427,1.698 0.417,0.208 10 false BAT 0.906,0.219 1.438,0.438 0.531,0.219 10 false CANH*b 0.917,1.354 1.448,1.573 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 10 CAN Junction Connector) 		*b to Airbag Sensor with ECU Assembly


Standard Resistance:
Tester Connection Condition Specified Condition
I222-1 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
I222-5 (CANL) - I26-16 (BAT)



Result:
Result
OK
NG



OK

REPLACE AIRBAG SENSOR WITH ECU ASSEMBLY

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>CENTER AIRBAG SENSOR ASSEMBLY>REMOVAL


NG

REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 10 CAN JUNCTION CONNECTOR - AIRBAG SENSOR WITH ECU ASSEMBLY)

89.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 10 CAN JUNCTION CONNECTOR - STEERING SENSOR)
a.

Disconnect the I220 steering sensor connector.


b.

Measure the resistance according to the value(s) in the table below.

C503904C30
0.542,0.854 0.938,1.094 0.396,0.24 4.219,0.781 4.625,1.031 0.406,0.25 2.385,0.302 2.219,0.302 2.219,0.302 2.219,0.802 true 2.385,1.427 2.219,1.427 2.219,1.427 2.219,1.01 true 6.302,1.573 6.469,1.573 6.469,1.573 6.469,1.156 true 4.229,0.167 4.542,0.365 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.604,0.896 1.083,1.115 0.479,0.219 10 false I222 4.333,0.823 4.646,1.021 0.313,0.198 10 false I26 5.99,1.49 6.406,1.698 0.417,0.208 10 false BAT 2.5,0.219 3.031,0.438 0.531,0.219 10 false CANH*b 2.469,1.333 3,1.552 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 10 CAN Junction Connector) 		*b to Steering Sensor


Standard Resistance:
Tester Connection Condition Specified Condition
I222-3 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
I222-7 (CANL) - I26-16 (BAT)



Result:
Result
OK
NG



OK

REPLACE STEERING SENSOR

Click hereBrake>BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS>STEERING ANGLE SENSOR>REMOVAL


NG

REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 10 CAN JUNCTION CONNECTOR - STEERING SENSOR)

90.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 10 CAN JUNCTION CONNECTOR - POWER STEERING ECU WITH MOTOR ASSEMBLY)
a.

Disconnect the I21 power steering ECU with motor assembly connector.


b.

Measure the resistance according to the value(s) in the table below.

C503904C28
0.542,0.854 0.938,1.094 0.396,0.24 4.219,0.781 4.625,1.031 0.406,0.25 1.771,0.302 1.938,0.302 1.938,0.302 1.938,0.802 true 1.76,1.427 1.927,1.427 1.927,1.427 1.927,1.01 true 6.302,1.563 6.469,1.563 6.469,1.563 6.469,1.146 true 4.229,0.167 4.542,0.365 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.604,0.896 1.083,1.115 0.479,0.219 10 false I222 4.313,0.823 4.625,1.021 0.313,0.198 10 false I26 6,1.49 6.417,1.698 0.417,0.208 10 false BAT 1.198,0.219 1.729,0.438 0.531,0.219 10 false CANH*b 1.208,1.354 1.74,1.573 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 10 CAN Junction Connector) 		*b to Power Steering ECU with Motor Assembly


Standard Resistance:
Tester Connection Condition Specified Condition
I222-2 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
I222-6 (CANL) - I26-16 (BAT)



Result:
Result
OK
NG



OK

REPLACE POWER STEERING ECU WITH MOTOR ASSEMBLY

Click hereSteering>POWER ASSIST SYSTEMS>POWER STEERING ECU>REMOVAL


NG

REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 10 CAN JUNCTION CONNECTOR - POWER STEERING ECU WITH MOTOR ASSEMBLY)

91.CHECK VEHICLE TYPE
a.

Check vehicle type.


Result:
Result Proceed to
for 8ZR-FXE (TFTM Made) or M20G-FXS A
for 8ZR-FXE (GTMC Made) B
for M20F-FXS C



A

92.CHECK FOR SHORT IN CAN BUS LINES (NO. 41 JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

B

106.CHECK FOR SHORT IN CAN BUS LINES (NO. 16 CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

C

120.CHECK FOR SHORT IN CAN BUS LINES (NO. 39 JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
92.CHECK FOR SHORT IN CAN BUS LINES (NO. 41 JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
a.

Disconnect the A155 No. 41 junction connector.


b.

Measure the resistance according to the value(s) in the table below.

C503899C28
2.031,0.823 2.458,1.073 0.427,0.25 3.135,0.208 3.302,0.208 3.302,0.208 3.302,0.844 true 3.156,1.448 3.323,1.448 3.323,1.448 3.323,1.031 true 0.094,0.094 0.406,0.292 0.313,0.198 10 false *a 2.104,0.875 2.5,1.104 0.396,0.229 10 false A155 2.563,0.125 3.229,0.354 0.667,0.229 10 false CANH*b 2.604,1.375 3.24,1.583 0.635,0.208 10 false CANL*b
*a Front view of wire harness connector
(to No. 41 Junction Connector) 		*b to Central Gateway ECU (Network Gateway ECU)


Standard Resistance:
Tester Connection Condition Specified Condition
A155-4 (CANH) - A155-15 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω



Result:
Result
OK
NG



OK

93.CHECK FOR SHORT IN CAN BUS LINES (NO. 41 JUNCTION CONNECTOR - NO. 13 CAN JUNCTION CONNECTOR)

NG

96.CHECK FOR SHORT IN CAN BUS LINES (NO. 41 JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
93.CHECK FOR SHORT IN CAN BUS LINES (NO. 41 JUNCTION CONNECTOR - NO. 13 CAN JUNCTION CONNECTOR)
a.

Measure the resistance according to the value(s) in the table below.

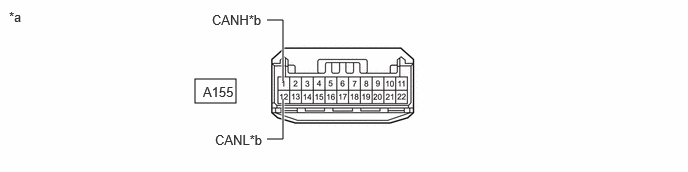

C503899C29
2.031,0.823 2.458,1.073 0.427,0.25 2.781,0.208 2.948,0.208 2.948,0.208 2.948,0.844 true 2.781,1.448 2.948,1.448 2.948,1.448 2.948,1.031 true 0.094,0.094 0.406,0.292 0.313,0.198 10 false *a 2.115,0.875 2.51,1.104 0.396,0.229 10 false A155 2.208,0.125 2.875,0.354 0.667,0.229 10 false CANH*b 2.24,1.375 2.875,1.583 0.635,0.208 10 false CANL*b
*a Front view of wire harness connector
(to No. 41 Junction Connector) 		*b to No. 13 CAN Junction Connector


Standard Resistance:
Tester Connection Condition Specified Condition
A155-1 (CANH) - A155-12 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω



Result:
Result
OK
NG



OK

94.CHECK FOR SHORT IN CAN BUS LINES (NO. 41 JUNCTION CONNECTOR - SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY))

NG

99.CHECK FOR SHORT IN CAN BUS LINES (NO. 13 CAN JUNCTION CONNECTOR - NO. 41 JUNCTION CONNECTOR)
94.CHECK FOR SHORT IN CAN BUS LINES (NO. 41 JUNCTION CONNECTOR - SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY))
a.

Measure the resistance according to the value(s) in the table below.

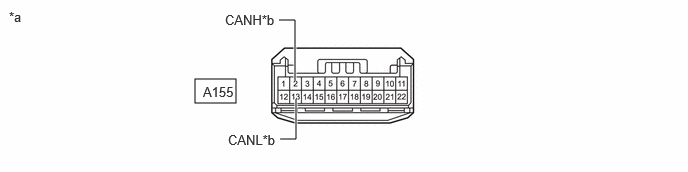

C503899C30
2.031,0.823 2.458,1.073 0.427,0.25 2.906,0.208 3.073,0.208 3.073,0.208 3.073,0.844 true 2.917,1.448 3.083,1.448 3.083,1.448 3.083,1.031 true 0.094,0.094 0.406,0.292 0.313,0.198 10 false *a 2.115,0.875 2.51,1.104 0.396,0.229 10 false A155 2.344,0.125 3.01,0.354 0.667,0.229 10 false CANH*b 2.375,1.375 3.01,1.583 0.635,0.208 10 false CANL*b
*a Front view of wire harness connector
(to No. 41 Junction Connector) 		*b to Skid Control ECU (Brake Actuator Assembly)


Standard Resistance:
Tester Connection Condition Specified Condition
A155-2 (CANH) - A155-13 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher



Result:
Result
OK
NG



OK

95.CHECK FOR SHORT IN CAN BUS LINES (NO. 41 JUNCTION CONNECTOR - ELECTRIC BRAKE BOOSTER (BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY))

NG

97.CHECK FOR SHORT IN CAN BUS LINES (NO. 41 JUNCTION CONNECTOR - SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY))
95.CHECK FOR SHORT IN CAN BUS LINES (NO. 41 JUNCTION CONNECTOR - ELECTRIC BRAKE BOOSTER (BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY))
a.

Measure the resistance according to the value(s) in the table below.

C503899C31
2.031,0.823 2.458,1.073 0.427,0.25 3.031,0.208 3.198,0.208 3.198,0.208 3.198,0.844 true 3.042,1.448 3.208,1.448 3.208,1.448 3.208,1.031 true 0.094,0.094 0.406,0.292 0.313,0.198 10 false *a 2.104,0.875 2.5,1.104 0.396,0.229 10 false A155 2.479,0.125 3.146,0.354 0.667,0.229 10 false CANH*b 2.521,1.375 3.156,1.583 0.635,0.208 10 false CANL*b
*a Front view of wire harness connector
(to No. 41 Junction Connector) 		*b to Electric Brake Booster (Brake Booster with Master Cylinder Assembly)


Standard Resistance:
Tester Connection Condition Specified Condition
A155-3 (CANH) - A155-14 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher



Result:
Result
OK
NG



OK

REPLACE NO. 41 JUNCTION CONNECTOR

NG

98.CHECK FOR SHORT IN CAN BUS LINES (NO. 41 JUNCTION CONNECTOR - ELECTRIC BRAKE BOOSTER (BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY))
96.CHECK FOR SHORT IN CAN BUS LINES (NO. 41 JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
a.

Disconnect the I207 central gateway ECU (network gateway ECU) connector.


b.

Measure the resistance according to the value(s) in the table below.

C503899C28
2.031,0.823 2.458,1.073 0.427,0.25 3.135,0.208 3.302,0.208 3.302,0.208 3.302,0.844 true 3.156,1.448 3.323,1.448 3.323,1.448 3.323,1.031 true 0.094,0.094 0.406,0.292 0.313,0.198 10 false *a 2.104,0.875 2.5,1.104 0.396,0.229 10 false A155 2.563,0.125 3.229,0.354 0.667,0.229 10 false CANH*b 2.604,1.375 3.24,1.583 0.635,0.208 10 false CANL*b
*a Front view of wire harness connector
(to No. 41 Junction Connector) 		*b to Central Gateway ECU (Network Gateway ECU)


Standard Resistance:
Tester Connection Condition Specified Condition
A155-4 (CANH) - A155-15 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 1 MΩ or higher



Result:
Result
OK
NG



OK

REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)

Click herePower Source / Network>NETWORKING>NETWORK GATEWAY ECU>REMOVAL


NG

REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 41 JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

97.CHECK FOR SHORT IN CAN BUS LINES (NO. 41 JUNCTION CONNECTOR - SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY))
a.

Disconnect the A144 skid control ECU (brake actuator assembly) connector.


b.

Measure the resistance according to the value(s) in the table below.

C503899C30
2.031,0.823 2.458,1.073 0.427,0.25 2.906,0.208 3.073,0.208 3.073,0.208 3.073,0.844 true 2.917,1.448 3.083,1.448 3.083,1.448 3.083,1.031 true 0.094,0.094 0.406,0.292 0.313,0.198 10 false *a 2.115,0.875 2.51,1.104 0.396,0.229 10 false A155 2.344,0.125 3.01,0.354 0.667,0.229 10 false CANH*b 2.375,1.375 3.01,1.583 0.635,0.208 10 false CANL*b
*a Front view of wire harness connector
(to No. 41 Junction Connector) 		*b to Skid Control ECU (Brake Actuator Assembly)


Standard Resistance:
Tester Connection Condition Specified Condition
A155-2 (CANH) - A155-13 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 1 MΩ or higher



Result:
Result
OK
NG



OK

REPLACE SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY)

Click hereBrake>BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS>BRAKE ACTUATOR (for HV Model)>REMOVAL


NG

REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (NO. 41 JUNCTION CONNECTOR - SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY))

98.CHECK FOR SHORT IN CAN BUS LINES (NO. 41 JUNCTION CONNECTOR - ELECTRIC BRAKE BOOSTER (BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY))
a.

Disconnect the A143 electric brake booster (brake booster with master cylinder assembly) connector.


b.

Measure the resistance according to the value(s) in the table below.

C503899C31
2.031,0.823 2.458,1.073 0.427,0.25 3.031,0.208 3.198,0.208 3.198,0.208 3.198,0.844 true 3.042,1.448 3.208,1.448 3.208,1.448 3.208,1.031 true 0.094,0.094 0.406,0.292 0.313,0.198 10 false *a 2.104,0.875 2.5,1.104 0.396,0.229 10 false A155 2.479,0.125 3.146,0.354 0.667,0.229 10 false CANH*b 2.521,1.375 3.156,1.583 0.635,0.208 10 false CANL*b
*a Front view of wire harness connector
(to No. 41 Junction Connector) 		*b to Electric Brake Booster (Brake Booster with Master Cylinder Assembly)


Standard Resistance:
Tester Connection Condition Specified Condition
A155-3 (CANH) - A155-14 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 1 MΩ or higher



Result:
Result
OK
NG



OK

REPLACE ELECTRIC BRAKE BOOSTER (BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY)

Click hereBrake>BRAKE SYSTEM (OTHER)>BRAKE BOOSTER (for HV Model)>REMOVAL


NG

REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (NO. 41 JUNCTION CONNECTOR - ELECTRIC BRAKE BOOSTER (BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY))

99.CHECK FOR SHORT IN CAN BUS LINES (NO. 13 CAN JUNCTION CONNECTOR - NO. 41 JUNCTION CONNECTOR)
a.

Reconnect the A155 No. 41 junction connector.


b.

Disconnect the I213 No. 13 CAN junction connector.


c.

Measure the resistance according to the value(s) in the table below.

C503898C22
0.896,0.823 1.292,1.083 0.396,0.26 3.135,0.99 3.135,1.406 3.135,1.406 2.969,1.406 true 3.146,0.781 3.146,0.281 3.146,0.281 2.979,0.281 true 0.073,0.073 0.385,0.271 0.313,0.198 10 false *a 0.958,0.885 1.333,1.073 0.375,0.188 10 false I213 2.427,0.198 3.135,0.438 0.708,0.24 10 false CANH*b 2.448,1.323 3.073,1.542 0.625,0.219 10 false CANL*b
*a Front view of wire harness connector
(to No. 13 CAN Junction Connector) 		*b to No. 41 Junction Connector


Standard Resistance:
Tester Connection Condition Specified Condition
I213-1 (CANH) - I213-5 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω



Result:
Result
OK
NG



OK

100.CHECK FOR SHORT IN CAN BUS LINES (NO. 13 CAN JUNCTION CONNECTOR - AIRBAG SENSOR WITH ECU ASSEMBLY)

NG

REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 13 CAN JUNCTION CONNECTOR - NO. 41 JUNCTION CONNECTOR)

100.CHECK FOR SHORT IN CAN BUS LINES (NO. 13 CAN JUNCTION CONNECTOR - AIRBAG SENSOR WITH ECU ASSEMBLY)
a.

Measure the resistance according to the value(s) in the table below.

C503898C23
0.896,0.823 1.292,1.083 0.396,0.26 3.719,1.01 3.719,1.427 3.719,1.427 3.885,1.427 true 3.719,0.792 3.719,0.292 3.719,0.292 3.885,0.292 true 0.073,0.073 0.385,0.271 0.313,0.198 10 false *a 0.969,0.875 1.344,1.063 0.375,0.188 10 false I213 3.979,0.208 4.688,0.448 0.708,0.24 10 false CANH*b 3.958,1.344 4.583,1.563 0.625,0.219 10 false CANL*b
*a Front view of wire harness connector
(to No. 13 CAN Junction Connector) 		*b to Airbag Sensor with ECU Assembly


Standard Resistance:
Tester Connection Condition Specified Condition
I213-3 (CANH) - I213-7 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher



Result:
Result
OK
NG



OK

101.CHECK FOR SHORT IN CAN BUS LINES (NO. 13 CAN JUNCTION CONNECTOR - STEERING SENSOR)

NG

103.CHECK FOR SHORT IN CAN BUS LINES (NO. 13 CAN JUNCTION CONNECTOR - AIRBAG SENSOR WITH ECU ASSEMBLY)
101.CHECK FOR SHORT IN CAN BUS LINES (NO. 13 CAN JUNCTION CONNECTOR - STEERING SENSOR)
a.

Measure the resistance according to the value(s) in the table below.

C503898C24
0.896,0.823 1.292,1.083 0.396,0.26 4.01,1.01 4.01,1.427 4.01,1.427 4.177,1.427 true 4.01,0.792 4.01,0.292 4.01,0.292 4.177,0.292 true 0.073,0.073 0.385,0.271 0.313,0.198 10 false *a 0.958,0.885 1.333,1.073 0.375,0.188 10 false I213 4.24,0.208 4.948,0.448 0.708,0.24 10 false CANH*b 4.26,1.344 4.885,1.563 0.625,0.219 10 false CANL*b
*a Front view of wire harness connector
(to No. 13 CAN Junction Connector) 		*b to Steering Sensor


Standard Resistance:
Tester Connection Condition Specified Condition
I213-4 (CANH) - I213-8 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher



Result:
Result
OK
NG



OK

102.CHECK FOR SHORT IN CAN BUS LINES (NO. 13 CAN JUNCTION CONNECTOR - POWER STEERING ECU WITH MOTOR ASSEMBLY)

NG

104.CHECK FOR SHORT IN CAN BUS LINES (NO. 13 CAN JUNCTION CONNECTOR - STEERING SENSOR)
102.CHECK FOR SHORT IN CAN BUS LINES (NO. 13 CAN JUNCTION CONNECTOR - POWER STEERING ECU WITH MOTOR ASSEMBLY)
a.

Measure the resistance according to the value(s) in the table below.

C503898C56
0.896,0.823 1.292,1.083 0.396,0.26 3.427,0.99 3.427,1.406 3.427,1.406 3.26,1.406 true 3.427,0.781 3.427,0.281 3.427,0.281 3.26,0.281 true 0.073,0.073 0.385,0.271 0.313,0.198 10 false *a 0.958,0.885 1.333,1.073 0.375,0.188 10 false I213 2.698,0.198 3.406,0.438 0.708,0.24 10 false CANH*b 2.708,1.323 3.333,1.542 0.625,0.219 10 false CANL*b
*a Front view of wire harness connector
(to No. 13 CAN Junction Connector) 		*b to Power Steering ECU with Motor Assembly


Standard Resistance:
Tester Connection Condition Specified Condition
I213-2 (CANH) - I213-6 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω



Result:
Result
OK
NG



OK

REPLACE NO. 13 CAN JUNCTION CONNECTOR

NG

105.CHECK FOR SHORT IN CAN BUS LINES (NO. 13 CAN JUNCTION CONNECTOR - POWER STEERING ECU WITH MOTOR ASSEMBLY)
103.CHECK FOR SHORT IN CAN BUS LINES (NO. 13 CAN JUNCTION CONNECTOR - AIRBAG SENSOR WITH ECU ASSEMBLY)
a.

Disconnect the I205 airbag sensor with ECU assembly connector.


b.

Measure the resistance according to the value(s) in the table below.

C503898C23
0.896,0.823 1.292,1.083 0.396,0.26 3.719,1.01 3.719,1.427 3.719,1.427 3.885,1.427 true 3.719,0.792 3.719,0.292 3.719,0.292 3.885,0.292 true 0.073,0.073 0.385,0.271 0.313,0.198 10 false *a 0.969,0.875 1.344,1.063 0.375,0.188 10 false I213 3.979,0.208 4.688,0.448 0.708,0.24 10 false CANH*b 3.958,1.344 4.583,1.563 0.625,0.219 10 false CANL*b
*a Front view of wire harness connector
(to No. 13 CAN Junction Connector) 		*b to Airbag Sensor with ECU Assembly


Standard Resistance:
Tester Connection Condition Specified Condition
I213-3 (CANH) - I213-7 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 1 MΩ or higher



Result:
Result
OK
NG



OK

REPLACE AIRBAG SENSOR WITH ECU ASSEMBLY

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>CENTER AIRBAG SENSOR ASSEMBLY>REMOVAL


NG

REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (NO. 13 CAN JUNCTION CONNECTOR - AIRBAG SENSOR WITH ECU ASSEMBLY)

104.CHECK FOR SHORT IN CAN BUS LINES (NO. 13 CAN JUNCTION CONNECTOR - STEERING SENSOR)
a.

Disconnect the I46 or I220 steering sensor connector.


b.

Measure the resistance according to the value(s) in the table below.

C503898C24
0.896,0.823 1.292,1.083 0.396,0.26 4.01,1.01 4.01,1.427 4.01,1.427 4.177,1.427 true 4.01,0.792 4.01,0.292 4.01,0.292 4.177,0.292 true 0.073,0.073 0.385,0.271 0.313,0.198 10 false *a 0.958,0.885 1.333,1.073 0.375,0.188 10 false I213 4.24,0.208 4.948,0.448 0.708,0.24 10 false CANH*b 4.26,1.344 4.885,1.563 0.625,0.219 10 false CANL*b
*a Front view of wire harness connector
(to No. 13 CAN Junction Connector) 		*b to Steering Sensor


Standard Resistance:
Tester Connection Condition Specified Condition
I213-4 (CANH) - I213-8 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 1 MΩ or higher



Result:
Result
OK
NG



OK

REPLACE STEERING SENSOR

Click hereBrake>BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS>STEERING ANGLE SENSOR>REMOVAL


NG

REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (NO. 13 CAN JUNCTION CONNECTOR - STEERING SENSOR)

105.CHECK FOR SHORT IN CAN BUS LINES (NO. 13 CAN JUNCTION CONNECTOR - POWER STEERING ECU WITH MOTOR ASSEMBLY)
a.

Disconnect the I21 power steering ECU with motor assembly connector.


b.

Measure the resistance according to the value(s) in the table below.

C503898C56
0.896,0.823 1.292,1.083 0.396,0.26 3.427,0.99 3.427,1.406 3.427,1.406 3.26,1.406 true 3.427,0.781 3.427,0.281 3.427,0.281 3.26,0.281 true 0.073,0.073 0.385,0.271 0.313,0.198 10 false *a 0.958,0.885 1.333,1.073 0.375,0.188 10 false I213 2.698,0.198 3.406,0.438 0.708,0.24 10 false CANH*b 2.708,1.323 3.333,1.542 0.625,0.219 10 false CANL*b
*a Front view of wire harness connector
(to No. 13 CAN Junction Connector) 		*b to Power Steering ECU with Motor Assembly


Standard Resistance:
Tester Connection Condition Specified Condition
I213-2 (CANH) - I213-6 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 1 MΩ or higher



Result:
Result
OK
NG



OK

REPLACE POWER STEERING ECU WITH MOTOR ASSEMBLY

Click hereSteering>POWER ASSIST SYSTEMS>POWER STEERING ECU>REMOVAL


NG

REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 13 CAN JUNCTION CONNECTOR - POWER STEERING ECU WITH MOTOR ASSEMBLY)

106.CHECK FOR SHORT IN CAN BUS LINES (NO. 16 CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
a.

Disconnect the A169 No. 16 CAN junction connector.


b.

Measure the resistance according to the value(s) in the table below.

C503898C14
0.896,0.823 1.292,1.083 0.396,0.26 4.01,1.01 4.01,1.427 4.01,1.427 4.177,1.427 true 4.01,0.792 4.01,0.292 4.01,0.292 4.177,0.292 true 0.073,0.073 0.385,0.271 0.313,0.198 10 false *a 0.938,0.885 1.313,1.073 0.375,0.188 10 false A169 4.26,0.208 4.969,0.448 0.708,0.24 10 false CANH*b 4.25,1.344 4.875,1.563 0.625,0.219 10 false CANL*b
*a Front view of wire harness connector
(to No. 16 CAN Junction Connector) 		*b to Central Gateway ECU (Network Gateway ECU)


Standard Resistance:
Tester Connection Condition Specified Condition
A169-4 (CANH) - A169-8 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω



Result:
Result
OK
NG



OK

107.CHECK FOR SHORT IN CAN BUS LINES (NO. 16 CAN JUNCTION CONNECTOR - NO. 10 CAN JUNCTION CONNECTOR)

NG

110.CHECK FOR SHORT IN CAN BUS LINES (NO. 16 CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
107.CHECK FOR SHORT IN CAN BUS LINES (NO. 16 CAN JUNCTION CONNECTOR - NO. 10 CAN JUNCTION CONNECTOR)
a.

Measure the resistance according to the value(s) in the table below.

C503898C15
0.896,0.823 1.292,1.083 0.396,0.26 3.719,1.01 3.719,1.427 3.719,1.427 3.885,1.427 true 3.719,0.792 3.719,0.292 3.719,0.292 3.885,0.292 true 0.073,0.073 0.385,0.271 0.313,0.198 10 false *a 0.938,0.885 1.313,1.073 0.375,0.188 10 false A169 3.948,0.208 4.656,0.448 0.708,0.24 10 false CANH*b 3.969,1.344 4.594,1.563 0.625,0.219 10 false CANL*b
*a Front view of wire harness connector
(to No. 16 CAN Junction Connector) 		*b to No. 10 CAN Junction Connector


Standard Resistance:
Tester Connection Condition Specified Condition
A169-3 (CANH) - A169-7 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω



Result:
Result
OK
NG



OK

108.CHECK FOR SHORT IN CAN BUS LINES (NO. 16 CAN JUNCTION CONNECTOR - SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY))

NG

113.CHECK FOR SHORT IN CAN BUS LINES (NO. 10 CAN JUNCTION CONNECTOR - NO. 16 CAN JUNCTION CONNECTOR)
108.CHECK FOR SHORT IN CAN BUS LINES (NO. 16 CAN JUNCTION CONNECTOR - SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY))
a.

Measure the resistance according to the value(s) in the table below.

C503898C16
0.896,0.823 1.292,1.083 0.396,0.26 3.427,0.99 3.427,1.406 3.427,1.406 3.26,1.406 true 3.427,0.781 3.427,0.281 3.427,0.281 3.26,0.281 true 0.073,0.073 0.385,0.271 0.313,0.198 10 false *a 0.938,0.885 1.313,1.073 0.375,0.188 10 false A169 2.698,0.198 3.406,0.438 0.708,0.24 10 false CANH*b 2.708,1.323 3.333,1.542 0.625,0.219 10 false CANL*b
*a Front view of wire harness connector
(to No. 16 CAN Junction Connector) 		*b to Skid Control ECU (Brake Actuator Assembly)


Standard Resistance:
Tester Connection Condition Specified Condition
A169-2 (CANH) - A169-6 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher



Result:
Result
OK
NG



OK

109.CHECK FOR SHORT IN CAN BUS LINES (NO. 16 CAN JUNCTION CONNECTOR - ELECTRIC BRAKE BOOSTER (BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY))

NG

111.CHECK FOR SHORT IN CAN BUS LINES (NO. 16 CAN JUNCTION CONNECTOR - SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY))
109.CHECK FOR SHORT IN CAN BUS LINES (NO. 16 CAN JUNCTION CONNECTOR - ELECTRIC BRAKE BOOSTER (BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY))
a.

Measure the resistance according to the value(s) in the table below.

C503898C17
0.896,0.823 1.292,1.083 0.396,0.26 3.135,0.99 3.135,1.406 3.135,1.406 2.969,1.406 true 3.146,0.802 3.146,0.302 3.146,0.302 2.979,0.302 true 0.073,0.073 0.385,0.271 0.313,0.198 10 false *a 0.938,0.885 1.313,1.073 0.375,0.188 10 false A169 2.396,0.208 3.104,0.448 0.708,0.24 10 false CANH*b 2.396,1.323 3.021,1.542 0.625,0.219 10 false CANL*b
*a Front view of wire harness connector
(to No. 16 CAN Junction Connector) 		*b to Electric Brake Booster (Brake Booster with Master Cylinder Assembly)


Standard Resistance:
Tester Connection Condition Specified Condition
A169-1 (CANH) - A169-5 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher



Result:
Result
OK
NG



OK

REPLACE NO. 16 CAN JUNCTION CONNECTOR

NG

112.CHECK FOR SHORT IN CAN BUS LINES (NO. 16 CAN JUNCTION CONNECTOR - ELECTRIC BRAKE BOOSTER (BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY))
110.CHECK FOR SHORT IN CAN BUS LINES (NO. 16 CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
a.

Disconnect the I207 central gateway ECU (network gateway ECU) connector.


b.

Measure the resistance according to the value(s) in the table below.

C503898C14
0.896,0.823 1.292,1.083 0.396,0.26 4.01,1.01 4.01,1.427 4.01,1.427 4.177,1.427 true 4.01,0.792 4.01,0.292 4.01,0.292 4.177,0.292 true 0.073,0.073 0.385,0.271 0.313,0.198 10 false *a 0.938,0.885 1.313,1.073 0.375,0.188 10 false A169 4.26,0.208 4.969,0.448 0.708,0.24 10 false CANH*b 4.25,1.344 4.875,1.563 0.625,0.219 10 false CANL*b
*a Front view of wire harness connector
(to No. 16 CAN Junction Connector) 		*b to Central Gateway ECU (Network Gateway ECU)


Standard Resistance:
Tester Connection Condition Specified Condition
A169-4 (CANH) - A169-8 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 1 MΩ or higher



Result:
Result
OK
NG



OK

REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)

Click herePower Source / Network>NETWORKING>NETWORK GATEWAY ECU>REMOVAL


NG

REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 16 CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

111.CHECK FOR SHORT IN CAN BUS LINES (NO. 16 CAN JUNCTION CONNECTOR - SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY))
a.

Disconnect the A144 skid control ECU (brake actuator assembly) connector.


b.

Measure the resistance according to the value(s) in the table below.

C503898C16
0.896,0.823 1.292,1.083 0.396,0.26 3.427,0.99 3.427,1.406 3.427,1.406 3.26,1.406 true 3.427,0.781 3.427,0.281 3.427,0.281 3.26,0.281 true 0.073,0.073 0.385,0.271 0.313,0.198 10 false *a 0.938,0.885 1.313,1.073 0.375,0.188 10 false A169 2.698,0.198 3.406,0.438 0.708,0.24 10 false CANH*b 2.708,1.323 3.333,1.542 0.625,0.219 10 false CANL*b
*a Front view of wire harness connector
(to No. 16 CAN Junction Connector) 		*b to Skid Control ECU (Brake Actuator Assembly)


Standard Resistance:
Tester Connection Condition Specified Condition
A169-2 (CANH) - A169-6 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 1 MΩ or higher



Result:
Result
OK
NG



OK

REPLACE SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY)

Click hereBrake>BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS>BRAKE ACTUATOR (for HV Model)>REMOVAL


NG

REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (NO. 16 CAN JUNCTION CONNECTOR - SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY))

112.CHECK FOR SHORT IN CAN BUS LINES (NO. 16 CAN JUNCTION CONNECTOR - ELECTRIC BRAKE BOOSTER (BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY))
a.

Disconnect the A143 electric brake booster (brake booster with master cylinder assembly) connector.


b.

Measure the resistance according to the value(s) in the table below.

C503898C17
0.896,0.823 1.292,1.083 0.396,0.26 3.135,0.99 3.135,1.406 3.135,1.406 2.969,1.406 true 3.146,0.802 3.146,0.302 3.146,0.302 2.979,0.302 true 0.073,0.073 0.385,0.271 0.313,0.198 10 false *a 0.938,0.885 1.313,1.073 0.375,0.188 10 false A169 2.396,0.208 3.104,0.448 0.708,0.24 10 false CANH*b 2.396,1.323 3.021,1.542 0.625,0.219 10 false CANL*b
*a Front view of wire harness connector
(to No. 16 CAN Junction Connector) 		*b to Electric Brake Booster (Brake Booster with Master Cylinder Assembly)


Standard Resistance:
Tester Connection Condition Specified Condition
A169-1 (CANH) - A169-5 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 1 MΩ or higher



Result:
Result
OK
NG



OK

REPLACE ELECTRIC BRAKE BOOSTER (BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY)

Click hereBrake>BRAKE SYSTEM (OTHER)>BRAKE BOOSTER (for HV Model)>REMOVAL


NG

REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (NO. 16 CAN JUNCTION CONNECTOR - ELECTRIC BRAKE BOOSTER (BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY))

113.CHECK FOR SHORT IN CAN BUS LINES (NO. 10 CAN JUNCTION CONNECTOR - NO. 16 CAN JUNCTION CONNECTOR)
a.

Reconnect the A169 No. 16 CAN junction connector.


b.

Disconnect the I222 No. 10 CAN junction connector.


c.

Measure the resistance according to the value(s) in the table below.

C503898C18
0.896,0.823 1.292,1.083 0.396,0.26 3.427,0.99 3.427,1.406 3.427,1.406 3.26,1.406 true 3.427,0.781 3.427,0.281 3.427,0.281 3.26,0.281 true 0.073,0.073 0.385,0.271 0.313,0.198 10 false *a 0.958,0.885 1.333,1.073 0.375,0.188 10 false I222 2.698,0.198 3.406,0.438 0.708,0.24 10 false CANH*b 2.708,1.323 3.333,1.542 0.625,0.219 10 false CANL*b
*a Front view of wire harness connector
(to No. 10 CAN Junction Connector) 		*b to No. 16 CAN Junction Connector


Standard Resistance:
Tester Connection Condition Specified Condition
I222-2 (CANH) - I222-6 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω



Result:
Result
OK
NG



OK

114.CHECK FOR SHORT IN CAN BUS LINES (NO. 10 CAN JUNCTION CONNECTOR - AIRBAG SENSOR WITH ECU ASSEMBLY)

NG

REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 10 CAN JUNCTION CONNECTOR - NO. 16 CAN JUNCTION CONNECTOR)

114.CHECK FOR SHORT IN CAN BUS LINES (NO. 10 CAN JUNCTION CONNECTOR - AIRBAG SENSOR WITH ECU ASSEMBLY)
a.

Measure the resistance according to the value(s) in the table below.

C503898C19
0.896,0.823 1.292,1.083 0.396,0.26 3.135,0.99 3.135,1.406 3.135,1.406 2.969,1.406 true 3.146,0.781 3.146,0.281 3.146,0.281 2.979,0.281 true 0.073,0.073 0.385,0.271 0.313,0.198 10 false *a 0.958,0.885 1.333,1.073 0.375,0.188 10 false I222 2.427,0.198 3.135,0.438 0.708,0.24 10 false CANH*b 2.448,1.323 3.073,1.542 0.625,0.219 10 false CANL*b
*a Front view of wire harness connector
(to No. 10 CAN Junction Connector) 		*b to Airbag Sensor with ECU Assembly


Standard Resistance:
Tester Connection Condition Specified Condition
I222-1 (CANH) - I222-5 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher



Result:
Result
OK
NG



OK

115.CHECK FOR SHORT IN CAN BUS LINES (NO. 10 CAN JUNCTION CONNECTOR - STEERING SENSOR)

NG

117.CHECK FOR SHORT IN CAN BUS LINES (NO. 10 CAN JUNCTION CONNECTOR - AIRBAG SENSOR WITH ECU ASSEMBLY)
115.CHECK FOR SHORT IN CAN BUS LINES (NO. 10 CAN JUNCTION CONNECTOR - STEERING SENSOR)
a.

Measure the resistance according to the value(s) in the table below.

C503898C20
0.896,0.823 1.292,1.083 0.396,0.26 3.719,1.01 3.719,1.427 3.719,1.427 3.885,1.427 true 3.719,0.792 3.719,0.292 3.719,0.292 3.885,0.292 true 0.073,0.073 0.385,0.271 0.313,0.198 10 false *a 0.969,0.875 1.344,1.063 0.375,0.188 10 false I222 3.979,0.208 4.688,0.448 0.708,0.24 10 false CANH*b 3.958,1.344 4.583,1.563 0.625,0.219 10 false CANL*b
*a Front view of wire harness connector
(to No. 10 CAN Junction Connector) 		*b to Steering Sensor


Standard Resistance:
Tester Connection Condition Specified Condition
I222-3 (CANH) - I222-7 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher



Result:
Result
OK
NG



OK

116.CHECK FOR SHORT IN CAN BUS LINES (NO. 10 CAN JUNCTION CONNECTOR - POWER STEERING ECU WITH MOTOR ASSEMBLY)

NG

118.CHECK FOR SHORT IN CAN BUS LINES (NO. 10 CAN JUNCTION CONNECTOR - STEERING SENSOR)
116.CHECK FOR SHORT IN CAN BUS LINES (NO. 10 CAN JUNCTION CONNECTOR - POWER STEERING ECU WITH MOTOR ASSEMBLY)
a.

Measure the resistance according to the value(s) in the table below.

C503898C21
0.896,0.823 1.292,1.083 0.396,0.26 4.01,1.01 4.01,1.427 4.01,1.427 4.177,1.427 true 4.01,0.792 4.01,0.292 4.01,0.292 4.177,0.292 true 0.073,0.073 0.385,0.271 0.313,0.198 10 false *a 0.958,0.885 1.333,1.073 0.375,0.188 10 false I222 4.24,0.208 4.948,0.448 0.708,0.24 10 false CANH*b 4.26,1.344 4.885,1.563 0.625,0.219 10 false CANL*b
*a Front view of wire harness connector
(to No. 10 CAN Junction Connector) 		*b to Power Steering ECU with Motor Assembly


Standard Resistance:
Tester Connection Condition Specified Condition
I222-4 (CANH) - I222-8 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω



Result:
Result
OK
NG



OK

REPLACE NO. 10 CAN JUNCTION CONNECTOR

NG

119.CHECK FOR SHORT IN CAN BUS LINES (NO. 10 CAN JUNCTION CONNECTOR - POWER STEERING ECU WITH MOTOR ASSEMBLY)
117.CHECK FOR SHORT IN CAN BUS LINES (NO. 10 CAN JUNCTION CONNECTOR - AIRBAG SENSOR WITH ECU ASSEMBLY)
a.

Disconnect the I205 airbag sensor with ECU assembly connector.


b.

Measure the resistance according to the value(s) in the table below.

C503898C19
0.896,0.823 1.292,1.083 0.396,0.26 3.135,0.99 3.135,1.406 3.135,1.406 2.969,1.406 true 3.146,0.781 3.146,0.281 3.146,0.281 2.979,0.281 true 0.073,0.073 0.385,0.271 0.313,0.198 10 false *a 0.958,0.885 1.333,1.073 0.375,0.188 10 false I222 2.427,0.198 3.135,0.438 0.708,0.24 10 false CANH*b 2.448,1.323 3.073,1.542 0.625,0.219 10 false CANL*b
*a Front view of wire harness connector
(to No. 10 CAN Junction Connector) 		*b to Airbag Sensor with ECU Assembly


Standard Resistance:
Tester Connection Condition Specified Condition
I222-1 (CANH) - I222-5 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 1 MΩ or higher



Result:
Result
OK
NG



OK

REPLACE AIRBAG SENSOR WITH ECU ASSEMBLY

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>CENTER AIRBAG SENSOR ASSEMBLY>REMOVAL


NG

REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (NO. 10 CAN JUNCTION CONNECTOR - AIRBAG SENSOR WITH ECU ASSEMBLY)

118.CHECK FOR SHORT IN CAN BUS LINES (NO. 10 CAN JUNCTION CONNECTOR - STEERING SENSOR)
a.

Disconnect the I220 steering sensor connector.


b.

Measure the resistance according to the value(s) in the table below.

C503898C20
0.896,0.823 1.292,1.083 0.396,0.26 3.719,1.01 3.719,1.427 3.719,1.427 3.885,1.427 true 3.719,0.792 3.719,0.292 3.719,0.292 3.885,0.292 true 0.073,0.073 0.385,0.271 0.313,0.198 10 false *a 0.969,0.875 1.344,1.063 0.375,0.188 10 false I222 3.979,0.208 4.688,0.448 0.708,0.24 10 false CANH*b 3.958,1.344 4.583,1.563 0.625,0.219 10 false CANL*b
*a Front view of wire harness connector
(to No. 10 CAN Junction Connector) 		*b to Steering Sensor


Standard Resistance:
Tester Connection Condition Specified Condition
I222-3 (CANH) - I222-7 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 1 MΩ or higher



Result:
Result
OK
NG



OK

REPLACE STEERING SENSOR

Click hereBrake>BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS>STEERING ANGLE SENSOR>REMOVAL


NG

REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (NO. 10 CAN JUNCTION CONNECTOR - STEERING SENSOR)

119.CHECK FOR SHORT IN CAN BUS LINES (NO. 10 CAN JUNCTION CONNECTOR - POWER STEERING ECU WITH MOTOR ASSEMBLY)
a.

Disconnect the I21 power steering ECU with motor assembly connector.


b.

Measure the resistance according to the value(s) in the table below.

C503898C21
0.896,0.823 1.292,1.083 0.396,0.26 4.01,1.01 4.01,1.427 4.01,1.427 4.177,1.427 true 4.01,0.792 4.01,0.292 4.01,0.292 4.177,0.292 true 0.073,0.073 0.385,0.271 0.313,0.198 10 false *a 0.958,0.885 1.333,1.073 0.375,0.188 10 false I222 4.24,0.208 4.948,0.448 0.708,0.24 10 false CANH*b 4.26,1.344 4.885,1.563 0.625,0.219 10 false CANL*b
*a Front view of wire harness connector
(to No. 10 CAN Junction Connector) 		*b to Power Steering ECU with Motor Assembly


Standard Resistance:
Tester Connection Condition Specified Condition
I222-4 (CANH) - I222-8 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 1 MΩ or higher



Result:
Result
OK
NG



OK

REPLACE POWER STEERING ECU WITH MOTOR ASSEMBLY

Click hereSteering>POWER ASSIST SYSTEMS>POWER STEERING ECU>REMOVAL


NG

REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 10 CAN JUNCTION CONNECTOR - POWER STEERING ECU WITH MOTOR ASSEMBLY)

120.CHECK FOR SHORT IN CAN BUS LINES (NO. 39 JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
a.

Disconnect the A173 No. 39 junction connector.


b.

Measure the resistance according to the value(s) in the table below.

C503898C44
0.896,0.823 1.292,1.083 0.396,0.26 4.01,1.01 4.01,1.427 4.01,1.427 4.177,1.427 true 4.01,0.792 4.01,0.292 4.01,0.292 4.177,0.292 true 0.073,0.073 0.385,0.271 0.313,0.198 10 false *a 0.938,0.885 1.313,1.073 0.375,0.188 10 false A173 4.26,0.208 4.969,0.448 0.708,0.24 10 false CANH*b 4.25,1.344 4.875,1.563 0.625,0.219 10 false CANL*b
*a Front view of wire harness connector
(to No. 39 Junction Connector) 		*b to Central Gateway ECU (Network Gateway ECU)


Standard Resistance:
Tester Connection Condition Specified Condition
A173-4 (CANH) - A173-8 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω



Result:
Result
OK
NG



OK

121.CHECK FOR SHORT IN CAN BUS LINES (NO. 39 JUNCTION CONNECTOR - NO. 10 CAN JUNCTION CONNECTOR)

NG

124.CHECK FOR SHORT IN CAN BUS LINES (NO. 39 JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
121.CHECK FOR SHORT IN CAN BUS LINES (NO. 39 JUNCTION CONNECTOR - NO. 10 CAN JUNCTION CONNECTOR)
a.

Measure the resistance according to the value(s) in the table below.

C503898C45
0.896,0.823 1.292,1.083 0.396,0.26 3.719,1.01 3.719,1.427 3.719,1.427 3.885,1.427 true 3.719,0.792 3.719,0.292 3.719,0.292 3.885,0.292 true 0.073,0.073 0.385,0.271 0.313,0.198 10 false *a 0.938,0.885 1.313,1.073 0.375,0.188 10 false A173 3.948,0.208 4.656,0.448 0.708,0.24 10 false CANH*b 3.969,1.344 4.594,1.563 0.625,0.219 10 false CANL*b
*a Front view of wire harness connector
(to No. 39 Junction Connector) 		*b to No. 10 CAN Junction Connector


Standard Resistance:
Tester Connection Condition Specified Condition
A173-3 (CANH) - A173-7 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω



Result:
Result
OK
NG



OK

122.CHECK FOR SHORT IN CAN BUS LINES (NO. 39 JUNCTION CONNECTOR - SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY))

NG

127.CHECK FOR SHORT IN CAN BUS LINES (NO. 10 CAN JUNCTION CONNECTOR - NO. 39 JUNCTION CONNECTOR)
122.CHECK FOR SHORT IN CAN BUS LINES (NO. 39 JUNCTION CONNECTOR - SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY))
a.

Measure the resistance according to the value(s) in the table below.

C503898C46
0.896,0.823 1.292,1.083 0.396,0.26 3.427,0.99 3.427,1.406 3.427,1.406 3.26,1.406 true 3.427,0.781 3.427,0.281 3.427,0.281 3.26,0.281 true 0.073,0.073 0.385,0.271 0.313,0.198 10 false *a 0.938,0.885 1.313,1.073 0.375,0.188 10 false A173 2.698,0.198 3.406,0.438 0.708,0.24 10 false CANH*b 2.708,1.323 3.333,1.542 0.625,0.219 10 false CANL*b
*a Front view of wire harness connector
(to No. 39 Junction Connector) 		*b to Skid Control ECU (Brake Actuator Assembly)


Standard Resistance:
Tester Connection Condition Specified Condition
A173-2 (CANH) - A173-6 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher



Result:
Result
OK
NG



OK

123.CHECK FOR SHORT IN CAN BUS LINES (NO. 39 JUNCTION CONNECTOR - ELECTRIC BRAKE BOOSTER (BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY))

NG

125.CHECK FOR SHORT IN CAN BUS LINES (NO. 39 JUNCTION CONNECTOR - SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY))
123.CHECK FOR SHORT IN CAN BUS LINES (NO. 39 JUNCTION CONNECTOR - ELECTRIC BRAKE BOOSTER (BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY))
a.

Measure the resistance according to the value(s) in the table below.

C503898C47
0.896,0.823 1.292,1.083 0.396,0.26 3.135,0.99 3.135,1.406 3.135,1.406 2.969,1.406 true 3.146,0.802 3.146,0.302 3.146,0.302 2.979,0.302 true 0.073,0.073 0.385,0.271 0.313,0.198 10 false *a 0.938,0.885 1.313,1.073 0.375,0.188 10 false A173 2.396,0.208 3.104,0.448 0.708,0.24 10 false CANH*b 2.396,1.323 3.021,1.542 0.625,0.219 10 false CANL*b
*a Front view of wire harness connector
(to No. 39 Junction Connector) 		*b to Electric Brake Booster (Brake Booster with Master Cylinder Assembly)


Standard Resistance:
Tester Connection Condition Specified Condition
A173-1 (CANH) - A173-5 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher



Result:
Result
OK
NG



OK

REPLACE NO. 39 JUNCTION CONNECTOR

NG

126.CHECK FOR SHORT IN CAN BUS LINES (NO. 39 JUNCTION CONNECTOR - ELECTRIC BRAKE BOOSTER (BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY))
124.CHECK FOR SHORT IN CAN BUS LINES (NO. 39 JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
a.

Disconnect the I207 central gateway ECU (network gateway ECU) connector.


b.

Measure the resistance according to the value(s) in the table below.

C503898C44
0.896,0.823 1.292,1.083 0.396,0.26 4.01,1.01 4.01,1.427 4.01,1.427 4.177,1.427 true 4.01,0.792 4.01,0.292 4.01,0.292 4.177,0.292 true 0.073,0.073 0.385,0.271 0.313,0.198 10 false *a 0.938,0.885 1.313,1.073 0.375,0.188 10 false A173 4.26,0.208 4.969,0.448 0.708,0.24 10 false CANH*b 4.25,1.344 4.875,1.563 0.625,0.219 10 false CANL*b
*a Front view of wire harness connector
(to No. 39 Junction Connector) 		*b to Central Gateway ECU (Network Gateway ECU)


Standard Resistance:
Tester Connection Condition Specified Condition
A173-4 (CANH) - A173-8 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 1 MΩ or higher



Result:
Result
OK
NG



OK

REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)

Click herePower Source / Network>NETWORKING>NETWORK GATEWAY ECU>REMOVAL


NG

REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 39 JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

125.CHECK FOR SHORT IN CAN BUS LINES (NO. 39 JUNCTION CONNECTOR - SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY))
a.

Disconnect the A144 skid control ECU (brake actuator assembly) connector.


b.

Measure the resistance according to the value(s) in the table below.

C503898C46
0.896,0.823 1.292,1.083 0.396,0.26 3.427,0.99 3.427,1.406 3.427,1.406 3.26,1.406 true 3.427,0.781 3.427,0.281 3.427,0.281 3.26,0.281 true 0.073,0.073 0.385,0.271 0.313,0.198 10 false *a 0.938,0.885 1.313,1.073 0.375,0.188 10 false A173 2.698,0.198 3.406,0.438 0.708,0.24 10 false CANH*b 2.708,1.323 3.333,1.542 0.625,0.219 10 false CANL*b
*a Front view of wire harness connector
(to No. 39 Junction Connector) 		*b to Skid Control ECU (Brake Actuator Assembly)


Standard Resistance:
Tester Connection Condition Specified Condition
A173-2 (CANH) - A173-6 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 1 MΩ or higher



Result:
Result
OK
NG



OK

REPLACE SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY)

Click hereBrake>BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS>BRAKE ACTUATOR (for HV Model)>REMOVAL


NG

REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (NO. 39 JUNCTION CONNECTOR - SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY))

126.CHECK FOR SHORT IN CAN BUS LINES (NO. 39 JUNCTION CONNECTOR - ELECTRIC BRAKE BOOSTER (BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY))
a.

Disconnect the A143 electric brake booster (brake booster with master cylinder assembly) connector.


b.

Measure the resistance according to the value(s) in the table below.

C503898C47
0.896,0.823 1.292,1.083 0.396,0.26 3.135,0.99 3.135,1.406 3.135,1.406 2.969,1.406 true 3.146,0.802 3.146,0.302 3.146,0.302 2.979,0.302 true 0.073,0.073 0.385,0.271 0.313,0.198 10 false *a 0.938,0.885 1.313,1.073 0.375,0.188 10 false A173 2.396,0.208 3.104,0.448 0.708,0.24 10 false CANH*b 2.396,1.323 3.021,1.542 0.625,0.219 10 false CANL*b
*a Front view of wire harness connector
(to No. 39 Junction Connector) 		*b to Electric Brake Booster (Brake Booster with Master Cylinder Assembly)


Standard Resistance:
Tester Connection Condition Specified Condition
A173-1 (CANH) - A173-5 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 1 MΩ or higher



Result:
Result
OK
NG



OK

REPLACE ELECTRIC BRAKE BOOSTER (BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY)

Click hereBrake>BRAKE SYSTEM (OTHER)>BRAKE BOOSTER (for HV Model)>REMOVAL


NG

REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (NO. 39 JUNCTION CONNECTOR - ELECTRIC BRAKE BOOSTER (BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY))

127.CHECK FOR SHORT IN CAN BUS LINES (NO. 10 CAN JUNCTION CONNECTOR - NO. 39 JUNCTION CONNECTOR)
a.

Reconnect the A173 No. 39 junction connector.


b.

Disconnect the I222 No. 10 CAN junction connector.


c.

Measure the resistance according to the value(s) in the table below.

C503898C21
0.896,0.823 1.292,1.083 0.396,0.26 4.01,1.01 4.01,1.427 4.01,1.427 4.177,1.427 true 4.01,0.792 4.01,0.292 4.01,0.292 4.177,0.292 true 0.073,0.073 0.385,0.271 0.313,0.198 10 false *a 0.958,0.885 1.333,1.073 0.375,0.188 10 false I222 4.24,0.208 4.948,0.448 0.708,0.24 10 false CANH*b 4.26,1.344 4.885,1.563 0.625,0.219 10 false CANL*b
*a Front view of wire harness connector
(to No. 10 CAN Junction Connector) 		*b to No. 39 Junction Connector


Standard Resistance:
Tester Connection Condition Specified Condition
I222-4 (CANH) - I222-8 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω



Result:
Result
OK
NG



OK

128.CHECK FOR SHORT IN CAN BUS LINES (NO. 10 CAN JUNCTION CONNECTOR - AIRBAG SENSOR WITH ECU ASSEMBLY)

NG

REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 10 CAN JUNCTION CONNECTOR - NO. 39 JUNCTION CONNECTOR)

128.CHECK FOR SHORT IN CAN BUS LINES (NO. 10 CAN JUNCTION CONNECTOR - AIRBAG SENSOR WITH ECU ASSEMBLY)
a.

Measure the resistance according to the value(s) in the table below.

C503898C19
0.896,0.823 1.292,1.083 0.396,0.26 3.135,0.99 3.135,1.406 3.135,1.406 2.969,1.406 true 3.146,0.781 3.146,0.281 3.146,0.281 2.979,0.281 true 0.073,0.073 0.385,0.271 0.313,0.198 10 false *a 0.958,0.885 1.333,1.073 0.375,0.188 10 false I222 2.427,0.198 3.135,0.438 0.708,0.24 10 false CANH*b 2.448,1.323 3.073,1.542 0.625,0.219 10 false CANL*b
*a Front view of wire harness connector
(to No. 10 CAN Junction Connector) 		*b to Airbag Sensor with ECU Assembly


Standard Resistance:
Tester Connection Condition Specified Condition
I222-1 (CANH) - I222-5 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher



Result:
Result
OK
NG



OK

129.CHECK FOR SHORT IN CAN BUS LINES (NO. 10 CAN JUNCTION CONNECTOR - STEERING SENSOR)

NG

131.CHECK FOR SHORT IN CAN BUS LINES (NO. 10 CAN JUNCTION CONNECTOR - AIRBAG SENSOR WITH ECU ASSEMBLY)
129.CHECK FOR SHORT IN CAN BUS LINES (NO. 10 CAN JUNCTION CONNECTOR - STEERING SENSOR)
a.

Measure the resistance according to the value(s) in the table below.

C503898C20
0.896,0.823 1.292,1.083 0.396,0.26 3.719,1.01 3.719,1.427 3.719,1.427 3.885,1.427 true 3.719,0.792 3.719,0.292 3.719,0.292 3.885,0.292 true 0.073,0.073 0.385,0.271 0.313,0.198 10 false *a 0.969,0.875 1.344,1.063 0.375,0.188 10 false I222 3.979,0.208 4.688,0.448 0.708,0.24 10 false CANH*b 3.958,1.344 4.583,1.563 0.625,0.219 10 false CANL*b
*a Front view of wire harness connector
(to No. 10 CAN Junction Connector) 		*b to Steering Sensor


Standard Resistance:
Tester Connection Condition Specified Condition
I222-3 (CANH) - I222-7 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher



Result:
Result
OK
NG



OK

130.CHECK FOR SHORT IN CAN BUS LINES (NO. 10 CAN JUNCTION CONNECTOR - POWER STEERING ECU WITH MOTOR ASSEMBLY)

NG

132.CHECK FOR SHORT IN CAN BUS LINES (NO. 10 CAN JUNCTION CONNECTOR - STEERING SENSOR)
130.CHECK FOR SHORT IN CAN BUS LINES (NO. 10 CAN JUNCTION CONNECTOR - POWER STEERING ECU WITH MOTOR ASSEMBLY)
a.

Measure the resistance according to the value(s) in the table below.

C503898C18
0.896,0.823 1.292,1.083 0.396,0.26 3.427,0.99 3.427,1.406 3.427,1.406 3.26,1.406 true 3.427,0.781 3.427,0.281 3.427,0.281 3.26,0.281 true 0.073,0.073 0.385,0.271 0.313,0.198 10 false *a 0.958,0.885 1.333,1.073 0.375,0.188 10 false I222 2.698,0.198 3.406,0.438 0.708,0.24 10 false CANH*b 2.708,1.323 3.333,1.542 0.625,0.219 10 false CANL*b
*a Front view of wire harness connector
(to No. 10 CAN Junction Connector) 		*b to Power Steering ECU with Motor Assembly


Standard Resistance:
Tester Connection Condition Specified Condition
I222-2 (CANH) - I222-6 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω



Result:
Result
OK
NG



OK

REPLACE NO. 10 CAN JUNCTION CONNECTOR

NG

133.CHECK FOR SHORT IN CAN BUS LINES (NO. 10 CAN JUNCTION CONNECTOR - POWER STEERING ECU WITH MOTOR ASSEMBLY)
131.CHECK FOR SHORT IN CAN BUS LINES (NO. 10 CAN JUNCTION CONNECTOR - AIRBAG SENSOR WITH ECU ASSEMBLY)
a.

Disconnect the I205 airbag sensor with ECU assembly connector.


b.

Measure the resistance according to the value(s) in the table below.

C503898C19
0.896,0.823 1.292,1.083 0.396,0.26 3.135,0.99 3.135,1.406 3.135,1.406 2.969,1.406 true 3.146,0.781 3.146,0.281 3.146,0.281 2.979,0.281 true 0.073,0.073 0.385,0.271 0.313,0.198 10 false *a 0.958,0.885 1.333,1.073 0.375,0.188 10 false I222 2.427,0.198 3.135,0.438 0.708,0.24 10 false CANH*b 2.448,1.323 3.073,1.542 0.625,0.219 10 false CANL*b
*a Front view of wire harness connector
(to No. 10 CAN Junction Connector) 		*b to Airbag Sensor with ECU Assembly


Standard Resistance:
Tester Connection Condition Specified Condition
I222-1 (CANH) - I222-5 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 1 MΩ or higher



Result:
Result
OK
NG



OK

REPLACE AIRBAG SENSOR WITH ECU ASSEMBLY

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>CENTER AIRBAG SENSOR ASSEMBLY>REMOVAL


NG

REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (NO. 10 CAN JUNCTION CONNECTOR - AIRBAG SENSOR WITH ECU ASSEMBLY)

132.CHECK FOR SHORT IN CAN BUS LINES (NO. 10 CAN JUNCTION CONNECTOR - STEERING SENSOR)
a.

Disconnect the I220 steering sensor connector.


b.

Measure the resistance according to the value(s) in the table below.

C503898C20
0.896,0.823 1.292,1.083 0.396,0.26 3.719,1.01 3.719,1.427 3.719,1.427 3.885,1.427 true 3.719,0.792 3.719,0.292 3.719,0.292 3.885,0.292 true 0.073,0.073 0.385,0.271 0.313,0.198 10 false *a 0.969,0.875 1.344,1.063 0.375,0.188 10 false I222 3.979,0.208 4.688,0.448 0.708,0.24 10 false CANH*b 3.958,1.344 4.583,1.563 0.625,0.219 10 false CANL*b
*a Front view of wire harness connector
(to No. 10 CAN Junction Connector) 		*b to Steering Sensor


Standard Resistance:
Tester Connection Condition Specified Condition
I222-3 (CANH) - I222-7 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 1 MΩ or higher



Result:
Result
OK
NG



OK

REPLACE STEERING SENSOR

Click hereBrake>BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS>STEERING ANGLE SENSOR>REMOVAL


NG

REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (NO. 10 CAN JUNCTION CONNECTOR - STEERING SENSOR)

133.CHECK FOR SHORT IN CAN BUS LINES (NO. 10 CAN JUNCTION CONNECTOR - POWER STEERING ECU WITH MOTOR ASSEMBLY)
a.

Disconnect the I21 power steering ECU with motor assembly connector.


b.

Measure the resistance according to the value(s) in the table below.

C503898C18
0.896,0.823 1.292,1.083 0.396,0.26 3.427,0.99 3.427,1.406 3.427,1.406 3.26,1.406 true 3.427,0.781 3.427,0.281 3.427,0.281 3.26,0.281 true 0.073,0.073 0.385,0.271 0.313,0.198 10 false *a 0.958,0.885 1.333,1.073 0.375,0.188 10 false I222 2.698,0.198 3.406,0.438 0.708,0.24 10 false CANH*b 2.708,1.323 3.333,1.542 0.625,0.219 10 false CANL*b
*a Front view of wire harness connector
(to No. 10 CAN Junction Connector) 		*b to Power Steering ECU with Motor Assembly


Standard Resistance:
Tester Connection Condition Specified Condition
I222-2 (CANH) - I222-6 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 1 MΩ or higher



Result:
Result
OK
NG



OK

REPLACE POWER STEERING ECU WITH MOTOR ASSEMBLY

Click hereSteering>POWER ASSIST SYSTEMS>POWER STEERING ECU>REMOVAL


NG

REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 10 CAN JUNCTION CONNECTOR - POWER STEERING ECU WITH MOTOR ASSEMBLY)

134.CHECK FOR OPEN IN CAN MAIN BUS LINES (CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
a.

Disconnect the I207 central gateway ECU (network gateway ECU) connector.


b.
C506180C04
1.427,0.5 1.854,0.719 0.427,0.219 0.948,2.042 0.948,2.792 0.948,2.792 0.781,2.792 true 1.073,2.052 1.073,2.802 1.073,2.802 1.24,2.802 true 1.521,0.531 1.979,0.729 0.458,0.198 10 false I207 1.313,2.74 1.771,2.948 0.458,0.208 10 false CA2H 0.417,2.74 0.875,2.948 0.458,0.208 10 false CA2L 0.146,0.135 0.604,0.333 0.458,0.198 10 false *a
*a Front view of wire harness connector
(to Central Gateway ECU (Network Gateway ECU))


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
I207-24 (CA2H) - I207-23 (CA2L) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω



Result:
Result
OK
NG



OK

REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)

Click herePower Source / Network>NETWORKING>NETWORK GATEWAY ECU>REMOVAL


NG

135.CHECK VEHICLE TYPE
135.CHECK VEHICLE TYPE
a.

Check vehicle type.


Result:
Result Proceed to
for 8ZR-FXE (TFTM Made) or M20G-FXS A
for 8ZR-FXE (GTMC Made) B
for M20F-FXS C



A

136.CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 41 JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

B

141.CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 16 CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

C

146.CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 39 JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
136.CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 41 JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
a.

Reconnect the I207 central gateway ECU (network gateway ECU) connector.


b.

Disconnect the A155 No. 41 junction connector.


c.

Measure the resistance according to the value(s) in the table below.

C503899C28
2.031,0.823 2.458,1.073 0.427,0.25 3.135,0.208 3.302,0.208 3.302,0.208 3.302,0.844 true 3.156,1.448 3.323,1.448 3.323,1.448 3.323,1.031 true 0.094,0.094 0.406,0.292 0.313,0.198 10 false *a 2.104,0.875 2.5,1.104 0.396,0.229 10 false A155 2.563,0.125 3.229,0.354 0.667,0.229 10 false CANH*b 2.604,1.375 3.24,1.583 0.635,0.208 10 false CANL*b
*a Front view of wire harness connector
(to No. 41 Junction Connector) 		*b to Central Gateway ECU (Network Gateway ECU)


Standard Resistance:
Tester Connection Condition Specified Condition
A155-4 (CANH) - A155-15 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω



Result:
Result
OK
NG



OK

137.CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 41 JUNCTION CONNECTOR - NO. 13 CAN JUNCTION CONNECTOR)

NG

REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 41 JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

137.CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 41 JUNCTION CONNECTOR - NO. 13 CAN JUNCTION CONNECTOR)
a.

Measure the resistance according to the value(s) in the table below.

C503899C29
2.031,0.823 2.458,1.073 0.427,0.25 2.781,0.208 2.948,0.208 2.948,0.208 2.948,0.844 true 2.781,1.448 2.948,1.448 2.948,1.448 2.948,1.031 true 0.094,0.094 0.406,0.292 0.313,0.198 10 false *a 2.115,0.875 2.51,1.104 0.396,0.229 10 false A155 2.208,0.125 2.875,0.354 0.667,0.229 10 false CANH*b 2.24,1.375 2.875,1.583 0.635,0.208 10 false CANL*b
*a Front view of wire harness connector
(to No. 41 Junction Connector) 		*b to No. 13 CAN Junction Connector


Standard Resistance:
Tester Connection Condition Specified Condition
A155-1 (CANH) - A155-12 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω



Result:
Result
OK
NG



OK

REPLACE NO. 41 JUNCTION CONNECTOR

NG

138.CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 13 CAN JUNCTION CONNECTOR - NO. 41 JUNCTION CONNECTOR)
138.CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 13 CAN JUNCTION CONNECTOR - NO. 41 JUNCTION CONNECTOR)
a.

Reconnect the A155 No. 41 junction connector.


b.

Disconnect the I213 No. 13 CAN junction connector.


c.

Measure the resistance according to the value(s) in the table below.

C503898C22
0.896,0.823 1.292,1.083 0.396,0.26 3.135,0.99 3.135,1.406 3.135,1.406 2.969,1.406 true 3.146,0.781 3.146,0.281 3.146,0.281 2.979,0.281 true 0.073,0.073 0.385,0.271 0.313,0.198 10 false *a 0.958,0.885 1.333,1.073 0.375,0.188 10 false I213 2.427,0.198 3.135,0.438 0.708,0.24 10 false CANH*b 2.448,1.323 3.073,1.542 0.625,0.219 10 false CANL*b
*a Front view of wire harness connector
(to No. 13 CAN Junction Connector) 		*b to No. 41 Junction Connector


Standard Resistance:
Tester Connection Condition Specified Condition
I213-1 (CANH) - I213-5 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω



Result:
Result
OK
NG



OK

139.CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 13 CAN JUNCTION CONNECTOR - POWER STEERING ECU WITH MOTOR ASSEMBLY)

NG

REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 13 CAN JUNCTION CONNECTOR - NO. 41 JUNCTION CONNECTOR)

139.CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 13 CAN JUNCTION CONNECTOR - POWER STEERING ECU WITH MOTOR ASSEMBLY)
a.

Measure the resistance according to the value(s) in the table below.

C503898C56
0.896,0.823 1.292,1.083 0.396,0.26 3.427,0.99 3.427,1.406 3.427,1.406 3.26,1.406 true 3.427,0.781 3.427,0.281 3.427,0.281 3.26,0.281 true 0.073,0.073 0.385,0.271 0.313,0.198 10 false *a 0.958,0.885 1.333,1.073 0.375,0.188 10 false I213 2.698,0.198 3.406,0.438 0.708,0.24 10 false CANH*b 2.708,1.323 3.333,1.542 0.625,0.219 10 false CANL*b
*a Front view of wire harness connector
(to No. 13 CAN Junction Connector) 		*b to Power Steering ECU with Motor Assembly


Standard Resistance:
Tester Connection Condition Specified Condition
I213-2 (CANH) - I213-6 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω



Result:
Result
OK
NG



OK

REPLACE NO. 13 CAN JUNCTION CONNECTOR

NG

140.CHECK FOR OPEN IN CAN MAIN BUS LINES (POWER STEERING ECU WITH MOTOR ASSEMBLY)
140.CHECK FOR OPEN IN CAN MAIN BUS LINES (POWER STEERING ECU WITH MOTOR ASSEMBLY)
a.

Reconnect the I213 No. 13 CAN junction connector.


b.

Disconnect the I21 power steering ECU with motor assembly connector.


c.

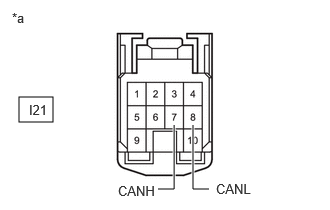

C460103C04
0.198,1.01 0.552,1.271 0.354,0.26 1.646,1.969 1.813,1.969 1.813,1.969 1.813,1.302 true 2.177,1.969 2.01,1.969 2.01,1.969 2.01,1.302 true 0.125,0.104 0.438,0.302 0.313,0.198 10 false *a 0.302,1.063 0.615,1.26 0.313,0.198 10 false I21 1.229,1.906 1.677,2.094 0.448,0.188 10 false CANH 2.25,1.885 2.698,2.073 0.448,0.188 10 false CANL
*a Front view of wire harness connector
(to Power Steering ECU with Motor Assembly)


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
I21-7 (CANH) - I21-8 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω



Result:
Result
OK
NG



OK

REPLACE POWER STEERING ECU WITH MOTOR ASSEMBLY

Click hereSteering>POWER ASSIST SYSTEMS>POWER STEERING ECU>REMOVAL


NG

REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (POWER STEERING ECU WITH MOTOR ASSEMBLY - NO. 13 CAN JUNCTION CONNECTOR)

141.CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 16 CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
a.

Reconnect the I207 central gateway ECU (network gateway ECU) connector.


b.

Disconnect the A169 No. 16 CAN junction connector.


c.

Measure the resistance according to the value(s) in the table below.

C503898C14
0.896,0.823 1.292,1.083 0.396,0.26 4.01,1.01 4.01,1.427 4.01,1.427 4.177,1.427 true 4.01,0.792 4.01,0.292 4.01,0.292 4.177,0.292 true 0.073,0.073 0.385,0.271 0.313,0.198 10 false *a 0.938,0.885 1.313,1.073 0.375,0.188 10 false A169 4.26,0.208 4.969,0.448 0.708,0.24 10 false CANH*b 4.25,1.344 4.875,1.563 0.625,0.219 10 false CANL*b
*a Front view of wire harness connector
(to No. 16 CAN Junction Connector) 		*b to Central Gateway ECU (Network Gateway ECU)


Standard Resistance:
Tester Connection Condition Specified Condition
A169-4 (CANH) - A169-8 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω



Result:
Result
OK
NG



OK

142.CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 16 CAN JUNCTION CONNECTOR - NO. 10 CAN JUNCTION CONNECTOR)

NG

REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 16 CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

142.CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 16 CAN JUNCTION CONNECTOR - NO. 10 CAN JUNCTION CONNECTOR)
a.

Measure the resistance according to the value(s) in the table below.

C503898C15
0.896,0.823 1.292,1.083 0.396,0.26 3.719,1.01 3.719,1.427 3.719,1.427 3.885,1.427 true 3.719,0.792 3.719,0.292 3.719,0.292 3.885,0.292 true 0.073,0.073 0.385,0.271 0.313,0.198 10 false *a 0.938,0.885 1.313,1.073 0.375,0.188 10 false A169 3.948,0.208 4.656,0.448 0.708,0.24 10 false CANH*b 3.969,1.344 4.594,1.563 0.625,0.219 10 false CANL*b
*a Front view of wire harness connector
(to No. 16 CAN Junction Connector) 		*b to No. 10 CAN Junction Connector


Standard Resistance:
Tester Connection Condition Specified Condition
A169-3 (CANH) - A169-7 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω



Result:
Result
OK
NG



OK

REPLACE NO. 16 CAN JUNCTION CONNECTOR

NG

143.CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 10 CAN JUNCTION CONNECTOR - NO. 16 CAN JUNCTION CONNECTOR)
143.CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 10 CAN JUNCTION CONNECTOR - NO. 16 CAN JUNCTION CONNECTOR)
a.

Reconnect the A169 No. 16 CAN junction connector.


b.

Disconnect the I222 No. 10 CAN junction connector.


c.

Measure the resistance according to the value(s) in the table below.

C503898C18
0.896,0.823 1.292,1.083 0.396,0.26 3.427,0.99 3.427,1.406 3.427,1.406 3.26,1.406 true 3.427,0.781 3.427,0.281 3.427,0.281 3.26,0.281 true 0.073,0.073 0.385,0.271 0.313,0.198 10 false *a 0.958,0.885 1.333,1.073 0.375,0.188 10 false I222 2.698,0.198 3.406,0.438 0.708,0.24 10 false CANH*b 2.708,1.323 3.333,1.542 0.625,0.219 10 false CANL*b
*a Front view of wire harness connector
(to No. 10 CAN Junction Connector) 		*b to No. 16 CAN Junction Connector


Standard Resistance:
Tester Connection Condition Specified Condition
I222-2 (CANH) - I222-6 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω



Result:
Result
OK
NG



OK

144.CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 10 CAN JUNCTION CONNECTOR - POWER STEERING ECU WITH MOTOR ASSEMBLY)

NG

REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 10 CAN JUNCTION CONNECTOR - NO. 16 CAN JUNCTION CONNECTOR)

144.CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 10 CAN JUNCTION CONNECTOR - POWER STEERING ECU WITH MOTOR ASSEMBLY)
a.

Measure the resistance according to the value(s) in the table below.

C503898C21
0.896,0.823 1.292,1.083 0.396,0.26 4.01,1.01 4.01,1.427 4.01,1.427 4.177,1.427 true 4.01,0.792 4.01,0.292 4.01,0.292 4.177,0.292 true 0.073,0.073 0.385,0.271 0.313,0.198 10 false *a 0.958,0.885 1.333,1.073 0.375,0.188 10 false I222 4.24,0.208 4.948,0.448 0.708,0.24 10 false CANH*b 4.26,1.344 4.885,1.563 0.625,0.219 10 false CANL*b
*a Front view of wire harness connector
(to No. 10 CAN Junction Connector) 		*b to Power Steering ECU with Motor Assembly


Standard Resistance:
Tester Connection Condition Specified Condition
I222-4 (CANH) - I222-8 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω



Result:
Result
OK
NG



OK

REPLACE NO. 10 CAN JUNCTION CONNECTOR

NG

145.CHECK FOR OPEN IN CAN MAIN BUS LINES (POWER STEERING ECU WITH MOTOR ASSEMBLY)
145.CHECK FOR OPEN IN CAN MAIN BUS LINES (POWER STEERING ECU WITH MOTOR ASSEMBLY)
a.

Reconnect the I222 No. 10 CAN junction connector.


b.

Disconnect the I21 power steering ECU with motor assembly connector.


c.
C460103C04
0.198,1.01 0.552,1.271 0.354,0.26 1.646,1.969 1.813,1.969 1.813,1.969 1.813,1.302 true 2.177,1.969 2.01,1.969 2.01,1.969 2.01,1.302 true 0.125,0.104 0.438,0.302 0.313,0.198 10 false *a 0.302,1.063 0.615,1.26 0.313,0.198 10 false I21 1.229,1.906 1.677,2.094 0.448,0.188 10 false CANH 2.25,1.885 2.698,2.073 0.448,0.188 10 false CANL
*a Front view of wire harness connector
(to Power Steering ECU with Motor Assembly)


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
I21-7 (CANH) - I21-8 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω



Result:
Result
OK
NG



OK

REPLACE POWER STEERING ECU WITH MOTOR ASSEMBLY

Click hereSteering>POWER ASSIST SYSTEMS>POWER STEERING ECU>REMOVAL


NG

REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (POWER STEERING ECU WITH MOTOR ASSEMBLY - NO. 10 CAN JUNCTION CONNECTOR)

146.CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 39 JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
a.

Reconnect the I207 central gateway ECU (network gateway ECU) connector.


b.

Disconnect the A173 No. 39 junction connector.


c.

Measure the resistance according to the value(s) in the table below.

C503898C44
0.896,0.823 1.292,1.083 0.396,0.26 4.01,1.01 4.01,1.427 4.01,1.427 4.177,1.427 true 4.01,0.792 4.01,0.292 4.01,0.292 4.177,0.292 true 0.073,0.073 0.385,0.271 0.313,0.198 10 false *a 0.938,0.885 1.313,1.073 0.375,0.188 10 false A173 4.26,0.208 4.969,0.448 0.708,0.24 10 false CANH*b 4.25,1.344 4.875,1.563 0.625,0.219 10 false CANL*b
*a Front view of wire harness connector
(to No. 39 Junction Connector) 		*b to Central Gateway ECU (Network Gateway ECU)


Standard Resistance:
Tester Connection Condition Specified Condition
A173-4 (CANH) - A173-8 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω



Result:
Result
OK
NG



OK

147.CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 39 JUNCTION CONNECTOR - NO. 10 CAN JUNCTION CONNECTOR)

NG

REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 39 JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

147.CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 39 JUNCTION CONNECTOR - NO. 10 CAN JUNCTION CONNECTOR)
a.

Measure the resistance according to the value(s) in the table below.

C503898C45
0.896,0.823 1.292,1.083 0.396,0.26 3.719,1.01 3.719,1.427 3.719,1.427 3.885,1.427 true 3.719,0.792 3.719,0.292 3.719,0.292 3.885,0.292 true 0.073,0.073 0.385,0.271 0.313,0.198 10 false *a 0.938,0.885 1.313,1.073 0.375,0.188 10 false A173 3.948,0.208 4.656,0.448 0.708,0.24 10 false CANH*b 3.969,1.344 4.594,1.563 0.625,0.219 10 false CANL*b
*a Front view of wire harness connector
(to No. 39 Junction Connector) 		*b to No. 10 CAN Junction Connector


Standard Resistance:
Tester Connection Condition Specified Condition
A173-3 (CANH) - A173-7 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω



Result:
Result
OK
NG



OK

REPLACE NO. 39 JUNCTION CONNECTOR

NG

148.CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 10 CAN JUNCTION CONNECTOR - NO. 39 JUNCTION CONNECTOR)
148.CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 10 CAN JUNCTION CONNECTOR - NO. 39 JUNCTION CONNECTOR)
a.

Reconnect the A173 No. 39 junction connector.


b.

Disconnect the I222 No. 10 CAN junction connector.


c.

Measure the resistance according to the value(s) in the table below.

C503898C21
0.896,0.823 1.292,1.083 0.396,0.26 4.01,1.01 4.01,1.427 4.01,1.427 4.177,1.427 true 4.01,0.792 4.01,0.292 4.01,0.292 4.177,0.292 true 0.073,0.073 0.385,0.271 0.313,0.198 10 false *a 0.958,0.885 1.333,1.073 0.375,0.188 10 false I222 4.24,0.208 4.948,0.448 0.708,0.24 10 false CANH*b 4.26,1.344 4.885,1.563 0.625,0.219 10 false CANL*b
*a Front view of wire harness connector
(to No. 10 CAN Junction Connector) 		*b to No. 39 Junction Connector


Standard Resistance:
Tester Connection Condition Specified Condition
I222-4 (CANH) - I222-8 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω



Result:
Result
OK
NG



OK

149.CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 10 CAN JUNCTION CONNECTOR - POWER STEERING ECU WITH MOTOR ASSEMBLY)

NG

REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 10 CAN JUNCTION CONNECTOR - NO. 39 JUNCTION CONNECTOR)

149.CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 10 CAN JUNCTION CONNECTOR - POWER STEERING ECU WITH MOTOR ASSEMBLY)
a.

Measure the resistance according to the value(s) in the table below.

C503898C18
0.896,0.823 1.292,1.083 0.396,0.26 3.427,0.99 3.427,1.406 3.427,1.406 3.26,1.406 true 3.427,0.781 3.427,0.281 3.427,0.281 3.26,0.281 true 0.073,0.073 0.385,0.271 0.313,0.198 10 false *a 0.958,0.885 1.333,1.073 0.375,0.188 10 false I222 2.698,0.198 3.406,0.438 0.708,0.24 10 false CANH*b 2.708,1.323 3.333,1.542 0.625,0.219 10 false CANL*b
*a Front view of wire harness connector
(to No. 10 CAN Junction Connector) 		*b to Power Steering ECU with Motor Assembly


Standard Resistance:
Tester Connection Condition Specified Condition
I222-2 (CANH) - I222-6 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω



Result:
Result
OK
NG



OK

REPLACE NO. 10 CAN JUNCTION CONNECTOR

NG

150.CHECK FOR OPEN IN CAN MAIN BUS LINES (POWER STEERING ECU WITH MOTOR ASSEMBLY)
150.CHECK FOR OPEN IN CAN MAIN BUS LINES (POWER STEERING ECU WITH MOTOR ASSEMBLY)
a.

Reconnect the I222 No. 10 CAN junction connector.


b.

Disconnect the I21 power steering ECU with motor assembly connector.


c.
C460103C04
0.198,1.01 0.552,1.271 0.354,0.26 1.646,1.969 1.813,1.969 1.813,1.969 1.813,1.302 true 2.177,1.969 2.01,1.969 2.01,1.969 2.01,1.302 true 0.125,0.104 0.438,0.302 0.313,0.198 10 false *a 0.302,1.063 0.615,1.26 0.313,0.198 10 false I21 1.229,1.906 1.677,2.094 0.448,0.188 10 false CANH 2.25,1.885 2.698,2.073 0.448,0.188 10 false CANL
*a Front view of wire harness connector
(to Power Steering ECU with Motor Assembly)


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
I21-7 (CANH) - I21-8 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω



Result:
Result
OK
NG



OK

REPLACE POWER STEERING ECU WITH MOTOR ASSEMBLY

Click hereSteering>POWER ASSIST SYSTEMS>POWER STEERING ECU>REMOVAL


NG

REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (POWER STEERING ECU WITH MOTOR ASSEMBLY - NO. 10 CAN JUNCTION CONNECTOR)
