LIGHTING (INT)  LIGHTING SYSTEM(except NR Series Engine)  Push Start Switch Illumination Circuit


DESCRIPTION

The illuminated entry system controls the push start switch illumination.

WIRING DIAGRAM

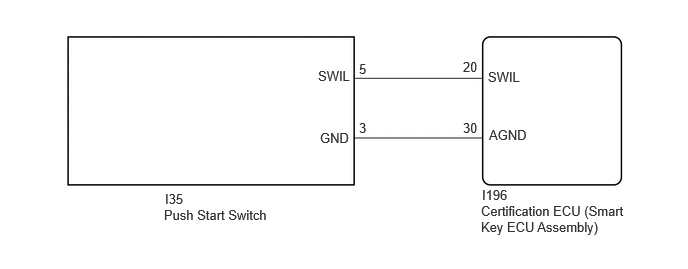

for Gasoline Model
E500336E12
3.313,0.708 3.927,0.906 0.615,0.198 10 false SWIL 3.333,1.354 3.948,1.552 0.615,0.198 10 false GND 4.823,0.615 5.135,0.813 0.313,0.198 10 false 20 4.823,1.25 5.135,1.448 0.313,0.198 10 false 30 3.74,0.635 3.896,0.833 0.156,0.198 10 false 5 3.74,1.25 3.896,1.448 0.156,0.198 10 false 3 5.083,0.719 5.698,0.917 0.615,0.198 10 false SWIL 5.094,1.323 5.708,1.521 0.615,0.198 10 false AGND 1.719,1.99 2.177,2.188 0.458,0.198 10 false I35 1.708,2.156 4.458,2.354 2.75,0.198 10 false Push Start Switch 5.021,1.948 5.479,2.146 0.458,0.198 10 false I196 5.01,2.115 6.521,2.573 1.51,0.458 10 false Certification ECU (Smart Key ECU Assembly)

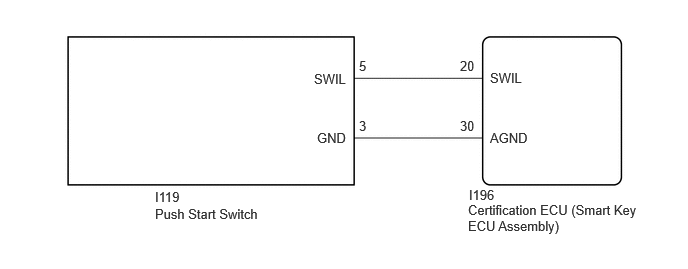

for HV Model
E500336E13
4.875,2.104 6.667,2.469 1.792,0.365 10 false Certification ECU (Smart Key ECU Assembly) 4.885,1.948 5.5,2.146 0.615,0.198 10 false I196 1.615,2.146 4.219,2.344 2.604,0.198 10 false Push Start Switch 1.615,1.969 2.229,2.167 0.615,0.198 10 false I119 3.302,1.354 3.76,1.552 0.458,0.198 10 false GND 3.271,0.74 3.885,0.938 0.615,0.198 10 false SWIL 3.74,0.604 3.896,0.802 0.156,0.198 10 false 5 3.74,1.229 3.896,1.427 0.156,0.198 10 false 3 5.104,0.729 5.719,0.927 0.615,0.198 10 false SWIL 5.104,1.354 5.719,1.552 0.615,0.198 10 false AGND 4.792,0.604 5.104,0.802 0.313,0.198 10 false 20 4.792,1.229 5.104,1.427 0.313,0.198 10 false 30

CAUTION / NOTICE / HINT

NOTICE:

Before replacing the certification ECU (smart key ECU assembly), refer to Service Bulletin.


PROCEDURE

1.PERFORM ACTIVE TEST USING GTS
a.

Perform the Active Test according to the display on the GTS.

Body Electrical > Entry&Start > Active Test
Tester Display Measurement Item Control Range Diagnostic Note
Start SW Light Power Supply Push start switch illumination OFF or ON -
Body Electrical > Entry&Start > Active Test
Tester Display
Start SW Light Power Supply
50004 440 1
OK:

Push start switch illumination comes on.



Result:
Proceed to
OK
NG



OK

NG

2.INSPECT PUSH START SWITCH
2.INSPECT PUSH START SWITCH

OK

3.CHECK HARNESS AND CONNECTOR (PUSH START SWITCH - CERTIFICATION ECU (SMART KEY ECU ASSEMBLY))

NG

3.CHECK HARNESS AND CONNECTOR (PUSH START SWITCH - CERTIFICATION ECU (SMART KEY ECU ASSEMBLY))
a.

Disconnect the I196 certification ECU (smart key ECU assembly) connector.


b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance (for Gasoline Model)
Tester Connection Condition Specified Condition
I35-5 (SWIL) - I196-20 (SWIL) Always Below 1 Ω
I35-3 (GND) - I196-30 (AGND) Always Below 1 Ω
I35-5 (SWIL) or I196-20 (SWIL) - Body ground Always 10 kΩ or higher
I35-3 (GND) or I196-30 (AGND) - Body ground Always 10 kΩ or higher

Standard Resistance (for HV Model)
Tester Connection Condition Specified Condition
I119-5 (SWIL) - I196-20 (SWIL) Always Below 1 Ω
I119-3 (GND) - I196-30 (AGND) Always Below 1 Ω
I119-5 (SWIL) or I196-20 (SWIL) - Body ground Always 10 kΩ or higher
I119-3 (GND) or I196-30 (AGND) - Body ground Always 10 kΩ or higher


Result:
Proceed to
OK
NG



OK

REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
