PA10/PB10 HYBRID TRANSMISSION / TRANSAXLE  SHIFT LEVER  INSTALLATION

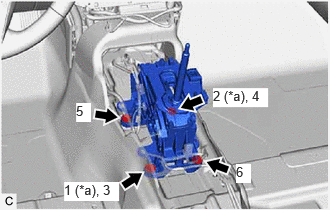

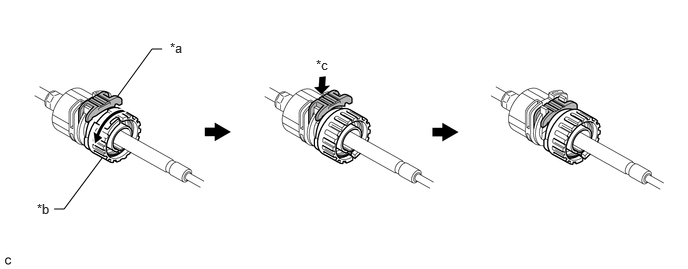

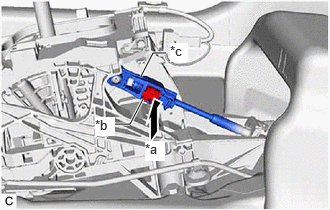

Turn the nut of the transmission control cable assembly 180° counterclockwise. While holding the nut in place, push in the stopper until it clicks twice.

1.219,1.01 1.583,0.51 1.583,0.51 1.688,0.51 false 0.563,2.177 0.667,2.177 0.667,2.177 1.063,1.646 false 1.771,0.417 2.063,0.625 0.292,0.208 10 false *a 0.385,2.094 0.604,2.302 0.219,0.208 10 false *b 3.292,0.594 3.531,0.813 0.24,0.219 10 false *c

*a	Stopper	*b	Nut
*c	Push in	-	-

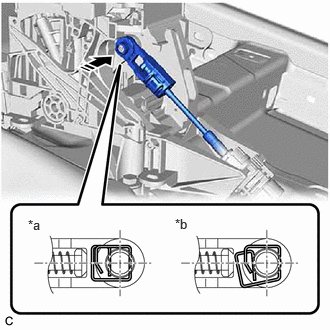

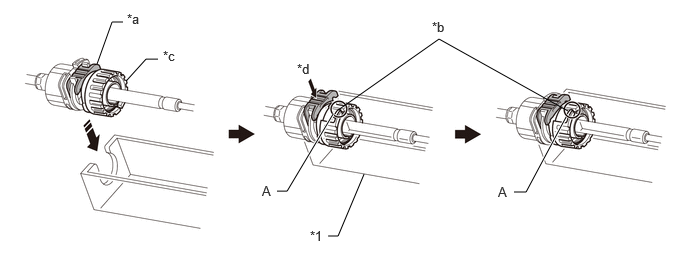

Connect the transmission control cable assembly to the transmission floor shift assembly. Check that the spring is positioned at "A" and push in the stopper.

1.01,0.667 1.167,0.229 1.167,0.229 1.281,0.229 false 3.417,2.458 3.521,2.458 3.521,2.458 3.792,1.813 false 3.521,1.146 4.573,0.406 4.573,0.406 5.917,1.156 false 2.885,1.99 2.99,1.99 2.99,1.99 3.469,1.188 true 5.354,2 5.479,2 5.479,2 5.896,1.219 true 1.313,0.844 1.521,0.615 1.521,0.615 1.646,0.615 false 3.229,2.375 3.458,2.563 0.229,0.188 10 false *1 1.323,0.115 1.583,0.333 0.26,0.219 10 false *a 4.5,0.198 4.729,0.427 0.229,0.229 10 false *b 3.094,0.635 3.354,0.854 0.26,0.219 10 false *d 2.729,1.906 2.906,2.115 0.177,0.208 10 false A 5.188,1.917 5.344,2.156 0.156,0.24 10 false A 1.698,0.5 2.01,0.698 0.313,0.198 10 false *c

*1	Transmission Floor Shift Assembly	-	-
*a	Stopper	*b	Spring
*c	Nut	*d	Push in
	Connect in this Direction	-	-

NOTICE:

·

If the stopper cannot be pushed in, slightly turn the nut clockwise and then push in the stopper again.

·

Make sure that the transmission control cable assembly is securely locked.

·

Do not forcibly pull the transmission control cable assembly into the cabin.

0.292,2.26 0.521,2.479 0.229,0.219 10 false *a 1.823,2.25 2.063,2.469 0.24,0.219 10 false *b

*a	Correct
*b	Incorrect
	Connect in this Direction

Connect the transmission control cable assembly to the transmission floor shift assembly as shown in the illustration.

NOTICE:

Connect the transmission control cable assembly so that its adjustment lock section is on the passenger side.

1.521,1.156 1.385,1.396 1.385,1.396 1.25,1.396 false 1.771,1.365 2.042,1.615 0.271,0.25 10 false *a 1.083,1.313 1.375,1.531 0.292,0.219 10 false *b

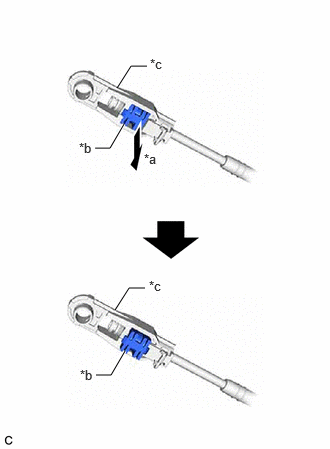

*a	Slide
*b	Adjuster Case Cover

Slide the adjuster case cover in the direction shown by the arrow.

1.531,0.688 1.365,0.688 1.365,0.688 1.219,0.917 false 0.99,1.542 1.146,1.542 1.146,1.542 1.292,1.292 true 1,3.906 1.156,3.906 1.156,3.906 1.302,3.656 true 1.51,3 1.344,3 1.344,3 1.198,3.229 false 1.5,1.573 1.802,1.813 0.302,0.24 10 false *a 0.823,1.458 1.104,1.656 0.281,0.198 10 false *b 0.833,3.823 1.125,4.052 0.292,0.229 10 false *b 1.563,0.583 1.813,0.823 0.25,0.24 10 false *c 1.552,2.896 1.802,3.135 0.25,0.24 10 false *c

*a	Pull out
*b	Lock Piece
*c	Adjuster Case

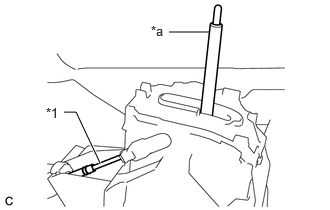

Using a precision screwdriver, pull out the lock piece of the adjuster case.

0.448,1.208 0.625,1.208 0.625,1.208 1.729,1.49 true 2.188,1.26 2.896,2.208 2.896,2.208 2.208,3.479 true 0.49,3.177 0.708,3.177 0.708,3.177 1.385,3.438 true 0.26,1.115 0.573,1.271 0.313,0.156 10 false *a 2.01,0.365 2.323,0.521 0.313,0.156 10 false *b 2.948,2.104 3.26,2.26 0.313,0.156 10 false *c 0.281,3.104 0.594,3.26 0.313,0.156 10 false *a

*a	Lock Nut
*b	Push in
*c	Stopper

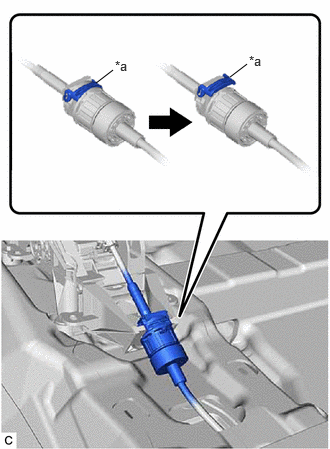

Turn the lock nut of the transmission control cable assembly counterclockwise. While holding the lock nut, push in the stopper.

1,0.865 1.177,0.729 false 2.396,0.802 2.573,0.667 false 1.198,0.604 1.438,0.833 0.24,0.229 10 false *a 2.594,0.552 2.833,0.781 0.24,0.229 10 false *a

*a

Stopper

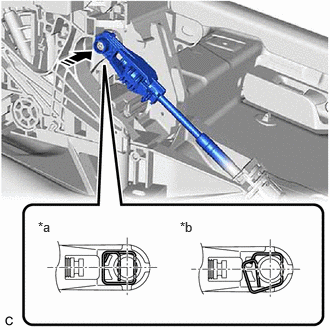

Connect the transmission control cable assembly to the transmission floor shift assembly.

NOTICE:

·

After installation, check that the outer part of the stopper is as shown in the illustration.

·

Do not forcibly pull the transmission control cable assembly into the cabin.

0.396,2.281 0.625,2.5 0.229,0.219 10 false *a 1.875,2.281 2.115,2.5 0.24,0.219 10 false *b

*a	Correct
*b	Incorrect
	Connect in this Direction

Connect the transmission control cable assembly to the transmission floor shift assembly as shown in the illustration.

NOTICE:

Connect the transmission control cable assembly so that its adjustment lock section is on the passenger side.

1.198,1.292 1.354,1.292 1.354,1.292 1.49,1.031 true 1.469,0.792 1.594,0.552 1.594,0.552 1.729,0.552 true 1.51,1.469 1.719,1.677 0.208,0.208 10 true *a 0.99,1.219 1.198,1.417 0.208,0.198 10 true *b 1.771,0.448 1.958,0.646 0.188,0.198 10 true *c

*a	Push in
*b	Lock Piece
*c	Adjuster Case

Push in the lock piece of the adjuster case to lock it.

NOTICE:

·

0.667,1.167 0.792,1.167 0.792,1.167 1.042,1.698 true 1.76,0.333 2.177,0.333 false 0.479,1.094 0.719,1.365 0.24,0.271 10 false *1 1.573,0.24 1.896,0.479 0.323,0.24 10 false *a

*1	Transmission Control Cable Assembly
*a	Lever Shaft

When pushing in the lock piece of the adjuster case to lock it, remove your hand from the lever shaft.

·

When pushing in the lock piece of the adjuster case to lock it, do not move the lever shaft or transmission control cable assembly forward or backward.

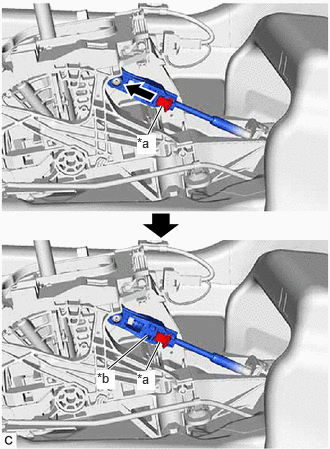

1.542,1.396 1.688,1.104 true 1.521,3.854 1.667,3.563 true 1.125,3.844 1.531,3.5 true 1.427,1.406 1.625,1.604 0.198,0.198 10 true *a 1.427,3.865 1.615,4.063 0.188,0.198 10 true *a 1.01,3.854 1.198,4.052 0.188,0.198 10 true *b

*a	Adjuster Case Cover
*b	Lock Piece

Move the adjuster case cover in the direction shown by the arrow.

NOTICE:

If the adjuster case cover is not moved far enough so that the adjuster case cover engages the lock piece, the transmission control cable assembly will not be able to lock, and reliable shift operation will not be possible.
