HYBRID / BATTERY CONTROL  PA10 HYBRID CONTROL SYSTEM(for LITHIUM-ION BATTERY)  Drive Start Control


DESCRIPTION

The drive start control is controlled by the hybrid vehicle control ECU.

If the hybrid vehicle control ECU determines that the shift lever and accelerator pedal are operated abnormally, hybrid system output is restricted and, when necessary, a warning is displayed on the combination meter assembly.

C312753E94
0.375,0.25 2.688,0.469 2.313,0.219 10 false Accelerator Position Sensor 0.406,2.198 2.573,2.833 2.167,0.635 10 false Shift Position Switch 0.396,3.406 1.979,3.813 1.583,0.406 10 false Vehicle Speed Sensor or Wheel Speed Sensor 2.906,3.771 4.021,4.125 1.115,0.354 10 false Vehicle Speed 2.719,2.594 4.083,2.865 1.365,0.271 10 false Shift Lever Position 2.708,0.49 3.99,0.906 1.281,0.417 10 false Accelerator Opening Angle 5.427,1.073 7.052,1.667 1.625,0.594 10 false Meter Display Request 5.5,3.115 6.896,3.469 1.396,0.354 10 false Hybrid System Output Request 3.771,4.177 6.292,4.583 2.521,0.406 10 false Hybrid Vehicle Control ECU 0.406,1.073 2,1.302 1.594,0.229 10 false Acceleration Sensor 2.677,1.458 3.99,1.667 1.313,0.208 10 false Vehicle Acceleration

CAUTION / NOTICE / HINT

HINT:

Even if the accelerator pedal position is maintained, the hybrid system output may increase when driving uphill and decrease when driving downhill. This is due to drive start control controlling the hybrid system output, and is not a malfunction.


PROCEDURE

1.PAST ACTIVATION CONFIRMATION
a.

Check if the customer operated the vehicle in a way that would cause the drive start control to operate.

HINT:
Drive Start Control Activation Conditions
Shift control

Activation conditions


·

Pattern A (When all of the following conditions are met, control starts.)

-

The accelerator pedal is open by approximately 1/5 or more.

-

The shift lever is moved from P to (D or B) or R.



·

Pattern B (When all of the following conditions are met, control starts.)

-

The accelerator pedal is open by approximately 1/5 or more.

-

The shift lever is moved from R to (D or B), from (D or B) or N to R.

HINT:

Operation may not be possible in certain situations.

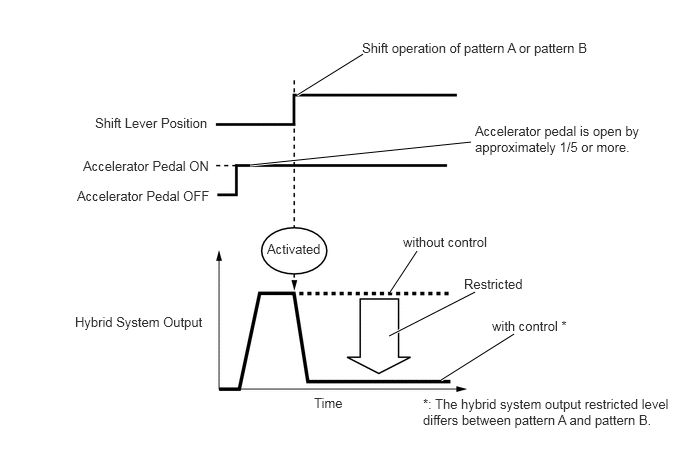

A396026E65
4.594,3.958 5.354,3.479 true 4.052,3.5 4.948,3.042 true 4.063,3.042 4.344,2.615 true 2.604,1.719 4.906,1.479 true 3.094,0.99 3.781,0.563 true 3.271,4.115 3.885,4.313 0.615,0.198 10 false Time 5.125,3.313 6.5,3.563 1.375,0.25 10 false with control * 4.198,2.438 5.188,2.708 0.99,0.271 10 false without control 4.833,2.875 5.604,3.167 0.771,0.292 10 false Restricted 2.781,2.51 3.365,2.771 0.583,0.26 10 false Activated 0.781,3.271 2.25,3.625 1.469,0.354 10 false Hybrid System Output 0.99,1.198 2.26,1.542 1.271,0.344 10 false Shift Lever Position 0.802,1.958 2.25,2.25 1.448,0.292 10 false Accelerator Pedal OFF 4.948,1.281 6.833,1.938 1.885,0.656 10 false Accelerator pedal is open by approximately 1/5 or more. 3.771,0.417 6.302,0.76 2.531,0.344 10 false Shift operation of pattern A or pattern B 0.865,1.646 2.25,1.979 1.385,0.333 10 false Accelerator Pedal ON 4.406,4.125 7.021,4.49 2.615,0.365 10 false *: The hybrid system output restricted level differs between pattern A and pattern B.



·

Items Controlled

-

Hybrid system output is restricted.



·

Deactivation Conditions

-

The accelerator pedal is released.

-

The shift lever is in P or N.



Reverse control

Activation conditions


·

The shift lever is in R.

·

The accelerator pedal is depressed excessively.

A396028E84
3.323,1.344 5.198,0.979 true 4.177,3.25 5.667,2.75 true 4.521,2.885 4.938,2.469 true 4.719,3.542 5.635,3.25 true 0.979,3.167 2.375,3.615 1.396,0.448 10 false Hybrid System Output 3.625,4.042 4.24,4.24 0.615,0.198 10 false Time 5.563,3.073 6.375,3.292 0.813,0.219 10 false with control 5.563,2.573 6.438,2.844 0.875,0.271 10 false Restricted 4.677,2.281 5.615,2.646 0.938,0.365 10 false without control 2.896,2.406 3.677,2.677 0.781,0.271 10 false Activated 1.104,0.781 2.438,1.083 1.333,0.302 10 false Shift Lever Position 1.083,1.271 2.5,1.583 1.417,0.313 10 false Accelerator Pedal ON 1.031,1.656 2.521,2.01 1.49,0.354 10 false Accelerator Pedal OFF 5.25,0.771 7.135,1.365 1.885,0.594 10 false When the accelerator pedal is depressed excessively. 2.76,0.781 2.917,0.979 0.156,0.198 10 false R


·

Items Controlled

-

Hybrid system output is restricted.



·

Deactivation Conditions

-

The accelerator pedal is released.

-

The shift lever is moved to any position other than R.




HINT:
·

The hybrid system output restricted level differs between Pattern A, Pattern B and Reverse control.

·

During Shift control or Reverse control, hybrid system output is adjusted based on the road gradient.




Result:
Result Proceed to
Performed A
Not performed B



A

2.CHECK DTC OUTPUT (HEALTH CHECK)

B

SYSTEM NORMAL (GO TO PROBLEM SYMPTOM TABLE)

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>PA10 HYBRID CONTROL SYSTEM (for LITHIUM-ION BATTERY)>PROBLEM SYMPTOMS TABLE


2.CHECK DTC OUTPUT (HEALTH CHECK)
a.

Check the DTCs.


b.

Turn the ignition switch off.


Result:
Result Proceed to
DTCs are not output (Hunting) A
DTCs are not output (Hesitation/poor acceleration) B
DTCs are output C



A

3.READ VALUE USING GTS (FR, FL, RR, RL WHEEL SPEED)

B

6.INSPECT SHIFT LEVER POSITION SENSOR

C

GO TO DTC CHART

3.READ VALUE USING GTS (FR, FL, RR, RL WHEEL SPEED)
a.

Read the values displayed on the GTS.

Chassis > Brake/EPB > Data List
Tester Display
FR Wheel Speed
FL Wheel Speed
RR Wheel Speed
RL Wheel Speed
50003 435 13,14,15,16
Standard:
Tester Display Condition Specified Condition
FR Wheel Speed
FL Wheel Speed
RR Wheel Speed
RL Wheel Speed 		Vehicle stopped 0 km/h (0 mph)
Vehicle being driven at constant speed between 16 to 64 km/h (10 to 40 mph) No large fluctuations when driving at a constant speed


CAUTION:

When performing the confirmation driving pattern, obey all speed limits and traffic laws.


HINT:

Data can be captured relatively easily by using the snapshot function in the Data List. Confirm the data after performing the drive test.



b.

Turn the ignition switch off.


Result:
Proceed to
OK
NG



OK

4.READ VALUE USING GTS (VEHICLE SPEED)

NG

INSPECT FRONT OR REAR SPEED SENSOR

Click hereBrake>BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS>ELECTRONICALLY CONTROLLED BRAKE SYSTEM (for HV Model)>HOW TO PROCEED WITH TROUBLESHOOTING


4.READ VALUE USING GTS (VEHICLE SPEED)
a.

Read the value of "Vehicle Speed" displayed on the GTS.

Powertrain > Hybrid Control > Data List
Tester Display
Vehicle Speed
50003 397 12
Standard:
Inspection Condition Specified Condition
Vehicle stopped 0 km/h (0 mph)
Vehicle being driven at a constant speed
(16 to 64 km/h (10 to 40 mph)) 		No large fluctuations in displayed speed


CAUTION:

Perform this road test only in an appropriate safe location, in accordance with all local laws.


HINT:

Data can be captured relatively easily by using the snapshot function in the Data List. Confirm the data after performing the drive test.



b.

Turn the ignition switch off.


Result:
Proceed to
OK
NG



OK

5.READ VALUE USING GTS (FORWARD AND REARWARD G)

NG

INSPECT ELECTRONICALLY CONTROLLED BRAKE SYSTEM (HOW TO PROCEED WITH TROUBLESHOOTING)

Click hereBrake>BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS>ELECTRONICALLY CONTROLLED BRAKE SYSTEM (for HV Model)>HOW TO PROCEED WITH TROUBLESHOOTING


5.READ VALUE USING GTS (FORWARD AND REARWARD G)
a.

Read the value displayed on the GTS.

Chassis > Brake/EPB > Data List
Tester Display
Forward and Rearward G
50003 435 26
Standard:
Condition Specified Condition
During deceleration Value changes with vehicle speed
During acceleration Value changes with vehicle speed


CAUTION:

When performing the confirmation driving pattern, obey all speed limits and traffic laws.


HINT:

Data can be captured relatively easily by using the snapshot function in the Data List. Confirm the data after performing the drive test.



b.

Turn the ignition switch off.


Result:
Proceed to
OK
NG



OK

SYSTEM NORMAL (GO TO PROBLEM SYMPTOM TABLE)

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>PA10 HYBRID CONTROL SYSTEM (for LITHIUM-ION BATTERY)>PROBLEM SYMPTOMS TABLE


NG

INSPECT ELECTRONICALLY CONTROLLED BRAKE SYSTEM (HOW TO PROCEED WITH TROUBLESHOOTING)

Click hereBrake>BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS>ELECTRONICALLY CONTROLLED BRAKE SYSTEM (for HV Model)>HOW TO PROCEED WITH TROUBLESHOOTING


6.INSPECT SHIFT LEVER POSITION SENSOR
a.

Inspect the shift lever position sensor.

Click hereDrivetrain>PA10/PB10 (HYBRID TRANSMISSION / TRANSAXLE)>SHIFT LEVER POSITION SENSOR>INSPECTION


Result:
Result Proceed to
Normal A
Abnormal B



A

7.READ VALUE USING GTS (ACCELERATOR POSITION SENSOR NO. 1 VOLTAGE %, ACCELERATOR POSITION SENSOR NO. 2 VOLTAGE %)

B

REPLACE SHIFT LEVER POSITION SENSOR

Click hereDrivetrain>PA10/PB10 (HYBRID TRANSMISSION / TRANSAXLE)>SHIFT LEVER POSITION SENSOR>REMOVAL


7.READ VALUE USING GTS (ACCELERATOR POSITION SENSOR NO. 1 VOLTAGE %, ACCELERATOR POSITION SENSOR NO. 2 VOLTAGE %)
a.

Read the value displayed on the GTS.

Powertrain > Hybrid Control > Data List
Tester Display
Accelerator Position Sensor No.1 Voltage %
Accelerator Position Sensor No.2 Voltage %
50003 397 23,24
OK:
Condition Specified Condition
Accelerator Pedal Released → Depressed Values smoothly change following accelerator pedal operation



b.

Turn the ignition switch off.


Result:
Proceed to
OK
NG



OK

SYSTEM NORMAL (GO TO PROBLEM SYMPTOM TABLE)

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>PA10 HYBRID CONTROL SYSTEM (for LITHIUM-ION BATTERY)>PROBLEM SYMPTOMS TABLE


NG

REPLACE ACCELERATOR PEDAL(W/SENSOR) ROD ASSEMBLY

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>ACCELERATOR PEDAL SENSOR>REMOVAL
