HYBRID / BATTERY CONTROL ACCELERATOR PEDAL SENSOR REMOVAL

PROCEDURE

Hide Display 55606 1.REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>FRONT CONSOLE BOX>REMOVAL201906,202007,_58,_080744,_0393717,RM100000001HZH1_01_0060,202007,202101,_58,_080744,_0393717,RM100000001NS0W_01_0060,202101,202104,_58,_080744,_0393717,RM100000001T6FR_01_0060,202104,202304,_58,_080744,_0393717,RM100000001VMKU_01_0060,202304,999999,_58,_080744,_0393717,RM100000002AVGF_01_0060,

Hide Display 58816D 2.REMOVE FRONT NO. 1 CONSOLE BOX INSERT

Click hereVehicle Interior>INTERIOR PANELS / TRIM>FRONT CONSOLE BOX>REMOVAL201906,202007,_58,_080744,_0393717,RM100000001HZH1_01_0051,202007,202101,_58,_080744,_0393717,RM100000001NS0W_01_0051,202101,202104,_58,_080744,_0393717,RM100000001T6FR_01_0051,202104,202304,_58,_080744,_0393717,RM100000001VMKU_01_0051,202304,999999,_58,_080744,_0393717,RM100000002AVGF_01_0051,

Hide Display 78110K 3.REMOVE ACCELERATOR PEDAL(W/SENSOR) ROD ASSEMBLY

NOTICE:: ·

Avoid physical shock to the accelerator pedal sensor assembly.

·

Do not disassemble the accelerator pedal sensor assembly.

·

The accelerator pedal sensor assembly does not require lubrication.

·

Do not apply oil or other lubricants to the accelerator pedal sensor assembly. If applied, the accelerator pedal sensor assembly must be replaced.

a.

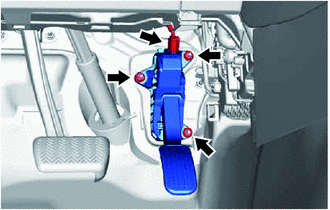

A443882

Disconnect the accelerator pedal sensor assembly connector.

b.

Remove the 3 nuts and accelerator pedal sensor assembly.

NOTICE:: If the accelerator pedal sensor assembly has been struck or dropped, replace it.
