8ZR-FXE INTAKE / EXHAUST EXHAUST PIPE REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during front exhaust pipe assembly and tail exhaust pipe assembly removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
· Heated oxygen sensor · Gas leak from exhaust system is repaired	Inspection after repair	· Poor idle, etc. · Engine start function, etc.	(202304,999999,_51,_080778,_0393982,RM100000002BDLI,)
Replacement of front exhaust pipe assembly	GPF deposition value clear	· MIL comes on · Deterioration of fuel efficiency	(202304,999999,_51,_080778,_0393982,RM100000002BDLI,)

CAUTION:: To prevent burns, do not touch the engine, exhaust pipe or other high temperature components while the engine is hot.

PROCEDURE

Hide Display 17430 1.REMOVE TAIL EXHAUST PIPE ASSEMBLY

CAUTION:: To prevent burns, do not touch the engine, exhaust pipe or other high temperature components while the engine is hot.

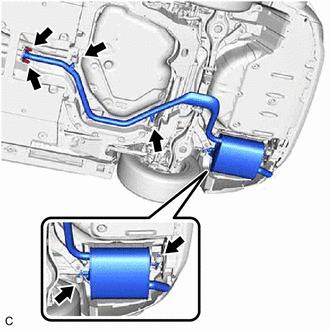

Remove the 2 bolts and 2 compression springs and disconnect the tail exhaust pipe assembly from the front exhaust pipe assembly.

Remove the tail exhaust pipe assembly from the 4 exhaust pipe supports.

Remove the gasket from the front exhaust pipe assembly.

Hide Display 58166A 2.REMOVE FRONT FLOOR COVER LH

Click hereEngine / Hybrid System>8ZR-FXE (INTAKE / EXHAUST)>EXHAUST MANIFOLD>REMOVAL202304,999999,_51,_080790,_0392073,RM100000002B0QV_01_0153,

Hide Display 58165C 3.REMOVE FRONT FLOOR COVER RH

HINT:: Perform the same procedure as for the front floor cover LH.

Hide Display 89465 4.REMOVE HEATED OXYGEN SENSOR

Click hereEngine / Hybrid System>8ZR-FXE (ENGINE CONTROL)>HEATED OXYGEN SENSOR>REMOVAL202304,999999,_51,_080778,_0392142,RM10000000295V7,

Hide Display 89425 5.REMOVE EXHAUST GAS TEMPERATURE SENSOR

Click hereEngine / Hybrid System>8ZR-FXE (EMISSION CONTROL)>EXHAUST GAS TEMPERATURE SENSOR>REMOVAL202304,999999,_51,_080789,_0597492,RM100000002B0P4,

Hide Display 57533B 6.REMOVE FRONT FLOOR CENTER BRACE

Click hereEngine / Hybrid System>8ZR-FXE (INTAKE / EXHAUST)>EXHAUST MANIFOLD>REMOVAL202304,999999,_51,_080790,_0392073,RM100000002B0QV_01_0155,

Hide Display 17410 7.REMOVE FRONT EXHAUST PIPE ASSEMBLY

CAUTION:: To prevent burns, do not touch the engine, exhaust pipe or other high temperature components while the engine is hot.

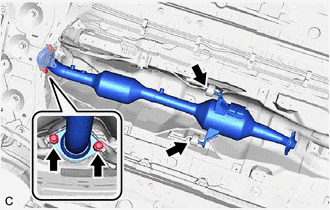

Remove the 2 bolts and 2 compression springs and disconnect the front exhaust pipe assembly from the exhaust manifold.

Remove the front exhaust pipe assembly from the 2 exhaust pipe supports.

Remove the gasket from the exhaust manifold.
