RM3660EC _51 Engine / Hybrid System _080789 8ZR-FXE EMISSION CONTROL _0392064 FUEL TANK PRESSURE SENSOR A

8ZR-FXE EMISSION CONTROL FUEL TANK PRESSURE SENSOR REMOVAL

PROCEDURE

Hide Display 1.REMOVE REAR SEAT CUSHION ASSEMBLY

for Fixed Seat Type:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Fixed Seat Type)>REMOVAL201906,999999,_58,_080732,_0394195,RM100000001I3KD,

for Fold Down Seat Type:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Fold Down Seat Type)>REMOVAL201906,999999,_58,_080732,_0394196,RM100000001I3KH,

Hide Display 82818E 2.REMOVE NO. 6 WIRING HARNESS PROTECTOR

Click hereEngine / Hybrid System>8ZR-FXE (FUEL)>FUEL PUMP>REMOVAL202304,999999,_51,_080749,_0393857,RM100000002BCB8_01_0067,

Hide Display 58325E 3.REMOVE REAR FLOOR SERVICE HOLE COVER

Click hereEngine / Hybrid System>8ZR-FXE (FUEL)>FUEL PUMP>REMOVAL202304,999999,_51,_080749,_0393857,RM100000002BCB8_01_0003,

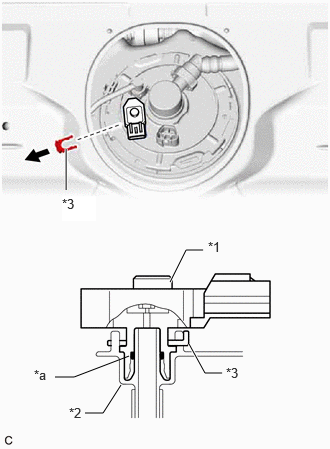

Hide Display 89461 4.REMOVE FUEL TANK PRESSURE SENSOR (VAPOR PRESSURE SENSOR)

0.688,1.979 0.688,1.552 true 1.771,2.938 1.938,2.604 1.938,2.604 2.115,2.604 true 1.969,3.583 2.135,3.885 2.135,3.885 2.313,3.885 true 0.885,4.302 1.073,4.302 1.073,4.302 1.26,4.01 true 0.573,3.927 0.771,3.927 0.771,3.927 1.344,3.708 false 2.167,2.49 2.521,2.76 0.354,0.271 10 false *1 0.719,4.219 1.177,4.594 0.458,0.375 10 false *2 2.354,3.802 2.708,4.063 0.354,0.26 10 false *3 0.354,3.823 0.667,4.094 0.313,0.271 10 false *a 0.646,2.042 1,2.302 0.354,0.26 10 true *3

*1	Fuel Tank Pressure Sensor (Vapor Pressure Sensor)
*2	Fuel Suction Plate Sub-assembly
*3	Tube Joint Clip
*a	O-ring

Remove the tube joint clip and pull off the fuel tank pressure sensor (vapor pressure sensor) from the fuel tank assembly.

NOTICE:: ·

Remove any dirt or foreign matter on the fuel tank pressure sensor (vapor pressure sensor) before performing this work.

·

Do not allow any scratches or foreign matter to get on the parts when disconnecting them as the fuel tank pressure sensor (vapor pressure sensor) has an O-ring that seals the fuel suction plate sub-assembly.

·

Perform this work by hand. Do not use any tools.

·

If the fuel suction plate sub-assembly and fuel tank pressure sensor (vapor pressure sensor) are stuck, carefully wiggle or push and pull the fuel tank pressure sensor (vapor pressure sensor) to release it. Pull the fuel tank pressure sensor (vapor pressure sensor) off the fuel suction plate sub-assembly carefully.
