RM3660EC _58 Vehicle Interior _080732 SEAT _0394195 REAR SEAT ASSEMBLY(for Fixed Seat Type) A

SEAT  REAR SEAT ASSEMBLY(for Fixed Seat Type)  REMOVAL


PROCEDURE

Hide 73350C 1.DISCONNECT REAR CENTER SEAT OUTER BELT ASSEMBLY

a.

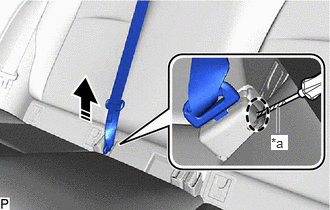

B545869C01
2.896,1.385 2.896,1.115 true 2.823,1.406 3,1.563 0.177,0.156 10 true *a
*a Protective Tape
V113146

Insert Screwdriver Here
V113147

Remove in this Direction


Using a screwdriver with its tip wrapped with protective tape, disconnect the rear center seat outer belt assembly as shown in the illustration.


Hide 2.REMOVE REAR SEAT CUSHION ASSEMBLY (for Gasoline Model)

a.

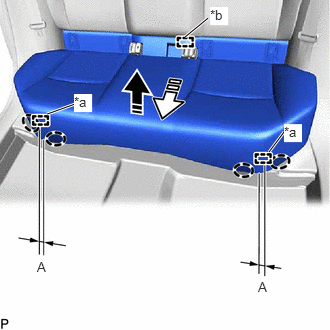

B545872C01
1.927,0.385 2.167,0.188 true 0.49,1.188 0.781,1.083 true 2.802,1.583 2.958,1.375 true 0.771,0.979 0.958,1.167 0.188,0.188 10 true *a 2.188,0.073 2.375,0.26 0.188,0.188 10 true *b 2.958,1.292 3.146,1.479 0.188,0.188 10 true *a 0.385,2.698 0.635,2.958 0.25,0.26 10 false A 2.688,2.906 2.938,3.167 0.25,0.26 10 false A
*a Rear Seat Cushion Frame Hook (Front Side)
*b Rear Seat Cushion Frame Hook (Rear Side)
V113146

Place Hand Here
V113147

Remove in this Direction (1)
V113148

Remove in this Direction (2)


Lift the front edge of the rear seat cushion assembly as shown in the illustration and disengage the 2 rear seat cushion frame hooks on the front side of the rear seat cushion assembly from the rear seat cushion lock hooks.

NOTICE:

Be sure to hold the parts of the seat cushion assembly directly next to the rear seat cushion frame hooks when lifting it. Lifting a different part of the cushion may deform the rear seat cushion frame.


Standard Measurement:
Area Measurement
A 40 mm (1.57 in.)



b.

Disengage the rear seat cushion frame hook on the rear side of the rear seat cushion assembly as shown in the illustration and remove the rear seat cushion assembly.

NOTICE:

Be careful not to damage the vehicle body.



Hide 3.REMOVE REAR SEAT CUSHION ASSEMBLY (for HV Model)

a.

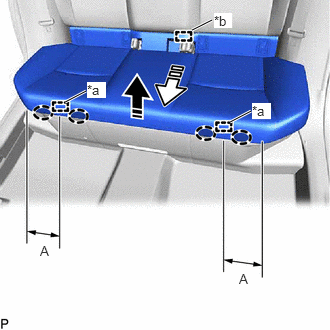

B545874C01
2,0.313 2.208,0.208 true 0.677,1.063 0.896,0.948 true 2.396,1.271 2.615,1.156 true 0.906,0.854 1.104,1.021 0.198,0.167 10 true *a 2.229,0.135 2.417,0.292 0.188,0.156 10 true *b 2.625,1.073 2.823,1.24 0.198,0.167 10 true *a 0.417,2.531 0.698,2.781 0.281,0.25 10 false A 2.49,2.823 2.771,3.073 0.281,0.25 10 false A
*a Rear Seat Cushion Frame Hook (Front Side)
*b Rear Seat Cushion Frame Hook (Rear Side)
V113146

Place Hand Here
V113147

Remove in this Direction (1)
V113148

Remove in this Direction (2)


Lift the front edge of the rear seat cushion assembly as shown in the illustration and disengage the 2 rear seat cushion frame hooks on the front side of the rear seat cushion assembly from the rear seat cushion lock hooks.

NOTICE:

Be sure to hold the parts of the seat cushion assembly directly next to the rear seat cushion frame hooks when lifting it. Lifting a different part of the cushion may deform the rear seat cushion frame.


Standard Measurement:
Area Measurement
A 134 mm (5.28 in.)



b.

Disengage the rear seat cushion frame hook on the rear side of the rear seat cushion assembly as shown in the illustration and remove the rear seat cushion assembly.

NOTICE:

Be careful not to damage the vehicle body.



Hide 72693 4.REMOVE REAR SEAT CUSHION LOCK HOOK

a.

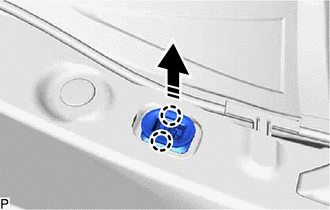

B493729C01
0,0 0,0 false
V113147

Remove in this Direction


Disengage the 2 claws to remove the rear seat cushion lock hook as shown in the illustration.

HINT:

Use the same procedure for the RH side and LH side.



Hide 71940A 5.REMOVE REAR SEAT HEADREST ASSEMBLY

a.

Remove the rear seat headrest assembly.

HINT:

Use the same procedure for the RH side and LH side.



Hide 6.REMOVE REAR SEATBACK ASSEMBLY

a.

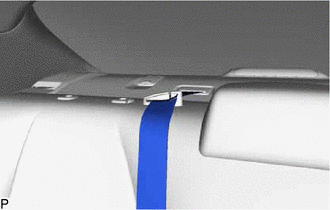

B552618

Pass the rear center seat outer belt assembly through the rear seat shoulder belt guide.


b.

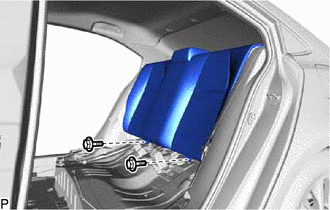

B552619

Remove the 2 bolts.


c.

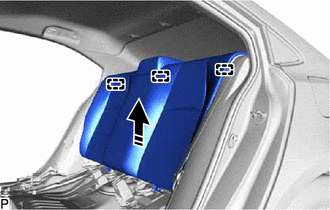

B552620C01
0,0 0,0 false
V113147

Remove in this Direction


Disengage the 3 hooks to remove the rear seatback assembly as shown in the illustration.
