RM3660EC _51 Engine / Hybrid System _080789 8ZR-FXE EMISSION CONTROL _0392057 EGR VALVE A

8ZR-FXE EMISSION CONTROL EGR VALVE INSTALLATION

PROCEDURE

Hide Display 25620 1.INSTALL EGR VALVE ASSEMBLY

HINT:: Perform "Inspection After Repair" after replacing the EGR valve assembly.; Click hereEngine / Hybrid System>8ZR-FXE (ENGINE CONTROL)>SFI SYSTEM>INITIALIZATION202304,999999,_51,_080778,_0393982,RM100000002BDLI,

1.01,1.354 0.281,1.146 0.281,1.146 1.125,1.104 true 2.823,1.406 2.906,0.938 2.906,0.938 2.76,1.135 true 0.083,1.031 0.406,1.313 0.323,0.281 10 false *a 2.833,0.75 3.021,0.938 0.188,0.188 10 true *a

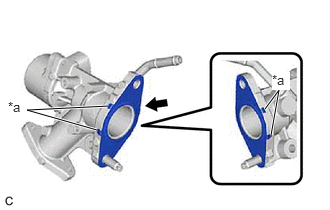

Claw

Install a new EGR valve gasket to the EGR valve assembly.

NOTICE:: Make sure that the claws of the EGR valve gasket are toward the EGR valve assembly side.

Set the EGR valve assembly to the EGR pipe with cooler sub-assembly.

Using an E8 "TORX" socket wrench, install the stud bolt to the camshaft housing sub-assembly.

Torque:: 9.5 N*m (97 kgf*cm, 84 in.*lbf)

HINT:: If a stud bolt is deformed or the threads are damaged, replace it.

Install the EGR valve assembly to the EGR pipe with cooler sub-assembly with the 3 nuts.

Torque:: 21 N*m (214 kgf*cm, 15 ft.*lbf)

2.115,1.885 2.313,2.094 0.198,0.208 10 false *a 1.052,1.938 1.24,2.177 0.188,0.24 10 false *b 1.656,2.5 1.896,2.792 0.24,0.292 10 false *c 1.49,2.802 1.74,3.052 0.25,0.25 10 false *d

*a	0 to 4 mm (0 to 0.157 in.)
*b	Up
*c	LH
*d	180°

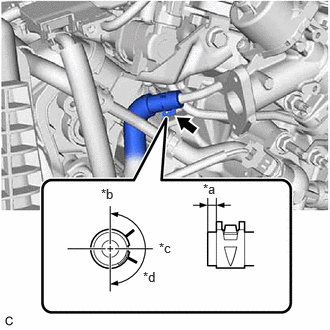

Connect the water by-pass hose to the EGR valve assembly and slide the clip to secure it.

HINT:: Engage the clip within the area shown in the illustration.

2.125,1.896 2.427,2.156 0.302,0.26 10 false *a 1.073,1.938 1.375,2.156 0.302,0.219 10 false *b 1.656,2.49 1.99,2.76 0.333,0.271 10 false *c 1.521,2.729 1.802,2.969 0.281,0.24 10 false *d

*a	0 to 4 mm (0 to 0.157 in.)
*b	Up
*c	LH
*d	180°

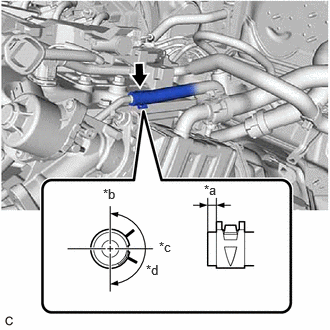

Connect the No. 6 water by-pass hose to the EGR valve assembly and slide the clip to secure it.

HINT:: Engage the clip within the area shown in the illustration.

Connect the EGR valve assembly connector.

Hide Display 25610 2.INSTALL EGR PIPE ASSEMBLY

Click hereEngine / Hybrid System>8ZR-FXE (INTAKE / EXHAUST)>INTAKE MANIFOLD>INSTALLATION202304,999999,_51,_080790,_0392072,RM100000002B0QP_01_0155,

Hide Display 3.INSTALL INVERTER WITH CONVERTER

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>INVERTER WITH CONVERTER>INSTALLATION202304,999999,_51,_080773,_0392172,RM100000002B8GR,

Hide Display 4.ADD ENGINE COOLANT (for Engine)

Click hereGeneral>MAINTENANCE>8ZR-FXE COOLANT (for Engine Coolant)>REPLACEMENT202304,999999,_V1,_080956,_0392619,RM100000002BDID_01_0019,

Hide Display 5.INSPECT FOR COOLANT LEAK (for Engine)

Click hereEngine / Hybrid System>8ZR-FXE (COOLING)>COOLING SYSTEM>ON-VEHICLE INSPECTION202304,999999,_51,_080775,_0392611,RM100000002BDIE_01_0008,

Hide Display 6.INSTALL EXHAUST GAS LEAK

Click hereEngine / Hybrid System>8ZR-FXE (INTAKE / EXHAUST)>EXHAUST PIPE>INSTALLATION202304,999999,_51,_080790,_0392074,RM100000002B0R0_01_0041,

Hide Display 7.PERFORM INITIALIZATION

Perform "Inspection After Repair" after replacing the EGR valve assembly.

Click hereEngine / Hybrid System>8ZR-FXE (ENGINE CONTROL)>SFI SYSTEM>INITIALIZATION202304,999999,_51,_080778,_0393982,RM100000002BDLI,
