RM3660EC _51 Engine / Hybrid System _080778 8ZR-FXE ENGINE CONTROL _0392141 AIR FUEL RATIO SENSOR A

8ZR-FXE ENGINE CONTROL AIR FUEL RATIO SENSOR INSTALLATION

PROCEDURE

Hide Display 89467B 1.INSTALL AIR FUEL RATIO SENSOR

HINT:: Perform "Inspection After Repair" after replacing the air fuel ratio sensor.; Click hereEngine / Hybrid System>8ZR-FXE (ENGINE CONTROL)>SFI SYSTEM>INITIALIZATION202304,999999,_51,_080778,_0393982,RM100000002BDLI,

1.313,1.729 1.313,1.427 true 1.688,0.052 1.938,0.24 0.25,0.188 10 true *a 1.198,1.729 1.531,1.917 0.333,0.188 10 true SST

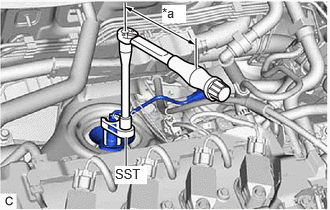

*a	Torque Wrench Fulcrum Length

Using SST, install the air fuel ratio sensor to the exhaust manifold (TWC: Front Catalyst).

NOTICE:: If the air fuel ratio sensor has been struck or dropped, replace it.

HINT:: ·

Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.

Click hereGeneral>INTRODUCTION>REPAIR INSTRUCTION>PRECAUTION201906,999999,_V1,_080724,_0393249,RM100000001HWSK,

·

When using SST (fulcrum length of 30 mm (1.18 in.)) + torque wrench (fulcrum length of 180 mm (7.09 in.)):

37.7 N*m (384 kgf*cm, 28 ft.*lbf)

Engage the 2 wire harness clamps.

Connect the air fuel ratio sensor connector.

Hide Display 55701J 2.INSTALL OUTER COWL TOP PANEL SUB-ASSEMBLY

Hide Display 55737B 3.INSTALL NO. 1 HEATER AIR DUCT SPLASH SHIELD SEAL (w/ No. 1 Heater Air Duct Splash Shield Seal)

Hide Display 4.INSTALL WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY

Hide Display 5.INSPECT FOR EXHAUST GAS LEAK

Hide Display 6.PERFORM INITIALIZATION

Perform "Inspection After Repair" after replacing the air fuel ratio sensor.
