WIPER / WASHER  FRONT WIPER MOTOR  INSTALLATION

0,0 0,0 false

	Install in this Direction (1)
	Install in this Direction (2)

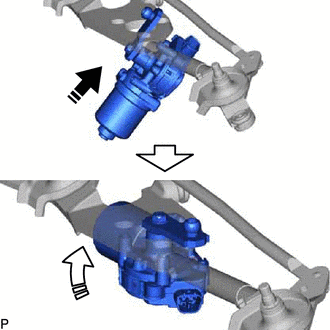

Push the windshield wiper motor assembly in the direction indicated by the arrow (1), then move the windshield wiper motor assembly in the direction indicated by the arrow (2) shown in the illustration to temporarily install it to the wiper link assembly.

1.625,1.083 2.375,0.667 true 2.417,0.583 2.615,0.781 0.198,0.198 10 true *a

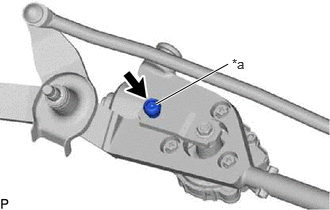

*a	Pivot of Windshield Wiper Motor Assembly

Apply MP grease to the pivot of the windshield wiper motor assembly.

1.833,0.917 2.25,0.5 true 1.344,0.729 1.552,0.427 true 1.583,0.302 1.896,0.5 0.313,0.198 10 false *a 2.271,0.385 2.583,0.583 0.313,0.198 10 false *1

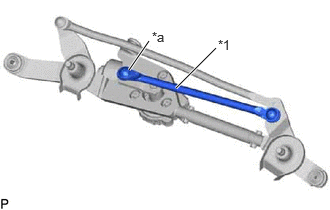

*1	No. 1 Windshield Wiper Link Rod
*a	Pivot of Windshield Wiper Motor Assembly

Connect the No. 1 windshield wiper link rod to the pivot of the windshield wiper motor assembly.

Connect the connector.

0,0 0,0 false

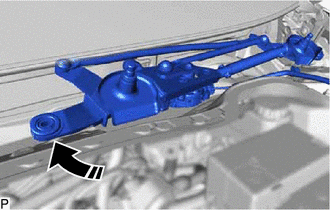

Install in this Direction

Install the windshield wiper motor and link assembly as shown in the illustration.

0.656,0.563 0.844,0.323 true 2.74,0.542 2.969,0.396 true 0.865,0.24 1.073,0.427 0.208,0.188 10 true *a 2.979,0.302 3.188,0.49 0.208,0.188 10 true *a

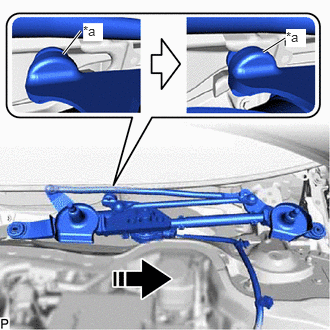

*a	Motor Grommet
	Install in this Direction

Engage the motor grommet as shown in the illustration.

NOTICE:

Be careful not to damage the windshield glass when installing the windshield wiper motor and link assembly.

3.219,1.292 3.375,1.49 0.156,0.198 10 true 1 0.104,1.302 0.26,1.5 0.156,0.198 10 true 2

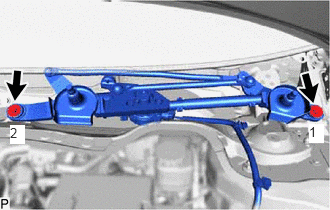

Install the windshield wiper motor and link assembly with the 2 bolts.

Torque:

5.5 N*m (56 kgf*cm, 49 in.*lbf)

HINT:

Tighten the bolts in the order shown in the illustration.

Engage the 2 clamps.

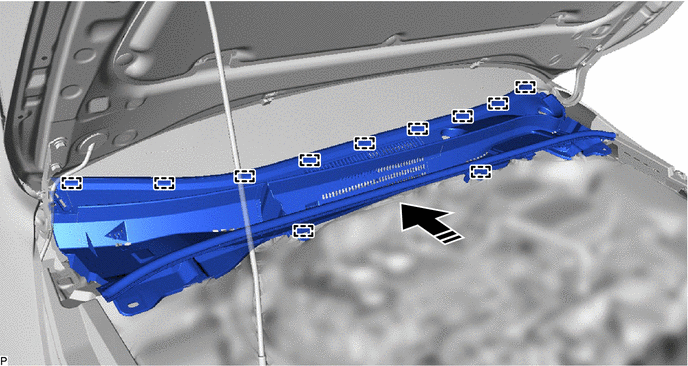

Engage the 11 guides as shown in the illustration.

0,0 0,0 false

Install in this Direction

-

-

NOTICE:

Make sure to engage the guide securely, otherwise the cowl top ventilator louver sub-assembly may pop up when engaging it to the windshield glass.

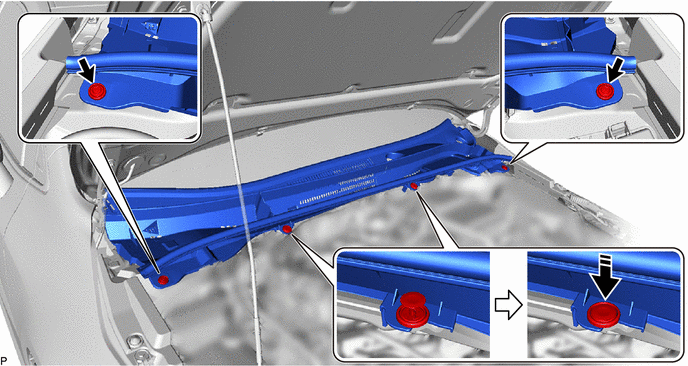

Engage the 4 clips to install the cowl top ventilator louver sub-assembly as shown in the illustration.

0,0 0,0 false

Install in this Direction

-

-

0,0 0,0 false

Install in this Direction

Engage the guide as shown in the illustration.

When reusing the front wiper arm and blade assembly RH:

i.

2.167,1.25 2.583,0.833 true 2.167,3.167 2.583,2.833 true 2.604,0.719 2.917,0.917 0.313,0.198 10 false *a 2.021,3.135 2.333,3.333 0.313,0.198 10 false *a

*a

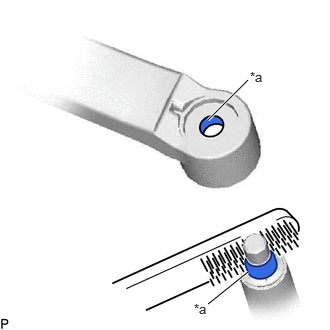

Serration

Clean the wiper arm serrations to remove any burrs, dirt, etc.

NOTICE:

Do not grind down the wiper arm serrations.

1.146,2.646 1.667,2.479 true 0.51,2.271 0.667,2.469 0.156,0.198 10 false A 0.49,2.51 0.646,2.708 0.156,0.198 10 false A 1.677,2.385 1.927,2.583 0.25,0.198 10 true *a

*a	Alignment Mark

Install the front wiper arm and blade assembly RH with the nut to the position shown in the illustration.

Torque:

23 N*m (235 kgf*cm, 17 ft.*lbf)

HINT:

Hold the wiper arm by hand while tightening the nut.

Reference Measurement:

Area	Measurement
A	10 mm (0.394 in.)

When reusing the front wiper arm and blade assembly LH:

i.

2.083,1.5 2.5,1.083 true 2.333,2.917 2.833,2.917 true 2.854,2.833 3.167,3.031 0.313,0.198 10 false *a 2.521,0.969 2.833,1.167 0.313,0.198 10 false *a

*a

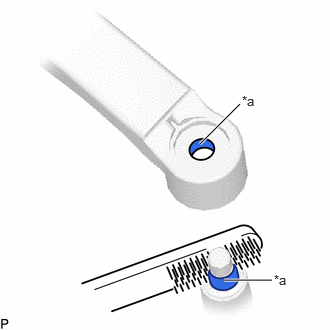

Serration

Clean the wiper arm serrations to remove any burrs, dirt, etc.

NOTICE:

Do not grind down the wiper arm serrations.

1.042,2.719 1.344,2.948 true 0.417,2.469 0.625,2.667 0.208,0.198 10 true A 0.438,2.729 0.646,2.927 0.208,0.198 10 true A 1.396,2.885 1.635,3.094 0.24,0.208 10 true *a

*a	Alignment Mark

Install the front wiper arm and blade assembly LH with the nut to the position shown in the illustration.

Torque:

23 N*m (235 kgf*cm, 17 ft.*lbf)

HINT:

Hold the wiper arm by hand while tightening the nut.

Reference Measurement:

Area	Measurement
A	10 mm (0.394 in.)

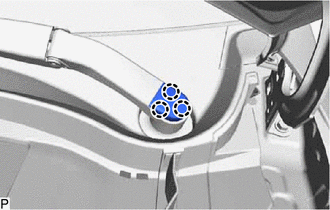

Engage the 3 claws to install the front wiper arm head cap.

HINT:

Use the same procedure for the RH side and LH side.
