8ZR-FXE EMISSION CONTROL  PCV VALVE  INSTALLATION

2.281,0.646 2.125,0.188 2.125,0.188 1.865,0.188 false 1.667,0.104 1.854,0.302 0.188,0.198 10 false *a

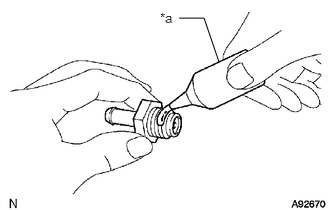

*a	Adhesive 1324

Apply adhesive to 2 or 3 threads of the PCV valve (ventilation valve sub-assembly).

Adhesive:

Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent

1.396,0.406 1.854,0.698 0.458,0.292 10 false *a

*a	Torque Wrench Fulcrum Length

Using a 22 mm ball joint lock nut wrench, install the PCV valve (ventilation valve sub-assembly) to the No. 1 ventilation case.

Torque:

Specified tightening torque : 20 N*m (204 kgf*cm, 15 ft.*lbf)

NOTICE:

Do not start the engine for at least 1 hour after installation.

HINT:

·

Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.

Click hereGeneral>INTRODUCTION>REPAIR INSTRUCTION>PRECAUTION201906,999999,_V1,_080724,_0393249,RM100000001HWSK,

·

When using a 22 mm ball joint lock nut wrench (fulcrum length of 149.75 mm (5.90 in.)) + torque wrench (fulcrum length of 162 mm (6.38 in.)): 10 N*m (102 kgf*cm, 7 ft.*lbf)
