METER / GAUGE / DISPLAY METER / GAUGE SYSTEM Engine Oil Pressure Switch Circuit

DESCRIPTION

The combination meter assembly and engine oil pressure switch assembly are connected via direct line. The combination meter assembly determines the engine oil pressure based on the engine oil pressure switch ON/OFF signal.

HINT:: ·

The combination meter assembly receives various vehicle information signals from the ECM via CAN communication in order to output warnings.

·

The combination meter assembly operates the following to output oil pressure warnings:

(a)

Engine oil pressure warning light

(b)

Engine oil pressure warning buzzer

(c)

Engine oil pressure warning message on multi-information display*; *: for Multi-information Display Type

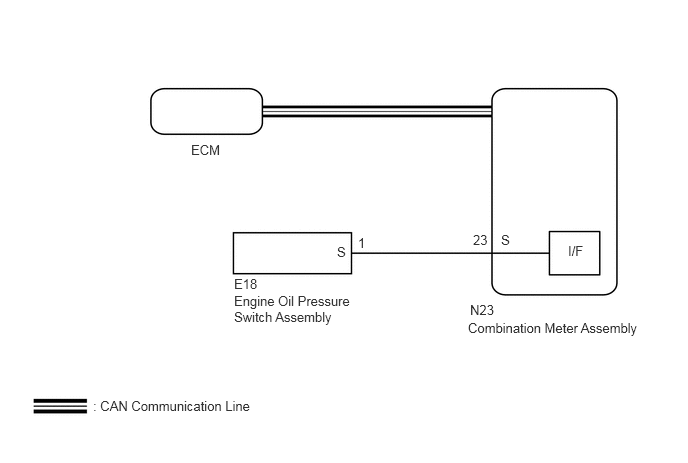

WIRING DIAGRAM

0.969,4.146 4.635,4.344 3.667,0.198 10 false : CAN Communication Line 2.438,2.875 3.948,3.135 1.51,0.26 10 false E18 2.438,3.052 3.698,3.448 1.26,0.396 10 false Engine Oil Pressure Switch Assembly 4.896,3.146 5.25,3.333 0.354,0.188 10 false N23 4.875,3.333 6.823,3.635 1.948,0.302 10 false Combination Meter Assembly 5.917,2.531 6.271,2.719 0.354,0.188 10 false I/F 5.219,2.417 5.573,2.604 0.354,0.188 10 false S 4.927,2.417 5.281,2.604 0.354,0.188 10 false 23 3.729,2.448 4.083,2.635 0.354,0.188 10 false 1 1.99,1.479 4.375,1.74 2.385,0.26 10 false ECM 3.51,2.542 3.865,2.729 0.354,0.188 10 false S

CAUTION / NOTICE / HINT

NOTICE:
for 7GR-FKS:: ·

When replacing the combination meter assembly, always replace it with a new one. If a combination meter assembly which was installed to another vehicle is used, the information stored in it will not match the information from the vehicle and a DTC may be stored.

·

The following troubleshooting procedure is based on the assumption that the SFI control system is normal. Confirm that the SFI control system is not malfunctioning before performing the following procedure.

Click hereEngine / Hybrid System>7GR-FKS (ENGINE CONTROL)>SFI SYSTEM>HOW TO PROCEED WITH TROUBLESHOOTING201902,999999,_51,_078720,_0381907,RM100000001G2VO,

NOTICE:
for 1GD-FTV:: ·

When replacing the combination meter assembly, always replace it with a new one. If a combination meter assembly which was installed to another vehicle is used, the information stored in it will not match the information from the vehicle and a DTC may be stored.

·

The following troubleshooting procedure is based on the assumption that the ECD control system is normal. Confirm that the ECD control system is not malfunctioning before performing the following procedure.

w/ DPF: Click hereEngine / Hybrid System>1GD-FTV (ENGINE CONTROL)>ECD SYSTEM (w/ DPF)>HOW TO PROCEED WITH TROUBLESHOOTING201902,999999,_51,_078856,_0385516,RM100000001H9CA,

w/ EGR Cooler: Click hereEngine / Hybrid System>1GD-FTV (ENGINE CONTROL)>ECD SYSTEM (w/ EGR Cooler)>HOW TO PROCEED WITH TROUBLESHOOTING201902,999999,_51,_078856,_0388653,RM100000001HBNX,

w/o EGR Cooler: Click hereEngine / Hybrid System>1GD-FTV (ENGINE CONTROL)>ECD SYSTEM (w/o EGR Cooler)>HOW TO PROCEED WITH TROUBLESHOOTING201902,999999,_51,_078856,_0388652,RM100000001HBSY,

for Water Cooled Type Intercooler: Click hereEngine / Hybrid System>1GD-FTV (ENGINE CONTROL)>ECD SYSTEM (for Water Cooled Type Intercooler)>HOW TO PROCEED WITH TROUBLESHOOTING202005,999999,_51,_078856,_0412266,RM100000001LNT5,

w/ Urea SCR System: Click hereEngine / Hybrid System>1GD-FTV (ENGINE CONTROL)>ECD SYSTEM (w/ Urea SCR System)>HOW TO PROCEED WITH TROUBLESHOOTING202208,999999,_51,_078856,_0382589,RM100000002569I,

w/ Exhaust Gas Temperature Sensor for EGR: Click hereEngine / Hybrid System>1GD-FTV (ENGINE CONTROL)>ECD SYSTEM (w/ Exhaust Gas Temperature Sensor for EGR)>HOW TO PROCEED WITH TROUBLESHOOTING202208,999999,_51,_078856,_0395991,RM100000002570H,

PROCEDURE

1.INSPECT ENGINE OIL PRESSURE SWITCH ASSEMBLY

Remove the engine oil pressure switch assembly.

for 7GR-FKS:

Click hereEngine / Hybrid System>7GR-FKS (LUBRICATION)>OIL PRESSURE SWITCH>REMOVAL201902,999999,_51,_078604,_0381349,RM100000001FZOC,

for 1GD-FTV:

Click hereEngine / Hybrid System>1GD-FTV (LUBRICATION)>OIL PRESSURE SWITCH>REMOVAL201902,999999,_51,_079221,_0384266,RM100000001GFR6,

Inspect the engine oil pressure switch assembly.

for 7GR-FKS:

Click hereEngine / Hybrid System>7GR-FKS (LUBRICATION)>OIL PRESSURE SWITCH>INSPECTION201902,999999,_51,_078604,_0381349,RM100000001FZOD,

for 1GD-FTV:

Click hereEngine / Hybrid System>1GD-FTV (LUBRICATION)>OIL PRESSURE SWITCH>INSPECTION201902,999999,_51,_079221,_0384266,RM100000001GFR7,

Result:

Proceed to
OK
NG

2.CHECK HARNESS AND CONNECTOR (COMBINATION METER ASSEMBLY - ENGINE OIL PRESSURE SWITCH ASSEMBLY)

REPLACE ENGINE OIL PRESSURE SWITCH ASSEMBLY

for 7GR-FKS:

Click hereEngine / Hybrid System>7GR-FKS (LUBRICATION)>OIL PRESSURE SWITCH>REMOVAL201902,999999,_51,_078604,_0381349,RM100000001FZOC,

for 1GD-FTV:

Click hereEngine / Hybrid System>1GD-FTV (LUBRICATION)>OIL PRESSURE SWITCH>REMOVAL201902,999999,_51,_079221,_0384266,RM100000001GFR6,

2.CHECK HARNESS AND CONNECTOR (COMBINATION METER ASSEMBLY - ENGINE OIL PRESSURE SWITCH ASSEMBLY)

Disconnect the N23 combination meter assembly connector.

Disconnect the E18 engine oil pressure switch assembly connector.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
N23-23 (S) - E18-1(S)	Always	Below 1 Ω
N23-23 (S) or E18-1(S) - Other terminals and body ground	Always	10 kΩ or higher

Result:

Proceed to
OK
NG

REPLACE COMBINATION METER ASSEMBLY

Click hereVehicle Interior>METER / GAUGE / DISPLAY>COMBINATION METER>REMOVAL201906,999999,_58,_078337,_0380006,RM100000001IHHE,

REPAIR OR REPLACE HARNESS OR CONNECTOR
