RM35X0E _59 Vehicle Exterior _079320 WIPER / WASHER _0385312 WASHER NOZZLE(w/ Digital Inner Mirror) A

WIPER / WASHER  WASHER NOZZLE(w/ Digital Inner Mirror)  INSTALLATION


PROCEDURE

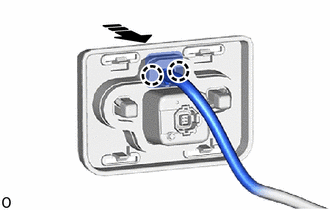

Hide 1.INSTALL WASHER NOZZLE (for Double Swing Out Type)

a.
B655955C01
0,0 0,0 false
V113147

Install in this Direction


Attach the claw and install the camera cleaner nozzle assembly.

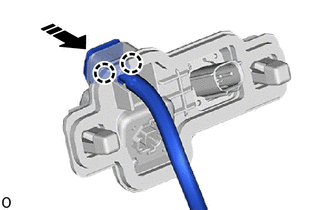

Hide 2.INSTALL WASHER NOZZLE (except Double Swing Out Type)

a.
B538437C01
0,0 0,0 false
V113147

Install in this Direction


Attach the claw and install the camera cleaner nozzle assembly.
