Vehicle Exterior
_079320
WIPER / WASHER
_0385312
WASHER NOZZLE(w/ Digital Inner Mirror)
A
WIPER / WASHER WASHER NOZZLE(w/ Digital Inner Mirror) REMOVAL
PROCEDURE
867C0
1.REMOVE INNER MIRROR CAMERA ASSEMBLY

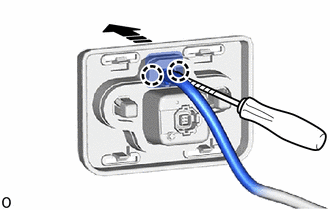

2.REMOVE WASHER NOZZLE (except Double Swing Out Type)
a.
0,0 0,0
false
|
Protective Tape |
|
Remove in this Direction |
Using a thin-bladed screwdriver with its tip wrapped with protective tape, detach the claw and remove the camera cleaner nozzle assembly.

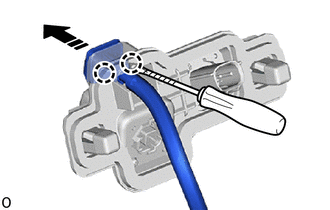

3.REMOVE WASHER NOZZLE (for Double Swing Out Type)
a.
0,0 0,0
false
|
|
Protective Tape |
|
|
Remove in this Direction |
Using a thin-bladed screwdriver with its tip wrapped with protective tape, detach the claw and remove the camera cleaner nozzle assembly.
