WIPER / WASHER  WASHER NOZZLE(for Rear Side)  REMOVAL

76085 1.REMOVE REAR SPOILER SUB-ASSEMBLY (for Wagon)

67760A 2.REMOVE BACK DOOR UPPER TRIM BOARD ASSEMBLY (except Double Swing Out Type, for Standard Roof)

67760A 3.REMOVE BACK DOOR UPPER TRIM BOARD ASSEMBLY (except Double Swing Out Type, for High Roof)

67760A 4.REMOVE BACK DOOR UPPER TRIM BOARD ASSEMBLY (for Double Swing Out Type)

85035R 5.REMOVE REAR WASHER NOZZLE SUB-ASSEMBLY (except Double Swing Out Type)

a.

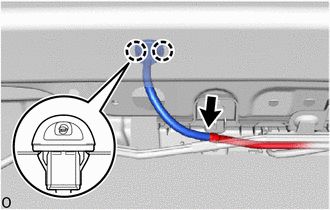

Disconnect the rear washer hose from the rear washer nozzle sub-assembly.

b.

Detach the claw and remove the rear washer nozzle sub-assembly.

85035R 6.REMOVE REAR WASHER NOZZLE SUB-ASSEMBLY (for Double Swing Out Type)

a.

Disconnect the rear washer hose from the rear washer nozzle sub-assembly.

b.

Detach the claw and remove the rear washer nozzle sub-assembly.
