EXTERIOR PANELS / TRIM
_0397103
REAR SPOILER
A
EXTERIOR PANELS / TRIM REAR SPOILER REMOVAL
PROCEDURE
67938A
1.REMOVE BACK DOOR SIDE GARNISH LH
67937B
2.REMOVE BACK DOOR SIDE GARNISH RH
- HINT:
-
Use the same procedure described for the LH side.
67760A
3.REMOVE BACK DOOR UPPER TRIM BOARD ASSEMBLY
4.REMOVE REAR WIPER ARM AND BLADE ASSEMBLY
85110R
5.REMOVE REAR WIPER MOTOR ASSEMBLY
76085
6.REMOVE REAR SPOILER SUB-ASSEMBLY
a.

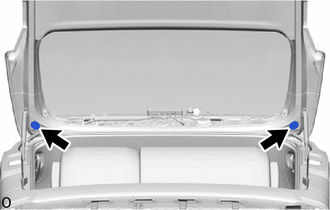

Remove the 2 grommets.
b.

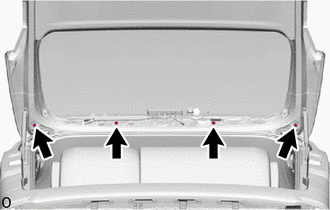

Remove the 4 bolts.
c.
0,0 0,0
false
|

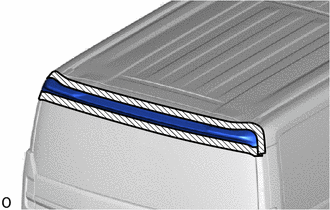

Protective Tape |
Apply protective tape around the rear spoiler sub-assembly.
d.
0,0 0,0
false
|
Remove in this Direction |
Detach the pin and remove the rear spoiler sub-assembly as shown in the illustration.
