RM35X0E _59 Vehicle Exterior _078503 DOOR / HATCH _0545662 BACK DOOR(for Double Swing Out Type) A

DOOR / HATCH BACK DOOR(for Double Swing Out Type) DISASSEMBLY

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during slide door motor unit removal/installation are shown below.

Necessary Procedure After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Necessary Procedure	Link
Television camera assembly (Including removal and installation)	· Parking assist monitor system initialization · Television camera assembly optical axis (Back camera position setting)	Parking assist monitor system	(201902,202310,_56,_079315,_0385736,RM100000001GNRB,202310,999999,_56,_079315,_0385736,RM100000002G5JM,)
	Television camera view adjustment (Rear adjustment)	Panoramic view monitor system	(201906,202310,_56,_079315,_0396274,RM100000001IGR4,202310,999999,_56,_079315,_0396274,RM100000002G5L7,)

PROCEDURE

Hide Display 69298 1.REMOVE BACK DOOR INSIDE HANDLE COVER (w/ Handle, Cover)

2.052,1.458 2.198,1.677 0.146,0.219 6 false .

Remove in this Direction

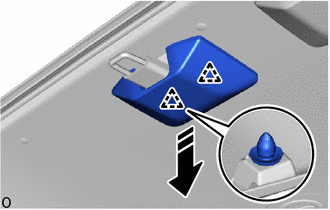

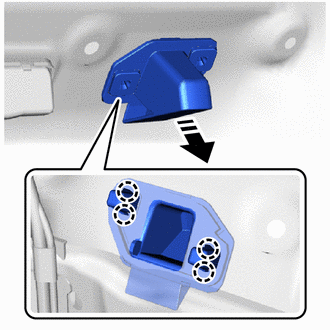

Detach the claw and remove the back door inside handle cover as shown in the illustration.

Hide Display 69291 2.REMOVE BACK DOOR INSIDE HANDLE ASSEMBLY (w/ Handle)

1.729,0.781 1.938,1.146 0.208,0.365 6 false .

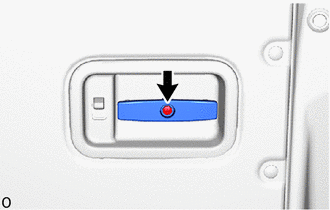

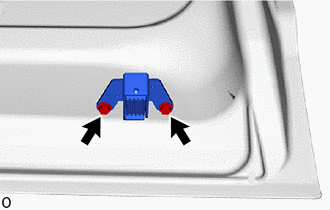

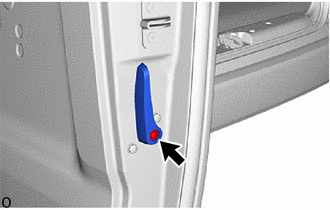

Remove the screw and back door inside handle assembly.

Hide Display 69783B 3.REMOVE BACK DOOR INSIDE HANDLE BEZEL (w/ Handle)

1.313,0.75 1.552,1.073 0.24,0.323 6 false .

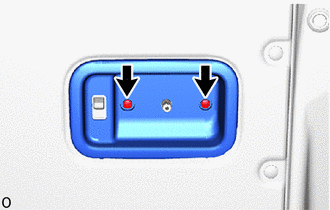

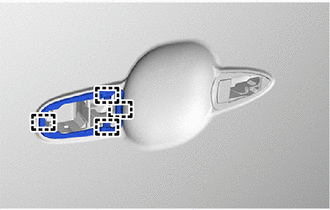

Remove the 2 screws and back door inside handle bezel.

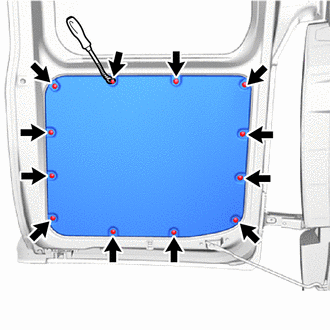

Hide Display 67751 4.REMOVE BACK DOOR TRIM BOARD

0.677,0.563 0.865,0.885 0.188,0.323 6 false .

Protective Tape

Using a clip remover with its tip wrapped with protective tape, remove the 12 clips and back door trim board.

Hide Display 67847A 5.REMOVE BACK DOOR SERVICE HOLE COVER

0.083,3.25 0.24,3.427 0.156,0.177 6 false .

Butyl Tape

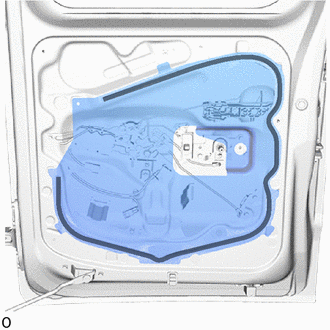

Remove the back door service hole cover.

HINT:: Remove any remaining butyl tape from the back door panel.

Hide Display 67760A 6.REMOVE BACK DOOR UPPER TRIM BOARD ASSEMBLY

0.948,0.396 1.146,0.667 0.198,0.271 6 false .

Remove in this Direction

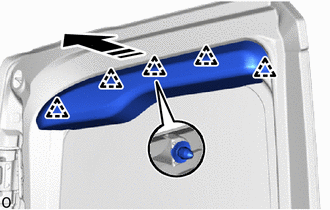

Detach the clip and remove the back door upper trim board assembly as shown in the illustration.

Hide Display 7.REMOVE REAR WIPER ARM AND BLADE ASSEMBLY RH (w/ Rear Wiper)

HINT:: Use the same procedure described for the LH side.; Click hereVehicle Exterior>WIPER / WASHER>REAR WIPER MOTOR>REMOVAL202208,999999,_59,_079320,_0385303,RM1000000024VEN_01_0008,

Hide Display 85110R 8.REMOVE REAR WIPER MOTOR ASSEMBLY (w/ Rear Wiper)

Click hereVehicle Exterior>WIPER / WASHER>REAR WIPER MOTOR>REMOVAL202208,999999,_59,_079320,_0385303,RM1000000024VEN_01_0015,

Hide Display 85143R 9.REMOVE REAR WIPER MOTOR GROMMET (w/ Rear Wiper)

Click hereVehicle Exterior>WIPER / WASHER>REAR WIPER MOTOR>REMOVAL202208,999999,_59,_079320,_0385303,RM1000000024VEN_01_0018,

Hide Display 81570 10.REMOVE CENTER STOP LIGHT ASSEMBLY

Click hereVehicle Exterior>LIGHTING (EXT)>HIGH MOUNTED STOP LIGHT ASSEMBLY>REMOVAL202208,999999,_59,_079256,_0384441,RM1000000024I4B_01_0016,

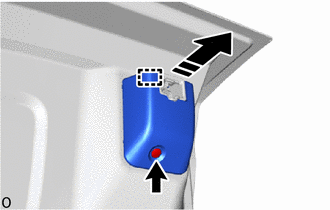

Hide Display 69321 11.REMOVE BACK DOOR LOCK COVER (for High Roof)

2.198,0.365 2.354,0.646 0.156,0.281 6 false .

Remove in this Direction

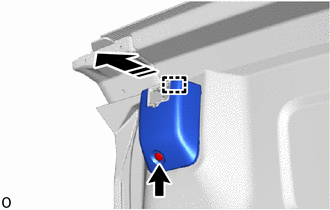

Remove the clip.

Detach the guide and remove back door lock cover as shown in the illustration.

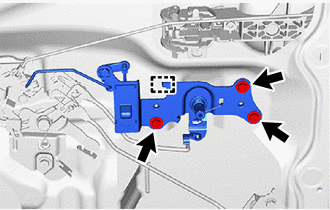

Hide Display 69350T 12.REMOVE BACK DOOR LOCK ASSEMBLY RH (for High Roof)

2.198,0.865 2.427,1.208 0.229,0.344 6 false .

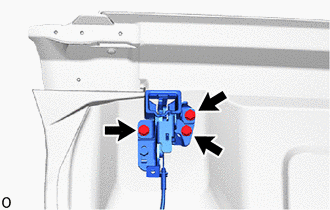

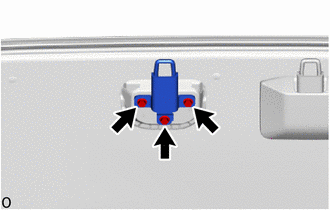

Remove the 3 bolts.

2.094,0.99 2.333,1.302 0.24,0.313 6 false .

Detach the clamp and remove the back door lock assembly RH.

Hide Display 64680 13.REMOVE BACK DOOR LOCK CONTROL CABLE ASSEMBLY (for High Roof)

1.896,1.135 2.396,1.135 true 1.729,1.083 2.042,1.323 0.313,0.24 10 false *a

String

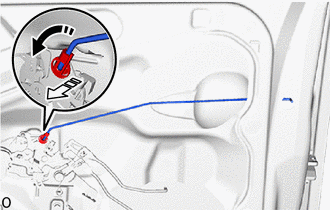

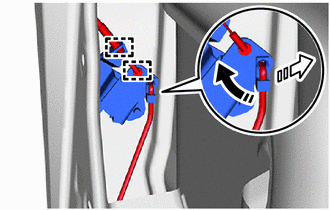

Tie a string to the end of the back door lock control cable assembly in the top.

HINT:: Use a length of string long enough to pass through the back door panel.

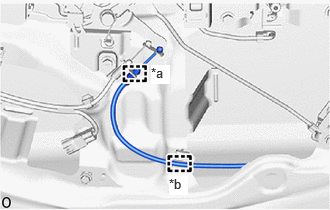

1.573,0.677 1.771,0.875 0.198,0.198 10 true *a 1.76,1.833 1.958,2.031 0.198,0.198 10 true *b

*a	Clamp
*b	Cable Clamp

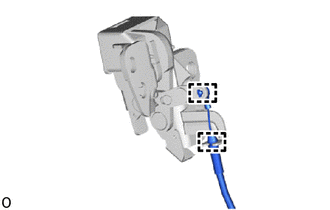

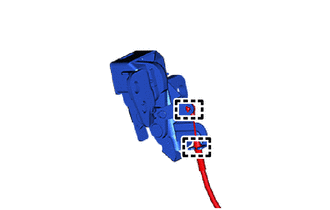

Detach the cable clamp.

Detach the clamp and remove the back door lock control cable assembly.

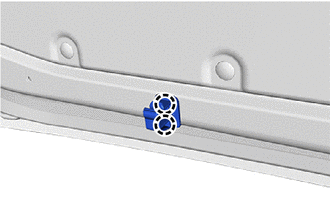

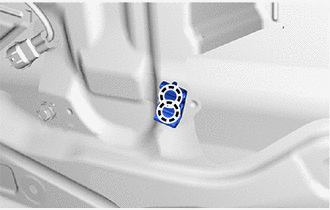

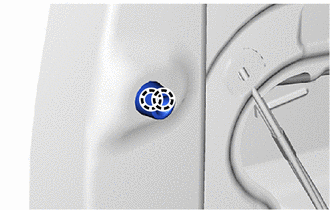

Hide Display 14.REMOVE CLAMP (for High Roof)

1.854,0.948 2.063,1.177 0.208,0.229 6 false .

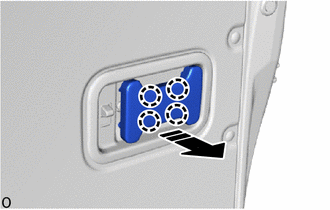

Detach the claw and remove the clamp.

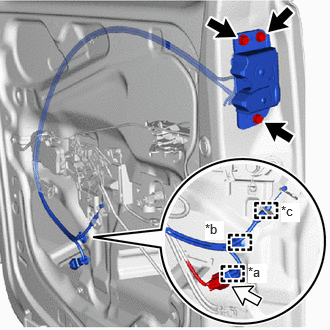

Hide Display 69350 15.REMOVE BACK DOOR LOCK ASSEMBLY

2.583,2.75 2.781,2.948 0.198,0.198 10 true *a 2.135,2.302 2.333,2.5 0.198,0.198 10 true *b 2.927,2.115 3.125,2.313 0.198,0.198 10 true *c

*a	Wire Harness Clamp
*b	Cable Clamp
*c	Clamp
	Bolt
	Connector

Disconnect the connector.

Detach the wire harness clamp and cable clamp.

Detach the clamp and disconnect the back door lock assembly.

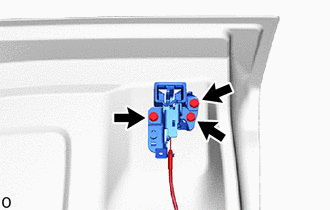

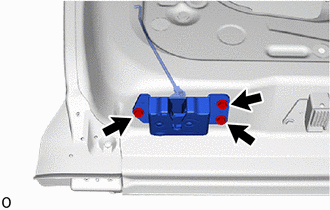

Remove the 3 bolts and back door lock assembly.

Hide Display 69290F 16.REMOVE BACK DOOR INSIDE HANDLE ASSEMBLY (w/ Handle)

2.719,2.396 2.938,2.625 0.219,0.229 6 false .

	Remove in this Direction (1)
	Remove in this Direction (2)

Detach the 2 snaps and disconnect the back door inside handle assembly and back door remote control assembly as shown in the illustration.

1.51,1.469 1.646,1.729 0.135,0.26 6 false .

Remove the 3 screws.

Detach the guide and remove the back door inside handle assembly.

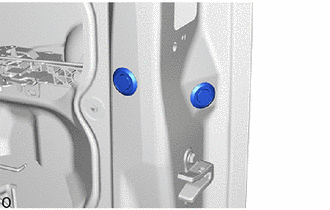

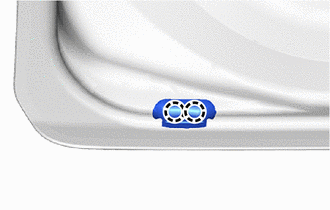

Hide Display 17.REMOVE HOLE PLUG

0.094,2.031 0.25,2.167 0.156,0.135 6 false .

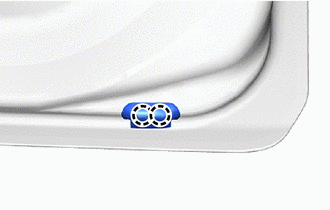

Remove the 2 hole plugs.

Hide Display 69211C 18.REMOVE BACK DOOR OUTSIDE HANDLE

0.313,1.646 0.729,1.188 true 0.208,1.646 0.396,1.844 0.188,0.198 10 true *a

*a	Holder
	Remove in this Direction

Detach the claw and move the holder in the direction indicated by the arrow shown in the illustration.

1.667,1.521 1.813,1.75 0.146,0.229 6 false .

Remove in this Direction

Remove the back door outside handle by sliding and pulling it in the direction indicated by the arrow in the illustration.

Hide Display 69055B 19.REMOVE BACK DOOR LOCK CYLINDER ASSEMBLY

0.958,1.104 1.115,1.354 0.156,0.25 6 false .

	Remove in this Direction (1)
	Remove in this Direction (2)

Detach the snap and disconnect the back door upper rod as shown in the illustration.

2.719,1.042 2.927,1.333 0.208,0.292 6 false .

Remove in this Direction

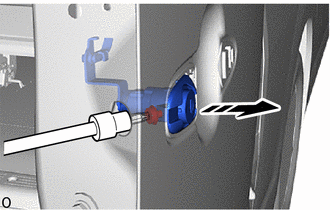

Using a T30 "TORX" socket wrench, loosen the "TORX" screw.

Remove the back door lock cylinder assembly as shown in the illustration.

Hide Display 69242M 20.REMOVE BACK DOOR REAR OUTSIDE HANDLE PAD

1.354,1.01 1.51,1.198 0.156,0.188 6 false .

Detach the guide and remove the back door rear outside handle pad.

Hide Display 69241F 21.REMOVE DOOR OUTSIDE HANDLE PAD

2.844,0.708 2.99,0.938 0.146,0.229 6 false .

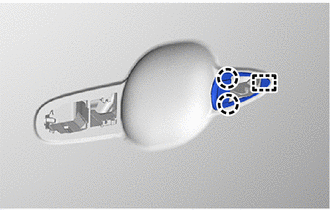

Detach the claw and guide to remove the door outside handle pad.

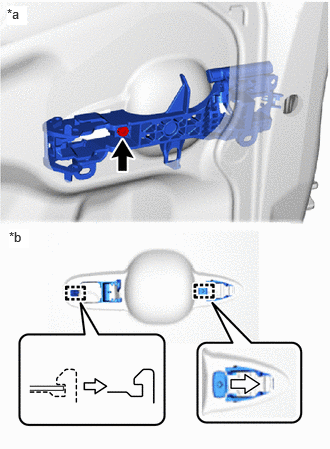

Hide Display 69201B 22.REMOVE BACK DOOR OUTSIDE HANDLE FRAME SUB-ASSEMBLY

1.188,0.604 1.302,0.76 0.115,0.156 6 false .

	Remove in this Direction (1)
	Remove in this Direction (2)

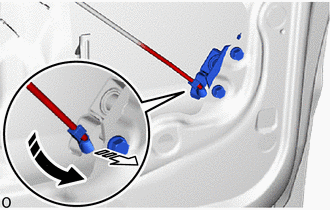

Detach the snap and disconnect the back door upper lock control rod as shown in the illustration.

0.073,0.063 0.281,0.26 0.208,0.198 10 true *a 0.094,2.385 0.302,2.583 0.208,0.198 10 true *b

*a	Inside
*b	Outside

Using a T30 "TORX" socket wrench, loosen the "TORX" screw.

Detach the guide and remove the back door outside handle frame sub-assembly.

Hide Display 69351 23.REMOVE BACK DOOR UPPER LOCK CONTROL ROD

1.26,1.208 1.427,1.427 0.167,0.219 6 false .

	Remove in this Direction (1)
	Remove in this Direction (2)

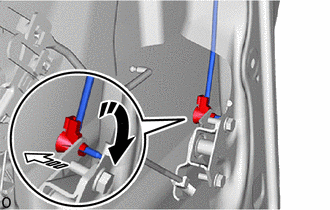

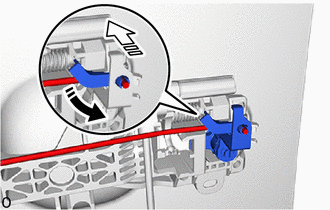

Detach the snap and remove the back door upper lock control rod as shown in the illustration.

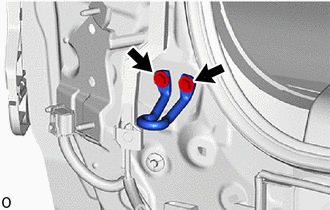

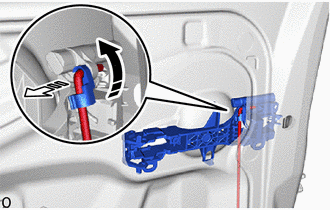

Hide Display 69650 24.REMOVE BACK DOOR LOCK REMOTE CONTROL ASSEMBLY RH

0.479,1.646 0.667,1.865 0.188,0.219 6 false .

	Remove in this Direction (1)
	Remove in this Direction (2)

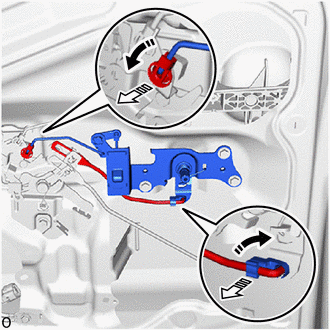

Detach the snap and disconnect the back door remote control assembly as shown in the illustration.

1.823,1.333 1.979,1.531 0.156,0.198 6 false .

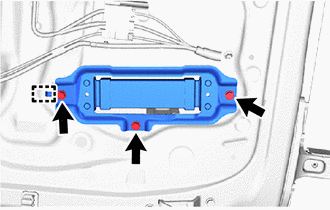

Remove the 2 bolts and back door lock remote control assembly RH.

Hide Display 69356A 25.REMOVE BACK DOOR UPPER ROD

0.417,0.333 0.583,0.563 0.167,0.229 6 false .

	Remove in this Direction (1)
	Remove in this Direction (2)

Detach the snap and remove the back door upper rod as shown in the illustration.

Hide Display 69690 26.REMOVE BACK DOOR REMOTE CONTROL ASSEMBLY

0.865,0.333 1.031,0.521 0.167,0.188 10 true *a 2.396,0.698 2.563,0.885 0.167,0.188 10 true *a 1.188,1.156 1.354,1.344 0.167,0.188 10 true *b

*a	Guide
*b	Wire Harness Clamp
	Screw
	Connector

Disconnect the connector.

Detach the wire harness clamp.

Remove the 3 screws.

Detach the guide and remove the back door remote control assembly.

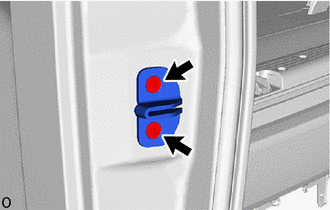

Hide Display 69403A 27.REMOVE BACK DOOR SIDE FEMALE STOPPER SUB-ASSEMBLY RH

1.917,0.615 2.073,0.823 0.156,0.208 6 false .

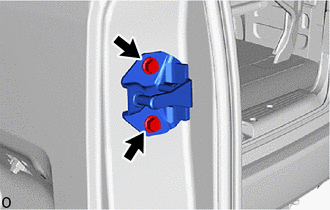

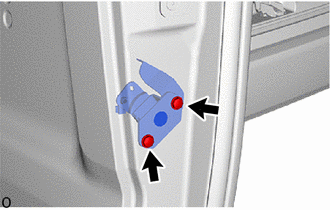

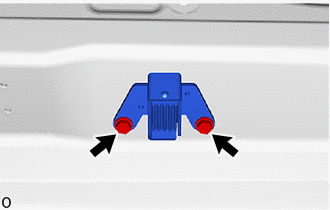

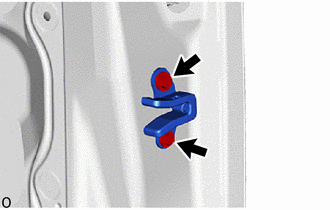

Remove the 2 bolts and back door side female stopper sub-assembly RH.

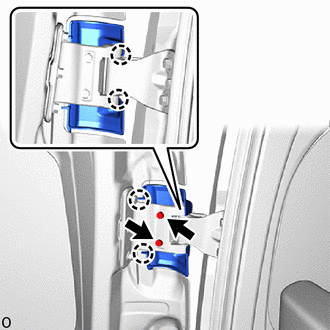

Hide Display 69462 28.REMOVE BACK DOOR SIDE MALE STOPPER LH

0.938,1.281 1.104,1.5 0.167,0.219 6 false .

Remove the 2 bolts and back door side male stopper LH.

Hide Display 67837L 29.REMOVE DOOR DUST PROOF SEAL

2.094,1.042 2.271,1.302 0.177,0.26 6 false .

Detach the claw and remove the door dust proof seal.

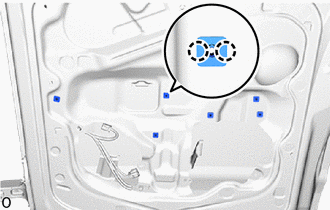

Hide Display 30.REMOVE SCREW GROMMET

0.083,2.052 0.24,2.177 0.156,0.125 6 false .

Detach the claw and remove the 6 screw grommets.

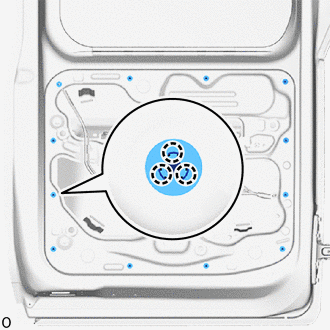

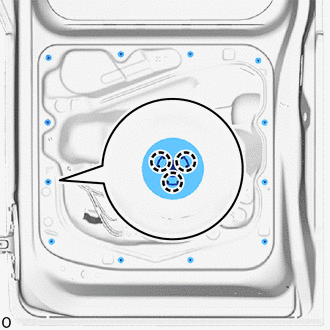

Hide Display 67772S 31.REMOVE DOOR TRIM RETAINER CAP

0.146,1.594 0.302,1.792 0.156,0.198 10 false .

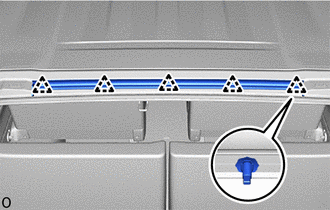

Detach the claw and remove the 12 door trim retainer caps.

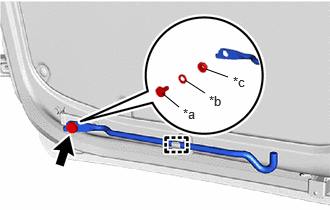

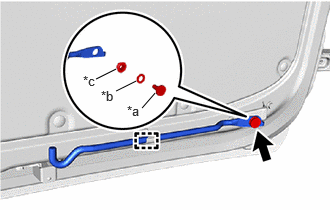

Hide Display 68931 32.REMOVE BACK DOOR NO. 1 STAY

2.146,0.719 2.375,0.802 false 1.927,0.833 2.135,0.969 false 1.688,0.969 1.865,1.115 false 1.906,1.104 2.219,1.302 0.313,0.198 10 false *a 2.177,0.969 2.49,1.167 0.313,0.198 10 false *b 2.427,0.771 2.74,0.969 0.313,0.198 10 false *c

*a	Bolt
*b	Wave Washer
*c	Bush

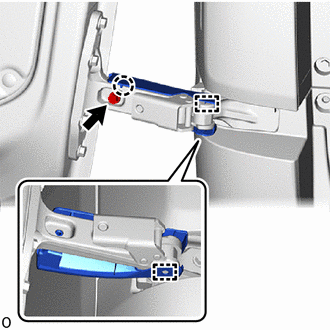

Detach the clamp and remove the bolt, wave washer, bush and back door No. 1 stay.

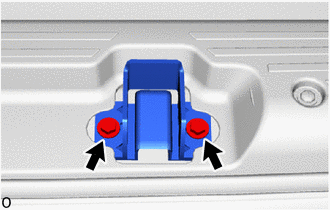

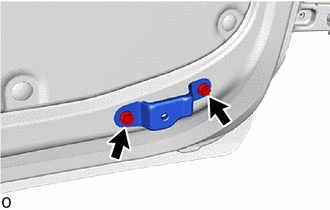

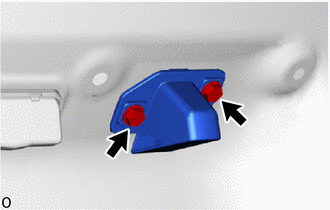

Hide Display 68955 33.REMOVE BACK DOOR STAY BRACKET

1.073,1.063 1.313,1.219 0.24,0.156 6 false .

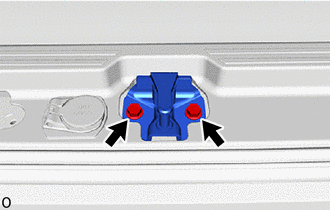

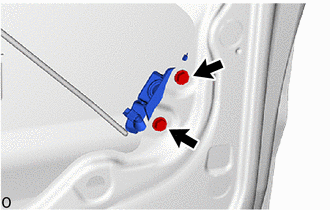

Remove the 2 bolts and back door stay bracket.

Hide Display 68957C 34.REMOVE BACK DOOR STAY HOLDER

1.792,0.948 1.927,1.135 0.135,0.188 6 false .

Detach the claw and remove the back door stay holder.

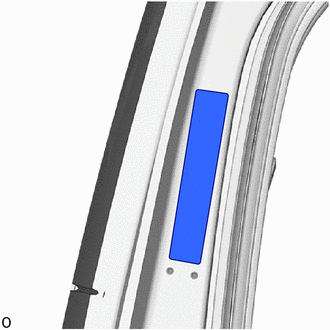

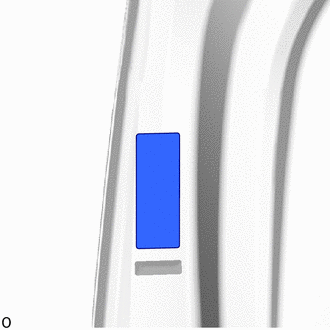

Hide Display 35.REMOVE CENTER PILLAR OUTER PROTECTOR (for High Roof)

HINT:: When removing the center pillar outer protector, heat the double sided-tape of the center pillar outer protector.

Item	Temperature
Center Pillar Outer Protector	20 to 30°C (68 to 86°F)

CAUTION:

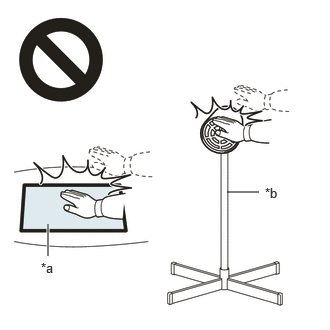

2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b

*a	Heated Part
*b	Heat Light

Do not touch the heat light and heated parts.

Touching the heat light may result in burns.

Touching heated parts for a long time may result in burns.

0.083,3.24 0.302,3.417 0.219,0.177 6 false .

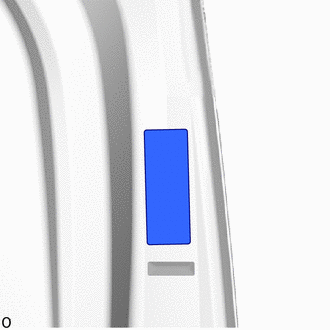

Pull back on one of the ends of the center pillar outer protector to remove it.

HINT:: When pulling on the center pillar outer protector, pull it parallel to the back door panel.

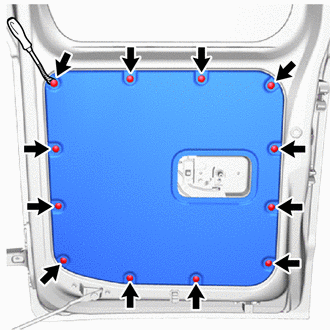

Hide Display 67751 36.REMOVE BACK DOOR TRIM BOARD

0.396,2.323 0.573,2.521 0.177,0.198 6 false .

Protective Tape

Using a clip remover with its tip wrapped with protective tape, remove the 12 clips and back door trim board.

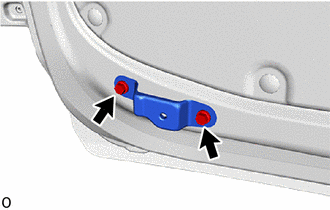

Hide Display 67290 37.REMOVE BACK DOOR DAMPER ASSEMBLY (for Standard Roof)

0.635,1.177 0.875,1.427 0.24,0.25 6 false .

Remove the 3 bolts.

Detach the guide and remove the back door damper assembly.

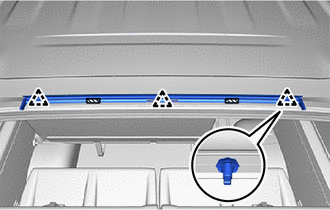

Hide Display 67760A 38.REMOVE BACK DOOR UPPER TRIM BOARD ASSEMBLY

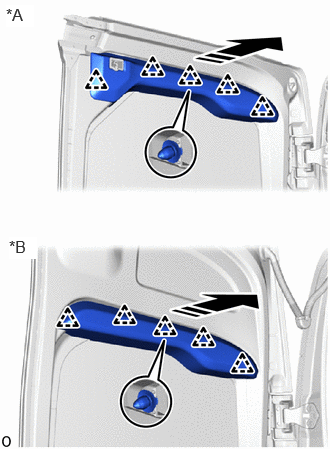

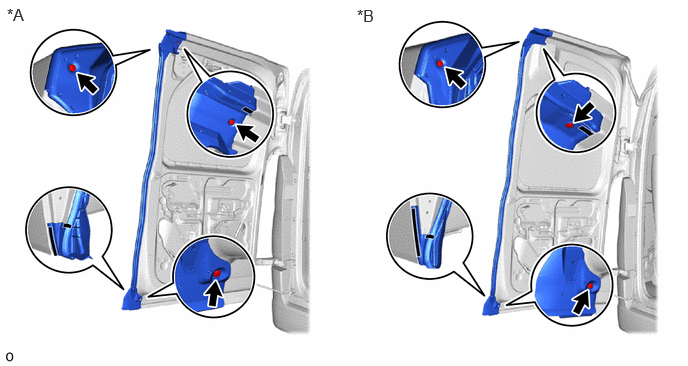

0.063,0.052 0.354,0.281 0.292,0.229 12 true *A 0.094,2.469 0.385,2.698 0.292,0.229 12 true *B

*A	for Standard Roof
*B	for High Roof
	Remove in this Direction

Detach the clip and remove the back door upper trim board assembly as shown in the illustration.

Hide Display 87950 39.REMOVE OUTER UNDER REAR VIEW MIRROR ASSEMBLY (w/ Outer Under Rear View Mirror)

Click hereVehicle Exterior>MIRROR (EXT)>OUTER UNDER REAR VIEW MIRROR>REMOVAL201902,999999,_59,_079319,_0387101,RM100000001GV3Y_01_0001,

Hide Display 76801 40.REMOVE BACK DOOR OUTSIDE GARNISH SUB-ASSEMBLY

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>BACK DOOR OUTSIDE GARNISH (except Wagon)>REMOVAL202208,999999,_59,_079322,_0397101,RM1000000024I6J_01_0094,

Hide Display 81204A 41.REMOVE LICENSE PLATE LIGHT ASSEMBLY

Click hereVehicle Exterior>LIGHTING (EXT)>LICENSE PLATE LIGHT ASSEMBLY>REMOVAL202208,999999,_59,_079256,_0384440,RM1000000024I48_01_0082,

Hide Display 76839A 42.REMOVE BACK DOOR GARNISH COVER (w/o Rear View Monitor System)

1.188,1.396 1.375,1.656 0.188,0.26 6 false .

Remove the 2 screws.

2.031,1.438 2.24,1.688 0.208,0.25 6 false .

Remove in this Direction

Detach the claw and remove the back door garnish cover as shown in the illustration.

Hide Display 86790 43.REMOVE TELEVISION CAMERA ASSEMBLY (w/ Rear View Monitor System)

Click hereAudio / Visual / Telematics>PARK ASSIST / MONITORING>TELEVISION CAMERA (for Rear)>REMOVAL202208,202310,_56,_079315,_0398774,RM1000000024I1N_02_0004,202310,999999,_56,_079315,_0398774,RM100000002G4Y8_02_0004,

Hide Display 76839A 44.REMOVE BACK DOOR GARNISH COVER (w/ Digital Inner Mirror)

Click hereVehicle Interior>MIRROR (INT)>INNER MIRROR MONITOR CAMERA>REMOVAL202208,999999,_58,_078376,_0380055,RM1000000024I23_01_0016,

Hide Display 867C0 45.REMOVE INNER MIRROR CAMERA ASSEMBLY (w/ Digital Inner Mirror)

Click hereVehicle Interior>MIRROR (INT)>INNER MIRROR MONITOR CAMERA>REMOVAL202208,999999,_58,_078376,_0380055,RM1000000024I23_01_0015,

Hide Display 46.REMOVE REAR WIPER ARM AND BLADE ASSEMBLY LH (w/ Rear Wiper)

Click hereVehicle Exterior>WIPER / WASHER>REAR WIPER MOTOR>REMOVAL202208,999999,_59,_079320,_0385303,RM1000000024VEN_01_0008,

Hide Display 85110R 47.REMOVE REAR WIPER MOTOR ASSEMBLY (w/ Rear Wiper)

Click hereVehicle Exterior>WIPER / WASHER>REAR WIPER MOTOR>REMOVAL202208,999999,_59,_079320,_0385303,RM1000000024VEN_01_0015,

Hide Display 85143R 48.REMOVE REAR WIPER MOTOR GROMMET (w/ Rear Wiper)

Click hereVehicle Exterior>WIPER / WASHER>REAR WIPER MOTOR>REMOVAL202208,999999,_59,_079320,_0385303,RM1000000024VEN_01_0018,

Hide Display 85035R 49.REMOVE REAR WASHER NOZZLE SUB-ASSEMBLY (w/ Rear Wiper)

Click hereVehicle Exterior>WIPER / WASHER>WASHER NOZZLE (for Rear Side)>REMOVAL202208,999999,_59,_079320,_0385309,RM1000000024NQ1_01_0011,

Hide Display 69291 50.REMOVE BACK DOOR INSIDE HANDLE ASSEMBLY

1.719,1.469 1.885,1.698 0.167,0.229 6 false .

Remove the screw and back door inside handle assembly.

Hide Display 69660 51.REMOVE BACK DOOR LOCK REMOTE CONTROL ASSEMBLY LH

2.313,0.667 2.51,0.906 0.198,0.24 6 false .

	Remove in this Direction (1)
	Remove in this Direction (2)

Detach the clamp and disconnect the back door lock control cable assembly.

Detach the snap and disconnect the back door lower lock assembly as shown in the illustration.

2.073,1.063 2.354,1.438 0.281,0.375 6 false .

Remove the 2 screws and back door lock remote control assembly LH.

Hide Display 69321 52.REMOVE BACK DOOR LOCK COVER (for High Roof)

1.219,0.552 1.521,0.854 0.302,0.302 6 false .

Remove in this Direction

Remove the clip and back door lock cover as shown in the illustration.

Hide Display 69360G 53.REMOVE BACK DOOR LOCK ASSEMBLY LH

1.26,1.292 1.427,1.531 0.167,0.24 6 false .

Remove the 3 bolts and back door lock assembly LH.

Hide Display 64680 54.REMOVE BACK DOOR LOCK CONTROL CABLE ASSEMBLY

2.333,1.313 2.51,1.563 0.177,0.25 6 false .

Detach the clamp and remove the back door lock control cable assembly.

Hide Display 69461A 55.REMOVE BACK DOOR SIDE MALE STOPPER

1.792,1.438 1.979,1.667 0.188,0.229 6 false .

Using a T30 "TORX" socket wrench, remove the 2 "TORX" screws and back door side male stopper.

Hide Display 69380C 56.REMOVE BACK DOOR LOWER LOCK ASSEMBLY

1.229,1.188 1.417,1.406 0.188,0.219 6 false .

Remove the 3 bolts and back door lower lock assembly.

Hide Display 69042 57.REMOVE BACK DOOR LOWER STOPPER SUB-ASSEMBLY

1.104,1.396 1.302,1.615 0.198,0.219 6 false .

Remove the 2 bolts and back door lower stopper sub-assembly.

Hide Display 69430C 58.REMOVE BACK DOOR LOCK STRIKER ASSEMBLY

1.333,0.49 1.469,0.688 0.135,0.198 6 false .

Remove the 2 bolts and back door lock striker assembly.

Hide Display 67884A 59.REMOVE BACK DOOR CENTER WEATHERSTRIP

Detach the clip.

0.073,0.052 0.448,0.292 0.375,0.24 12 false *A 3.719,0.063 4.094,0.302 0.375,0.24 12 false *B

*A	for Standard Roof	*B	for High Roof
	Butyl Tape	-	-

Peel off the butyl tape shown in the illustration and remove the back door center weatherstrip.

NOTICE:: When removing, make sure that non-drying sealer does not adhere to the body and back door.

HINT:: Remove any remaining butyl tape from the back door panel.

Hide Display 67837L 60.REMOVE DOOR DUST PROOF SEAL

1.75,1.167 1.927,1.354 0.177,0.188 6 false .

Detach the claw and remove the door dust proof seal.

Hide Display 69359 61.REMOVE BACK DOOR LOCK CUSHION

1.771,0.958 1.958,1.188 0.188,0.229 6 false .

Detach the claw and remove the back door lock cushion.

Hide Display 67772S 62.REMOVE DOOR TRIM RETAINER CAP

2.51,1.604 2.698,1.854 0.188,0.25 6 false .

Detach the claw and remove the 12 door trim retainer caps.

Hide Display 68933 63.REMOVE BACK DOOR NO. 2 STAY

1,0.823 1.208,0.719 false 1.208,0.948 1.417,0.844 false 1.479,1.125 1.615,0.969 false 1.323,1.073 1.635,1.271 0.313,0.198 10 false *a 1.052,0.917 1.365,1.115 0.313,0.198 10 false *b 0.865,0.76 1.177,0.958 0.313,0.198 10 false *c

*a	Bolt
*b	Wave Washer
*c	Bush

Detach the clamp and remove the bolt, wave washer, bush and back door No. 2 stay.

Hide Display 68955 64.REMOVE BACK DOOR STAY BRACKET

2.271,1.073 2.417,1.302 0.146,0.229 6 false .

Remove the 2 bolts and back door stay bracket.

Hide Display 68957C 65.REMOVE BACK DOOR STAY HOLDER

1.802,1.094 1.958,1.323 0.156,0.229 6 false .

Detach the claw and remove the back door stay holder.

Hide Display 66.REMOVE CENTER PILLAR OUTER PROTECTOR (for High Roof)

HINT:: When removing the center pillar outer protector, heat the double sided-tape of the center pillar outer protector.

Item	Temperature
Center Pillar Outer Protector	20 to 30°C (68 to 86°F)

CAUTION:

2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b

*a	Heated Part
*b	Heat Light

Do not touch the heat light and heated parts.

Touching the heat light may result in burns.

Touching heated parts for a long time may result in burns.

0.094,3.25 0.24,3.417 0.146,0.167 6 false .

Pull back on one of the ends of the center pillar outer protector to remove it.

HINT:: When pulling on the center pillar outer protector, pull it parallel to the back door panel.

Hide Display 69455A 67.REMOVE BACK DOOR UPPER LOCK STRIKER COVER

1.875,1.667 2.042,1.875 0.167,0.208 6 false .

Remove in this Direction

for Standard Roof:

Detach the clip and remove the back door upper lock striker cover as shown in the illustration.

for High Roof:

Detach the clip and remove the back door upper lock striker cover as shown in the illustration.

HINT:: Use the same procedure for the RH and LH sides.

Hide Display 69047 68.REMOVE BACK DOOR UPPER LOCK STRIKER SUB-ASSEMBLY

1.698,1.438 1.885,1.708 0.188,0.271 6 false .

for Standard Roof:

Remove the 3 bolts and back door upper lock striker sub-assembly.

for High Roof:

Remove the 3 bolts and back door upper lock striker sub-assembly.

HINT:: Use the same procedure for the other side.

Hide Display 69462 69.REMOVE BACK DOOR SIDE MALE STOPPER LH

1.125,0.885 1.313,1.125 0.188,0.24 6 false .

Remove the 2 bolts and back door side male stopper LH.

Hide Display 69046 70.REMOVE BACK DOOR LOWER DOWN FEMALE STOPPER SUB-ASSEMBLY

0.979,1.531 1.25,1.75 0.271,0.219 6 false .

Remove the 2 bolts and back door lower down female stopper sub-assembly.

Hide Display 69430C 71.REMOVE BACK DOOR LOCK STRIKER ASSEMBLY

1.188,1.302 1.417,1.573 0.229,0.271 6 false .

Remove the 2 bolts and back door lock striker assembly.

Hide Display 67882C 72.REMOVE BACK DOOR NO. 2 WEATHERSTRIP (for Standard Roof)

0.5,0.875 0.688,1.177 0.188,0.302 6 false .

Detach the clip and remove the back door No. 2 weatherstrip.

Hide Display 67882C 73.REMOVE BACK DOOR NO. 2 WEATHERSTRIP (for High Roof)

HINT:: When removing the back door No. 2 weatherstrip, heat the double sided-tape of the back door No. 2 weatherstrip.

Item	Temperature
Back Door No. 2 Weatherstrip	20 to 30°C (68 to 86°F)

CAUTION:

2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b

*a	Heated Part
*b	Heat Light

Do not touch the heat light and heated parts.

Touching the heat light may result in burns.

Touching heated parts for a long time may result in burns.

2.74,1.656 2.885,1.844 0.146,0.188 6 false . 0.469,1.021 0.719,1.271 0.25,0.25 6 false .

Double-sided Tape

Detach the double-sided tape and clip and remove the back door No. 2 weatherstrip.

Hide Display 68856B 74.REMOVE BACK DOOR UPPER HINGE NO. 1 FEMALE COVER LH

1.833,2.302 2,2.563 0.167,0.26 6 false .

Remove the 2 screws.

Detach the claw and remove the back door upper hinge No. 1 female cover LH.

Hide Display 68855B 75.REMOVE BACK DOOR UPPER HINGE NO. 1 FEMALE COVER RH

HINT:: Use the same procedure described for the LH side.

Hide Display 68896 76.REMOVE BACK DOOR LOWER HINGE NO. 1 FEMALE COVER LH

1,1.115 1.177,1.385 0.177,0.271 6 false .

Remove the screw.

Detach the claw and guide and remove the back door lower hinge No. 1 female cover LH.

Hide Display 68895 77.REMOVE BACK DOOR LOWER HINGE NO. 1 FEMALE COVER RH

HINT:: Use the same procedure described for the LH side.

Hide Display 78.REMOVE CENTER PILLAR OUTER PROTECTOR (for High Roof)

HINT:: When removing the center pillar outer protector, heat the double sided-tape of the center pillar outer protector.

Item	Temperature
Center Pillar Outer Protector	20 to 30°C (68 to 86°F)

CAUTION:

2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b

*a	Heated Part
*b	Heat Light

Do not touch the heat light and heated parts.

Touching the heat light may result in burns.

Touching heated parts for a long time may result in burns.

0.781,3.063 0.99,3.354 0.208,0.292 6 false .

Pull back on one of the ends of the center pillar outer protector to remove it.

HINT:: ·

When pulling on the center pillar outer protector, pull it parallel to the vehicle body.

·

Use the same procedure for the RH and LH sides.

Hide Display 52166A 79.REMOVE REAR BUMPER UPPER COVER LH

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>REAR BUMPER (except Wagon)>REMOVAL202208,999999,_59,_079322,_0397095,RM1000000024I5K,

Hide Display 52165A 80.REMOVE REAR BUMPER UPPER COVER RH

HINT:: Use the same procedure described for the LH side.

Hide Display 68987 81.REMOVE BACK DOOR STAY HOOK

2.125,0.729 2.292,0.958 0.167,0.229 6 false .

Remove the 2 bolts and back door stay hook.

HINT:: Use the same procedure for the other side.
