RM35X0E _58 Vehicle Interior _078601 SEAT _0545660 LUMBAR SUPPORT ADJUSTER ASSEMBLY(for Separate Seat Type) A

SEAT LUMBAR SUPPORT ADJUSTER ASSEMBLY(for Separate Seat Type) INSTALLATION

CAUTION / NOTICE / HINT

CAUTION:: ·

Wear protective gloves. Sharp areas on the parts may injure your hands.

·

There is risk of injury.

PROCEDURE

Hide Display 79977N 1.INSTALL SEATBACK FELT (w/o Seatback Board)

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Separate Seat Type)>REASSEMBLY202208,999999,_58,_078601,_0381328,RM1000000024I2K_03_0045,

Hide Display 71587L 2.INSTALL FRONT SEATBACK EDGE PROTECTOR

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Separate Seat Type)>REASSEMBLY202208,999999,_58,_078601,_0381328,RM1000000024I2K_03_0014,

Hide Display 3.INSTALL LUMBAR SUPPORT ADJUSTER ASSEMBLY

2.063,1.292 2.531,1.292 true 0.823,1.521 1.292,1.521 true 2.094,1.531 2.563,1.531 true 2.073,0.354 2.542,0.896 2.542,0.896 1.375,0.323 true 2.552,1.188 2.865,1.344 0.313,0.156 10 false *a 2.594,1.427 2.906,1.583 0.313,0.156 10 false *b 2.563,0.875 2.875,1.031 0.313,0.156 10 false *c 0.625,1.417 0.833,1.635 0.208,0.219 10 false *b

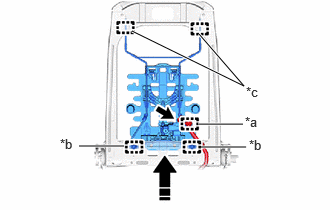

*a	Wire Harness Clamp
*b	Clamp
*c	Guide
	Install in this Direction

Attach the guide and install the lumbar support adjuster assembly RH as shown in the illustration.

Attach the clamp.

Attach the wire harness clamp and connect the connector of the front seat No. 3 wire RH.

Hide Display 4.INSTALL FRONT SEATBACK COVER WITH PAD

HINT:: Use the same procedure described for the LH side.; Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Separate Seat Type)>REASSEMBLY202208,999999,_58,_078601,_0381328,RM1000000024I2K_03_0018,

Hide Display 5.INSTALL FRONT SEATBACK ASSEMBLY

HINT:: Use the same procedure described for the LH side.; Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Separate Seat Type)>REASSEMBLY202208,999999,_58,_078601,_0381328,RM1000000024I2K_03_0020,

Hide Display 71705F 6.INSTALL FRONT SEATBACK BOARD SUB-ASSEMBLY RH (w/ Seatback Board)

HINT:: Use the same procedure described for the LH side.; Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Separate Seat Type)>REASSEMBLY202208,999999,_58,_078601,_0381328,RM1000000024I2K_03_0039,

Hide Display 71861K 7.INSTALL FRONT SEAT INNER CUSHION SHIELD RH

HINT:: Use the same procedure described for the LH side.; Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Separate Seat Type)>REASSEMBLY202208,999999,_58,_078601,_0381328,RM1000000024I2K_03_0023,

Hide Display 71811T 8.INSTALL FRONT SEAT CUSHION SHIELD RH

HINT:: Use the same procedure described for the LH side.; Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Separate Seat Type)>REASSEMBLY202208,999999,_58,_078601,_0381328,RM1000000024I2K_03_0025,

Hide Display 71848Q 9.INSTALL FRONT SEAT NO. 3 ADJUSTER COVER CAP RH

HINT:: Use the same procedure described for the LH side.; Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Separate Seat Type)>REASSEMBLY202208,999999,_58,_078601,_0381328,RM1000000024I2K_03_0026,

Hide Display 72525M 10.INSTALL RECLINING ADJUSTER RELEASE HANDLE RH

HINT:: Use the same procedure described for the LH side.; Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Separate Seat Type)>REASSEMBLY202208,999999,_58,_078601,_0381328,RM1000000024I2K_03_0027,

Hide Display 72551K 11.INSTALL RECLINING HINGE COVER RH

HINT:: Use the same procedure described for the LH side.; Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Separate Seat Type)>REASSEMBLY202208,999999,_58,_078601,_0381328,RM1000000024I2K_03_0028,

Hide Display 72494A 12.INSTALL FRONT SEAT VERTICAL ADJUSTER HANDLE RH

HINT:: Use the same procedure described for the LH side.; Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Separate Seat Type)>REASSEMBLY202208,999999,_58,_078601,_0381328,RM1000000024I2K_03_0029,

Hide Display 13.INSTALL FRONT SEAT ASSEMBLY RH

HINT:: Use the same procedure described for the LH side.; Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Separate Seat Type)>INSTALLATION201906,999999,_58,_078601,_0381328,RM100000001J8ZE,
