SEAT LUMBAR SUPPORT ADJUSTER ASSEMBLY(for Separate Seat Type) REMOVAL

CAUTION / NOTICE / HINT

CAUTION:: ·

Wear protective gloves. Sharp areas on the parts may injure your hands.

·

There is risk of injury.

PROCEDURE

Hide Display 1.REMOVE FRONT SEAT ASSEMBLY RH

HINT:: Use the same procedure described for the LH side.; Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Separate Seat Type)>REMOVAL201906,999999,_58,_078601,_0381328,RM100000001J8ZD,

Hide Display 72494A 2.REMOVE FRONT SEAT VERTICAL ADJUSTER HANDLE RH

HINT:: Use the same procedure described for the LH side.; Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Separate Seat Type)>DISASSEMBLY202208,999999,_58,_078601,_0381328,RM1000000024I2J_02_0006,

Hide Display 72551K 3.REMOVE RECLINING HINGE COVER RH

HINT:: Use the same procedure described for the LH side.; Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Separate Seat Type)>DISASSEMBLY202208,999999,_58,_078601,_0381328,RM1000000024I2J_02_0007,

Hide Display 72525M 4.REMOVE RECLINING ADJUSTER RELEASE HANDLE RH

HINT:: Use the same procedure described for the LH side.; Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Separate Seat Type)>DISASSEMBLY202208,999999,_58,_078601,_0381328,RM1000000024I2J_02_0008,

Hide Display 71848Q 5.REMOVE FRONT SEAT NO. 3 ADJUSTER COVER CAP RH

HINT:: Use the same procedure described for the LH side.; Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Separate Seat Type)>DISASSEMBLY202208,999999,_58,_078601,_0381328,RM1000000024I2J_02_0009,

Hide Display 71811T 6.REMOVE FRONT SEAT CUSHION SHIELD RH

HINT:: Use the same procedure described for the LH side.; Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Separate Seat Type)>DISASSEMBLY202208,999999,_58,_078601,_0381328,RM1000000024I2J_02_0020,

Hide Display 71861K 7.REMOVE FRONT SEAT INNER CUSHION SHIELD RH

HINT:: Use the same procedure described for the LH side.; Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Separate Seat Type)>DISASSEMBLY202208,999999,_58,_078601,_0381328,RM1000000024I2J_02_0031,

Hide Display 71705F 8.REMOVE FRONT SEATBACK BOARD SUB-ASSEMBLY RH (w/ Seatback Board)

HINT:: Use the same procedure described for the LH side.; Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Separate Seat Type)>DISASSEMBLY202208,999999,_58,_078601,_0381328,RM1000000024I2J_02_0043,

Hide Display 9.REMOVE FRONT SEATBACK ASSEMBLY

HINT:: Use the same procedure described for the LH side.; Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Separate Seat Type)>DISASSEMBLY202208,999999,_58,_078601,_0381328,RM1000000024I2J_02_0013,

Hide Display 10.REMOVE FRONT SEATBACK COVER WITH PAD

HINT:: Use the same procedure described for the LH side.; Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Separate Seat Type)>DISASSEMBLY202208,999999,_58,_078601,_0381328,RM1000000024I2J_02_0044,

Hide Display 72750G 11.REMOVE LUMBAR SUPPORT ADJUSTER ASSEMBLY RH

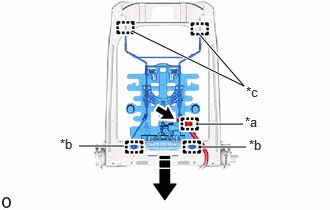

2.063,1.292 2.531,1.292 true 0.823,1.521 1.292,1.521 true 2.094,1.531 2.563,1.531 true 2.073,0.354 2.542,0.896 2.542,0.896 1.375,0.323 true 2.552,1.188 2.865,1.344 0.313,0.156 10 false *a 2.594,1.427 2.906,1.583 0.313,0.156 10 false *b 2.563,0.875 2.875,1.031 0.313,0.156 10 false *c 0.625,1.417 0.833,1.635 0.208,0.219 10 false *b

*a	Wire Harness Clamp
*b	Clamp
*c	Guide
	Remove in this Direction

Detach the wire harness clamp and disconnect the connector of the front seat No. 3 wire RH.

Detach the clamp.

Detach the guide and remove the lumbar support adjuster assembly RH as shown in the illustration.

Hide Display 71587L 12.REMOVE FRONT SEATBACK EDGE PROTECTOR

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Separate Seat Type)>DISASSEMBLY202208,999999,_58,_078601,_0381328,RM1000000024I2J_02_0018,

Hide Display 79977N 13.REMOVE SEATBACK FELT (w/o Seatback Board)

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Separate Seat Type)>DISASSEMBLY202208,999999,_58,_078601,_0381328,RM1000000024I2J_02_0050,
