SEAT LUMBAR SUPPORT ADJUSTER ASSEMBLY(for Power Seat) INSTALLATION

CAUTION / NOTICE / HINT

CAUTION:: ·

Wear protective gloves. Sharp areas on the parts may injure your hands.

·

There is risk of injury.

PROCEDURE

Hide Display 71759E 1.INSTALL FRONT SEATBACK HOOK RH

HINT:: Use the same procedure described for the LH side.; Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Power Seat)>REASSEMBLY202208,999999,_58,_078601,_0396271,RM1000000024I2D_05_0047,

Hide Display 71587K 2.INSTALL FRONT SEATBACK EDGE PROTECTOR RH

HINT:: Use the same procedure described for the LH side.; Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Power Seat)>REASSEMBLY202208,999999,_58,_078601,_0396271,RM1000000024I2D_05_0048,

Hide Display 72750G 3.INSTALL LUMBAR SUPPORT ADJUSTER ASSEMBLY RH

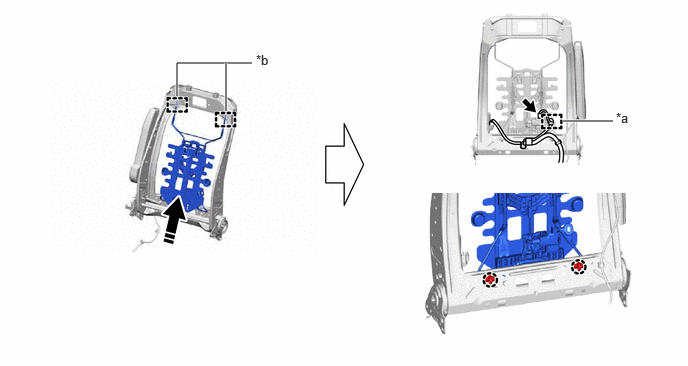

Attach the guide as shown in the illustration.

1.844,1 1.844,0.656 1.844,0.656 2.625,0.656 true 2.354,1.156 2.354,0.656 true 6.385,1.26 5.865,1.26 true 6.417,1.146 6.729,1.344 0.313,0.198 10 false *a 2.667,0.542 2.979,0.74 0.313,0.198 10 false *b

*a	Clamp	*b	Guide
	Install in this Direction	-	-

Attach the claw and install the lumbar support adjuster assembly RH.

Connect the connector and attach the clamp.

Hide Display 4.INSTALL SEPARATE TYPE FRONT SEATBACK COVER WITH PAD

HINT:: Use the same procedure described for the LH side.; Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Power Seat)>REASSEMBLY202208,999999,_58,_078601,_0396271,RM1000000024I2D_05_0055,

Hide Display 5.INSTALL SEPARATE TYPE FRONT SEATBACK ASSEMBLY

HINT:: Use the same procedure described for the LH side.; Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Power Seat)>REASSEMBLY202208,999999,_58,_078601,_0396271,RM1000000024I2D_05_0056,

Hide Display 71705F 6.INSTALL FRONT SEATBACK BOARD SUB-ASSEMBLY RH

HINT:: Use the same procedure described for the LH side.; Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Power Seat)>REASSEMBLY202208,999999,_58,_078601,_0396271,RM1000000024I2D_05_0076,

Hide Display 71811T 7.INSTALL FRONT SEAT CUSHION SHIELD RH

HINT:: Use the same procedure described for the LH side.; Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Power Seat)>REASSEMBLY202208,999999,_58,_078601,_0396271,RM1000000024I2D_05_0061,

Hide Display 71861K 8.INSTALL FRONT SEAT INNER CUSHION SHIELD RH

HINT:: Use the same procedure described for the LH side.; Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Power Seat)>REASSEMBLY202208,999999,_58,_078601,_0396271,RM1000000024I2D_05_0057,

Hide Display 9.INSTALL FRONT SEAT ASSEMBLY RH

HINT:: Use the same procedure described for the LH side.; Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Power Seat)>INSTALLATION201906,999999,_58,_078601,_0396271,RM100000001IGPO,
